RAPID REEL RACK R2RR66324, R2RR3324 & R2RRM3324
IMPORTANT - ASSEMBLY INSTRUCTIONS
AIW010

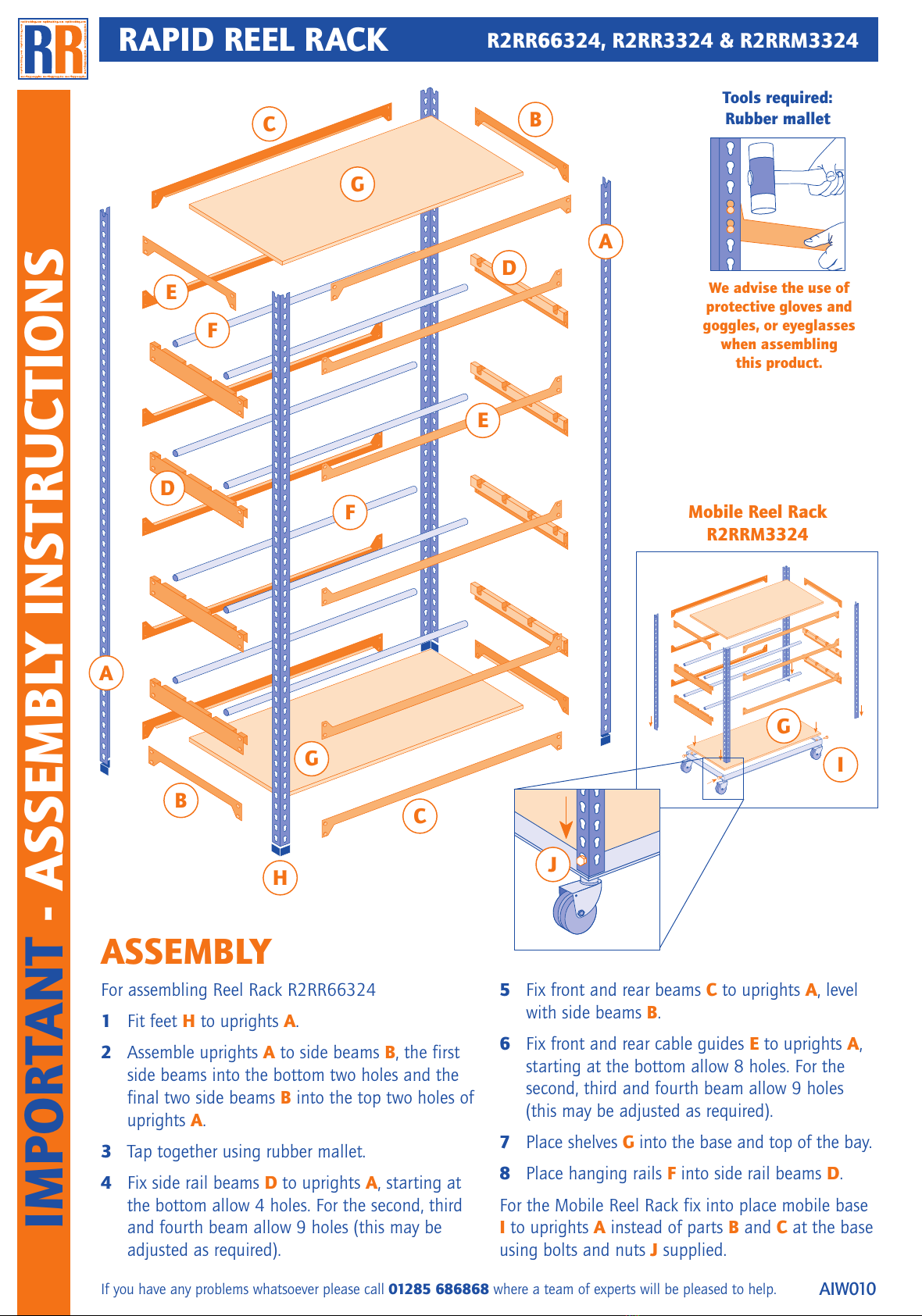

For assembling Reel Rack R2RR66324
1Fit feet Hto uprights A.
2Assemble uprights Ato side beams B, the first
side beams into the bottom two holes and the
final two side beams Binto the top two holes of
uprights A.
3Tap together using rubber mallet.
4Fix side rail beams Dto uprights A, starting at
the bottom allow 4 holes. For the second, third
and fourth beam allow 9 holes (this may be
adjusted as required).
5Fix front and rear beams Cto uprights A, level
with side beams B.
6Fix front and rear cable guides Eto uprights A,
starting at the bottom allow 8 holes. For the
second, third and fourth beam allow 9 holes
(this may be adjusted as required).
7Place shelves Ginto the base and top of the bay.
8Place hanging rails Finto side rail beams D.
For the Mobile Reel Rack fix into place mobile base
Ito uprights Ainstead of parts Band Cat the base
using bolts and nuts Jsupplied.
ASSEMBLY
We advise the use of
protective gloves and
goggles, or eyeglasses
when assembling
this product.
Tools required:
Rubber mallet
A
If you have any problems whatsoever please call 01285 686868 where a team of experts will be pleased to help.
Mobile Reel Rack
R2RRM3324
A
B
B
C
C
D
D
G
G
F
F
H
I
E
E
J
G
All manuals and user guides at all-guides.com
If you have any problems whatsoever please call 01285 686868 where a team of experts will be pleased to help.
Uprights
COMPONENTS
RAPID REEL RACK R2RR66324, R2RR3324 & R2RRM3324
IMPORTANT - ASSEMBLY INSTRUCTIONS
AIW010
A
Keep heavier items
on the bottom shelves
Do not climb
on your shelving
Make sure it is on a
level and even floor
Keep your
shelving dry
BSide beams
610 mm
SAFETY
915 mm, 990mm
and 1980mm
CFront and rear beams
915 mm
DSide rail beams
610 mm
EFront and rear
cable guides
915 mm
FHanging rails
915 mm
GMDF shelves
HFeet
IMobile base
JBolts and
nuts
Rapid Reel Racks, Component Check
R2RR66324 R2RR3324 R2RRM3324
Uprights ‘A’ 444
Side Beams ‘B’ 442
Front/Rear Beams ‘C’ 442
Side Rail Beams ‘D’ 844
Front/Rear Cable Guides ‘E’ 844
Hanging Rails ‘F’ 844
MDF Shelf ‘G’ 222
Feet ‘H’ 440
Mobile Base ‘I’ 001
Bolts and Nuts ‘J’ 004
915 mm H x 610mm D
