Transducers

for

Fishfinders

Owner’s

Handbook

Documentnumber:81196_2

Date:August2002

All manuals and user guides at all-guides.com

all-guides.com

All manuals and user guides at all-guides.com

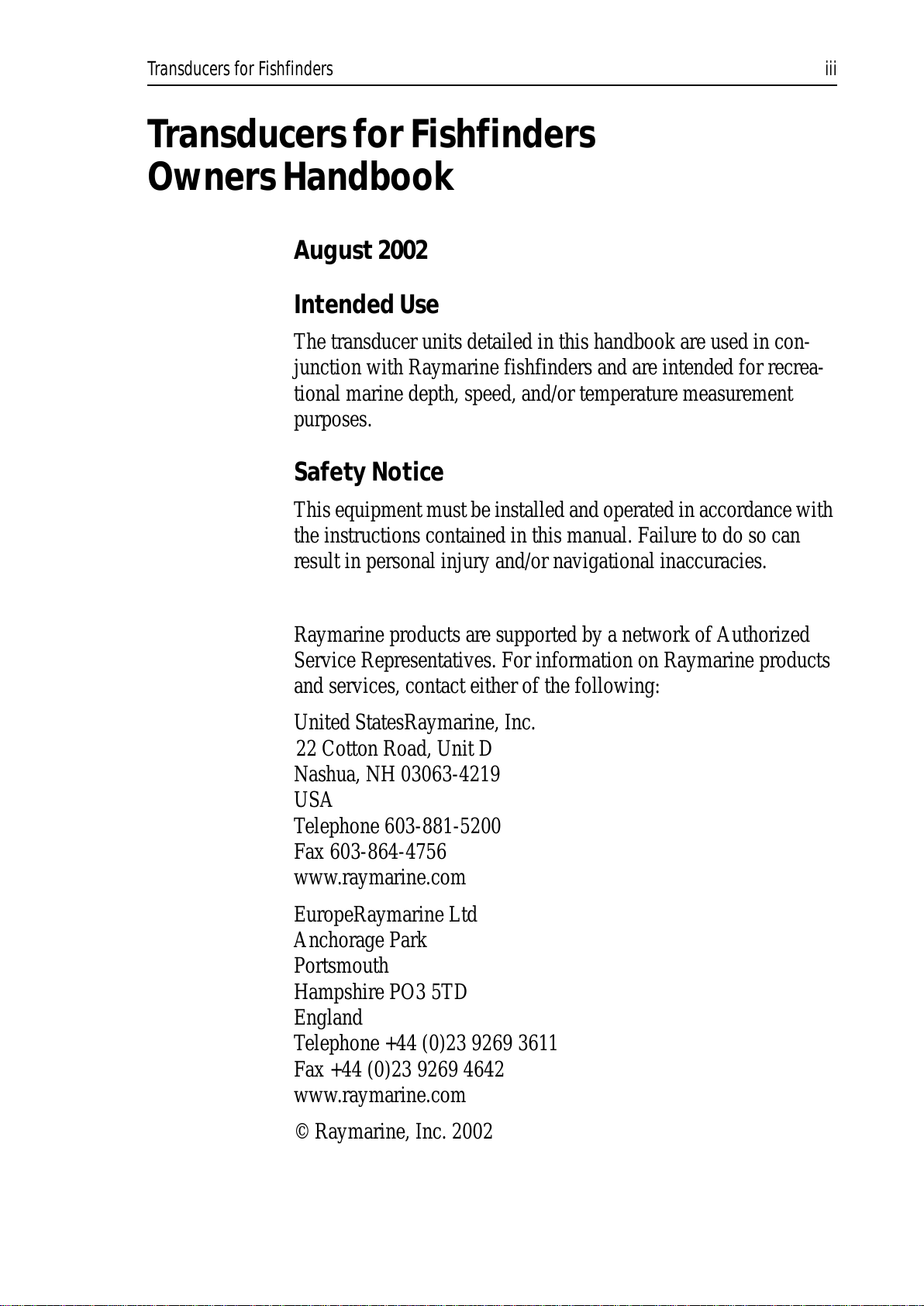

Transducers for Fishfinders iii

TransducersforFishfinders

OwnersHandbook

August2002

IntendedUse

The transducer units detailed in this handbook are used in con-

junction with Raymarine fishfinders and are intended for recrea-

tional marine depth, speed, and/or temperature measurement

purposes.

SafetyNotice

This equipment must be installed and operated in accordance with

the instructions contained in this manual. Failure to do so can

result in personal injury and/or navigational inaccuracies.

Raymarine products are supported by a network of Authorized

Service Representatives. For information on Raymarine products

and services, contact either of the following:

United StatesRaymarine, Inc.

22 Cotton Road, Unit D

Nashua, NH 03063-4219

USA

Telephone 603-881-5200

Fax 603-864-4756

www.raymarine.com

EuropeRaymarine Ltd

Anchorage Park

Portsmouth

Hampshire PO3 5TD

England

Telephone +44 (0)23 9269 3611

Fax +44 (0)23 9269 4642

www.raymarine.com

All manuals and user guides at all-guides.com

iv Transducers for Fishfinders

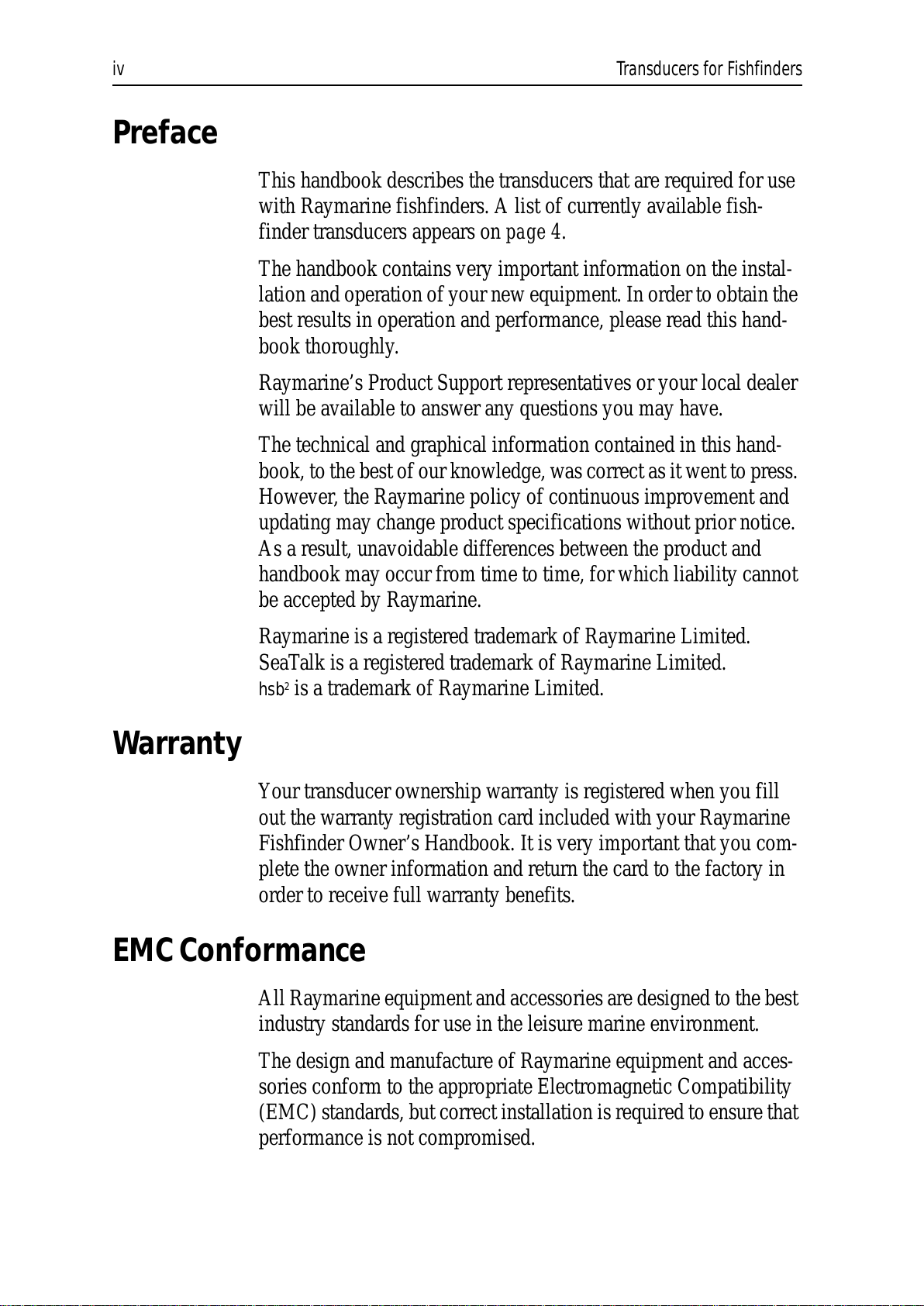

Preface

This handbook describes the transducers that are required for use

with Raymarine fishfinders. A list of currently available fish-

finder transducers appears on page 4.

The handbook contains very important information on the instal-

lation and operation of your new equipment. In order to obtain the

best results in operation and performance, please read this hand-

book thoroughly.

Raymarine’s Product Support representatives or your local dealer

will be available to answer any questions you may have.

The technical and graphical information contained in this hand-

book, to the best of our knowledge, was correct as it went to press.

However, the Raymarine policy of continuous improvement and

updating may change product specifications without prior notice.

As a result, unavoidable differences between the product and

handbook may occur from time to time, for which liability cannot

be accepted by Raymarine.

Raymarine is a registered trademark of Raymarine Limited.

SeaTalk is a registered trademark of Raymarine Limited.

hsb2is a trademark of Raymarine Limited.

Warranty

Your transducer ownership warranty is registered when you fill

out the warranty registration card included with your Raymarine

Fishfinder Owner’s Handbook. It is very important that you com-

plete the owner information and return the card to the factory in

order to receive full warranty benefits.

EMCConformance

All Raymarine equipment and accessories are designed to the best

industry standards for use in the leisure marine environment.

The design and manufacture of Raymarine equipment and acces-

sories conform to the appropriate Electromagnetic Compatibility

(EMC) standards, but correct installation is required to ensure that

performance is not compromised.

All manuals and user guides at all-guides.com

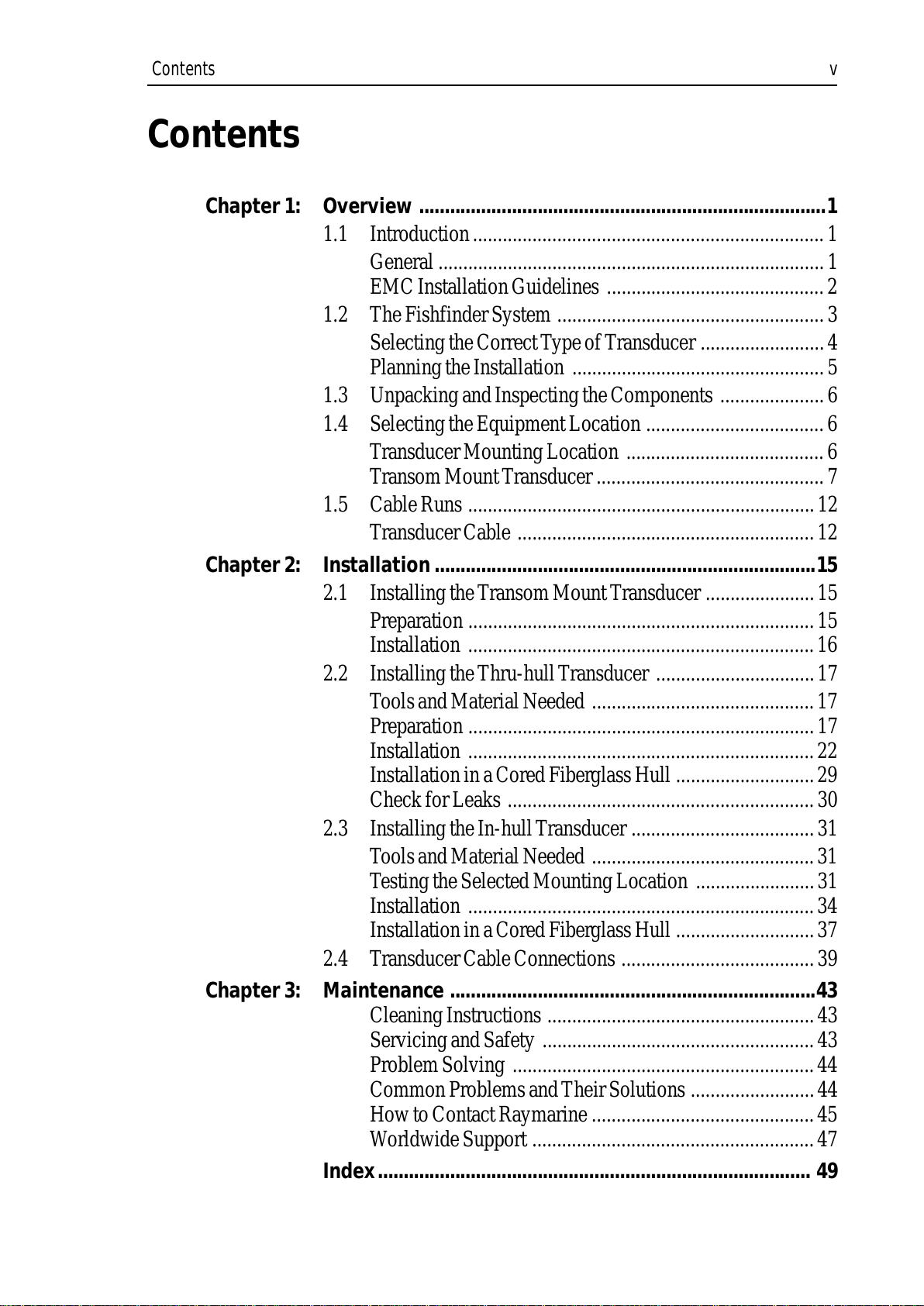

Contents v

Contents

Chapter 1: Overview ...............................................................................1

1.1 Introduction.......................................................................1

General ..............................................................................1

EMC Installation Guidelines ............................................2

1.2 TheFishfinderSystem ......................................................3

Selecting the Correct Type of Transducer .........................4

Planning the Installation ...................................................5

1.3 Unpacking andInspecting the Components .....................6

1.4 Selecting the Equipment Location ....................................6

Transducer Mounting Location ........................................ 6

Transom Mount Transducer .............................................. 7

1.5 CableRuns ......................................................................12

TransducerCable ............................................................12

Chapter 2: Installation..........................................................................15

2.1 Installing the Transom Mount Transducer ......................15

Preparation ......................................................................15

Installation ......................................................................16

2.2 Installing the Thru-hull Transducer ................................17

Tools and Material Needed .............................................17

Preparation ......................................................................17

Installation ......................................................................22

Installation in a Cored Fiberglass Hull ............................29

Check for Leaks .............................................................. 30

2.3 Installing the In-hull Transducer .....................................31

Tools and Material Needed .............................................31

Testing the Selected Mounting Location ........................31

Installation ......................................................................34

Installation in a Cored Fiberglass Hull ............................37

2.4 Transducer CableConnections .......................................39

Chapter 3: Maintenance .......................................................................43

Cleaning Instructions ......................................................43

Servicing and Safety .......................................................43

Problem Solving ............................................................. 44

Common Problems andTheir Solutions .........................44

How to Contact Raymarine .............................................45

WorldwideSupport .........................................................47

Index.................................................................................... 49

All manuals and user guides at all-guides.com

vi Transducers for Fishfinders

All manuals and user guides at all-guides.com

all-guides.com

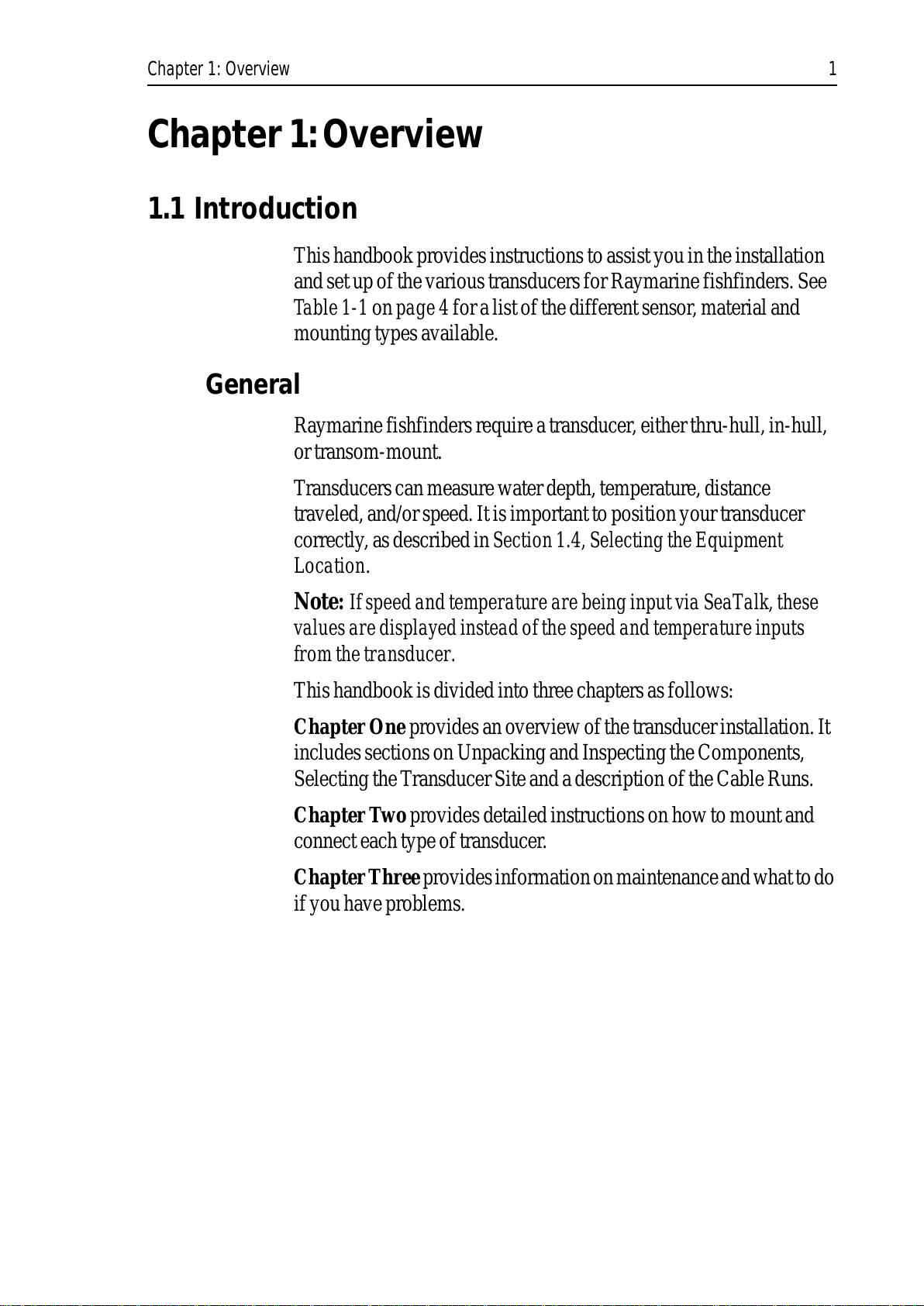

Chapter 1: Overview 1

Chapter1:Overview

1.1 Introduction

This handbook provides instructions to assist you in the installation

and set up of the various transducers for Raymarine fishfinders.See

Table1-1 onpage 4for a list of the different sensor, material and

mounting types available.

General

Raymarine fishfinders require atransducer, eitherthru-hull,in-hull,

ortransom-mount.

Transducers can measure water depth, temperature, distance

traveled, and/or speed. It is important to position your transducer

correctly, as described in Section1.4, Selecting the Equipment

Location.

Note:If speed and temperatureare beinginput via SeaTalk, these

values are displayed instead of the speed and temperature inputs

from the transducer.

This handbook is divided into three chaptersas follows:

Chapter One provides an overview of the transducer installation.It

includessections on Unpacking and Inspecting the Components,

Selecting theTransducerSiteand a descriptionof theCableRuns.

Chapter Twoprovides detailed instructionson how to mount and

connect each type of transducer.

ChapterThreeprovidesinformationonmaintenanceandwhattodo

if you have problems.

All manuals and user guides at all-guides.com

2 Transducers for Fishfinders

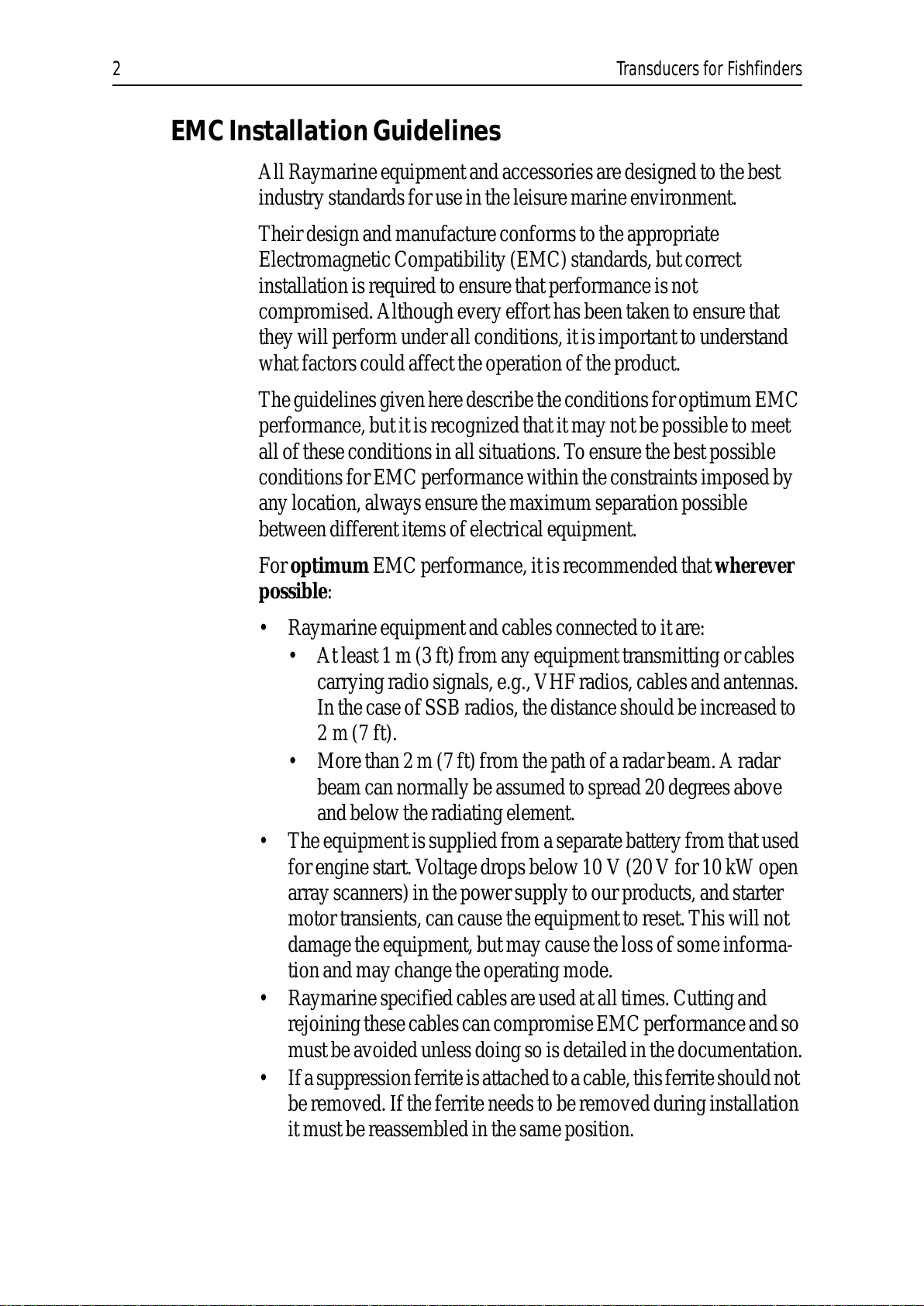

EMCInstallationGuidelines

All Raymarine equipment and accessories are designed to thebest

industry standardsfor usein theleisuremarineenvironment.

Their design and manufacture conformsto the appropriate

Electromagnetic Compatibility (EMC) standards, but correct

installation is required to ensure that performance isnot

compromised. Although every efforthas been taken to ensure that

they willperform under all conditions,it isimportant to understand

what factors could affect the operation of the product.

TheguidelinesgivenheredescribetheconditionsforoptimumEMC

performance, butit is recognized that itmay not be possible to meet

all ofthese conditions in all situations. To ensurethe best possible

conditions for EMC performance within the constraints imposed by

any location,always ensure the maximum separation possible

between different items of electrical equipment.

For optimumEMC performance, it is recommended that wherever

possible:

•Raymarine equipment and cables connected to it are:

•At least 1 m (3 ft) from any equipment transmitting or cables

carrying radio signals,e.g., VHF radios, cables andantennas.

In the case of SSB radios, the distanceshould be increased to

2 m (7 ft).

•More than 2 m (7 ft) from the path of a radar beam. A radar

beam can normally be assumed to spread 20 degrees above

andbelowtheradiatingelement.

•Theequipment issuppliedfroma separatebattery fromthatused

for engine start. Voltage drops below 10 V (20 V for 10 kW open

arrayscanners) inthe powersupplytoour products,and starter

motor transients, can cause the equipment to reset.This will not

damage theequipment,but may causethe loss of some informa-

tion and may change theoperating mode.

•Raymarine specified cables are used at all times. Cutting and

rejoiningthesecablescancompromiseEMCperformanceandso

must beavoided unless doing so is detailedin thedocumentation.

•Ifasuppressionferriteisattachedtoacable,thisferriteshouldnot

be removed.If the ferrite needs to beremoved during installation

it must be reassembled inthe sameposition.

All manuals and user guides at all-guides.com

Chapter 1: Overview 3

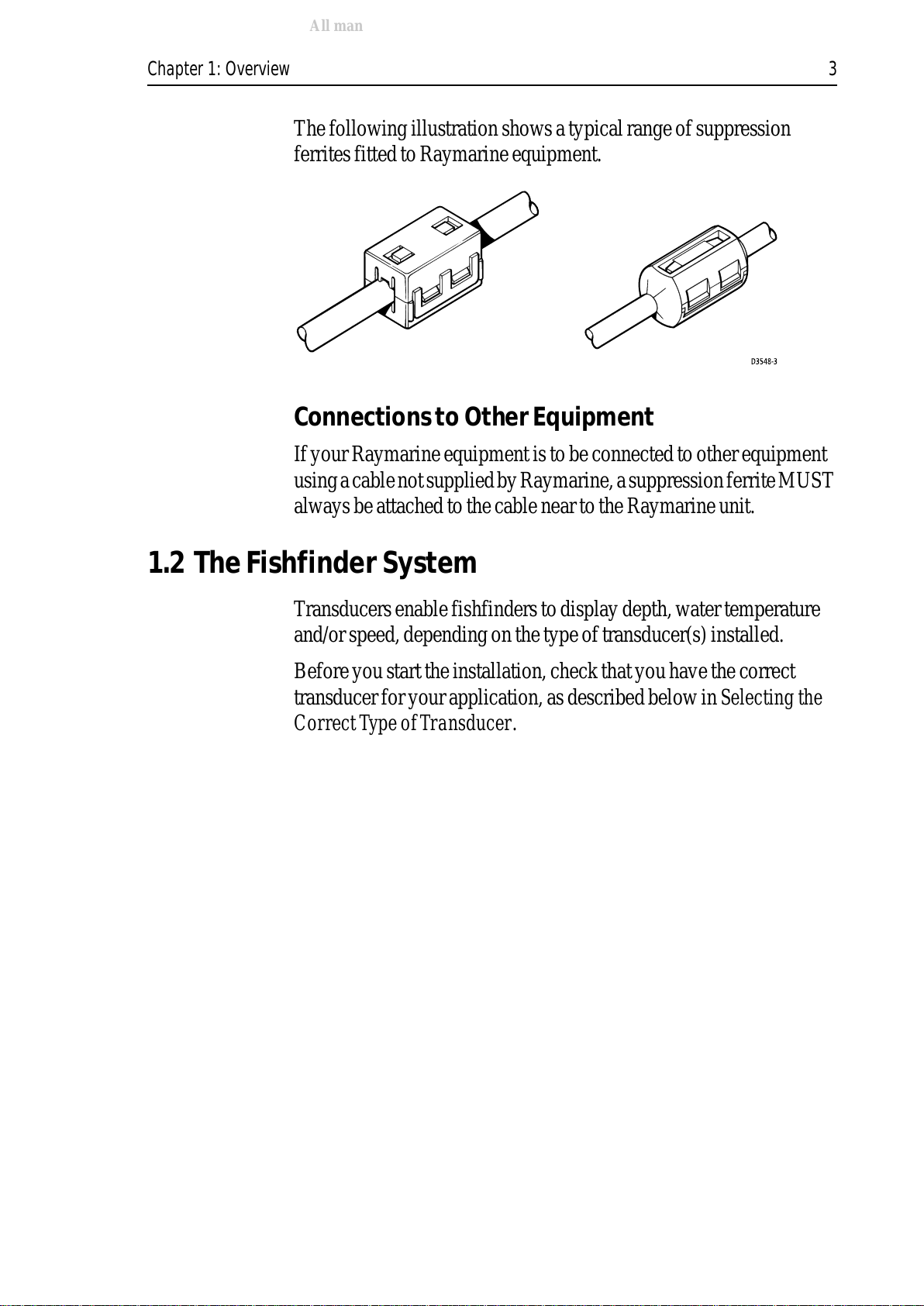

The following illustration shows a typicalrange of suppression

ferrites fitted to Raymarine equipment.

Connections toOtherEquipment

If your Raymarine equipment is to beconnected to other equipment

usingacablenotsuppliedbyRaymarine,asuppressionferriteMUST

always be attached to the cable near to the Raymarine unit.

1.2 TheFishfinderSystem

Transducers enable fishfinders to display depth, water temperature

and/or speed, depending on the typeof transducer(s) installed.

Beforeyou start the installation, check that youhave the correct

transducer for your application, as described below in Selecting the

Correct Type of Transducer.

D3548-3

All manuals and user guides at all-guides.com

4 Transducers for Fishfinders

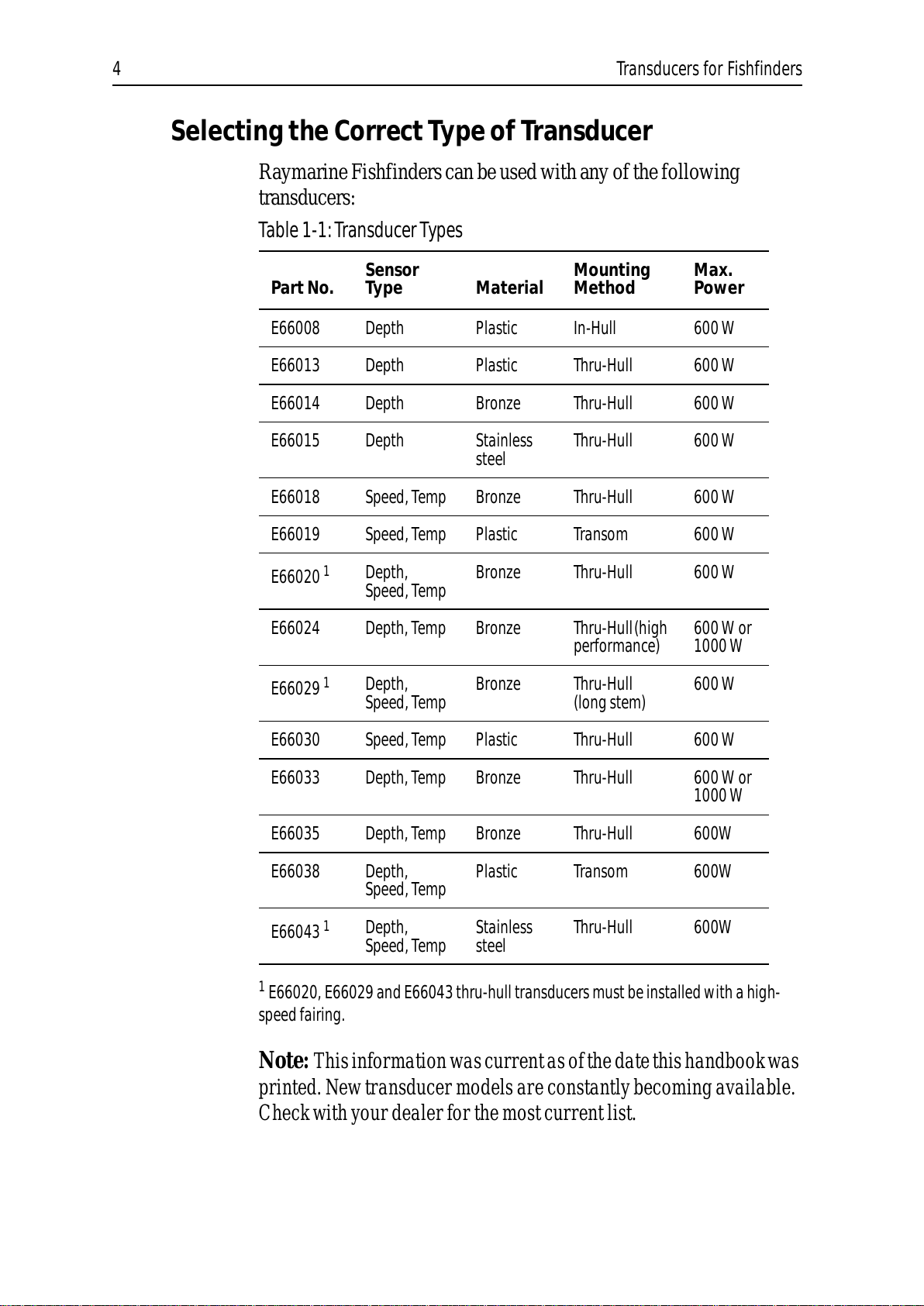

SelectingtheCorrectTypeofTransducer

RaymarineFishfinderscan beusedwithany ofthe following

transducers:

1E66020,E66029andE66043thru-hulltransducersmustbeinstalledwithahigh-

speedfairing.

Note:Thisinformationwascurrentasofthedatethishandbookwas

printed. New transducer models are constantly becomingavailable.

Check with yourdealer for the most current list.

Table1-1:TransducerTypes

Part No. Sensor

Type Material Mounting

Method Max.

Power

E66008 Depth Plastic In-Hull 600W

E66013 Depth Plastic Thru-Hull 600W

E66014 Depth Bronze Thru-Hull 600W

E66015 Depth Stainless

steel Thru-Hull 600W

E66018 Speed,Temp Bronze Thru-Hull 600W

E66019 Speed,Temp Plastic Transom 600W

E660201

Depth,

Speed,Temp Bronze Thru-Hull 600W

E66024 Depth,Temp Bronze Thru-Hull(high

performance) 600Wor

1000W

E660291Depth,

Speed,Temp Bronze Thru-Hull

(longstem) 600W

E66030 Speed,Temp Plastic Thru-Hull 600W

E66033 Depth,Temp Bronze Thru-Hull 600Wor

1000W

E66035 Depth,Temp Bronze Thru-Hull 600W

E66038 Depth,

Speed,Temp Plastic Transom 600W

E660431Depth,

Speed,Temp Stainless

steel Thru-Hull 600W

All manuals and user guides at all-guides.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Raymarine Angelausrüstung Handbücher

Raymarine

Raymarine DRAGONFLY Ice Fishing Kit Bedienungsanleitung

Beliebte Angelausrüstung Handbücher anderer Marken

Kongsberg

Kongsberg Simrad SY50 Bedienungsanleitung

Cannon

Cannon Magnum 5 ST Bedienungsanleitung

Jiffy

Jiffy Pro4 Lite Bedienungsanleitung

Fishmaster

Fishmaster Pro Series Kurzanleitung

MIVARDI

MIVARDI Carp Scout XL Bedienungsanleitung

FLAJZAR

FLAJZAR FISHTRON CatFish TX3 Bedienungs- und Wartungshandbuch

Milwaukee

Milwaukee 2873-20 Bedienungsanleitung

VEXILAR

VEXILAR FL-8SLT Bedienungsanleitung

Fishmaster

Fishmaster Casting Platform Kurzanleitung

Marcum Technologies

Marcum Technologies PanCam Bedienungsanleitung

Harmony

Harmony SlideTrax 8023061 Bedienungsanleitung

Quantum

Quantum Baitcast Reel Bedienungsanleitung

K-Drill

K-Drill Ice Auger Bedienungsanleitung

FISHING SPECIALTIES

FISHING SPECIALTIES Bowducer Bedienungsanleitung

Fox

Fox Receiver Bedienungsanleitung

Abu Garcia

Abu Garcia REVO MGX Bedienungsanleitung

Daiwa

Daiwa TanacomBull 1000 Bedienungsanleitung

Sealey

Sealey HP01 Bedienungsanleitung
