Razer CYCLOSA Gebrauchs- und Pflegehandbuch
Designed from the ground up to provide you with the most reliable, robust keyboard with all the
essentials but without any unnecessary clutter, the spill-proof Razer Cyclosa features the familiar feel of
short-stroke keys. Fully programmable keys with macro capability, easy-to-reach media keys and
adjustable height to change the angle of your keyboard to your preference make the Razer Cyclosa a
straight-forward solution for your gaming needs.
MASTER GUIDE
CONTENTS
1. Package Contents/ System Requirements / Registration
2. Connecting Your Razer Cyclosa
3. Key Features
4. Configuring Your Razer Cyclosa
5. Using Your Razer Cyclosa
6. Software Update and Reset
7. Safety and Maintenance
8. Legalese
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS / REGISTRATION
PACKAGE CONTENTS
Razer Cyclosa Gaming Keyboard
Quick Start Guide
SYSTEM REQUIREMENTS
PC with USB ports
Windows® 7 / Windows Vista® / Windows® XP
Internet connection (for driver installation)
35MB of free hard disk space
REGISTRATION
Please visit www.razerzone.com/registration/ for online product registration.
What you’ll get:
• 1 year limited manufacturer’s warranty for the Razer Cyclosa
•Access to manual and free online technical support at www.razersupport.com

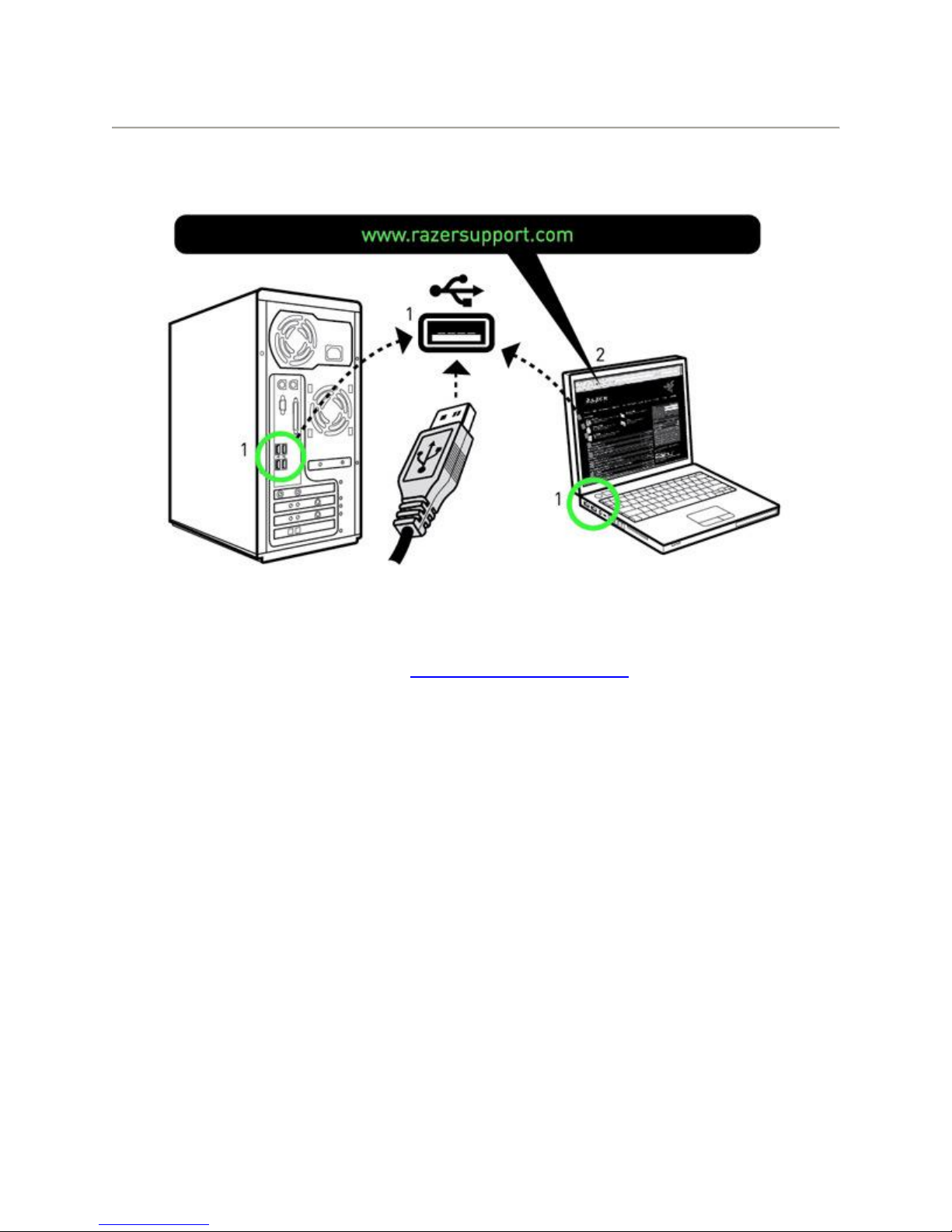

2. CONNECTING YOUR RAZER CYCLOSA
WINDOWS® 7 / WINDOWS VISTA® / WINDOWS® XP INSTALLATION INSTRUCTIONS
Step 1: Plug your Razer Cyclosa into the USB port of your computer.
Step 2: Download the Driver Installer from http://www.razersupport.com/
Step 3: Run the installer.
Step 4: Choose setup language. Click OK to proceed.
Step 5: The Razer Cyclosa setup screen appears. Click NEXT to proceed.
Step 6: Read the license agreement. If you agree to all the terms, select “I accept the terms in the license
agreement”. Click NEXT to proceed.
Step 7: Enter your User Name and Organization. Click NEXT to proceed.
Step 8: Choose your installation setup. Click NEXT to proceed.
Step 9: If everything is correct. Click INSTALL to begin installation.
Step 10: At the end of the installation, click FINISH to complete the installation.
Step 11: Follow the instructions onscreen to restart your computer. Click YES.
3. RAZER CYCLOSA KEY FEATURES
A. 1000Hz (1ms) response time
B. Media keys
C. Gaming Mode
D. On-The-Fly Macro Recording
E. Sleep Mode
4. CONFIGURING YOUR RAZER CYCLOSA
DRIVER FEATURES
The features listed here require the Razer Cyclosa Configurator to be installed and the Razer Cyclosa
Tray Icon to be active. Each setting will be saved to the current profile on the current machine only. The
current profile is shown under Profile in the Razer Cyclosa Configurator.
CONFIGURATOR OVERVIEW
ASSIGN KEYS TAB
In the Assign Keys tab, you can assign various functions to each of the keys based on your own
preferences. The key can be programmed using the following functions:
Default key –Revert to the default function of the key.
Single key –Change the function of the key to another.
Macro Playback –Assign a macro to the key.
Profile Switch –Assign a profile to the key for quick profile change.
Launch Program –Activate a program with the key.
Note: All keys are programmable except for “Fn” key.
Make use of the Current Profile drop down menu to switch between different profiles during key
assignment.

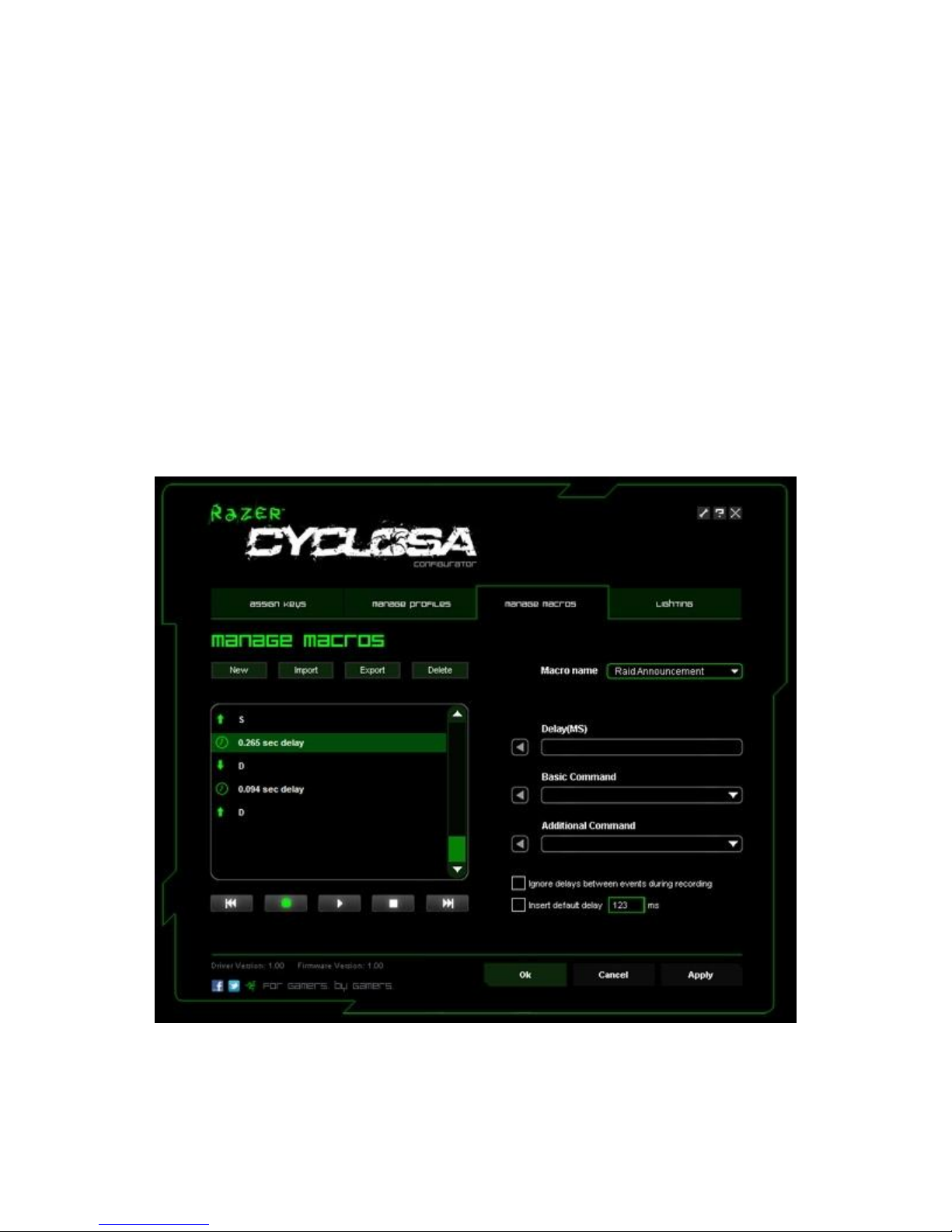

MANAGE MACROS TAB
In the Manage Macros tab, you can record unlimited keystrokes (dependent on your storage resources).
These macros can also be imported and exported onto your hard disk for future usage.
a. Macro Entry: Enter your macro in the Macro Entry box. You can even choose to insert a delay
time and/or a mouse-button press.
b. Delay (ms): Choose the amount of delay to be inserted between keystrokes of your macro.
c. Basic Commands: A list of basic commands in Windows OS that can be inserted between
keystrokes of your macro.
d. Additional Commands: Another list of basic commands in Windows OS that can be inserted
between keystrokes of your macro.
You can ignore delays between events during recording by clicking on the checkbox in the Manage
Macro tab.
You can specify a fixed default delay timing to be used in between events of a macro by clicking on the
respective checkbox before recording.
Right-clicking inside the Macro window allows you quick access to a list of extra commands for inserting
or editing in-between the keystrokes of your macro.

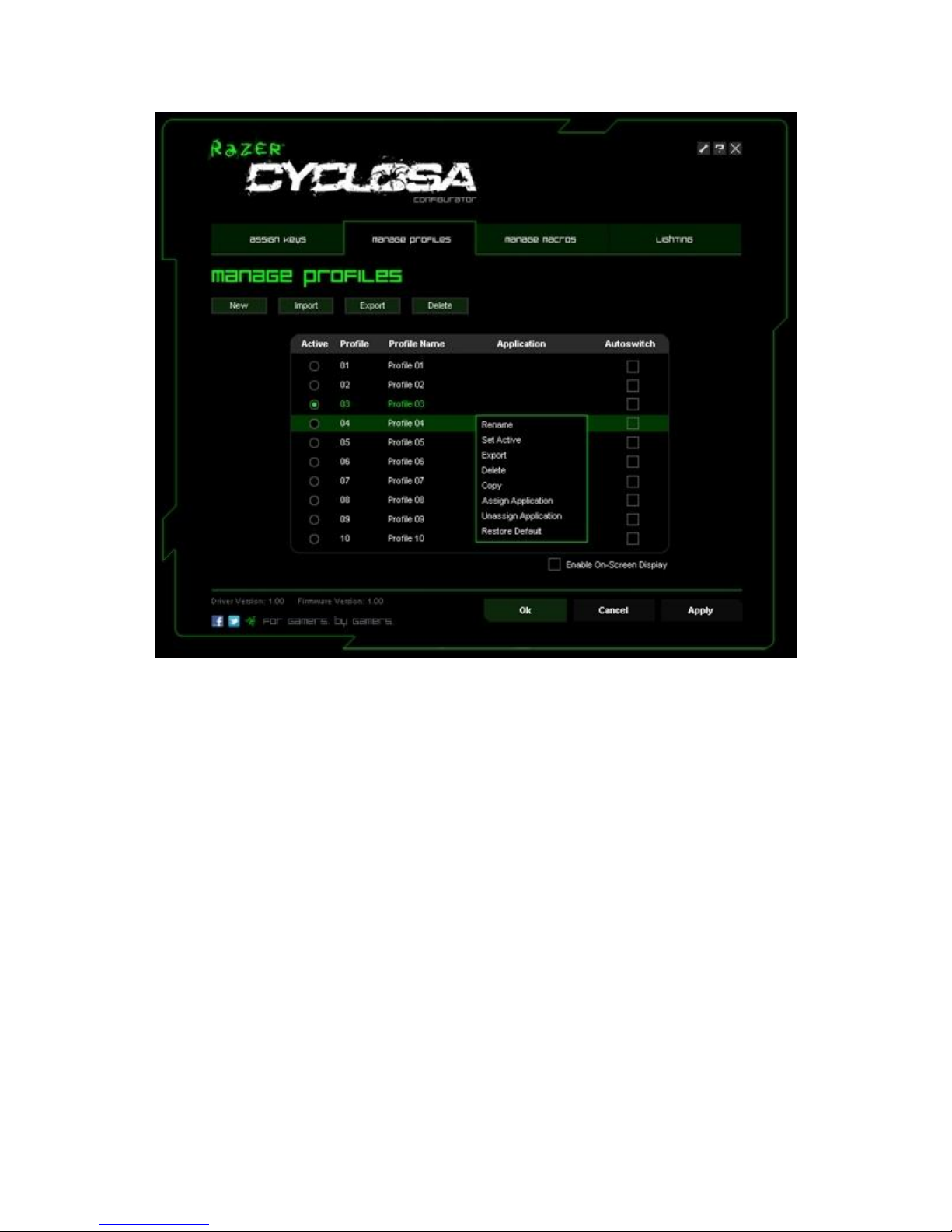

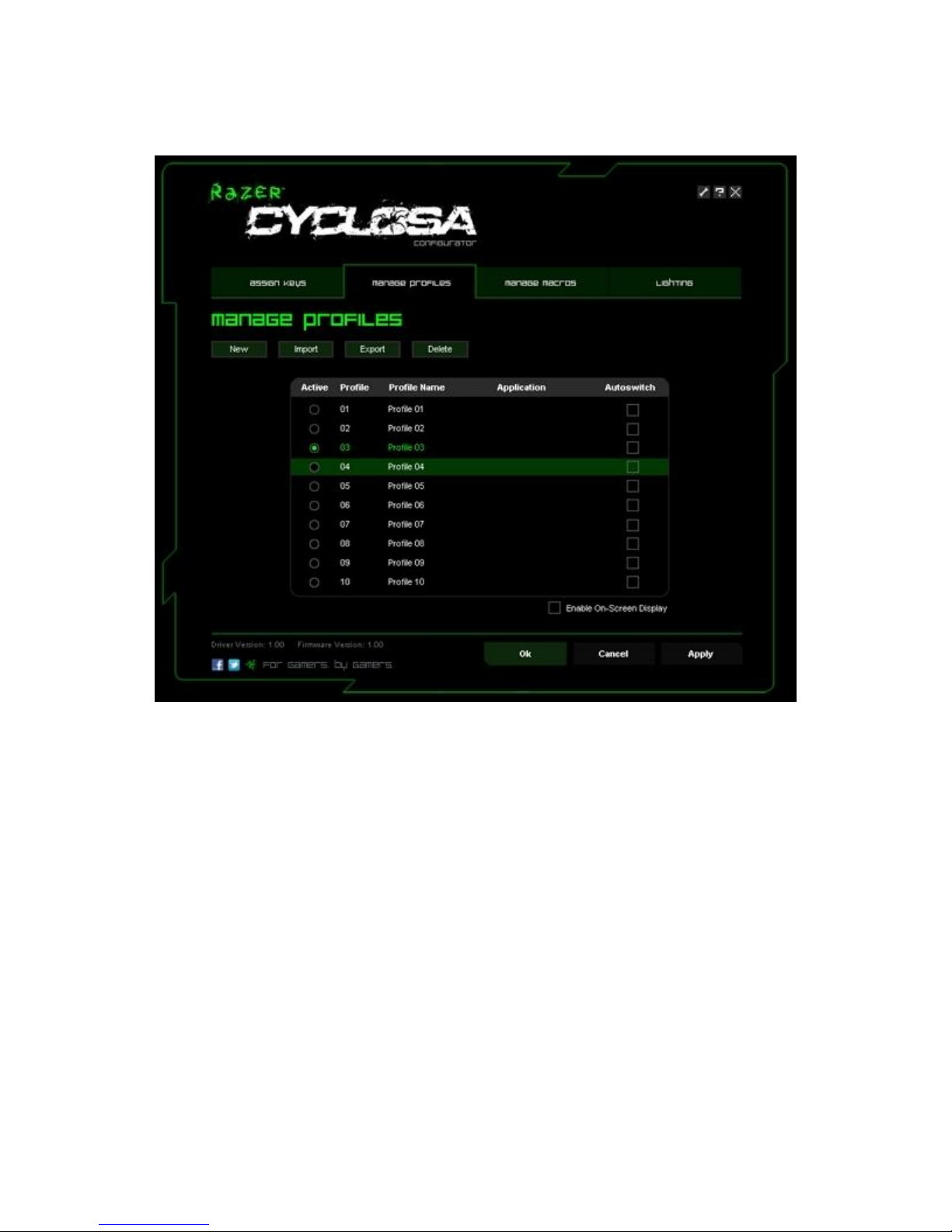

MANAGE PROFILES TAB
In the Manage Profiles tab, you can create and launch customized profiles based on the application you
have activated. Up to 10 profiles can be saved on your current machine.
a. Current: Indicates the current active profile.
b. Profile: Indicates the profile number.
c. Profile Name: Right-click on this row and select “Rename” to enter a profile name of your choice.
d. Application: Right-click on this row and select “Assign Application” to open up the directory browsing.
Select the executable file of the program you want the profile to be tied to.
e. Auto Switch: Select this option to activate the current profile as an On-The-Fly profile.
Check the Enable On-Screen Display box to show your profile name when the profile is activated.
Right-clicking inside the Manage Profiles tab allows you to quickly access a list of extra commands.

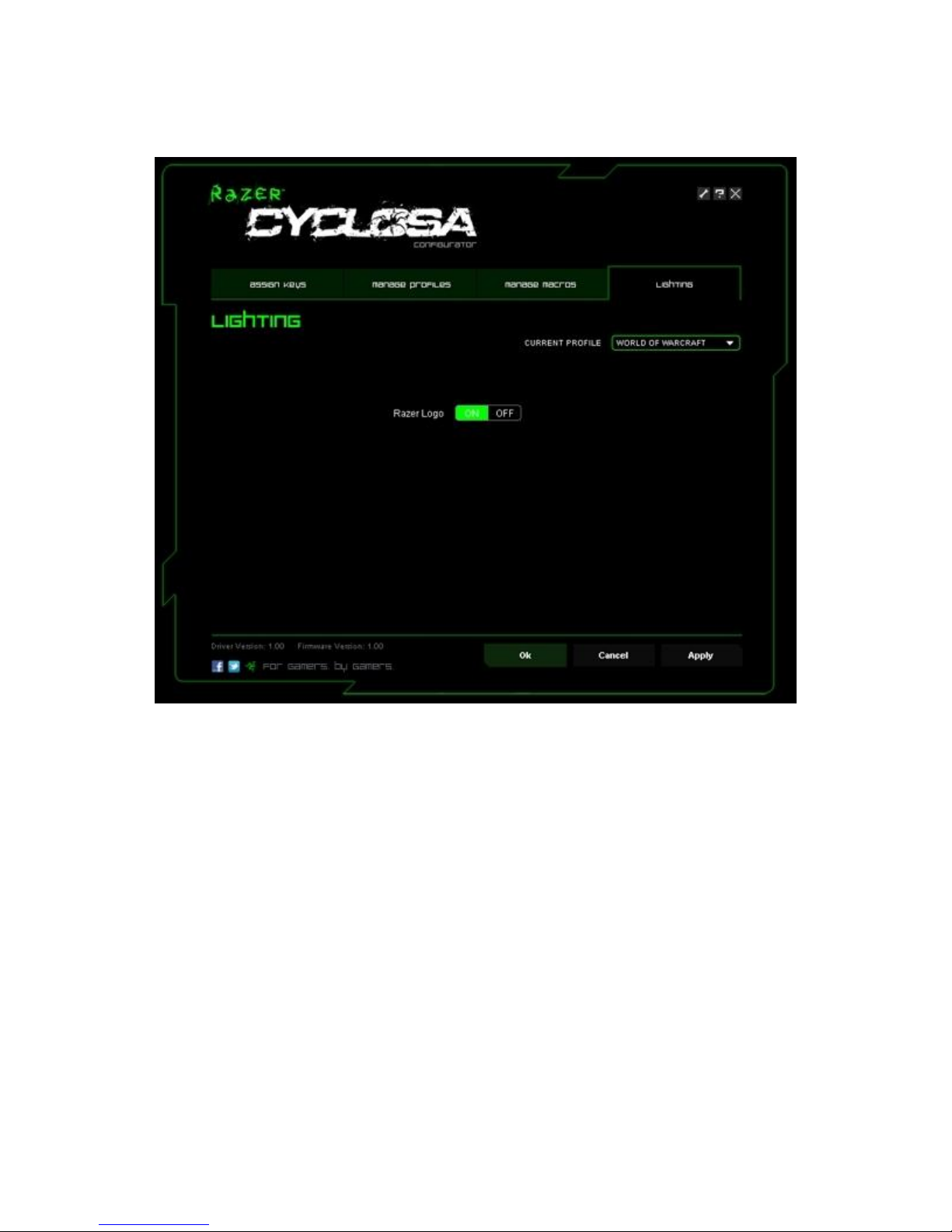

LIGHTING TAB
Turn on/off the Razer logo light on the Razer Cyclosa.
