Razer DEATHADDER V2 PRO Gebrauchs- und Pflegehandbuch
.
RAZER DEATHADDER V2 PRO
MASTER GUIDE
FOR GAMERS. BY GAMERS.™
1
With over 10 million DeathAdders sold, the most successful gaming mouse
of all time enters its next evolution—ushering a new age of unrivalled
wireless ergonomics. Powered by ultra-fast Razer HyperSpeed Wireless for
total freedom of movement, and an improved shape for greater handling
and comfort.
FOR GAMERS. BY GAMERS.™
2
CONTENTS
1. WHAT’S INSIDE / WHAT’S NEEDED ....................................................................................................3
2. LET’S GET YOU COVERED...................................................................................................................4
3. TECHNICAL SPECIFICATIONS..............................................................................................................5
4. GETTING STARTED.............................................................................................................................6
5. CONFIGURING YOUR RAZER DEATHADDER V2 PRO .........................................................................12
6. SAFETY AND MAINTENANCE............................................................................................................33
7. LEGALESE ........................................................................................................................................35
FOR GAMERS. BY GAMERS.™
3
1. WHAT’S INSIDE / WHAT’S NEEDED
WHAT’S INSIDE
▪Razer DeathAdder V2 Pro
A. Left mouse button
B. Right mouse button
C. Scroll wheel
D. DPI stage up
E. DPI stage down
F. Mouse button 5
G. Mouse button 4
H. Ultraslick mouse feet
I. Wireless USB dongle compartment
J. Razer™ Focus+ 20K DPI Optical Sensor
K. Profile indicator
L. Profile button
M. Mouse dock connector*
N. Slider switch
•Bluetooth mode
•Power off mode
•Razer™ HyperSpeed Wireless
(2.4 Ghz) mode
O. Wireless USB dongle
*Mouse dock sold separately.
▪Razer™ Speedflex charging cable
▪USB dongle adapter
▪Important Product Information Guide
The DPI stages are as follows: 400, 800, 1600 (default), 3200 and 6400. The DPI stages can be
customized using Razer Synapse.
WHAT’S NEEDED
PRODUCT REQUIREMENTS
▪PC with a free USB port or Bluetooth 5.0 connectivity
RAZER SYNAPSE REQUIREMENTS
▪Windows® 7 64-bit (or higher)
▪Internet connection for software installation
FOR GAMERS. BY GAMERS.™
4
2. LET’S GET YOU COVERED
You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now
maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com
Got a question? Ask the Razer Support Team at support.razer.com
Your product’s serial
number can be
found here.
FOR GAMERS. BY GAMERS.™
5
3. TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
▪True 20,000 DPI Focus+ optical sensor with 99.6% resolution accuracy
▪Up to 650 inches per second (IPS) / 50 G acceleration
▪Advanced Lift-off/Landing distance customization
▪Razer™ Optical Mouse Switches rated for 70M clicks
▪Dual wireless - HyperSpeed (2.4Ghz) and BLE
▪(7+1)independently programmable buttons
▪100% PTFE mouse feet (0.8mm thick)
▪Ergonomic right-handed design with textured side-grips.
▪Gaming-grade tactile scroll wheel
▪On-The-Fly Sensitivity Adjustment (Default stages : 400/800/1600/3200/6400)
▪Advanced on-board memory (4+1 profiles)
▪Razer Synapse 3 enabled
▪Powered by Razer Chroma™ RGB with true 16.8 million customizable color options
▪Inter-device color synchronization
▪1.8 m / 6 ft Speedflex cable for charging and wired use
▪Razer Mouse charging dock compatible
▪Battery Life : Approximately 70 hours with HyperSpeed wireless, 120 hours with BLE
(estimates without lighting, battery life depends on usage settings)
APPROXIMATE SIZE & WEIGHT
▪Length: 127 mm / 5.0 in
▪Width: 72.6 mm / 2.86 in
▪Height: 42.7 mm / 1.68 in
▪Weight*: 88 g / 0.194 lbs
*Excluding cable and dongle.
FOR GAMERS. BY GAMERS.™
6
4. GETTING STARTED
CHARGING YOUR MOUSE
Plug the charging cable from your computer’s USB port to your Razer DeathAdder V2 Pro. For best
results, please fully charge the mouse before using it for the first time. A depleted battery will be fully
charged in approximately 4 hours. This connection also acts as the wired mode for your Razer device.
The Razer DeathAdder V2 Pro requires a USB connection that can supply sufficient power to
charge the device. The charging process may be affected when connecting to a non-powered
USB hub or non-powered USB port mostly found on keyboards and peripherals. It’s
recommended to always connect the Razer DeathAdder V2 Pro directly to the USB port of your
computer.
LOW POWER INDICATOR
The Razer logo will blink red twice in repeated intervals to indicate that its battery’s power is less than
5%. This lighting sequence will repeat until the battery is drained or the mouse is connected to the PC
via the charging cable.
FOR GAMERS. BY GAMERS.™
7
CONNECTING YOUR MOUSE
VIA RAZER™ HYPERSPEED WIRELESS (2.4 GHZ) MODE
1. Remove the compartment cover from the mouse to remove the wireless USB dongle.
2. Reattach the compartment cover and insert the wireless USB dongle into the USB port of your
PC.
FOR GAMERS. BY GAMERS.™
8

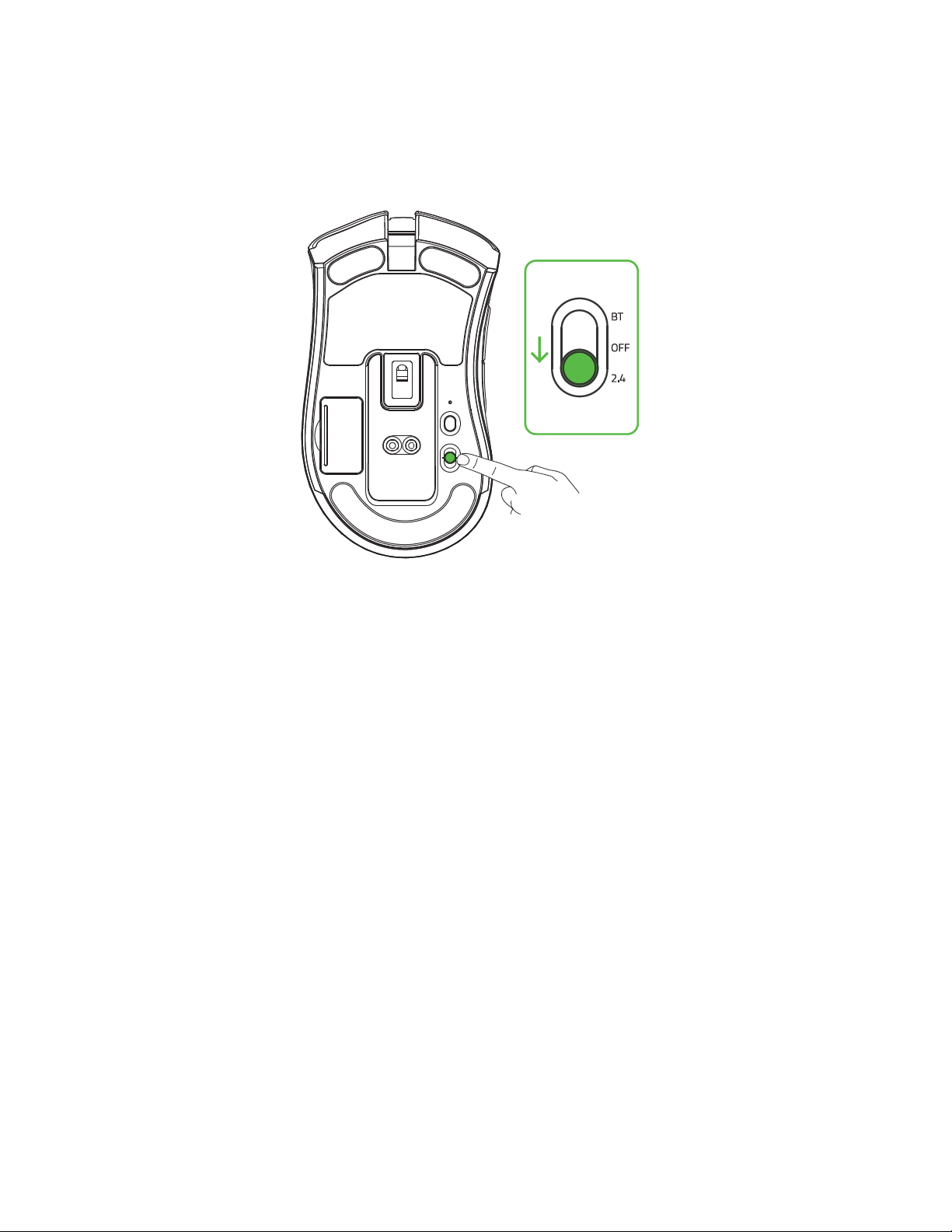

3. Push the slider switch to Razer™ HyperSpeed Wireless (2.4 GHz) mode.
Your Razer DeathAdder V2 Pro is now ready for use in wireless mode.
