MASTER'GUIDE'

The!Razer!Naga!is!the!ultimate!Massively!Multiplayer!Online!Gaming!mouse!that!shifts!the!balance!

between!keyboard!and!mouse!by!putting!an!unprecedented!number!of!in‐game!commands!in!one!place.!!

A!multi‐button!thumb!grid!with!full!remapping!and!macro!functionality!places!every!command!you!need!

in!the!palm!of!your!hand.!!An!ergonomic!form!shaped!to!maximize!ease!of!use!lets!you!game!in!comfort!

for!hours!on!end.!!With!the!Razer!Naga,!you!will!Get!Imba.!

CONTENTS!!

1. Package!Contents!/!System!Requirements!

2. Key!Features!

3. Installation!/!Registration!/!Technical!Support!

4. Configuring!Your!Razer!Naga!

5. Using!Your!Razer!Naga!

6. Advanced!Settings!Guide!

7. Safety!and!Maintenance!

8. Legalese!

9. FCC!Declaration!Of!Conformance!/!WEEE!Information!

1.'PACKAGE'CONTENTS'

Razer!Naga!Gaming!Mouse!

Certificate!of!Authenticity!

Quick!Start!Guide!

Master!Guide!

Razer!Naga!Grid!Trainer!

SYSTEM'REQUIREMENTS'

PC/Mac!®!with!USB!port!

Windows®!7!/!Windows!Vista®!/!Windows®!XP!or!Mac!OS®!X!(v10.4!and!above)!

Internet!connection!(for!driver!installation)!

35MB!of!free!hard!disk!space!

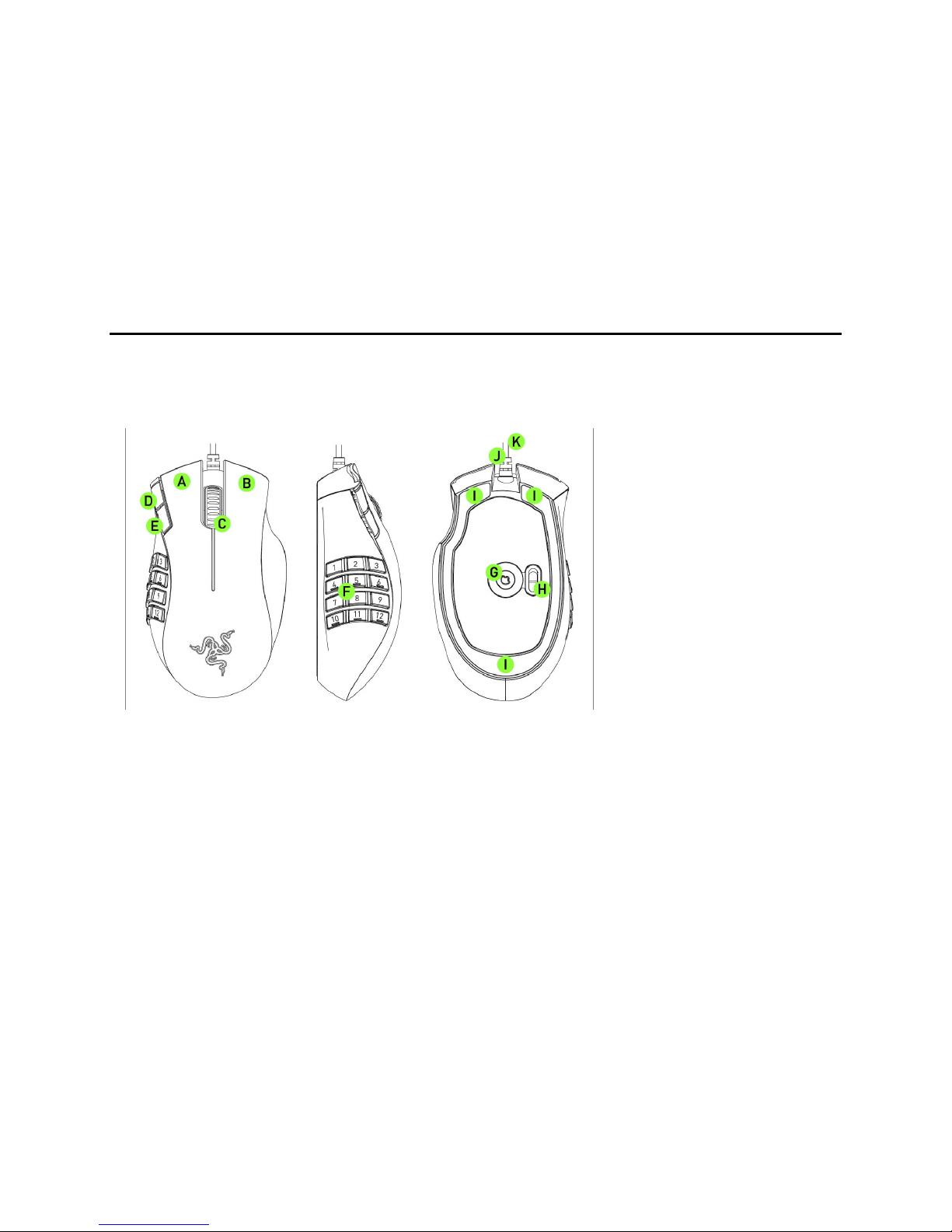

2.'KEY'FEATURES'

A!Mouse!Button!1!–!Click!

B!Mouse!Button!2!–!Menu!

C!Mouse!Button!3!–!Scroll!Wheel!and!Button!

D!Mouse!Button!!4!–!Backward!

E!Mouse!Button!5!–!Forward!

F!Thumb!Grid!–!12!fully!programmable!buttons!with!Macro‐Functionality!

G!Razer!Precision!3.5G!Laser™!Sensor!

H!Basic!/!Advanced!!Switch!

I!Ultraslick™!Teflon®!Feet!!

J!1000Hz!Ultrapolling™!/!1ms!Response!Time!!

K!16‐Bit!Ultra‐Wide!Data!Path!

3.'INSTALLATION'/'REGISTRATION'/'TECHNICAL'SUPPORT'

Windows®'7'/'Windows'Vista®'/'Windows®'XP'installation'instructions'

Step!1:!Plug!your!Razer!Naga!into!the!USB!port!of!your!computer.!!

Step!2:!Download!the!Driver!Installer!from!http://www.razersupport.com/.!

Step!3:!Run!the!installer.!

Step!4:!Choose!setup!language.!Click!OK!to!proceed.!

Step!5:!The!Razer!Naga!setup!screen!appears.!Click!NEXT!to!proceed.!

Step!6:!Read!the!license!agreement.!If!you!agree!to!all!the!terms,!select!“I!accept!the!terms!in!the!license!

agreement”.!!Click!NEXT!to!proceed.!

Step!7:!Enter!your!User!Name!and!Organization.!Click!NEXT!to!proceed.!

Step!8:!Choose!your!installation!setup.!Click!NEXT!to!proceed.!

Step!9:!If!everything!is!correct.!Click!INSTALL!to!begin!installation.!

Step!10:!At!the!end!of!the!installation,!click!FINISH!to!complete!the!installation.!

Step!11:!Follow!the!instructions!onscreen!to!restart!your!computer.!Click!YES.!

Mac'OS'X'(v10.4'and'above)'installation'instructions'

Step!1:!Plug!your!Razer!Naga!into!the!USB!port!of!your!Mac.!

Step!2:!Close!the!“Keyboard!Setup!Assistant”!if!prompted.!

Step!3:!Download!the!Driver!Installer!from!http://www.razersupport.com/.!

Step!4:!Run!the!installer.!

Step!5:!An!installation!warning!screen!will!appear.!Click!CONTINUE!to!proceed!with!the!installation.!

Step!6:!The!Razer!Naga!introduction!screen!appears.!Click!CONTINUE!to!proceed.!

Step!7:!Read!the!software!license!agreement!and!click!CONTINUE.!!

Step!8:!A!confirmation!popup!screen!will!appear.!Click!AGREE!if!you!accept!all!terms!of!the!agreement.!

Step!9:!If!you!want!to!choose!the!destination!folder!where!the!driver!software!will!reside,!click!CHANGE!

INSTALL!LOCATION.!Otherwise,!click!INSTALL!to!begin!installation.!

Step!10:!Key!in!your!password!if!prompted.!

Step!11:!At!the!end!of!the!installation,!follow!the!instructions!onscreen!to!restart!your!computer.!Click!

RESTART.!

Registering'your'Razer'Naga!

Please!visit!www.razerzone.com/registration/!for!online!product!registration.!

What!you’ll!get:!

•!2!years’!limited!manufacturer’s!warranty!

•'Free!online!technical!support!at'www.razersupport.com.'

4.!CONFIGURING'YOUR'RAZER'NAGA'

Basic'[123]'Configuration'

The! Razer! Naga! provides! a! twelve! button! [1‐12]! Thumb! Grid! in! two! configurations:! Basic! [123]! and!

Advanced! [Num].! In! Basic! [123]! configuration,! the! twelve! buttons! [1‐12]! are! assigned! to!

1,2,3,4,5,6,7,8,9,0,‐,=!of!the!keyboard!respectively.!This!allows!you!to!replicate!the!default!action!bar!for!

most!MMO!games!onto!the!Thumb!Grid.!!With!this!function,!you!have!better!control!of!your!character’s!

movement!in!game.!

Advanced'[Num]'Configuration!

In! the! Advanced! [Num]! mode,! the! twelve! buttons! [1‐12]! are! assigned! to! 1,2,3,4,5,6,7,8,9,0,‐,+!of! the!

Number!Pad!for!the!keyboard!respectively.!!Beside!your!default!action!bar,!by!assigning!game!functions!

to!the!number!pad!of!your!keyboard,!you!will!have!access!to!more!game!functions!right!at!your!finger!

tips.!Note:!Activating!the!Num!Lock!of!the!keyboard!affects!the!function!of!the!Thumb!Grid!when!your!

Razer!Naga!is!in!the!Advanced![Num]!configuration.!

To!change!between!the!Basic![123]!and!Advanced![Num]!configurations,!simply!adjust!the!switch!at!the!

bottom!of!your!Razer!Naga.!

DRIVER'FEATURES'

The!features!listed!here!require!the!Razer!Naga!software!driver!to!be!installed!and!the!Razer!Naga!Tray!

Icon!to!be!active.!Each!setting!will!be!saved!to!the!current!Profile!on!the!current!machine!only.!

ASSIGN'BUTTONS'TAB'

In!the!Assign!Buttons!tab,!you!can!assign!various!functions!to!each!of!the!buttons!based!on!your!own!

preferences.!!

The!following!functions!are!possible:!

Click:!

Perform!a!normal!mouse!click.!!

Menu:!

Open!a!context‐sensitive!menu.!

Universal!Scrolling:!

Activate!universal!scrolling!by!clicking!and!holding!the!assigned!button.!Drag!your!Razer!Naga!to!scroll!in!

the!direction!of!the!mouse!movement.!

Double!Click:!

Perform!a!double!click!with!the!assigned!button.!

Macro:!

If!the!button!function!or!key!is!not!listed,!or!if!you!would!like!to!assign!a!macro!to!a!button,!select!

MACRO'from!the!dropdown!menu.!In!addition,!all!saved!macros!will!be!shown!on!a!sub!dropdown!menu!

for!quick!selection!when!you!mouse!over!the!MACRO'option.!

Sensitivity!Stage!Up:!

Switch!the!current!sensitivity!stage!to!the!next!stage.!

Sensitivity!Stage!Down:!

Switch!the!current!sensitivity!stage!to!the!previous!stage.!

Profile!Settings:!

Switch!to!a!profile!on!the!fly!and!immediately!load!all!your!preferred!mouse!settings.!When!you!select!

PROFILE!SETTINGS!from!the!dropdown!menu,!a!sub‐menu!will!appear!and!allow!you!to!choose!desired!

profile!to!switch!to.!

Forward:!

Issue!a!“Forward”!command!in!Windows!Explorer!/!Internet!Explorer.!

Backward:!

Issue!a!“Back”!command!in!Windows!Explorer!/!Internet!Explorer.!

On‐The‐Fly!Sensitivity:!

Enable!change!of!sensitivity!settings!on!the!fly!without!the!need!to!enter!the!configuration!menu.!

Single!Key:!

Activate!a!key!on!your!keyboard.!

Scroll!Up:!

Scroll!up!the!page!you!are!currently!viewing.!

Scroll!Down:!

Scroll!down!the!page!you!are!currently!viewing.!

Button!Off:!

Disable!any!function!on!the!assigned!button.!
