RCA 24V510T Bedienungsanleitung

Television

User's Guide

Models 24V510T / 24F530T

Changing Entertainment. Again.

1622307D.00 cover 12/1/03, 3:58 PM1

This symbol indicates "dangerous voltage" inside the

product that presents a risk of electric shock or

personal injury.

WARNING

To reduce the risk of fire or electric shock,

do not expose this product to rain or

moisture.

The apparatus must not be exposed to

dripping or splashing. Objects filled with

liquids, such as vases or drinking glasses,

must never be placed on the apparatus.

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable

parts inside. Refer servicing to qualified service personnel.

This symbol indicates important

instructions accompanying the

product.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Refer to the identification/rating label located on the

back panel of your product for its proper operating

voltage.

FCC Regulations state that unauthorized changes or

modifications to this equipment may void the user’s

authority to operate it.

Caution: Using video games or any external accessory

with fixed images for extended periods of time can

cause them to be permanently imprinted on the

picture tube (or projection TV picture tubes). ALSO,

some network/program logos, phone numbers, etc.

may cause similar damage. This damage is not covered

by your warranty.

Cable TV Installer: This reminder is provided to call your

attention to Article 820-40 of the National Electrical

Code (Section 54 of the Canadian Electrical Code, Part

1) which provides guidelines for proper grounding and,

in particular, specifies that the cable ground shall be

connected to the grounding system of the building as

close to the point of cable entry as practical.

Important Information

Product Registration

Please fill out the product registration card (packed separately) and return it immediately. For U.S.

customers: Your RCA Consumer Electronics product may also be registered at www.rca.com/

productregistration. Registering this product allows us to contact you if needed.

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here

and record the serial and model numbers. These numbers are located on the product.

Model No. ____________________ Serial No. __________________ Purchase Date: ______________

Dealer/Address/Phone: _________________________________________________________________

This symbol indicates that this product incorporates double

insulation between hazardous mains voltage and user

accessible parts. When servicing use only identical

replacement parts.

1622307D.00 cover 12/1/03, 3:58 PM2

Table of Contents

Chapter 1: Connections & Setup

Things to Consider Before You Connect .......................................................................3

Protect Against Power Surges ................................................................................................................... 3

Protect Components from Overheating ................................................................................................. 3

Position Cables Properly to Avoid Audio Interference ....................................................................... 3

Important Stand and Base Safety Information .................................................................................... 3

Use Indirect Light ......................................................................................................................................... 3

Cables Needed to Connect Components to Your TV ........................................................................... 3

TV + DVD + VCR ..............................................................................................................4

Explanation of Jacks and Cables ...................................................................................5

ANTENNA IN................................................................................................................................................... 5

VIDEO 1 and VIDEO 2 .................................................................................................................................. 5

Component Video (Y, Pb, Pr), Audio Out, and Subwoofer

(model 24F530T only) .................................................................................................................................. 5

The Front of Your TV ......................................................................................................6

Front Input Jacks .......................................................................................................................................... 6

Front Panel Buttons ..................................................................................................................................... 6

Plug in the TV ..................................................................................................................6

Put batteries in the remote ...........................................................................................6

How to Use the Remote Control to Complete the Initial Setup ................................7

Turn on the TV.................................................................................................................7

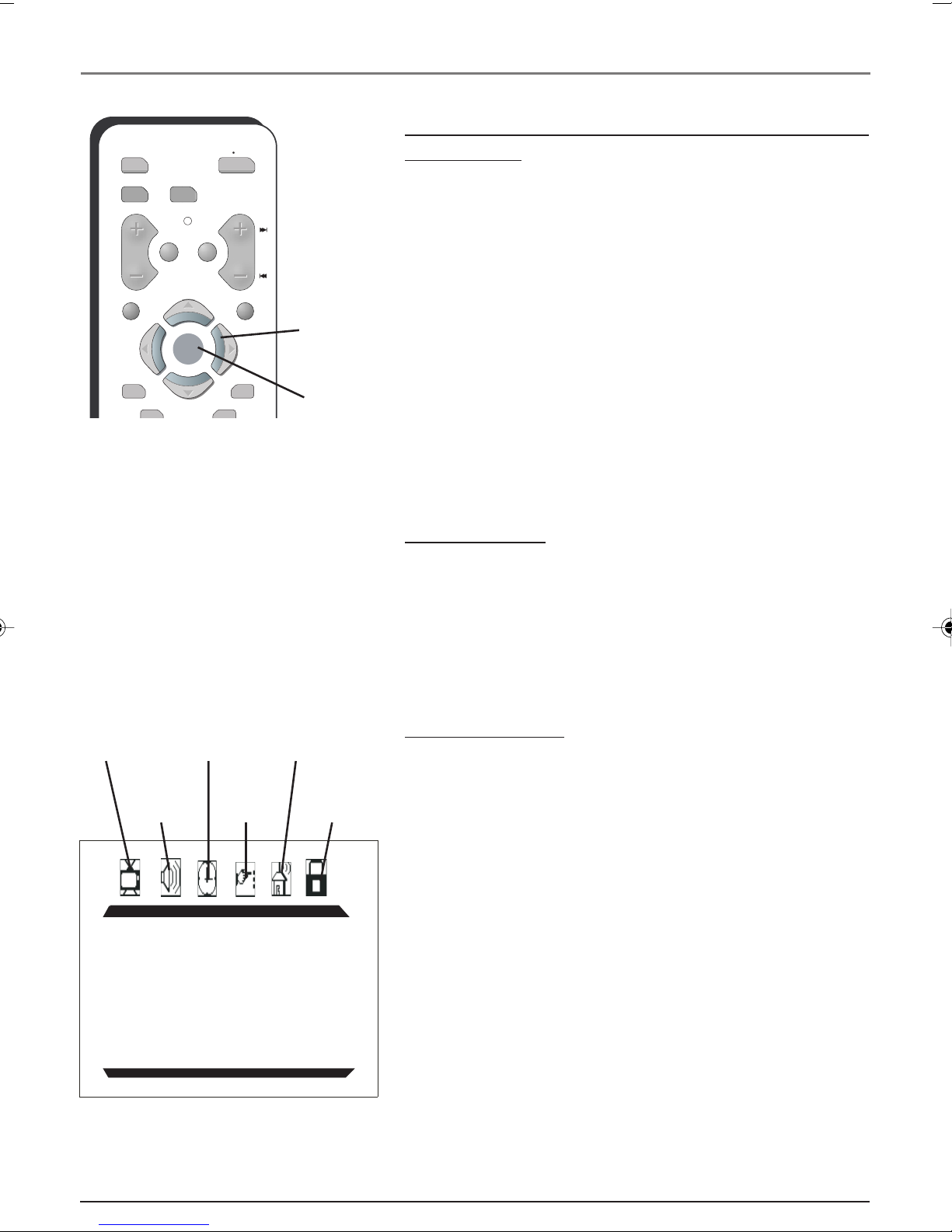

Using the Menus .............................................................................................................7

Complete the Initial Setup .............................................................................................8

Set the Language .......................................................................................................................................... 8

Complete Auto Channel Search................................................................................................................ 8

Chapter 2: Using the Remote Control

Button Descriptions for TV Mode ..................................................................................9

Button Descriptions for DVD and VCR Modes..............................................................9

Using the INPUT Button............................................................................................................................10

Programming the Remote to Operate Other Components....................................... 10

Find Out If You Need to Program the Remote ...................................................................................10

Programming the Remote ........................................................................................................................10

How to Use the Remote After You’ve Programmed It .................................................................... 12

Remote Control Codes ................................................................................................. 12

continued on next page

1622307D.00 TOC 12/1/03, 3:58 PM1

Table of Contents

Chapter 3: Using the TV’s Features and Menus

Channel Banner ............................................................................................................ 14

Parental Controls and V-Chip ..................................................................................... 14

How V-Chip Works .................................................................................................................................... 14

USA V-Chip Rating System ..................................................................................................................... 14

TV Rating Limit ........................................................................................................................................... 15

MPAA RATING LIMIT ................................................................................................... 17

Blocking Specific Content Themes ....................................................................................................... 17

Viewing Specific Content Themes......................................................................................................... 17

Parental Guide On (Activate V-Chip) ................................................................................................... 18

V-Chip Movie Rating Limit ..................................................................................................................... 18

Child Lock..................................................................................................................................................... 19

Change Password ....................................................................................................................................... 19

Picture Menu ................................................................................................................ 20

Sound Menu.................................................................................................................. 20

Timer Menu................................................................................................................... 21

Function Menu ............................................................................................................. 22

Tuning Menu ................................................................................................................. 23

Parental Guide Menu ................................................................................................... 23

Chapter 4: Other Information

Troubleshooting ............................................................................................................ 24

Care and Cleaning ........................................................................................................ 26

FCC and Canada Information ...................................................................................... 26

Limited Warranty ......................................................................................................... 27

Accessories .................................................................................................................... 29

1622307D.00 TOC 12/1/03, 3:58 PM2

Chapter 1 3

Graphics contained within this publication are for representation only.

Chapter 1: Connections and Setup

Things to Consider Before You Connect

Protect Against Power Surges

•Connect all components before you plug any of their power cords into the wall outlet.

•Turn off the TV and/or component before you connect or disconnect any cables.

•Make sure all antennas and cables are properly grounded. Refer to the Important Safety Instructions

packed separately.

Protect Components from Overheating

•Don’t block ventilation holes on any of the components. Arrange the components so that air can

circulate freely.

•Don’t stack components.

• If you place components in a stand, make sure you allow adequate ventilation.

• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air from it won’t

flow around other components.

Position Cables Properly to Avoid Audio Interference

• Insert each cable firmly into the designated jack.

• If you place components above the TV, route all cables down the side of the back of the TV instead

of straight down the middle of the TV.

• If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin lead

cables away from audio/video cables.

Important Stand and Base Safety Information

Choose the location for your TV carefully. Place the TV on a stand or base that is of adequate size and

strength to prevent the TV from being accidentally tipped over, pushed off, or pulled off. This could

cause personal injury and/or damage the TV. Refer to the Important Safety Instructions packed

separately.

Use Indirect Light

Don’t place the TV where sunlight or room lighting will be directed toward the screen. Use soft or

indirect lighting.

Cables Needed to Connect Components to Your TV

The pictures below show the cables you may need for the connections represented in this book.

Audio/Video cables

S-Video cableCoaxial cable Component Video

(Y•Pb•Pr) cables

(for model 24F530T only)

1622307D.01-C&S 12/1/03, 3:58 PM3

4Chapter 1

Connections and Setup

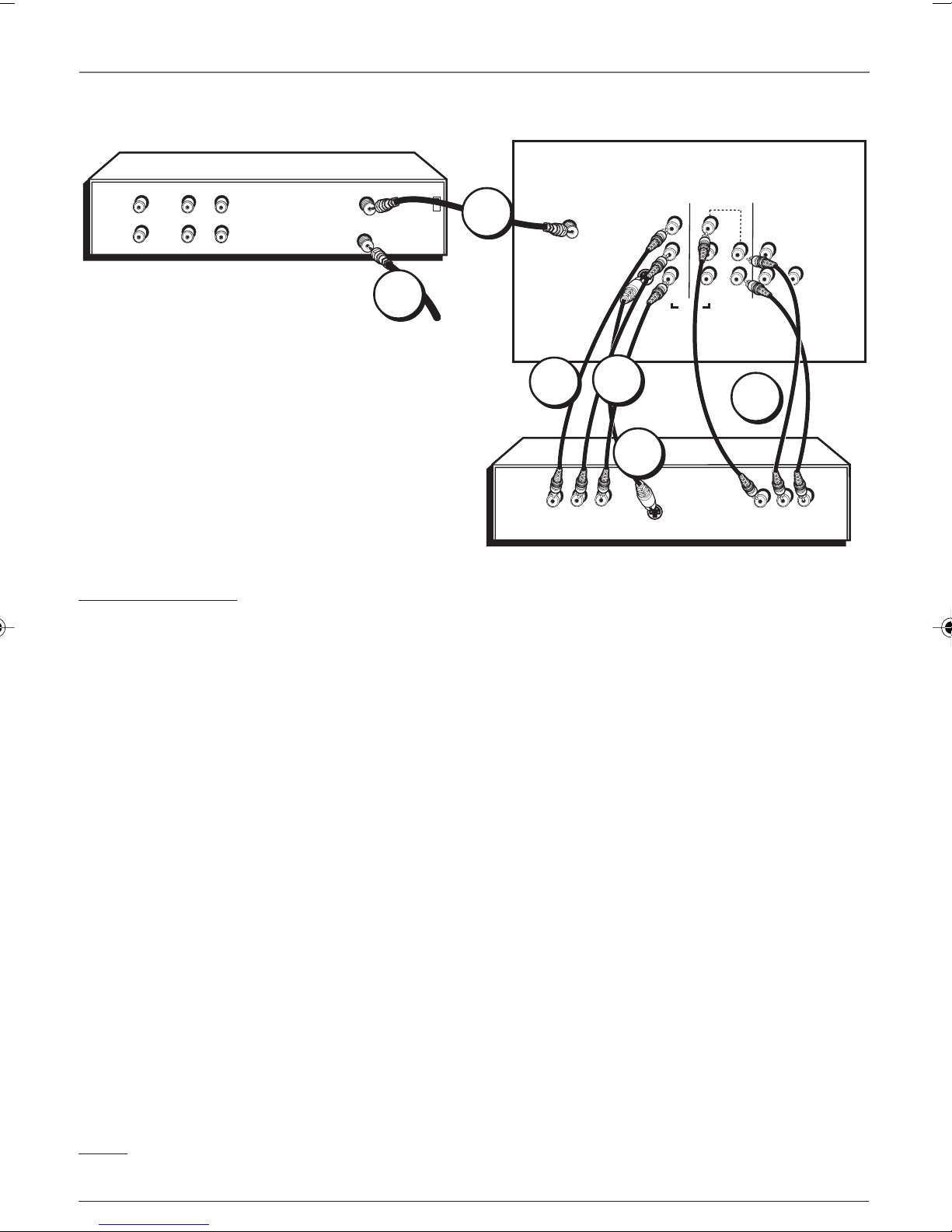

TV + DVD + VCR

1. Connect your DVD Player to your TV.

A. Connect the audio (white and red) cables to the VIDEO 1 R and L/MONO AUDIO jacks on the back

of the TV and to the Audio Output jacks on the DVD player (sometimes labeled L and R).

B. If your DVD player has an S-Video jack, connect an S-Video cable to the S-Video jack on the DVD

player and to the S-VIDEO jack on the back of the TV. If your DVD player doesn’t have an

S-Video jack, go to 1D.

-OR-

C. Model 24F530T only: If your DVD player has a component video jacks (Y,Pb,Pr), connect video

grade cables to the Component Video jacks on the DVD player and to the Y, Pb, Pr jacks on the

back of the TV. If your DVD player doesn’t have component video jacks, go to 1D.

-OR-

D. Connect a video cable (yellow) to the Video Output Jack on the DVD player and to the VIDEO jack

on the back of the TV.

2. Connect your TV to your VCR

Connect a coaxial cable to the ANTENNA IN jack on your TV and to the RF Output jack on your VCR

(sometimes labeled OUT TO TV).

3. Make sure cable or antenna is connected to your VCR.

Connect the coaxial cable from your cable outlet or antenna to the antenna input on the VCR

(sometimes labeled In From Antenna).

Note: If you do not connect a cable, antenna, or another component to your TV, the TV will automatically

shut off after 15 minutes to save power.

DVD

S-VIDEO

VIDEO

IN FROM ANT

OUT TO TV CH3

CH4

VCR

VIDEO

OUT

AUDIO

From Cable

or Antenna

TV (back panel)

ANTENNA IN

VIDEO

L (MONO)

S-VIDEO VIDEO

Pr R

SUB

WOOFER

L (MONO)

OUTPUT

COMPONENT VIDEO

YPb Pr

Note: The TV model shown here is

24F530T. The 24V510T does not include

the Y, Pb, Pr (Component Video jacks),

Audio Output jacks, or Subwoofer jack.

1622307D.01-C&S 12/1/03, 3:58 PM4

Chapter 1 5

Connections and Setup

Explanation of Jacks and Cables

This section describes the jacks you can use to make connections. There are several ways to connect

components to your TV.

VIDEO

L (MONO)

S-VIDEO VIDEO

VIDEO 2

Pr RSUB

WOOFER

L (MONO)

OUTPUT

ANTENNA IN

Component Video (Y, Pb, Pr), Audio Out, and

Subwoofer (model 24F530T only)

Y, Pb, Pr (Component Video) Provides optimum picture

quality because the video is separated into three signals. Use

three video-grade cables for the connection. These cables are

often color-coded (red, blue and green). When using Y, Pb,

Pr, make sure you connect left and right audio cables to the

R and L AUDIO input jacks.

Note: The Y component video jack is also the composite VIDEO 2

video jack and is colored yellow. Keep this in mind when connecting

to the component video jacks.

Audio Output (L and R) Connect an amplifier or audio

receiver for improved sound quality.

SUB WOOFER Allows you to connect an external subwoofer

for improved bass effects.

ANTENNA IN Lets you connect a coaxial cable to receive

the signal from the antenna, cable, cable box, or if using the

example on page 4, a VCR.

VIDEO 1 and VIDEO 2

VIDEO, AUDIO R and L/MONO Lets you connect a

component such as a VCR, DVD player, or laserdisc player.

•R (RIGHT) AUDIO Provides right audio connection. The

right audio connector is usually red.

•L/MONO AUDIO Provides left audio connection. The

left audio connector is usually white.

•VIDEO Provides composite video connection. The video

connector is usually yellow.

•S-VIDEO Provides better picture quality than the video

jacks because the color part of the signal is separated

from the black and white part of the picture. When using

S-VIDEO IN, make sure to connect left and right audio

cables to the L/MONO and R AUDIO Input jacks.

ANTENNA IN jack and coaxial cable.

VIDEO 1 and VIDEO 2 jacks, audio/video

cables, and S-Video cable.

Y, Pb, Pr jacks, audio, subwoofer and

component video cables.

1622307D.01-C&S 12/1/03, 3:58 PM5

6Chapter 1

Connections and Setup

The Front of Your TV

Front Input Jacks

The TV has front audio/video input jacks for your convenience on the right side of the TV for connecting

a camcorder or video game console. To access the component you connected to the front of the TV,

press the INPUT button on your remote until FRONT appears on the screen.

Note: When connecting a component that has only one audio jack, such as some camcorders, connect the TV’s AUDIO L /

MONO jack to hear the audio.

VIDEO Receives video from another component such as a camcorder, video game console, or VCR.

L/MONO and R AUDIO Receives audio from another component such as a camcorder, video game

console, or VCR.

Front Panel Buttons

If you cannot locate your remote, you can use the front panel buttons of your TV to operate many of the

TV’s features.

INPUT Toggles the Video Input Channels for a video game system, VCR, etc., connected to the audio/

video jacks on the front and back of the TV.

MENU Brings up the Main menu.

VOL- Decreases the volume. In the menu system, acts like the left arrow button on the remote control

and adjusts menu controls.

VOL+ Increases the volume. In the menu system, acts like the right arrow button on the remote

control and adjusts menu controls.

CH- Scans down through the current channel list. In the menu system, acts like the down arrow

button on the remote control and adjusts menu controls.

CH+ Scans up through the channel list. In the menu system, acts like the up arrow button on the

remote control and adjusts menu controls.

POWER Turns the TV on and off.

Plug in the TV

Plug the end of the power cord into a grounded wall outlet. Insert the plug completely into the outlet.

Put batteries in the remote

•Remove the battery compartment cover from the back of the remote by pushing down on and

sliding off the cover.

•Insert 2 fresh “AAA” batteries. Make sure the polarities (+ and -) are aligned correctly.

•Replace the cover.

1622307D.01-C&S 12/1/03, 3:58 PM6

Chapter 1 7

Connections and Setup

How to Use the Remote Control to Complete the

Initial Setup

The technical term is “Navigation”– how you move through

the on-screen menus. The method is the same throughout the

menu screens: highlight your choice and select it.

To highlight a menu item, press the arrow buttons on the

remote to highlight one of the menus on the screen. Use the

up and down arrow buttons to move up or down. Use the

right and left arrow buttons to move right or left.

To change the item that you’ve highlighted, press the right

arrow button.

To return to the previous menu, press GO BACK.

Note: Highlighted means that the menu item stands out from other

menu items on the list (appears darker, brighter, or a different color).

Turn on the TV

Press TV on the remote, or press POWER on the TV’s front

panel.

Note: Pressing the TV button not only turns on the TV, but puts the

remote into TV mode. “TV mode” means that the buttons on the

remote control operate the TV’s functions.

DVD ON OFF

VCR TV

VOL

MUTE GO BACK

CLEAR MENU

PRESETS SKIP

OKOK

Arrow

buttons

button


CONTRAST 1

BRIGHTNESS 18

COLOR 50

SHARPNESS 50

TINT 0

COMBFILTER ON

COLOR TEMP NORMAL


icon

Timer

icon

Sound

icon

Function

icon

Tuning

icon

Parental

Guide

icon

The list of icons at the top of the menus.

Using the Menus

You might want to make yourself familiar with the menu

system. At the top of the screen, you’ll see the following

menu icons: Picture, Sound, Timer, Function, Tuning, and

Parental Guide.

Press the MENU button to bring up the Main Menu, and

press the right arrow button until the icon you want is

highlighted. The menu options change as you toggle the

icons.

1622307D.01-C&S 12/1/03, 3:58 PM7

8Chapter 1

Connections and Setup

Complete the Initial Setup

The menu system in your TV allows the TV’s features to work

properly. You’ll need to set a few important menu items the

first time you turn on your TV.

Set the Language

The language setting determines the language in which the

on-screen displays and menus appear. You can choose from

English, Spanish, or French. The default is English.

1. Press MENU on the remote control (the Main menu

appears).

2. Press the right arrow button until the Function icon is

highlighted.

3. Press the down arrow button until LANGUAGE is

highlighted, then press the right arrow button to change

the language.

4. When finished, press MENU to exit.

TUNING

SOURCE AIR

CHANNEL 18

DELETE CH NO

FINE TUNE

AUTO SEARCH

Tuning

icon


CONTRAST 1

BRIGHTNESS 18

COLOR 50

SHARPNESS 50

TINT 0

COMBFILTER ON

COLOR TEMP NORMAL

Function

icon

FUNCTION

LANGUAGE ENGLISH

BACKGROUND ON

BLACK STRETCH OFF

NOISE REDUCE OFF

CLOSE CAPTION CC1

CC ON MUTE ON

Complete Auto Channel Search

This part of the setup allows the TV to search for all channels

viewable through your antenna or cable TV system. This is

sometimes called auto programming.

1. Press MENU on the remote control (the Main menu

appears).

2. Press the right arrow button until the Tuning icon is

highlighted.

3. Press the down arrow button until SOURCE is

highlighted, then press the right arrow button to set the

signal type (CABLE or AIR).

4. Press the down arrow button until AUTO SEARCH is

highlighted. Press the right arrow button to begin the

auto channel search.

To cancel at any time, press OK.

Once the search is complete, you can begin watching TV. For

information on customizing your channels or menu options,

go to Chapter 3.

1622307D.01-C&S 12/1/03, 3:58 PM8

Andere Handbücher für 24V510T

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere RCA Fernseher Handbücher

RCA

RCA MR20035 Bedienungsanleitung

RCA

RCA F20645YX1B1 Bedienungsanleitung

RCA

RCA RTRU5828-CA Bedienungsanleitung

RCA

RCA 27F530T Bedienungsanleitung

RCA

RCA F19221 Bedienungsanleitung

RCA

RCA Roku TV RHOR435 Bedienungsanleitung

RCA

RCA RLDED4079A-SM Bedienungsanleitung

RCA

RCA 27F524T Bedienungsanleitung

RCA

RCA 35V432T Bedienungsanleitung

RCA

RCA 27V412T Bedienungsanleitung

RCA

RCA Roku TV RTRU7028-CA Bedienungsanleitung

RCA

RCA 14M041 Bedienungsanleitung

RCA

RCA P46811 Bedienungsanleitung

RCA

RCA 27F520T - 27" TruFlat Picture Tube TV Kurzanleitung

RCA

RCA E13208GYF25 Bedienungsanleitung

RCA

RCA Frost LIFE131 Bedienungsanleitung

RCA

RCA F25209 Bedienungsanleitung

RCA

RCA E09310 Bedienungsanleitung

RCA

RCA J13801CL Bedienungsanleitung

RCA

RCA F27701 Bedienungsanleitung

RCA

RCA F27678 Bedienungsanleitung

RCA

RCA P46729 Bedienungsanleitung

RCA

RCA CTC179 Bedienungsanleitung

RCA

RCA J25400TX52AJ9 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
