RCA S12100CL Bedienungsanleitung

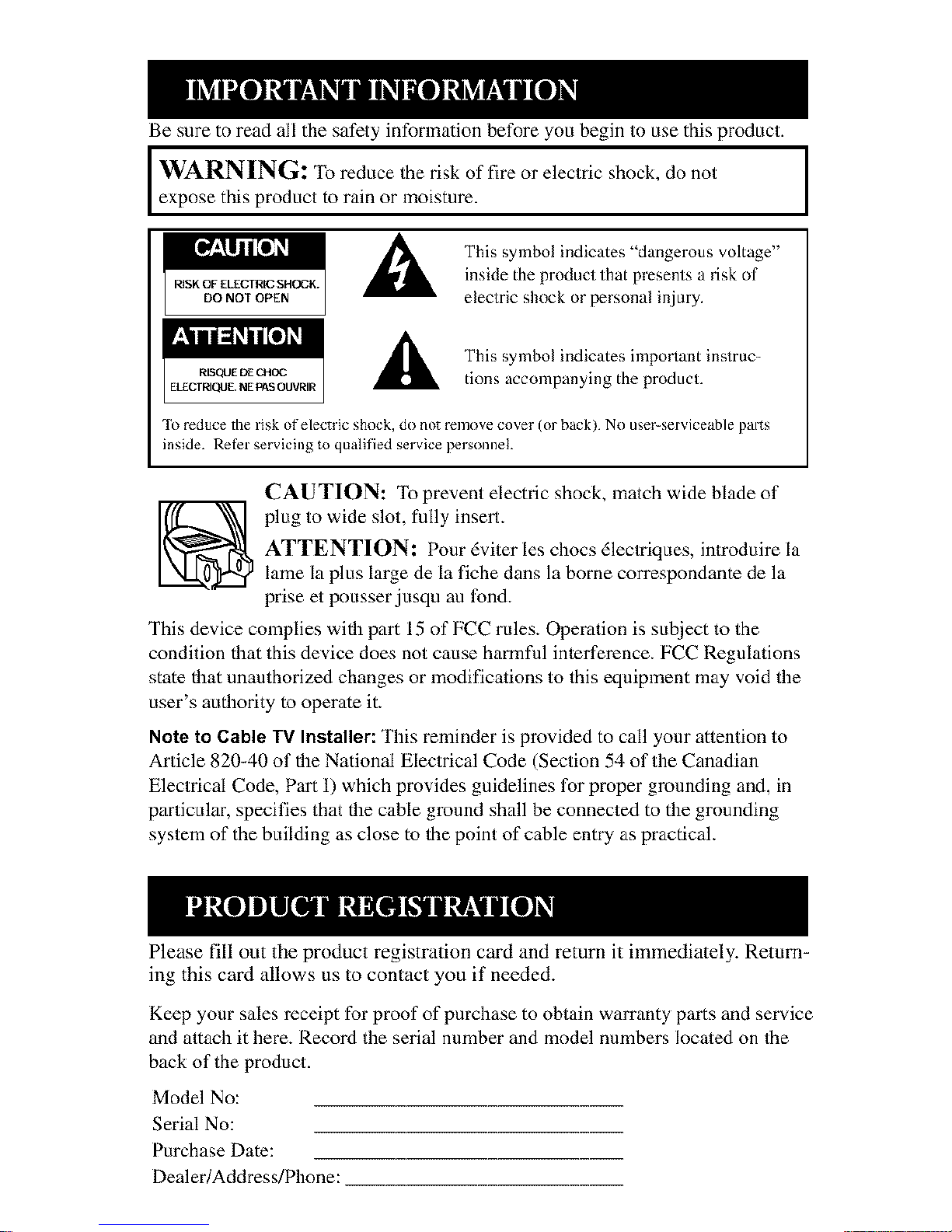

Be sure to read all the safety infimnation before you begin to use this product.

WARN|NG]: To reduce the risk of fire or electric shock, do not

expose this product to rain or moisture.

This symbol indicates "dangerous voltage"

inside the product that presents a risk of

electric shock or personal injury.

This symbol indicates important instruc-

tions accompanying the product.

To reduce the risk of electric shock, do not remove cover (or back). No use>serviceable pans

inside. Refer servicing to qualified service i?ersonneI.

CAUTION: To prevent electric shock, match wide blade of

plug to wide slot, fully insert.

ATTENTION: Pour 6viter les chocs 61ectriques, introduire la

lame la plus large de la fiche dans la borne correspondante de la

prise et lxmsser jusqu au fond.

This device complies with part 15 of FCC rules. Operation is subject to the

condition that this device does not cause harmful interference. FCC ReguLations

state that unauthorized changes or modifications to this equipment may void the

user's authority to operate it.

Note to Cable TV Installer:This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part t) which provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be connected to the grounding

system of the building as close to the point of cable entry as practical.

Please fill out the product registration card and return it immediately. Return-

ing this card allows us to contact you if needed.

Keep your sales receipt for proof of purchase to obtain warranty parts and service

and attach it here. Record the serial number and model numbers located on the

back of the product.

Model No:

Serial No:

Purchase Date:

Dealer/Address/Phone:

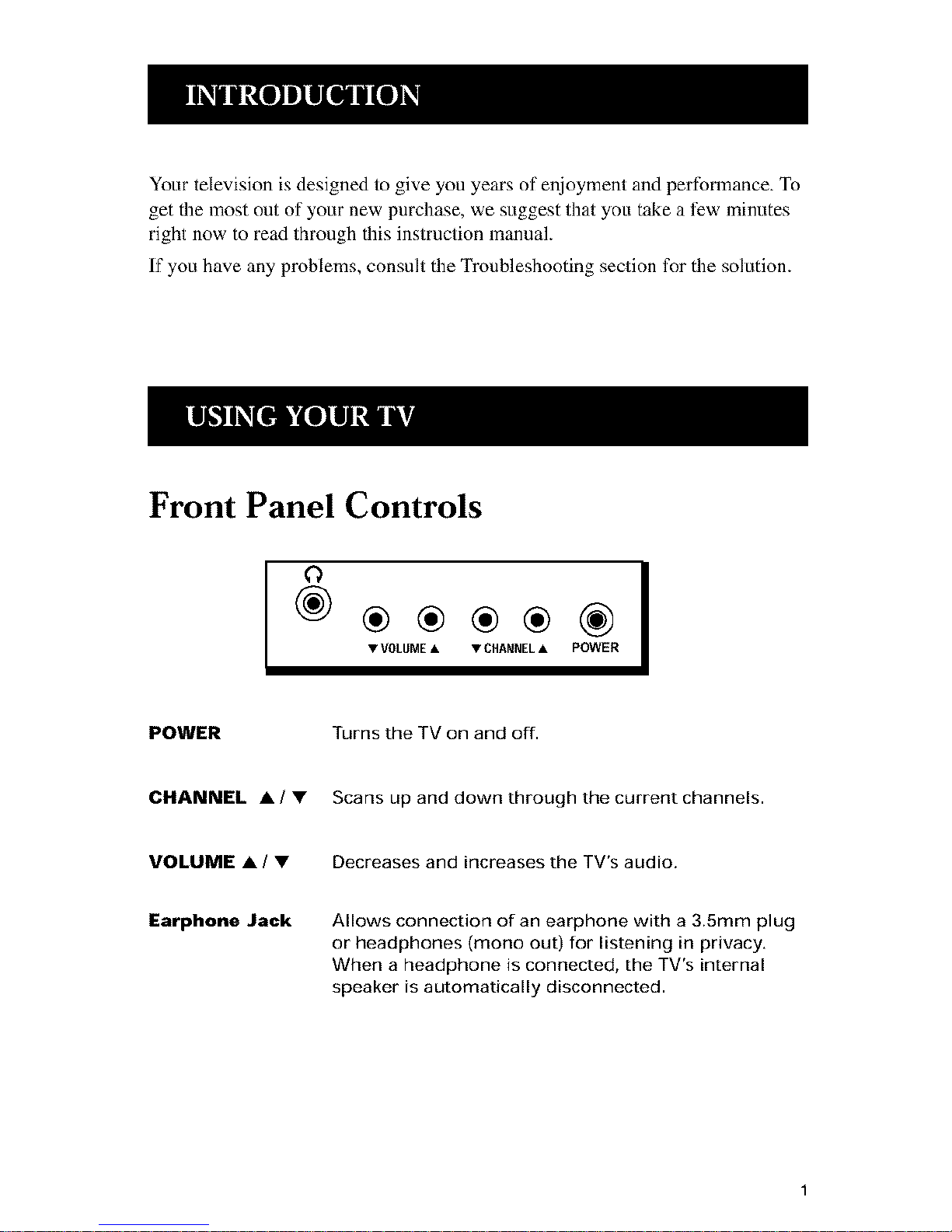

Your television is designed to give you years of enjoyment and performance. To

get the most out of your new purchase, we suggest that you take a t)w minutes

right now to read through this instruction manual.

If you have any problems, consult the Troubleshooting section for the solution.

Front Panel Controls

•

POWER Turns the TV on and off.

CHANNEL • /• Scans up and down through the current channels.

VOLUME •/• Decreases and increases the TV's audio.

Earphone Jack Allows connection of an earphone with a 3.5mm plug

or headphones (mono out) for listening in privacy.

When a headphone is connected, the TV's internal

speaker is automatically disconnected.

Back Panel Controls

ANT

ANT. Takes the signal input from a cable, cable box, or an

off-air antenna.

AUTO PROGRAM

TVICATV

Searches all channels through the antenna or cable TV

system and automatically stores active channels into

memory.

Selects off-air TV (69 channel capability) or CATV (125

channel capability). Pressing the button cycles

through TV, STD, IRC, or HRC mode which is displayed

on the TV screen.

V-HOLD

CONTRAST

BRIGHT

If picture is rolling, slowly turn the knob until the

picture locks into place.

AdJusts the level of black, grays and white to provide a

sharp, clear picture.

Adjusts the black level of the picture.

Setup and Connection

Step 1: Connect Your TV

Connect the cable from your cable system or off-air antenna to the ANT.

connector on the back of the TV, as shown.

ANTENNA (:ABLE, CABLE BOX OR VCR

SIv Back Panel I

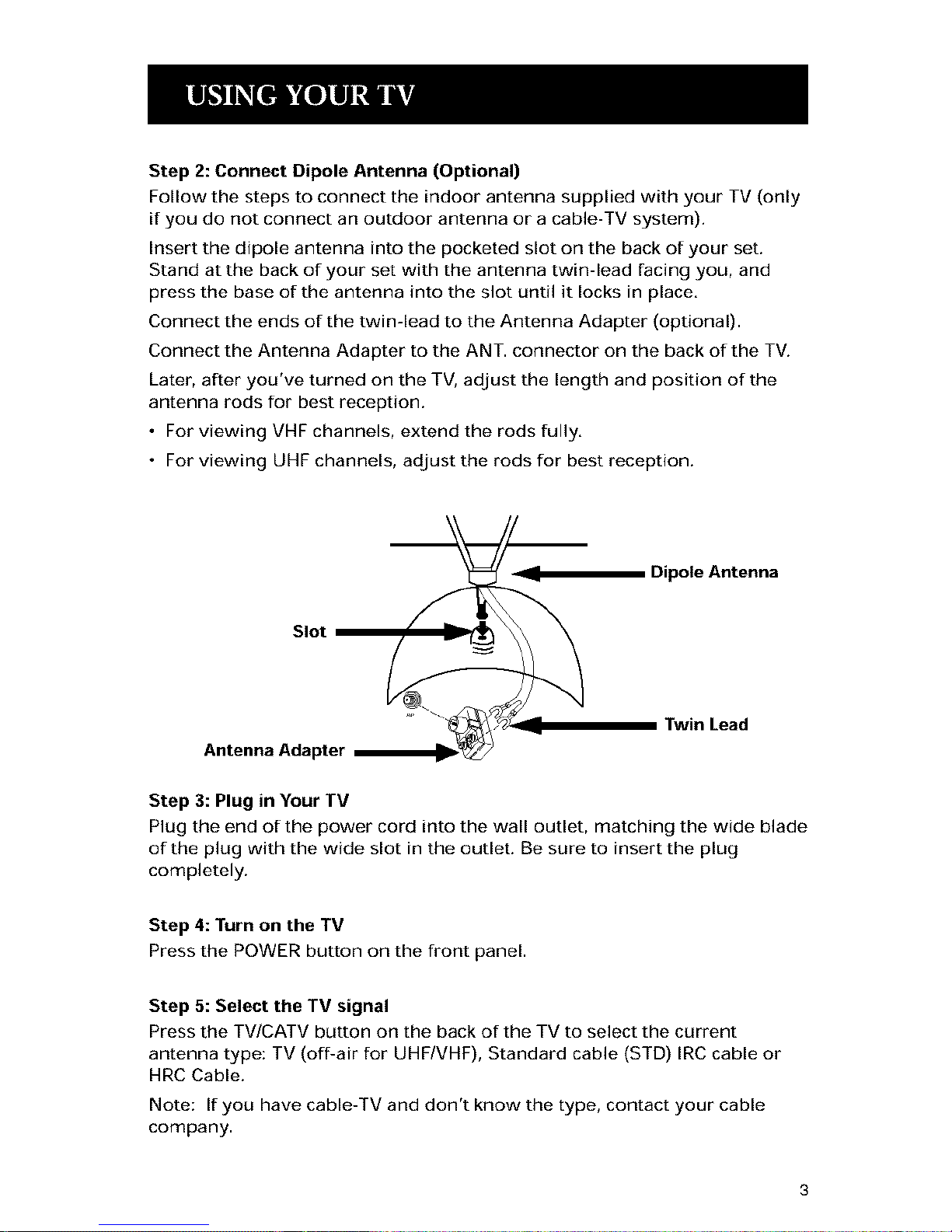

Step 2: Connect Dipole Antenna (Optional)

Follow the steps to connect the indoor antenna supplied with your TV (only

if you do not connect an outdoor antenna or a cable-TV system).

Insert the dipole antenna into the pocketed slot on the back of your set.

Stand at the back of your set with the antenna twin-lead facing you, and

press the base of the antenna into the slot until it locks in place.

Connect the ends of the twin-lead to the Antenna Adapter (optional).

Connect the Antenna Adapter to the ANT. connector on the back of the TV.

Later, after you've turned on the TV, adjust the length and position of the

antenna rods for best reception.

•For viewing VHF channels, extend the rods fully.

• For viewing UHF channels, adjust the rods for best reception.

Slot

Dipole Antenna

fwin Lead

Step 3: Plug in Your TV

Plug the end of the power cord into the wall outlet, matching the wide blade

of the plug with the wide slot in the outlet. Be sure to insert the plug

completely.

Step 4: Turn on the TV

Press the POWER button on the front panel.

Step 5: Select the TV signal

Press the TV/CATV button on the back of the TV to select the current

antenna type: TV (off-air for UHF/VHF), Standard cable (STD) IRC cable or

HRC Cable.

Note: If you have cable-TV and don't know the type, contact your cable

company.

Step 6: Auto Program Channels

Press the AUTO PROGRAM button on the back of the TV, The TV

automatically searches for all the active channels available through the

antenna input. When the TV finds an active channel, it places it in the

channel list.

Step 7: Adjust Picture

If necessary, use the controls (V-HOLD, CONTRAST, and BRIGHT) on the

back of the TV to adjust your picture.

If you experience any difficulty with your TV, check these basic remedies

before calling your service technician.

TV will not turn on or controls don't work

•Check to make sure it is plugged in.

• Check the wall receptacle (or extension cord) to make sure it is "live"

by plugging in something else.

• Try unplugging set for one minute, plugging it back in, and then

turning it on again.

Turns on or off while playing

• Electronic protection circuit may have been activated because of a

power surge. Wait 30 seconds and then turn on again. If this happens

frequently, the voltage to your TV may be abnormally high.

No sound, picture okay

• Maybe sound is turned down. Try pressing volume up button to

restore sound.

• Remove earphone or headphones if they are attached to the earphone

jack.

No picture, no sound, but power is on

• Maybe cable/air function is in wrong position. Try another channel.

• Maybe a vacant channel is tuned. Try another channel.

Sound okay, picture poor

• Check antenna connections.

• Try adjusting contrast and brightness of the TV.

What your warranty covers:

• Any defect in materials or workmanship.

For how long after your purchase:

• 90 days for labor charges.

• One year for parts.

• Two years for the picture tube.

The warranty period for rental units begins with the first rental or 45 days from date

of shipment to the rental firm, whichever comes first.

What we will do:

Pay any Authorized Television Service Center the labor charges to repair your

television.

Pay any Authorized Television Service Center for the new or, at our option,

refurbished replacement parts and picture tube required to repair your television.

How you get service:

Request on location service from any Authorized Television Service Center.

• To identify your nearest Authorized Television Service Center call 1-800-336-1900.

• Show the Authorized Service Center Representative your evidence of purchase

date or first rental.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual clearly describes how to install,

adjust, and operate your television. Any additional information should be

obtained from your dealer.)

Installation and related adjustments.

Signal reception problems not caused by your television.

Damage from misuse or neglect.

Batteries.

Customer replacement fuses.

Images burnt onto the screen.

A television that has been modified or incorporated into other products or is used

for institutional or other commercial purposes.

• A television purchased or serviced outside the U.S.A.

• Acts of God, such as but not limited to lightning damage.

Product Registration:

Please complete and mail the Product Registration Card packed with your

television. It will make it easier to contact you should it ever be necessary. The

return of the card is not required for warranty coverage.

How state law relates to this warranty:

• This warranty gives you specific legal rights, and you also may have other rights

that vary from state to state.

If you purchased your product outside the United States:

• This warranty does not apply, Contact your dealer for warranty information.

Service calls that do not involve defective materials or workmanship are not covered

by this warranty. Costs of such service calls are the sole responsibility of the

purchaser.

If your TV needs service, please refer to the warranty page. Please do not

send any products to the address listed below. This only adds delays for

service of your TV.

Visual Security Concepts Inc.

2337 Neshaminy Blvd.

Bensalem, PA 19020

Printed in Malaysia

TOCOM 1561941A
