TVUser'sGuide

WARNING

To reduce the risk of fire or

shock hazard, do not expose this

TV to rain or moisture,

I _ To reduce the riskof, lectric shock, do not

remove cover (or back). No user serviceable

parts inside. Refer servicing to qualified service

personnel.

This symbol indicates This symbol indicates

"dangerous voltage" inside the important instructions

product that presents a risk of accompanying the

electric shock or personal injury, product.

Product Registration

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, fully insert.

Attention: Pour eviler les chocs electriques, introduire

la lame la plus large de ]a fiche dans la borne

correspondante de la prise et pousserjusqu au fond.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non.moving) images are left on the screen for long

periods, they may be permanently imprinted on the screen. Such

images include network Iogos, phone numbers, and video games.

This damage is not covered by your warranty. Extended viewing of

channels displaying these images should be avoided.

Cable TV Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding and,

in particular, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

Please fill out the product registration card and return it immediately. Returning the card allows us to contact

you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and

record the serial and model numbers in case you need them. The numbers are located on the back of the

television.

Model No.

Serial No.

Purchase Date:

Dealer/Address/Phone:

VCR Plus+, C3,PlusCode and GUIDE Plus+ are trademarks of Gemstar Development Corporation.

Setup and Connections ......................................................... 3

Step 1: Unpack the TV ..................................................................... 4

Step 2: Connect Your TV ................................................................. 4

TV Only ....................................................................................... 4

The Basic Connection ............................................................... 5

Advanced Connections ............................................................. 6

Step 3: Connect the IR Controller ................................................... 9

Step 4: Plug in the TV .................................................................... 10

Step 5: Place Batteries in Remote ................................................ 10

Step 6: Turn On the TV .................................................................. 10

Step 7: Program the TV ................................................................. 10

Interactive Setup ................................................................. 11

Using Point and Select .................................................................. 12

Entering Setup ............................................................................... 12

Selecting a Language .................................................................... 13

Auto Channel Search ..................................................................... 13

The GUIDE Plus+ System .............................................................. 14

Setting Up the GUIDE Plus+ System ..................................... 14

Setting the Time ............................................................................. 16

Setting the VCR1 Channel ............................................................. 17

Setting the VCR2 Channel ............................................................. 17

Setting the DVD Channel .............................................................. 18

Setting the SAT/CABLE Channel ................................................... 19

Labeling the Channels ................................................................... 20

Using the Remote ............................................................... 21

Remote Buttons ............................................................................. 22

Front Panel ..................................................................................... 24

Using the Menus ................................................................. 25

Menus and Control Panels ............................................................ 26

Audio Menu .................................................................................... 28

Picture Quality Menu ..................................................................... 29

Screen Menu .................................................................................. 29

Using Closed Captioning ........................................................ 30

Channel Menu ................................................................................ 31

Time Menu ...................................................................................... 32

Other Menus .................................................................................. 32

Features and Controls ......................................................... 33

GUIDE Plus+ Menu ........................................................................ 34

About the GUIDE Plus+ System ................................................... 34

Getting In & Out of the Guide Plus+ System ........................ 35

Downloading Data ................................................................... 35

The Different GUIDE Plus+ System Menus ........................... 36

Grid Guide ......................................................................... 37

Sort ..................................................................................... 38

Schedule ............................................................................ 39

Messages ........................................................................... 40

Editor .................................................................................. 41

Channel Marker .............................................................................. 43

Parental Controls and V-Chip ........................................................ 44

V-Chip TV Rating Limit ............................................................ 45

V-Chip Movie Rating Limit ...................................................... 49

V-Chip Unrated Program Block .............................................. 50

Channel Block .......................................................................... 51

Front Panel Block ..................................................................... 51

Lock/Unlock Parental Controls ............................................... 51

Reference ........................................................................... 52

Troubleshooting ............................................................................. 52

Care and Cleaning ......................................................................... 55

Limited Warranty ........................................................................... 56

Accessory Information .................................................................. 58

Index .................................................................................. 61

Getting Started

This manual is designed to get you started

quickly. The first five sections of the manual

show you how to get your TV Setup and

Connected, run the Interactive Setup, and use

all of the menus, features, and controls of your

TV.

The Reference section in the back of the book

contains troubleshooting tips, care and cleaning

instructions, accessory ordering information

and your warranty.

Well... if your TV's out of the box, let's get

started.

SETUP AND

CONNECTIONS

iI1111 II ill[ill!!

Check out the notes that have been

added throughout the manual in

these Tip Boxes. There are some

important tips that will help you get

the most from your TV.

Step 1: Unpack the TV

Make sure to locate the remote control.

Step 2: Connect Your TV

There are three types of connections outlined in this section:

TV Only:

The Basic Connection:

If you're only going to connect the

TV to your home antenna or cable

system.

If you're going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you're going to make multiple

connections, hooking up the TV to a

VCR and a satellite receiver.

Cable information and illustrations are given for each type of

connection. Once you have completed your desired connection

you may skip forward to Step 3.

TV Only

This is a basic connection from an antenna or cable system to

your TV. Connect the cable into the Cable/Antenna jack as shown.

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio

and video signals to the TV from an

antenna, cable, or cable box.

Important Stand Information

CAUTION: Choose the location for

your TV carefully. Take precautions

that the stand or other furniture on

which the TV is placed is properly

located (see Important Safeguards

sheet) and of adequate size and

strength to prevent the TV from

accidentally being tipped over,

pushed off, or pulled off. This could

cause damage to the TV and/or

personal injury.

"Before You Connect

Protect against power surges:

•Connect all components before

plugging any power cords into the

wall outlet.

•Turn off the TV and/or component

before connecting or disconnecting

any cables.

•Make sure all antennas and cables

are properly grounded. Refer to the

Important Safeguards sheet

packed with your TV.

CABLE, CABLE BOX, OR ANTENNA

CABLE/

CONTROL ANTENNA

Once you have completed this connection you may skip to

Step 3, "Connect the IR Controller."

The Basic Connection

The basic connection below (TV and VCR) is the most common

connection and is therefore used to illustrate a single

component connection with your TV. For multiple component

connection information refer to the next section, Advanced

Connections.

Cables

You will use the following type of cable to make your

connection:

Coaxial Cables: In this connection, two

Coaxial Cables are used: one connects from

an antenna, cable, or cable box to the VCR,

and one connects from the VCR to the TV.

These cables carry both audio and video

signals.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

IN FROM ANT m

_ o0_ToTv

VIDEO AUDIO

How to View the VCR

To watch the VCR in this connection,

tune the TV to Channel 3 or 4.

VCR _ CABLE/

CONTROL ANTENNA

Once you have completed this connection you may skip to

Step 3, "Connect the IR Controller."

Advanced Connections

Advanced connections enable you to connect multiple

components,

This section describes the types of inputs available on the back

of your TV and suggests ways you can use them for optimum

performance.

Once you have made your

connections, you will need to

program the TV to tune to the

correct channel in order to see and

hear audio and video from the

component.

Back of the TV

The diagram below describes each of the back panel jacks.

VCR Control

Connect the GUIDE

Plus+ system IR

controller for one-

button recording and

channel tuning from

the GUIDE Plus+

system.

CablelAntenna

Takes the signal input from a cable,

cable box, or an off-air antenna. Can

also be used for basic component

connections.

Sample Connections

The following are sample connection scenarios you may

encounter when connecting components to your TV.

Cables

You will use the following type of cable to make your

connection:

Coaxial Cables: Carries the signal from

the antenna or cable directly to the

television or through a cable box, as

needed by your cable system.

TV and VCR

CABLE, CABLE BOX, OR ANTENNA

VCR 1

VCR

CONTROL

@CABLE/

ANTENNA

Cautions:

Position Cables to Avoid Audio Hum

or Interference

• Insert all cables firmly into jacks.

•Try not to coil any twin-lead cables

and keep them away from any

audio/video cables.

Protect Your Components From

Overheating

•Do not block ventilation holes in

any of the components. Arrange

the components so that air can

circulate freely.

•Do not stack components.

•Allow adequate ventilation when

placing your components in a

stand.

•Place an amplifier on the top shelf

of the stand so heated air rising

from it will not flow around other

components.

How to View Your VCR

To watch the VCR in this connection, turn

on both the TV and the VCR, then tune

the TV to the channel you specify on the

back of the VCR (in this case, channel 3).

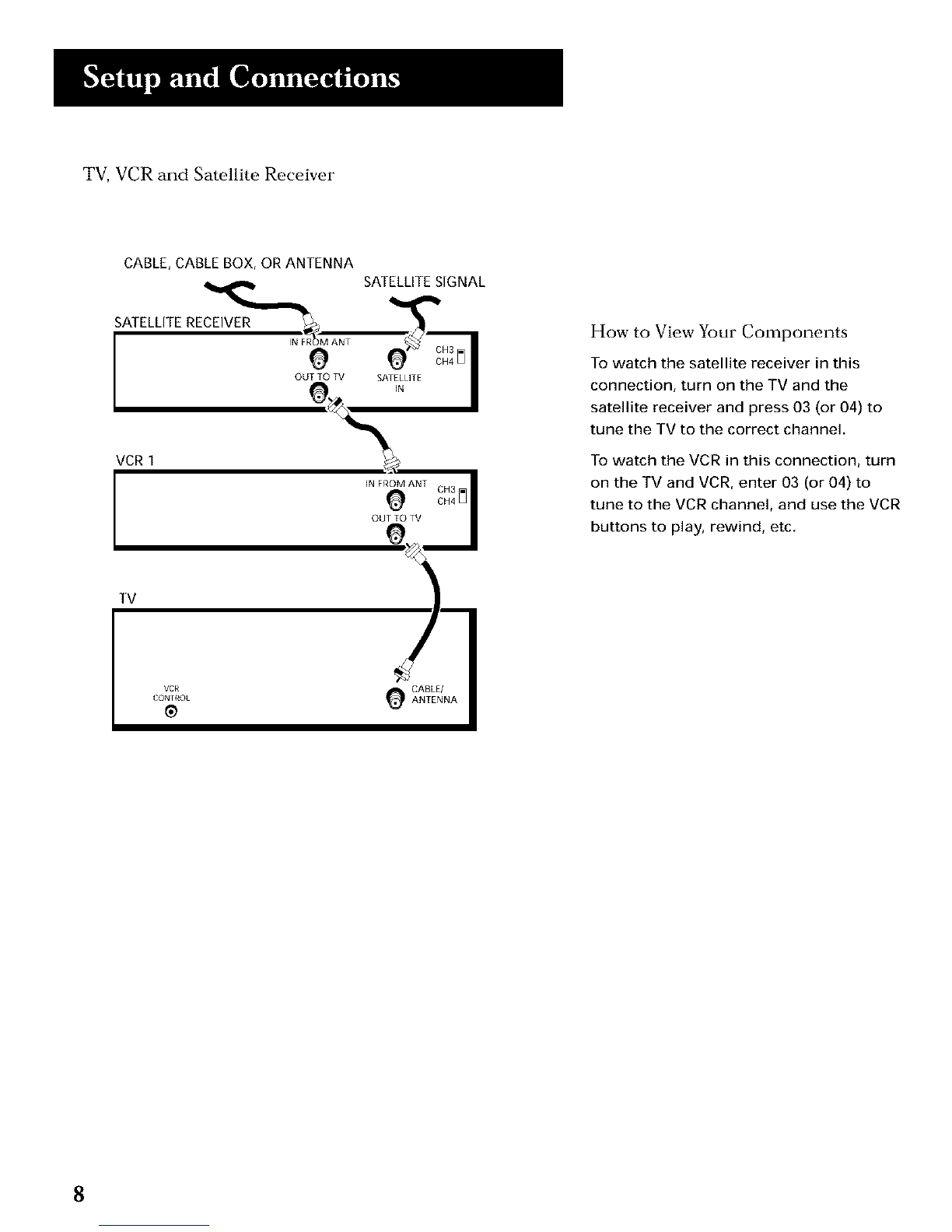

TV, VCR and Satellite Receiver

CABLE, CABLE BOX, OR ANTENNA SATELLITE SIGNAL

SATELLITE RECEIVER

INF e

OUT TO TV

VCR I

VCR

CON rROk

SATELLITE

IN FROM ANT CH3

O CH4

OUT TO TV

CABLE/

ANTENNA

How to View Your Components

To watch the satellite receiver in this

connection, turn on the TV and the

satellite receiver and press 03 (or 04) to

tune the TV to the correct channel,

To watch the VCR in this connection, turn

on the TV and VCR, enter 03 (or 04) to

tune to the VCR channel, and use the VCR

buttons to play, rewind, etc,

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA F27668 Bedienungsanleitung

RCA

RCA MMC101 Bedienungsanleitung

RCA

RCA F31317 Bedienungsanleitung

RCA

RCA G32695LV Bedienungsanleitung

RCA

RCA MM36100 Bedienungsanleitung

RCA

RCA TF 2920 Bedienungsanleitung

RCA

RCA 27F520T - 27" TruFlat Picture Tube TV Kurzanleitung

RCA

RCA P46733 Bedienungsanleitung

RCA

RCA F27718, F32718, F36718, MR68R7 Bedienungsanleitung

RCA

RCA CRT Television Bedienungsanleitung

RCA

RCA P52820BLLG2 Bedienungsanleitung

RCA

RCA F27615 Bedienungsanleitung

RCA

RCA E13205 Bedienungsanleitung

RCA

RCA Scenium HDLP50W151YX1 Bedienungsanleitung

RCA

RCA 27V550 Bedienungsanleitung

RCA

RCA 32V430TYX1GYN Bedienungsanleitung

RCA

RCA RLED1945A Bedienungsanleitung

RCA

RCA MM36100 Bedienungsanleitung

RCA

RCA F25441 Bedienungsanleitung

RCA

RCA Trans Vista 100 Bedienungsanleitung

RCA

RCA F19424TX1T Bedienungsanleitung

RCA

RCA F25649TX51AA9 Bedienungsanleitung

RCA

RCA LED42A45RQ Benutzerhandbuch

RCA

RCA IB-E13322 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
