RCA E09303 Bedienungsanleitung

COLOR TV OW

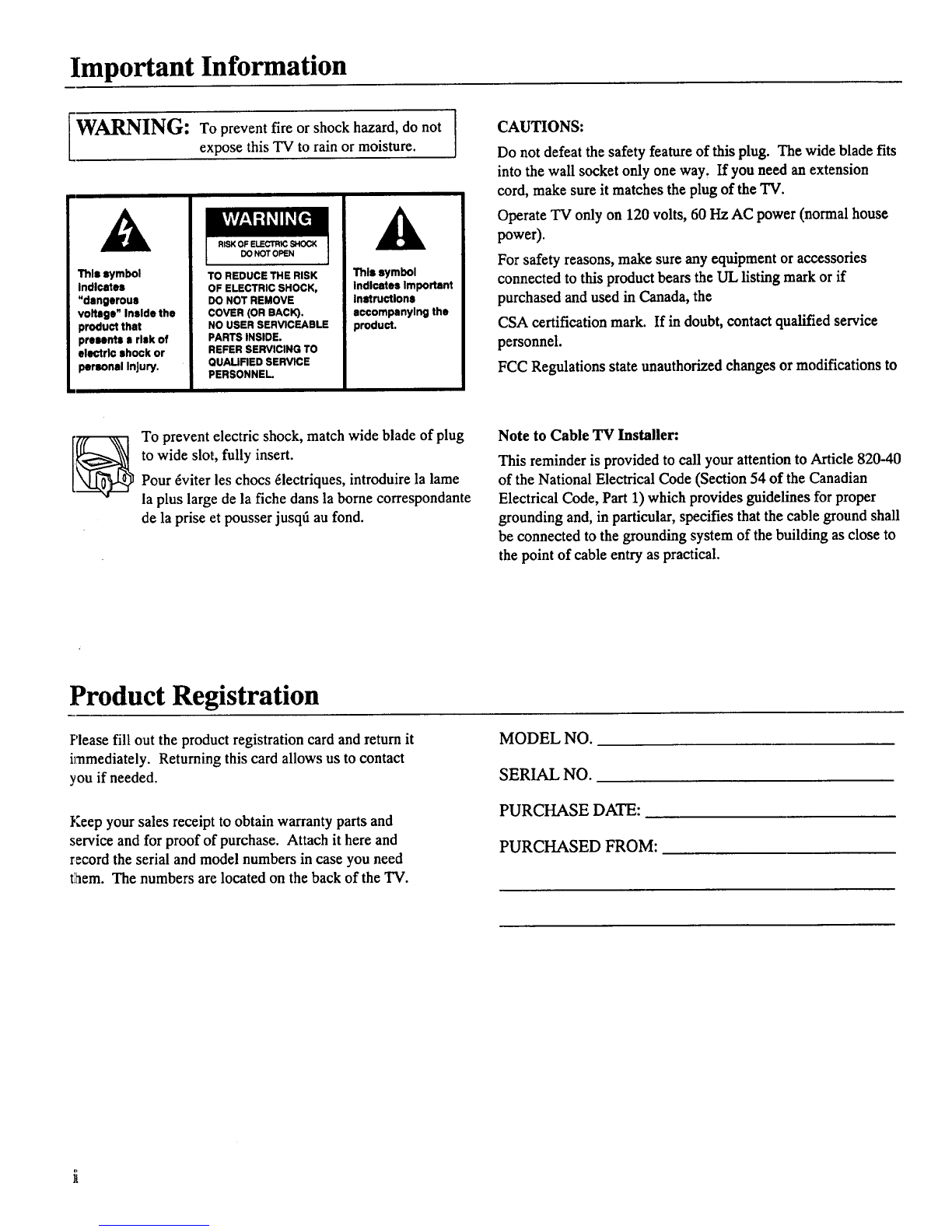

Important Information

WARNING: To prevent fire or shock hazard, do not

expose this TV to rain or moisture.

This symbol

indicstes

"dangerous

voltage" Inside the

product that

presents arisk of

electric shock or

personal injury.

RISK OF ELECTRK: SHOCK

DO NOT OPEN

TO REDUCE THE RISK

OF ELECTRIC SHOCK,

DO NOT REMOVE

COVER (OR BACK).

NO USER SERVICEABLE

PARTS INSIDE.

REFER SERVICING TO

OUAURED SERVICE

PERSONNEL.

This symbol

Indicates Important

instructions

accompanying the

product.

CAUTIONS:

Do not defeat the safety feature of this plug. The wide blade fits

into the wall socket only one way. If you need an extension

cord, make sure it matches the plug of the 'IV.

Operate TV only on 120 volts, 60 Hz AC power (normal house

powe0.

For safety reasons, make sure any equipment or accessories

connected to this product bears the UL listing mark or if

purchased and used in Canada, the

CSA certification mark. If in doubt, contact qualified service

personnel.

FCC Regulations state unauthorized changes or modifications to

To prevent electric shock, match wide blade of plug

to wide slot, fully insert.

Pour 6viter les chocs 61ectriques, introduire la lame

la plus large de la fiche dans la borne correspondante

de la prise et pousser jusqti au fond.

Note to Cable TV Installer:

This reminder is provided to call your attention to Article 820-40

of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper

grounding and, in particular, specifies that the cable ground shall

be connected to the grounding system of the building as close to

the point of cable entry as practical.

Product Registration

Please fill out the product registration card and return it

immediately. Returning this card allows us to contact

you if needed.

MODEL NO.

SERIAL NO.

Keep your sales receipt to obtain warranty parts and

service and for proof of purchase. Attach it here and

record the serial and model numbers in case you need

t]aem. The numbers are located on the back of the TV.

PURCHASE DATE:

PURCHASED FROM:

Introduction

Thank you for choosing RCA

Your television is designed for long

life and superior operation. Despite

its sophistication, your new TV is

amazingly simple to operate because

it has so many automatic features.

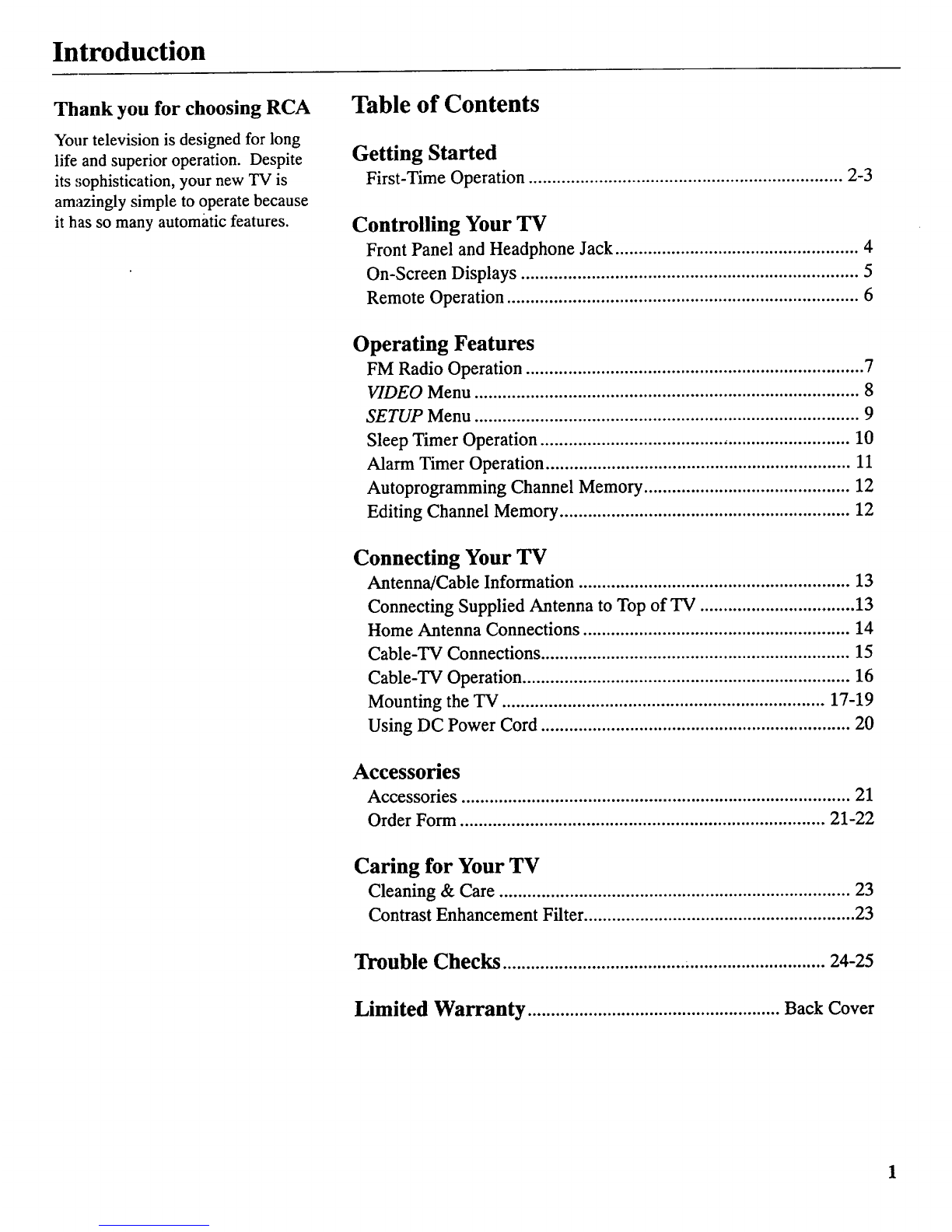

Table of Contents

Getting Started

First-Time Operation ................................................................... 2-3

Controlling Your TV

Front Panel and Headphone Jack .................................................... 4

On-Screen Displays ........................................................................ 5

Remote Operation ........................................................................... 6

Operating Features

FM Radio Operation ........................................................................ 7

VIDEO Menu .................................................................................. 8

SETUP Menu .................................................................................. 9

Sleep Timer Operation .................................................................. 10

Alarm Timer Operation ................................................................. 11

Autoprogramming Channel Memory ............................................ 12

Editing Channel Memory .............................................................. 12

Connecting Your 'IV

Antenna/Cable Information .......................................................... 13

Connecting Supplied Antenna to Top of TV ................................. 13

Home Antenna Connections ......................................................... 14

Cable-TV Connections .................................................................. 15

Cable-TV Operation ...................................................................... 16

Mounting the TV ..................................................................... 17-19

Using DC Power Cord ................................................................... 20

Accessories

Accessories ................................................................................... 21

Order Form .............................................................................. 21-22

Caring for Your TV

Cleaning & Care ........................................................................... 23

Contrast Enhancement Filter .......................................................... 23

Trouble Checks ....................................... .............................. 24-25

Limited Warranty ...................................................... Back Cover

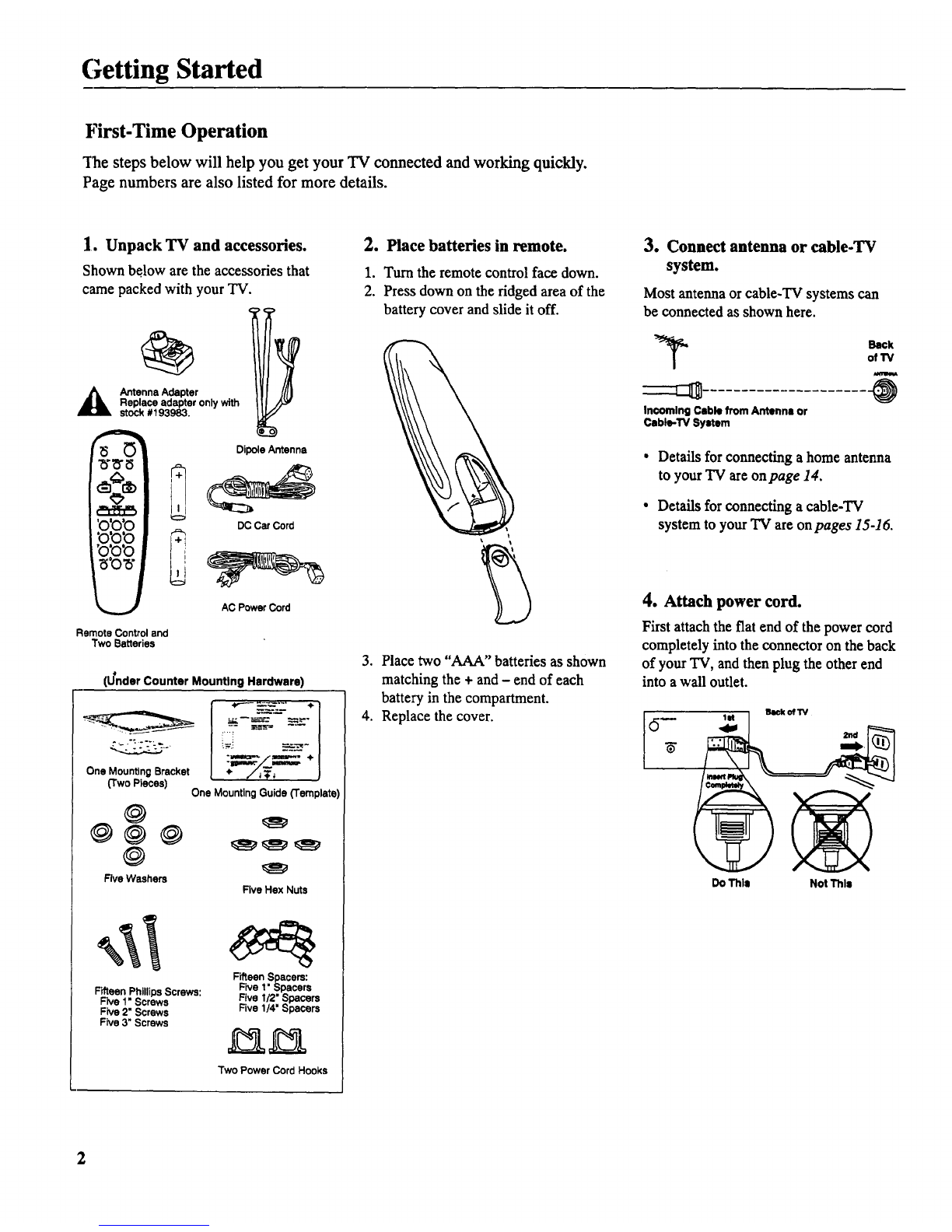

Getting Started

First-Time Operation

"f_e steps below will help you get your TV connected and working quickly.

Page numbers are also listed for more details.

1. Unpack TV and accessories. 2. Place batteries in remote.

Shown below are the accessories that 1. Turn the remote control face down.

came packed with your TV. 2. Press down on the ridged area of the

battery cover and slide it off.

AC Power Cord

Remote Control and

Two Batteries

(t_nder Counter Mounting Hardware)

*'-'-="2--'---÷1

.. !,..?

One Mounting Bracket + jI

(Two Pieces) One Mounting Guide ('Template

Five Washers Five Hex Nuts

Fifteen Phillips Screws:

Five 1" Screws

Five 2" Screws

Five 3" Screws

Fifteen Spacers:

Five 1" Spacers

Five 1/2" Spacers

Five 1/4" Spacers

Two Power Cord Hooks

3. Place two "AAA" batteries as shown

matching the + and -end of each

battery in the compartment.

4. Replace the cover.

3. Connect antenna or cable-TV

system.

Most antenna or cable-TV systems can

be connected as shown here.

Backof TV

Incoming Cable from Antenna or

Cable-TV System

Details for connecting a home antenna

to your TV are onpage 14.

Details for connecting a cable-TV

system to your 'IV areonpages 15-16.

4. Attach power cord.

First attachthe flat end of the power cord

completely into the connector on the back

of your TV, and then plug the other end

into awall outlet.

let

Do "l'hl= NotThis

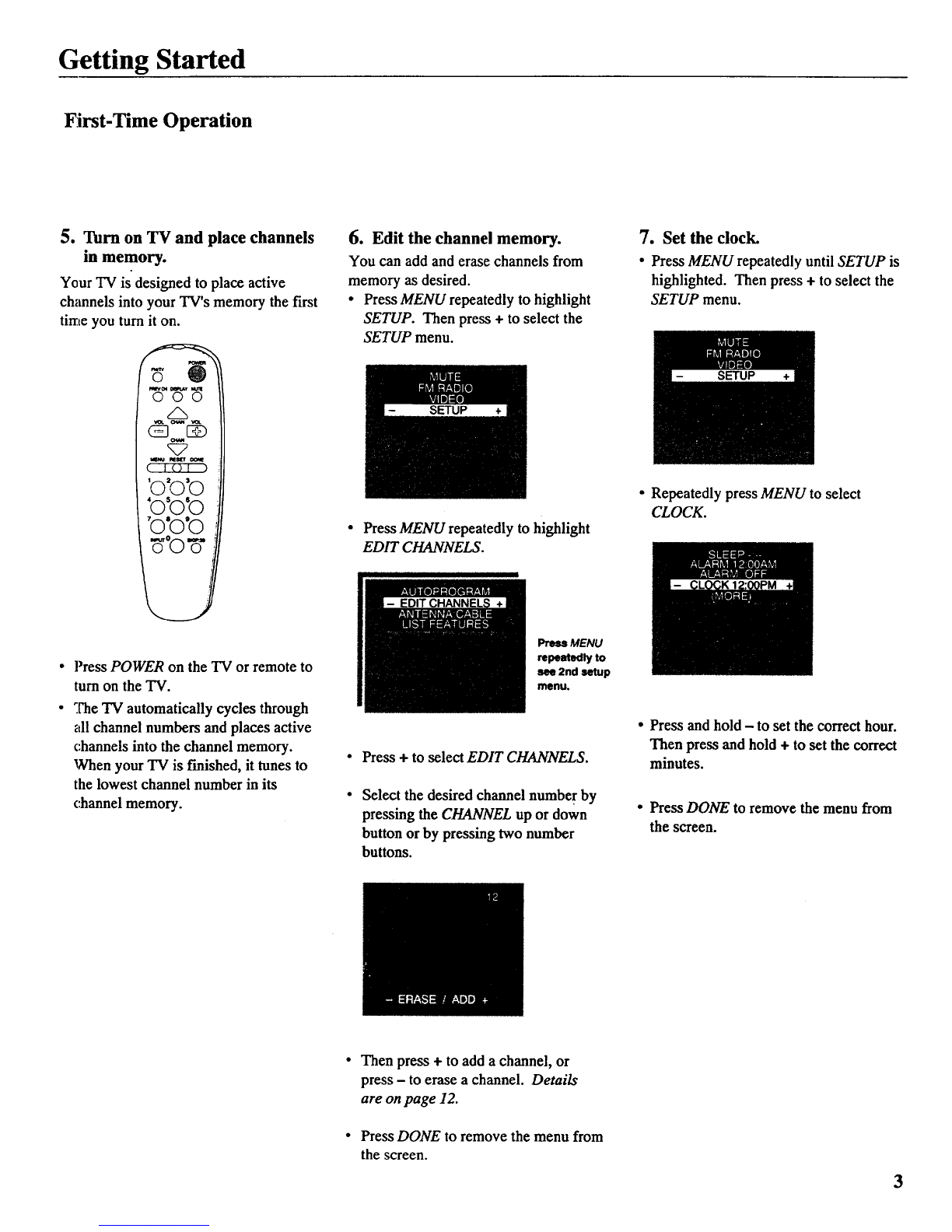

Getting Started

First-Time Operation

5. Turn on TV and place channels

in memory.

Your TV is designed to place active

channels into your TV's memory the first

time you turn it on.

ooo

(B [i)

'o'o'o

'O5O'0

,o,ooo

I i- EDIT CHANNELS +I_

•Press POWER on the TV or remote to

turnon the TV.

• :['he TV automatically cycles through

all channel numbers andplaces active

channels into the channel memory.

When your TV is trmished,it tunes to

the lowest channel number in its

channel memory.

6. Edit the channel memory.

You can addand erase channels from

memory as desired.

•Press MENU repeatedly to highlight

SETUP. Then press + to select the

SETUP menu.

•Press MENU repeatedly to highlight

EDIT CHANNELS.

Press MENU

repeatedly to

see 2nd setup

menu.

Press +to select EDIT CHANNELS.

Select the desired channel number by

pressing the CHANNEL up or down

button or by pressing two number

buttons.

7. Set the clock.

• Press MENU repeatedly until SETUP is

highlighted. Then press + to select the

SETUP menu.

SETUP

•Repeatedly press MENU to select

CLOCK.

•Press and hold -to set the correct hour.

Then press and hold + to set the correct

minutes.

•Press DONE to remove the menu from

the screen.

Then press +to add a channel, or

press - to erase a channel. Details

are on page 12.

Press DONE to remove the menu from

the screen.

Controlling Your TV

Front Panel and Headphone Jack

Shown here are the front-panel buttons. The headphone jack is located on the

backof the TV.

Headphone Jack

(back of TV)

Remote

Semor

Renfote Sensor

., When using the remote control, point it toward this sensor.

CH ^ and vButtons (Channel Up and Down)

• Press Channel up to see the next higher channel in memory.

• Press Channel down to see the next lower channel in memory.

•You can add or erase channels in memory as desired. Details

are onpage 12.

VOL Buttons (Volume Up and Down)

(Also + and - Buttons)

•Press VOL +to increase volume, or press VOL -to decrease

volume.

• Press + or - to adjust the setting of a highlighted item.

• The volume display will automatically appear on the screen

when you press the VOL buttons.

MENU Button

•Press repeatedly until the item you want is highlighted, then

press + or - to enter the menu.

•Press repeatedly to move down each menu screen and then

press + or - to adjust each setting.

• To mute the TV, press once and then press +.

RESET Button

• Press to returnall video settings (color, tint, contrast,

brightness, and sharpness) back to the original settings.

POWER Button

•Press to turn the TV on or off.

FM Button

•Pressing this button changes the TV to the FM mode to listen

to the FM radio.

• If you are listening to the radio, pressing this button again

switches to the TV mode for watching 'IV.

Headphone Jack (located on the back of the TV)

•You can plug an optional set of headphones into this jack for

private listening. When headphones are attached, the sound

comes through the headphones instead of the TV speaker.

•If the plug on your headphones does not fit the jack, adapters

are available at your local electronics supply store.

Controlling Your TV

On-Screen Displays

(_ Sleep Timer_

QAlarm Timer

FM Radio

13"

7:17PM

UTE _/../,-

IMUTE

Channel Number

(_ Time

_l_ Sleep Timer

This display appears when the sleep timer has been set.

Details are on page 10,

(_) Time

This display appears afterthe clock is set whenever you

change channels or press DISPLAYon the remote.

QAlarm Timer

This display appears when the alarm timer has been set.

Details are on page 11.

QChannel Number

This display appears whenever you change channels or

press DISPLAY on the remote.

MUTE

This display appears when the TV's sound is muted. Press

MUTE on the remote or select it through the main menu.

Details are on pages 4 and 6.

(_) FM Radio

This display appears whenever you change stations or

press DISPLAY while in the FM radio mode. Details are

on page 7.

Controlling Your TV

Remote Operation

When operating the remote, point it

directly at the front of the TV without

objects between that can block the

si[gnal to the TV.

POWER Button

•Press to turn the "IV on or off.

FMITV Button

• Pressing this button changes the "IV to

the FM mode to listen to the FM radio.

•If you are listening to the radio,

pressing this button again switches to

the TV mode for watching TV.

PREV CH Button (Previous Channel)

• Pressing this button switches the TV

back to the last tuned channel. This is

useful if you want to watch two

channels.

• Select the first channel you wish to

watch. Then select the other channel

by pressing two number buttons.

• The "IVchanges back and forth

between the two channels each time

you press this button.

DISPLA Y Button

•Press to display the time and channel

number on the screen.

• Press to see ff the Sleep Timer and/or

Alarm Timer is set.

•Press to quickly remove menus from

the screen.

•If using the FM radio, press to see the

time and radio station on the screen.

MUTE Button

• Press to quickly reduce sound to

minimum level without affecting the

picture.

• To restore sound, press MUTE again or

press VOL up.

•MUTE can also be selected through the

main menu.

C_ _Buttons (Channd up

and down)

•Press to select the next higher or lower

channel in memory,

•If you are listening to the radio, press to

scan the next higher or lower station.

•You can add orerase channels in

memory as desired. Details are on

page 12.

VOL Buttons (Volume up and down)

(Also - and + Buttons)

•Press VOL + to increase volume, or

press VOL - to decrease volume.

• Press + or -to adjust the setting of a

highlighted item.

• The volume display appears on the

screen when you press the VOL

buttons.

MENU Button

• Press repeatedly until the item you

want is highlighted, then press +or - to

enter the menu.

•Press repeatedly to move down each

menu screen and then press +or - to

adjust each setting.

• To mute the TV, press once and then

press +.

RESET Button

•Press to return all video settings

(color, tint, contrast, brightness, and

sharpness) back to the original settings.

DONE Button

•Press to clear the screen of all

on-screen displays except MUTE.

Number Buttons (0-9)

• Press to access any channel number.

• To select a channel, press two number

buttons. For example, press 0 then 6

for channel 6.

•To select a 3-digit number, press and

hold numberbutton 1until 1- appears

on the screen. Then press the other

two numbers.

INPUT Button

•Switches the "IVto channel 03. This is

useful if you have aVCR connected to

your TV.

SKIP:30 Button (Commercial Skip)

•Allows you to look at other channels

during commercials using the

CHANNEL buttons.

•Each press adds 30 seconds. The "IV

switches back to original channel when

time runs out.

Operating Features

FM Radio Operation

The FM radio is designed to work

on either cable-TV or a home

antenna. If your TV is connected to

cable-TV, the radio w'.tll only work

if your cable company broadcasts

the FM radio signals. If your TV is

connected, to a home antenna

system, you will be able to receive

those channels broadcast in your

area.

The radio can be used along with

the sleep timer and alarm timer.

Listen to music before going to

sleep or wake up to music. Details

for "Setting the Sleep Timer" are

on.page 10 and "Setting the

Alarm" are on page 11.

Operating Radio

1. Turn on the TV and press FM/TV

on the remote or FM on the front

of the TV. The radio display

appears on the TV screen.

You can also access the radio

through the main menu. Press

MENU until FM RADIO is

highlighted.

Programming Radio Stations

into Memory

Select the radio station you want

to put into memory by pressing

CHANNEL up or down. If the

station cannot be locked in when

you press the CHANNEL buttons,

you can select FM MANUAL

from the radio menu. Pressing +

or - will step through each

frequency one at a time.

When the station you want to

program appears on the TV

screen, first press number 0 to

highlight the station number, and

then press number 1.

You can also program up to six of

your favorite radio stations into

memory so you'll be able to quickly

select them. Number buttons 1

th:rough 6 on the remote control can

be programmed to automatically

select favorite channels.

When TV appears in the menu,

you are in the radio mode. When

FM RADIO appears in the menu,

you are in the TV mode.

Press CHANNEL up ordown to

select the next available station. If

the station you want to tune is not

strong enough for the radio to lock

in on it, you can select FM

MANUAL from the radio menu.

Pressing + or - will step through

each frequency one at a time.

Press VOLUME up or down to

adjust the volume.

The radio station is now assigned

to number 1 and can be selected

whenever you press number 1

when the TV is in the radio

mode.

Number buttons 2, 3, 4, 5, and 6

can also be assigned to specific

radio stations. Repeat steps 1

and 2 above to assign the

numbers.

Tuning the National Weather

Service (air antenna only)

The TV must be connected to an

antenna (not cable-TV) amdthe

ANTENNA function must be set to

AIR. Details for changing this

function are on page 9.

NWS is located between the highest

and lowest number on the radio

scale. When NWS cannot be located

using the CHANNEL buttons, you

may need to use the + or - button.

Operating Features

VIDEO Menu

Press MENU until VIDEO is highlighted. Then press + to

select the VIDEO menu. Press MENU to move down the

menu and + and -to adjust each function.

Press

to select

VIDEO

Press +

for 1st

VIDEO

Screen

The VIDEO RESET function changes all the video functions (color, tint,

contrast, brightness, sharpness) back to the factory settings. Press + or-to

reset the video functions. RESET appears on the TV screen momentarily

while the functions are being adjusted.

Press

until the

second

_IDEO

appears

The COLOR function adjusts the amount of color in the picture. Press + or -

to select COLOR, then press + to increase or press - to decrease color.

The T!NT function adjusts the color of flesh tones. Press + or -to select

T/NT. Press + to add more green tintor press - to add more red tint.

The CONTRAST function adjusts the overall brightness and contrast of the

picture. Press +or - to select CONTRAST. Press + to increase or press - to

decrease contrast.

The BRIGHTNESS function adjusts the brightness of the darkportions of the

picture. Press + or - to select BRIGHTNESS. Press + to increase or

press - to decrease bfighmess.

The SHARPNESS function adjusts picture sharpness. Press + or -to select

SHARPNESS. Press + to increase or press - to decrease.

Adjustment

Displays

These functions are displayed "individuallyat the bottom of the screen once

they have been selected. The setting can be adjusted at thattime by pressing

either the +or - button.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA 32GT740YX59CA9 Bedienungsanleitung

RCA

RCA F27250 Bedienungsanleitung

RCA

RCA F27242GY Bedienungsanleitung

RCA

RCA PS27600 Bedienungsanleitung

RCA

RCA E13334 Bedienungsanleitung

RCA

RCA 46LA45RQ Gebrauchsanweisung

RCA

RCA RLED1945A Bedienungsanleitung

RCA

RCA Scenium M61WH185 Bedienungsanleitung

RCA

RCA 14B042 Bedienungsanleitung

RCA

RCA 24V412T Bedienungsanleitung

RCA

RCA RTU5015 Bedienungsanleitung

RCA

RCA M50WH72S Installations- und Betriebshandbuch

RCA

RCA M61WH74 Bedienungsanleitung

RCA

RCA F26317YX51AA5 Bedienungsanleitung

RCA

RCA 20v504t - 20" CRT TV Bedienungsanleitung

RCA

RCA F25216 Bedienungsanleitung

RCA

RCA IB-X20162GS Bedienungsanleitung

RCA

RCA P52811 Bedienungsanleitung

RCA

RCA RLED2431A-B Bedienungsanleitung

RCA

RCA Roku TV RTRU5827-B-US Bedienungsanleitung

RCA

RCA PTK195 Bedienungsanleitung

RCA

RCA TruFlat F20TF10 Bedienungsanleitung

RCA

RCA 20F410T - 20" TruFlat TV Benutzerhandbuch

RCA

RCA C21521 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
