RCA 1535006A Bedienungsanleitung

USER'S

GUIDE

C O L O R T V

Important Information

WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

To reduce the risk of electric shock, do not remove

cover (or back). No user serviceable parts inside.

Refer servicing to qualified service personnel.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

This symbol indicates

important instructions

accompanying the product.

WARNING

RISK OF ELECTRIC

SHOCK DO NOT OPEN

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, fully insert.

Attention: Pour éviter les chocs électriques, introduire la

lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqú au fond.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user’s authority to operate it.

If fixed (non-moving) images are left on the screen for long

periods, they may be permanently imprinted on the screen. Such

images include network logos, phone numbers, and video games.

This damage is not covered by your warranty. Extended viewing

of channels displaying these images should be avoided.

Cable TV Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

Table of Contents

Setup and connections .......................................................... 3

Step 1: Unpack the TV......................................................................4

Step 2: Connecting your TV .............................................................4

TV Only.......................................................................................4

The Basic Connection.................................................................5

Advanced Connections ..............................................................6

Step 3: Plug in the TV.......................................................................9

Step 4: Place batteries in remote ....................................................9

Step 5: Turn on the TV .....................................................................9

Step 6: Program the TV....................................................................9

Interactive Setup .................................................................... 11

Using Point and Select ...................................................................12

Entering Setup................................................................................12

Select a Language ..........................................................................13

Auto Channel Search......................................................................13

Set the Time....................................................................................14

Set the VCR1 Channel (auto tuning).............................................14

Set the VCR2 Channel (auto tuning).............................................15

Set the DVD Channel (auto tuning) ..............................................16

Set the SAT/CABLE Channel (auto tuning)....................................16

Label the Channels ......................................................................... 17

What Now?.....................................................................................18

Program the Remote......................................................................18

Using the Remote..................................................................... 19

Remote Buttons..............................................................................20

Using the FAV•INPUT button ..................................................21

Programming the Remote .............................................................22

Testing the remote ..................................................................22

Programming the remote .......................................................22

Using the remote to control a device.....................................22

Modes of Operation ................................................................23

Front Panel .....................................................................................23

Table of Contents

Features and Menus ............................................................... 25

Menus and Control Panels .............................................................26

Menus .......................................................................................26

Control Panels ..........................................................................27

Audio Menu....................................................................................28

Using the remote to select an audio processor ............................29

Picture Quality Menu .....................................................................30

Screen Menu ...................................................................................31

Using Closed Captioning .........................................................32

Channel Menu ................................................................................33

Time Menu......................................................................................34

Parental Controls Menu.................................................................35

PIP (Picture-in-Picture) Operation .................................................36

Setup Menu ....................................................................................36

Channel Marker..............................................................................37

Troubleshooting ....................................................................39

Care and Cleaning ................................................................. 40

RCA PROJECTION TV LIMITED WARRANTY ............................ 41

Accessory Information ...................................................... 42

Index .............................................................................................45

Setup and Connections

Getting started

Thismanualisdesignedtogetyoustartedquickly.

Thefirstfoursectionsofthemanualshowyouhow

togetyourTVSetupandConnected,runthe

InteractiveSetup,ProgramtheRemote,anduseallof

theFeaturesandMenusofyourTV.

TheReferencesectioninthebackofthebook

containstroubleshootingtips,careandcleaning

instructions,accessoryorderinginformationandyour

warranty.

Well…ifyourTV’soutofthebox,let’sgetstarted.

Check out the notes that have been added

throughout the manual in these Tip

Boxes. There are some important

tips that will help you get the most from

your TV.

Setup and connections

Interactive setup

Features and Menus

Using the remote

Reference

Setup and Connections

Step 1: Unpack the TV

Make sure to locate the remote control.

Step 2: Connecting your TV

There are three types of connections outlined in this section:

TV Only: If you’re only going to connect the

TV to your home antenna or cable

system.

The Basic Connection: If you’re going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you’re going to make multiple

connections, hooking up the TV to

one or two VCRs, DVD player, and a

satellite receiver.

Cable information and illustrations are given for each type of connection.

Once you have completed your desired connection you may skip forward

to Step 3.

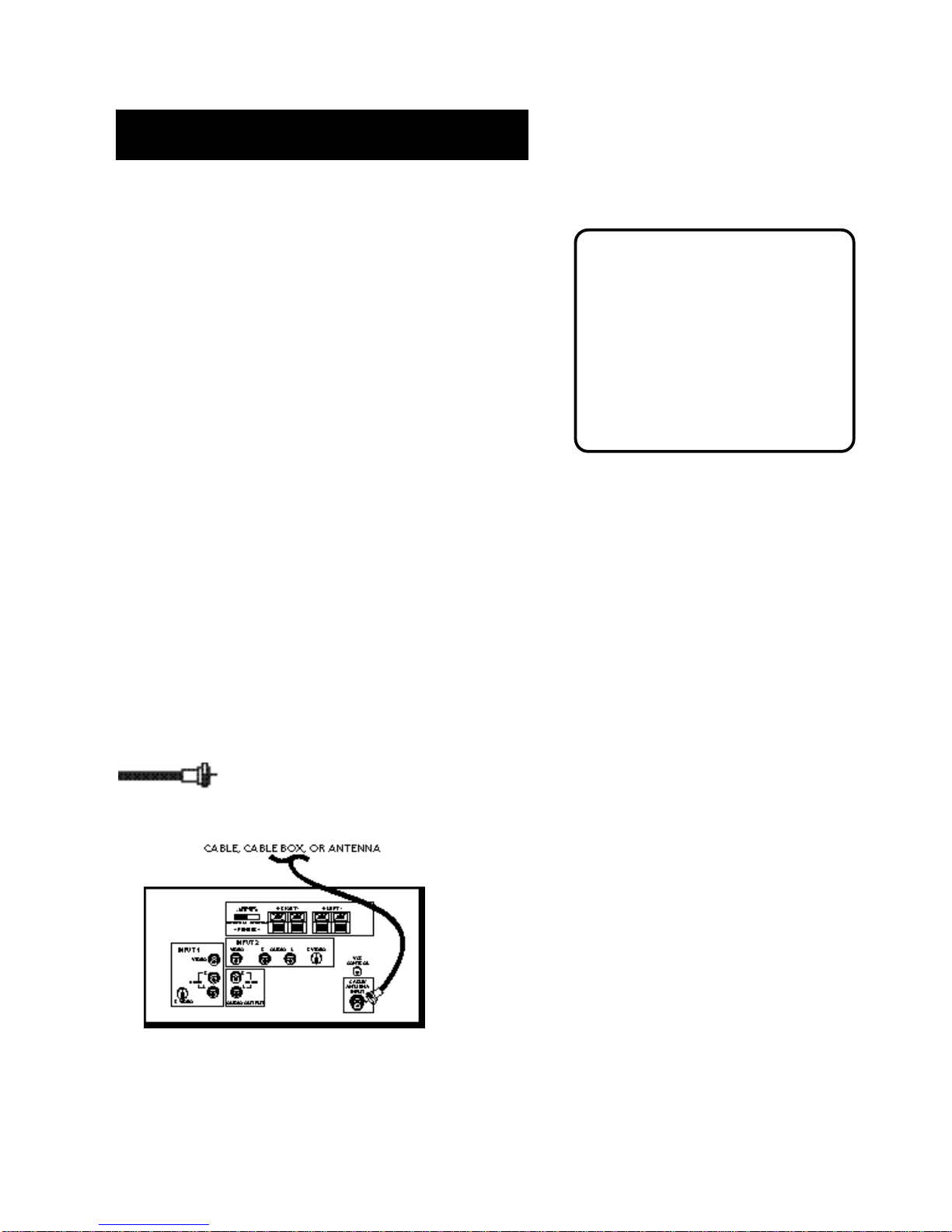

TV Only

This is a basic connection from an antenna or cable system to your TV.

Connect the cable into the Cable/Antenna jack as shown.

Cables

You will use the following cable to make your connection:

Coaxial Cable : These cables carry audio and video

signal to the TV from an antenna, cable, or

cablebox.

Once you have completed this connection you may skip to Step 3.

Before You Connect

Protect against power surges:

• Connect all components before

plugging any power cords into the wall

outlet.

• Turn off the TV and/or component

before connecting or disconnecting any

cables.

• Make sure all antennas and cables are

properly grounded. Refer to your

Safety Tips sheet packed with your TV.

Setup and Connections

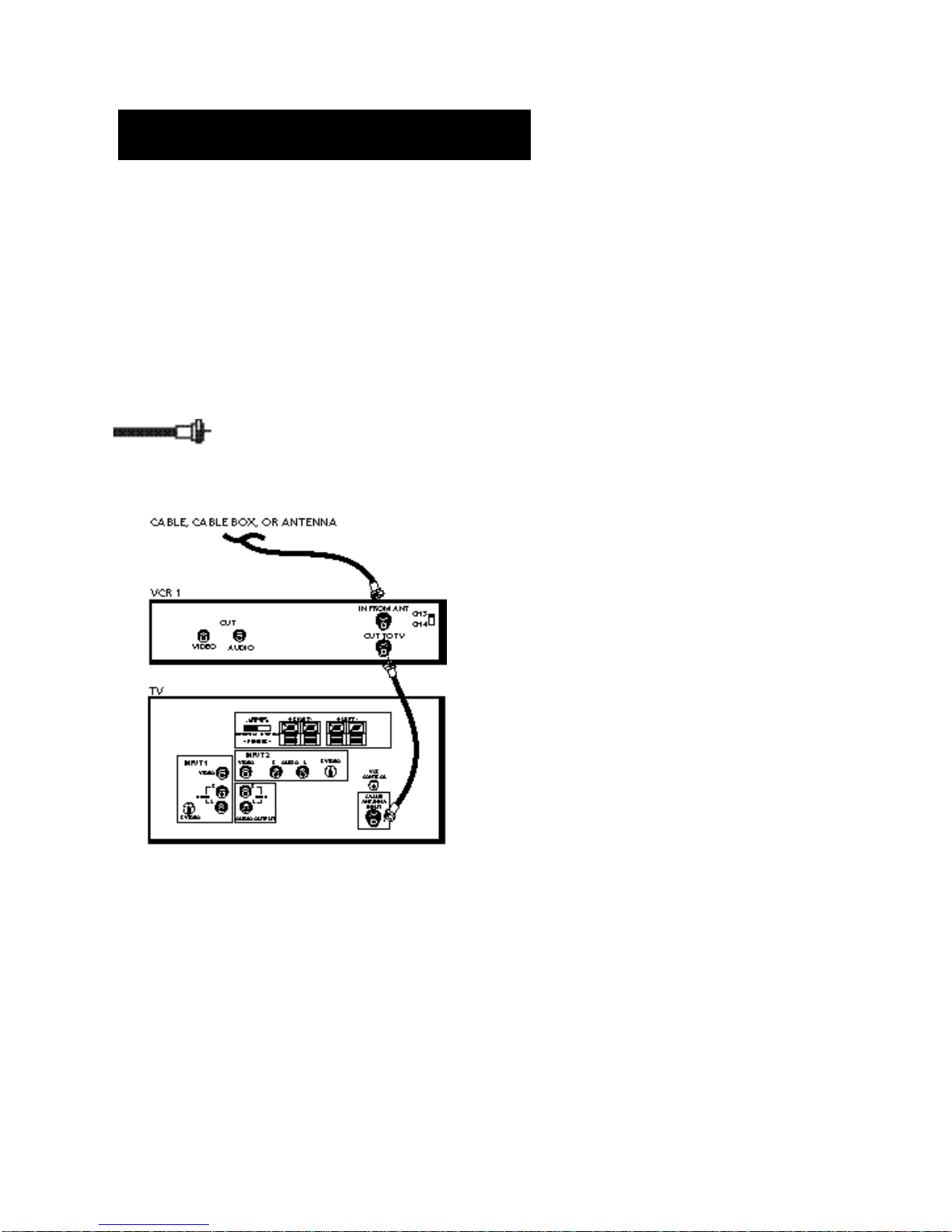

The Basic connection

The basic connection below (TV and VCR) is the most common

connection and is therefore used to illustrate a single component

connection with your TV. For better sound and picture quality and

multiple component connection information refer to the next section,

Advanced Connections.

Cables

You will use the following cable to make your connection:

Coaxial Cables : These cables carry both the audio

and video signal to the TV from an antenna, cable,

or cablebox. In this connection, a second Coaxial

Cable carries the signal through the VCR to the TV.

Once you have completed this connection you may skip to Step 3.

How to View the VCR

To watch the VCR in this connection tune TV to

Channel 3 or 4.

Later, in the Interactive Setup section you will

program the TV to automatically tune to Channel 3 or

4 when you turn on the VCR.

Setup and Connections

Advanced Connections

Advanced connections give you better sound and video by separating

the audio and video signals and enable you to connect multiple

components.

This section describes the types of inputs available on the back of your

TV and suggests ways you can use them for optimum performance.

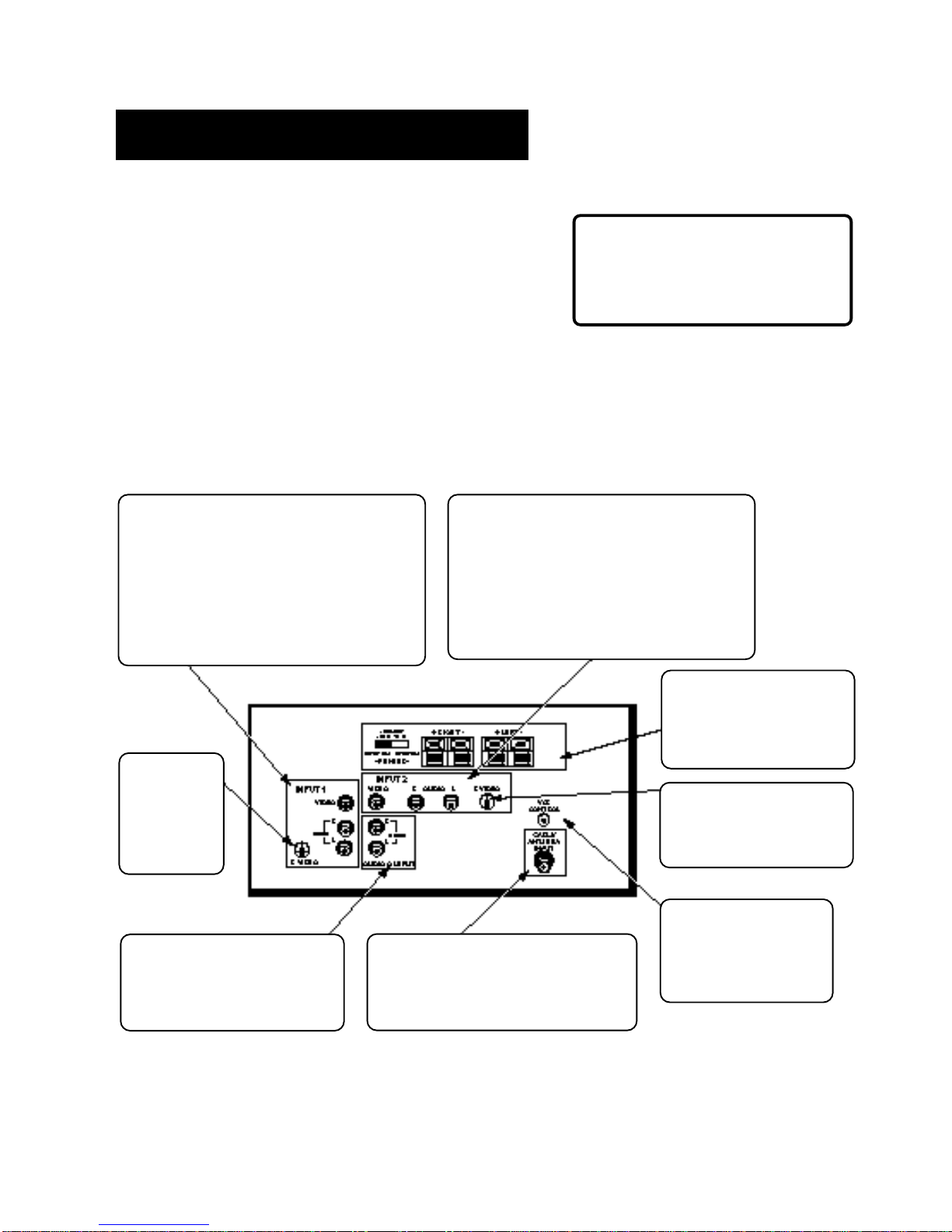

Back of the TV

The diagram below describes each of the back panel jacks. When

connecting A/V cables, be sure to connect corresponding OUTPUTS and

INPUTS (Video to Video, Right Audio to Right Audio, etc.).

Once you have made your connections

you will need to program the TV to tune

to the correct Video INPUT channel in

order to see and hear audio and video

from the component. You will program

this later in the Interactive Setup.

Input 1

Connect any of the following components:

• VCR • Internet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to Input 1:

Use the FAV•INPUT button on the remote.

VCR Control

Can be used with

features provided by

entertainment service

providers.

Cable/Antenna

Takes the signal input from a cable,

cable box, or an off-air antenna. Can also

be used for basic component connections.

Audio Outputs

Connect to an audio receiver or

amplifier for variable controlled

or fixed level stereo output.

S-Video

This optional

connection can

be used for

better video

quality picture.

Input 2

Connect any of the following components:

• VCR • Internet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to Input 2:

Use the FAV•INPUT button on the remote.

S-Video

This optional connection can

be used for better video

quality picture.

Speaker Terminals

Use to connect external

speakers for surround sound.

Make sure the Speaker

Selection is set to EXTERNAL.

Setup and Connections

Sample Connections

The following are sample connection scenarios which you may encounter

when connecting components to your TV. Note: those components which

offer an S-Video connection, such as DVD, VCR or Satellite Receivers,

must match their S-Video connection with their audio INPUT connection.

Cables

You will use the following cable to make your connection:

Coaxial Cables : Carries the signal from the

antenna or cable directly to the television or

through a cablebox, as needed by your cable

system.

Audio/Video Cables : Carries sound and video

from the component to the TV.

S-Video Cable : Carries video from an S-Video

capable component which provides best

picture quality.

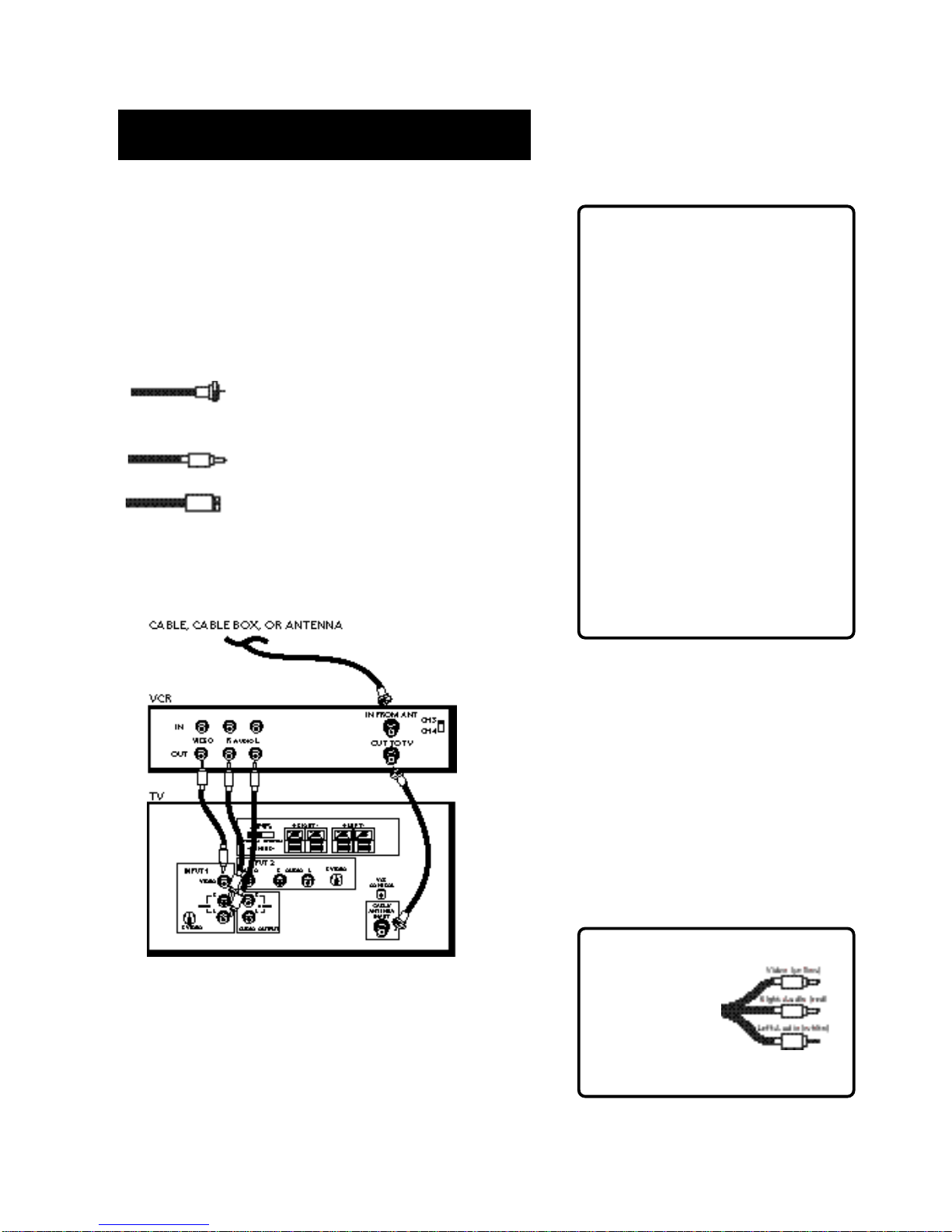

TV and Stereo VCR

Compared to the Basic Connection, using audio, video and

S-Video (if available) cables will enhance the sound and picture quality

from a component.

Cautions:

Position cables to Avoid Audio Hum

or Interference

• Insert all cables firmly into jacks.

• Place the audio/video cables to the

sides of the TV’s back panel instead of

straight down the middle.

• Try not to coil any twin-lead cables and

keep them away from the audio/video

cables.

Protect your components from

Overheating

• Do not block ventilation holes in any of

the components. Arrange the

components so that air can circulate

freely.

• Do not stack components.

• Allow adequate ventilation when

placing your components in a stand.

• Place an amplifier on the top shelf of

the stand so heated air rising from it

will not flow around other

components.

How to View Your VCR

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then press FAV•INPUT to

scroll through the video input channels until you tune to

VID1 input.

In the Interactive Setup section you can program the TV to

automatically tune to the VID1 input channel when you

turn on the VCR.

Most Audio/Video cables are combined

into one cable with three

heads on each end.

We show individual

cables in these

sample connections.

Either may be used,

but you must be sure to

connect Video to Video,

Right to Right and Left to Left.

Setup and Connections

How to View Your Components

To watch the Satellite Receiver in this connection, press

TV to put the remote control into TV mode, then press

FAV•INPUT to scroll through the video input channels

until you tune to VID1 (or SVID 1) input.

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then press FAV•INPUT to

scroll through the video input channels until you tune

to VID2 (or SVID 2) input.

In the Interactive Setup you can program the TV to

automatically tune to correct input channel when you

turn on your component.

TV, VCR and Satellite Receiver

TV, VCR, Satellite Receiver and DVD

How to View Your Components

To watch the Satellite Receiver in this connection, press

TV to put the remote control into TV mode, then press

FAV•INPUT to scroll through the video input channels

until you tune to VID1 (or SVID 1) input.

To watch the VCR in this connection tune to Channel 3

or 4.

To watch the DVD player in this connection, press TV to

put the remote control into TV mode, then press

FAV•INPUT to scroll through the video input channels

until you tune to VID2 (or SVID 2) input.

In the Interactive Setup you can program the TV to

automatically tune to the correct input channel when

you turn on your component.

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA X20101 Bedienungsanleitung

RCA

RCA F27731 Bedienungsanleitung

RCA

RCA CTC179 Bedienungsanleitung

RCA

RCA HDTV Television Bedienungsanleitung

RCA

RCA 24V412T Bedienungsanleitung

RCA

RCA MR13401, M14300, M19401, M2030 Bedienungsanleitung

RCA

RCA F27741 Bedienungsanleitung

RCA

RCA 35V432T Bedienungsanleitung

RCA

RCA 24F512T Bedienungsanleitung

RCA

RCA CR20805 Bedienungsanleitung

RCA

RCA F27TF12 Bedienungsanleitung

RCA

RCA P52937 Bedienungsanleitung

RCA

RCA R52WH73 Kurzanleitung

RCA

RCA 20F420T Bedienungsanleitung

RCA

RCA M50WH92S Bedienungsanleitung

RCA

RCA PS27600 Bedienungsanleitung

RCA

RCA IB-F20551WN Bedienungsanleitung

RCA

RCA TruFlat F20TF10 Bedienungsanleitung

RCA

RCA 27F650TYX3KCY Bedienungsanleitung

RCA

RCA 32GT740YX59CA9 Bedienungsanleitung

RCA

RCA C21521 Bedienungsanleitung

RCA

RCA D52W136D - 52" HDTV Monitor Bedienungsanleitung

RCA

RCA PTK195 Bedienungsanleitung

RCA

RCA CR29TF420 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
