Introduction

Thank you for choosing RCA

Your television is designed for long

life and superior operation. Despite its

sophistication, your new TV is

amazingly simple to operate because it

has so many automatic features.

Table of Contents

Getting Started

First-Time Operation .................................................................. 2-3

Controlling Your TV

Front Panel..................................................................................... 4

On-Screen Displays ....................................................................... 5

Remote Operation.......................................................................... 6

Operating Features

VIDEO Menu................................................................................. 7

Closed Captioning ......................................................................... 8

Languages (English, French, Spanish) .......................................... 8

SETUP Menu................................................................................. 9

Sleep Timer Operation................................................................. 10

Alarm Timer Operation ............................................................... 11

Autoprogramming Channel Memory .......................................... 12

Editing Channel Memory ............................................................. 12

Connecting Your TV

Antenna/Cable Information ......................................................... 13

Dipole Antenna Connection......................................................... 13

Home Antenna Connections ........................................................ 14

Cable-TV Connections ................................................................ 15

Cable-TV Operation .................................................................... 16

Accessories

Accessories .................................................................................. 17

Order Form ............................................................................. 17-18

Caring for Your TV

Cleaning & Care .......................................................................... 19

Trouble Checks......................................................................... 20

Limited Warranty.................................................................... 21

Getting Started

First-Time Operation

The steps below will help you get your TV connected and working quickly.

Page numbers are also listed for more details.

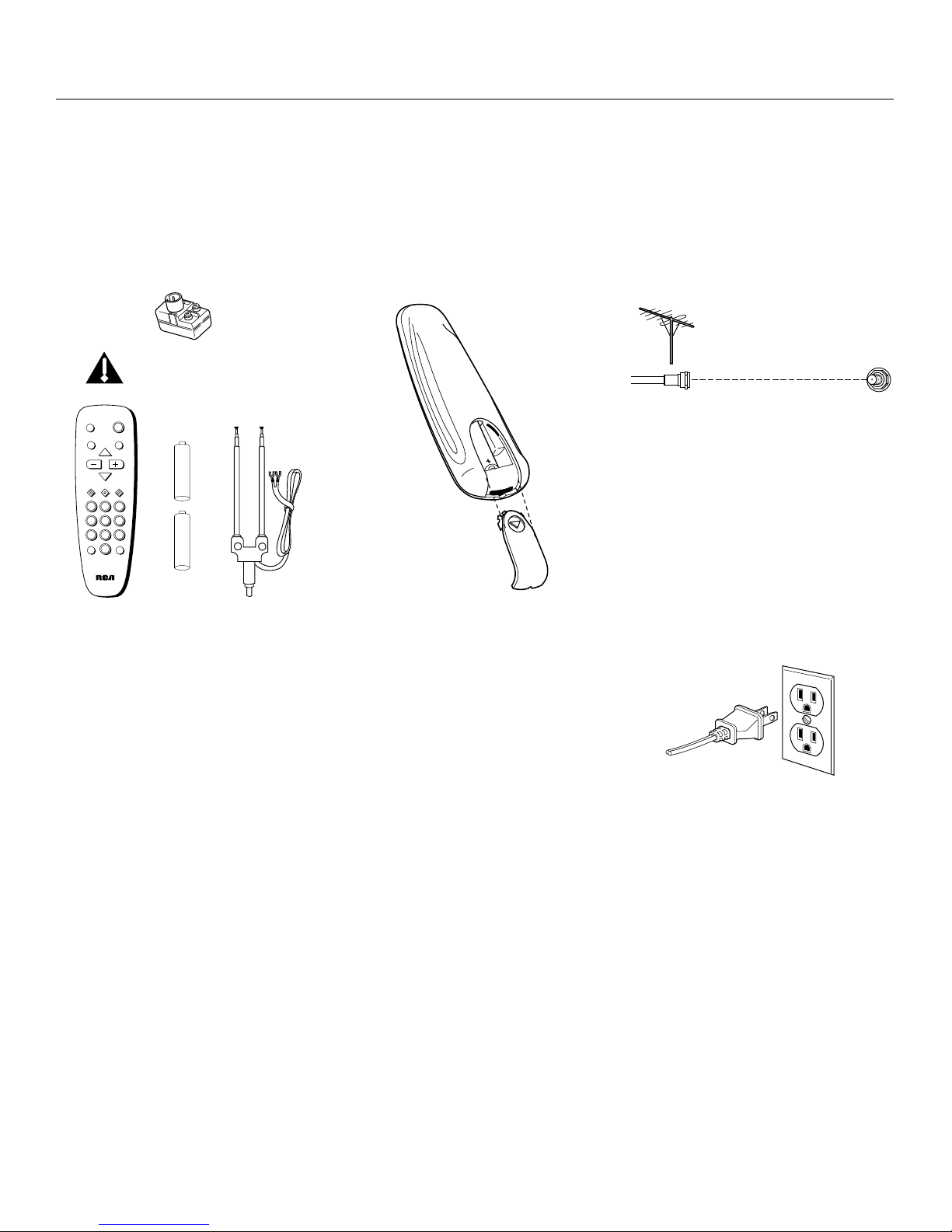

1. Unpack TV and accessories.

Shown below are the accessories that

came packed with your TV.

2. Place batteries in remote.

1. Turn the remote control face down.

2. Press down on the ridged area of the

battery cover and slide it off.

3. Place two “AAA” batteries as shown

matching the + and – end of each

battery in the compartment.

4. Replace the cover.

3. Connect antenna or cable-TV

system.

Most antenna or cable-TV systems can

be connected as shown here.

• Details for connecting a home antenna

to your TV are on page 14.

• Details for connecting a cable-TV

system to your TV are on pages 15-16.

4. Plug in the TV.

Plug in the TV, matching the wide and

small blade of the plug with the outlet.

ANTENNA

Incoming Cable fromAntenna or

Cable-TV System

Back of

DISPLAY

MUTE

INPUT SKIP

VOL VOL

CHAN

MENUCLEAR RESET

PREV CH

POWER

132

465

798

Antenna Adapter

Replace adapter only with

stock #193983

Dipole Antenna

+_+_

Remote Control and 

Two Batteries

VIDEO

CAPTION OFF

- SETUP +

ENGLISH

ANTENNA:CABLE

LIST FEATURES

– AUTOPROGRAM +

EDIT CHANNELS

Getting Started

First-Time Operation

5. Turn on TV and place channels

in memory.

Your TV is designed to place active

channels into your TV’s memory the first

time you turn it on.

• Press POWER on the TV or remote to

turn on the TV.

• The TV automatically cycles through all

channel numbers and places active

channels into the channel memory.

When your TV is finished, it tunes to

the lowest channel number in its

channel memory.

6. Edit the channel memory.

You can add and erase channels from

memory as desired.

• Press MENU repeatedly to highlight

SETUP. Then press +to select the

SETUP menu.

• Press MENU repeatedly to highlight

EDIT CHANNELS.

• Press +to select EDIT CHANNELS.

• Select the desired channel number by

pressing the CHAN up or down button

or by pressing two number buttons.

• Then press +to add a channel, or

press –to erase a channel. Details

are on page 12.

• Press CLEAR to remove the menu from

the screen.

7. Set the clock.

• Press MENU repeatedly until SETUP is

highlighted. Then press +to select the

SETUP menu.

• Repeatedly press MENU to select

CLOCK.

• Press and hold –to set the correct hour.

Then press and hold +to set the correct

minutes.

• Press CLEAR to remove the menu from

the screen.

– CLOCK 12:00PM +

(MORE)

SLEEP -:--

ALARM 6:30AM

ALARM: OFF

– ERASE / ADD +

–

Press MENU

repeatedly to

see 2nd setup

menu.

AUTOPROGRAM

ANTENNA:CABLE

– EDIT CHANNELS +



VIDEO

CAPTION OFF

- SETUP +

ENGLISH

DISPLAY

MUTE

INPUT SKIP

VOL VOL

CHAN

MENUCLEAR RESET

PREV CH

POWER

132

465

798

Front Panel

Shown here are the front-panel buttons.

Controlling Your TV

Remote Sensor

• When using the remote control, point it toward this sensor.

MENU Button

• Press repeatedly until the item you want is highlighted, then

press +or –to enter the menu.

• Press repeatedly to move down each menu screen and then

press +or –to adjust each setting.

• To mute the TV, press once and then press +.

and

Buttons (Channel Up and Down)

• Press Channel up to see the next higher channel in memory.

• Press Channel down to see the next lower channel in memory.

• You can add or erase channels in memory as desired. Details

are on page 12.

VOL Buttons (Volume Up and Down)

(Also + and – Buttons)

• Press VOL +to increase volume, or press VOL –to decrease

volume.

• Press +or – to adjust the setting of an item that is highlighted

in the menu.

• The volume display will automatically appear on the screen

when you press the VOL buttons.

POWER Button

• Press to turn the TV on or off.

MENU CH CH VOL VOL POWER

–

MENU CH CH VOL VOL POWER

–

Remote Sensor

Controlling Your TV

On-Screen Displays



13

SLP ALM 7:17PM

MUTE 



Sleep Timer

Alarm Timer

3MUTE

Channel Number

Time

Sleep Timer

This display appears when the sleep timer has been set.

Details are on page 10.

Alarm Timer

This display appears when the alarm timer has been set.

Details are on page 11.

MUTE

This display appears when the TV’s sound is muted. Press

MUTE on the remote. Details are on page 6.

Time

This display appears after the clock is set whenever you

change channels or press DISPLAY.

Channel Number

This display appears whenever you change channels or press

DISPLAY.

Remote Operation

When operating the remote, point it

directly at the front of the TV.

Objects between the remote and the

remote sensor can block the signal to

the TV.

Controlling Your TV

MENU Button

• Press repeatedly until the item you want

is highlighted, then press +or –to enter

the menu.

• Press repeatedly to move down each

menu screen and then press +or –to

adjust each setting.

RESET Button

• Press to return all video settings (color,

tint, contrast, brightness, and sharpness)

back to the original settings.

CLEAR Button

• Press to clear the screen of all on-screen

displays except MUTE.

Number Buttons (0-9)

• Press to access any channel number.

• To select a channel, press two number

buttons. For example, press 0 then 6 for

channel 6.

• To select a 3-digit number, press and

hold number button 1 until 1— appears

on the screen. Then press the other two

numbers.

INPUT Button

• Switches the TV to channel 03. This is

useful if you have a VCR connected to

your TV.

SKIP Button (Commercial Skip)

• Allows you to look at other channels

during commercials using the

CHAN buttons.

• Each press adds 30 seconds. The TV

switches back to original channel when

time runs out.

POWER Button

• Press to turn the TV on or off.

PREV CH

Button (Previous Channel)

• Pressing this button switches the TV

back to the last tuned channel. This is

useful if you want to watch two

channels.

• Select the first channel you wish to

watch. Then select the other channel by

pressing two number buttons.

• The TV changes back and forth between

the two channels each time you press

this button.

DISPLAY Button

• Press to display the time and channel

number on the screen.

• Press to see if the Sleep Timer and/or

Alarm Timer is set.

• Press to quickly remove menus from the

screen.

MUTE Button

• Press to quickly reduce sound to

minimum level. Closed captioning (C1)

automatically appears on the screen

when you press MUTE.

• To restore sound and normal picture,

press MUTE again or press VOL up.

CHAN

Buttons (Channel Up and

Down)

• Press to select the next higher or lower

channel in memory.

• You can add or erase channels in

memory as desired.

Details are on page 12.

VOL Buttons (Volume Up and Down)

(Also – and + Buttons)

• Press VOL +to increase volume, or

press VOL –to decrease volume.

• Press +or –to adjust the setting of an

item that is highlighted in a menu.

• The volume display appears on the

screen when you press the VOL buttons.

DISPLAY

MUTE

INPUT SKIP

VOL VOL

CHAN

MENUCLEAR RESET

PREV CH

POWER

132

465

798

Operating Features

VIDEO Menu

Press MENU until VIDEO is highlighted. Then press +to select the

VIDEO menu. Press MENU to move down the menu and +and –to

adjust each function.

Press

MENU to

select

VIDEO

Press +

for 1st

VIDEO

Screen

– VIDEO RESET +

(MORE)

The VIDEO RESET function changes all the video functions (color, tint,

contrast, brightness, sharpness) back to the factory settings. Press +or –to

reset the video functions. RESET appears on the TV screen momentarily

while the functions are being adjusted.

Press

until the

second

VIDEO

appears

COLOR

–.......I.......+

TINT

CONTRAST

BRIGHTNESS

SHARPNESS

R......I.......G

–.......I.......+

– COLOR +

TINT

CONTRAST

BRIGHTNESS

SHARPNESS

The SHARPNESS function adjusts picture sharpness. Press +or –to

select SHARPNESS. Press +to increase or press –to decrease.

The BRIGHTNESS function adjusts the brightness of the dark portions

of the picture. Press +or –to select BRIGHTNESS. Press +to increase

or press –to decrease brightness.

The CONTRAST function adjusts the overall brightness and contrast of

the picture. Press +or –to select CONTRAST. Press +to increase or

press –to decrease contrast.

The TINT function adjusts the color of flesh tones. Press +or –to select

TINT. Press +to add more green tint or press –to add more red tint.

The COLOR function adjusts the amount of color in the picture. Press +or –

to select COLOR, then press +to increase or press –to decrease color.

These functions are displayed individually at the bottom of the screen

once they have been selected. The setting can be adjusted at that time by

pressing either the +or –button.

Adjustment

Displays

Caution: When using TV games,

computers, and similar products with

your TV, keep the brightness and

contrast functions at low settings. If a

fixed (non-moving) pattern is left on the

screen for long periods of time at a high

brightness or contrast setting, the image

can be permanently imprinted onto the

screen. These types of imprints are not

covered by your warranty because they

are the result of misuse.

– VIDEO +

CAPTION OFF

SETUP

ENGLISH

VIDEO

- CAPTION C1 +

SETUP

ENGLISH

VIDEO

- CAPTION OFF +

SETUP

ENGLISH


SOUS-TITR – –

REGLAGES

- FRANCAIS +

VIDEO

CAPTION OFF

SETUP

- ENGLISH +

Operating Features

Languages

Closed Captioning

Closed captioning lets you display the

audio portion of a program as text on

the TV screen. This is useful to the

hearing impaired or anyone who wants

to watch a program without the sound.

There are two types of closed

captioning available: C1 (Caption 1)

and C2 (Caption 2). C1 displays the

full translation of the primary lan-

guage in your area. C2 may be used

as a source for secondary languages,

simplified English, or other transla-

tions transmitted in your area.

The closed captioning feature in this

TV does not support a Text Mode.

Typically, the Text Mode consists of

program information, weather

bulletins, local activities, etc.

Closed captioning is not available on

all channels or at all times. Only

specific programs are encoded with

closed captioning information (CC).

The on-screen displays in this TV can

be displayed in three languages:

English, French, and Spanish. When

you select a language, most of the

displays will be shown on the screen

in your preferred language.

Selecting a Language

1. Press MENU once to bring up the

main menu and highlight ENGLISH. 2. Press +or –to select FRANCAIS

(French), ESPANOL (Spanish),

or ENGLISH.

Setting Closed Captioning

1. Press MENU until CAPTION

OFF is highlighted.

2. Press +or –to select OFF, C1, or C2.

3. The screen displays the TV program’s

audio portion as text if the program

has closed captioning.

THIS DOWNTOWN MONUMENT

WAS DESIGNEDAND BUILT BY A

SCULPTOR IN THE EARLY 1800'S.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA F31665 Bedienungsanleitung

RCA

RCA 27F520T - 27" TruFlat Picture Tube TV Kurzanleitung

RCA

RCA hd52w59 Bedienungsanleitung

RCA

RCA G27669YX2AX1 Bedienungsanleitung

RCA

RCA TOCOM 1616232A Bedienungsanleitung

RCA

RCA M52732 Bedienungsanleitung

RCA

RCA Scenium HDLP50W151YX1 Bedienungsanleitung

RCA

RCA F32668YX53 Bedienungsanleitung

RCA

RCA MR27300 Bedienungsanleitung

RCA

RCA G32710 Bedienungsanleitung

RCA

RCA 24V511T Bedienungsanleitung

RCA

RCA F19253BCFJ1 Bedienungsanleitung

RCA

RCA 5inch BLACK & WHITE TVwith CD Player and AM/FM... Bedienungsanleitung

RCA

RCA G27693 Bedienungsanleitung

RCA

RCA F19265 Bedienungsanleitung

RCA

RCA P46721 Bedienungsanleitung

RCA

RCA 14B042 Bedienungsanleitung

RCA

RCA 14M041 Bedienungsanleitung

RCA

RCA 20V412T Bedienungsanleitung

RCA

RCA F27615 Bedienungsanleitung

RCA

RCA F27TF12 Bedienungsanleitung

RCA

RCA P50930 Bedienungsanleitung

RCA

RCA J24F635 Bedienungsanleitung

RCA

RCA MMC101 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
