TV User'sGuide

WARNING

To reduce the risk of fire or

shock hazard, do not expose

this TV to rain or moisture.

_ T°red _lCebhek_!SNk°fue_eC_eiCv_h°:ked;a rnt°t,rel_dOve_

SHOCKDONOTOPEN JRefer servicing to qualified service personnel.

This symbol indicates

"dangerous voltage" inside

the product that presents a

risk of electric shock or

personal injury.

,_ This symbol indicates

important instructions

accompanying the product.

Caution: To reduce the risk of electric shock, match

wide blade of plug to wide slot, fully insert.

Attention: Pour 6viter les chocs 61ectriques, introduire

la lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqt) au fond.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving) images are left on the screen for long periods, they

may be permanently imprinted on the screen. Such images include

network Iogos, phone numbers, and video games. This damage is not

covered by your warranty. Extended viewing of channels displaying

these images should be avoided.

Cable TV Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall be connected to

the grounding system of the building as close to the point of cable entry

as practical.

Product Registration

Please fill out the product registration card and return it immediately. Returning the card allows us to contact you if

needed.

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial

and model numbers in case you need them. The numbers are located on the back of the television.

Model No.

Serial No.

Purchase Date:

Dealer/Address/Phone:

VCR Plus+, C3,PlusCode and GUIDE Plus+ are trademarks of Gemstar Development Corporation.

Setup and Connections ......................................................... 3

Step 1: Unpack the TV ...................................................................... 4

Step 2: Connect Your TV .................................................................. 4

TV Only ....................................................................................... 4

The Basic Connection ................................................................. 5

Advanced Connections .............................................................. 6

Step 3: Connect the IR Controller .................................................... 9

Step 4: Plug in the TV ..................................................................... 10

Step 5: Place Batteries in Remote .................................................. 10

Step 6: Turn On the TV ................................................................... 10

Step 7: Program the TV .................................................................. 10

Interactive Setup ................................................................. 11

Using Point and Select ................................................................... 12

Entering Setup ................................................................................ 12

Selecting a Language ..................................................................... 13

Auto Channel Search ..................................................................... 13

The GUIDE Plus+ System ................................................................ 14

Setting Up the GUIDE Plus+ System ........................................ 14

Setting the Time ............................................................................. 16

Setting the VCR1 Channel (Auto Tuning) ..................................... 17

Setting the VCR2 Channel (Auto Tuning) ..................................... 17

Setting the DVD Channel (Auto Tuning) ...................................... 18

Setting the SAT/CABLE Channel (Auto Tuning) ............................ 19

Labeling the Channels ................................................................... 20

Using the Remote ............................................................... 21

Remote Buttons .............................................................................. 22

Using the WHO.INPUT Button ................................................ 23

Programming the Remote ............................................................. 24

Testing the Remote .................................................................. 24

Using the Remote to Control a Device ................................... 25

Modes of Operation ................................................................ 25

Front Panel ..................................................................................... 25

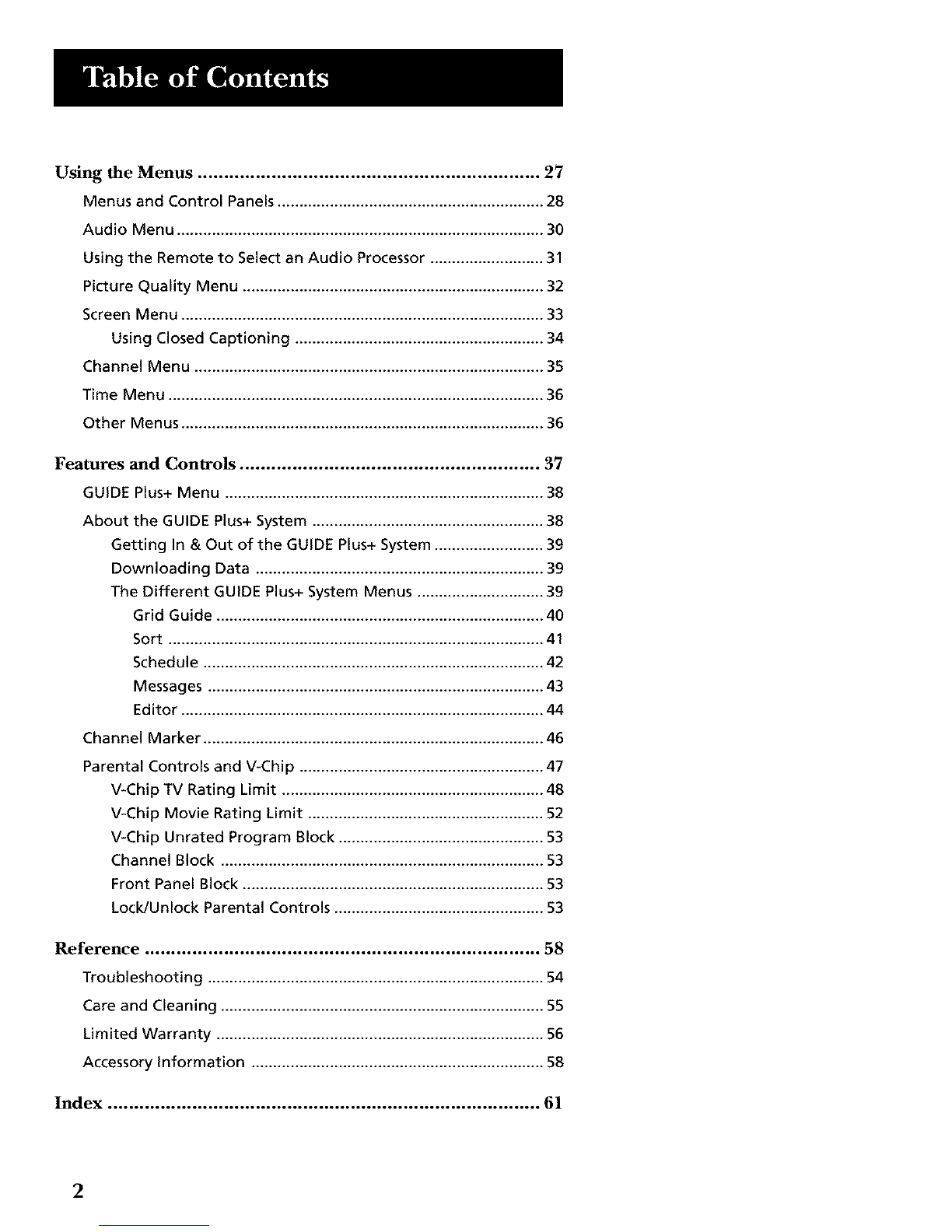

Using the Menus ................................................................. 27

Menus and Control Panels ............................................................. 28

Audio Menu .................................................................................... 30

Using the Remote to Select an Audio Processor .......................... 31

Picture Quality Menu ..................................................................... 32

Screen Menu ................................................................................... 33

Using Closed Captioning ......................................................... 34

Channel Menu ................................................................................ 35

Time Menu ...................................................................................... 36

Other Menus ................................................................................... 36

Features and Controls ......................................................... 37

GUIDE Plus+ Menu ......................................................................... 38

About the GUIDE Plus+ System ..................................................... 38

Getting In & Out of the GUIDE Plus+ System ......................... 39

Downloading Data .................................................................. 39

The Different GUIDE Plus+ System Menus ............................. 39

Grid Guide ........................................................................... 40

Sort ...................................................................................... 41

Schedule .............................................................................. 42

Messages ............................................................................. 43

Editor ................................................................................... 44

Channel Marker .............................................................................. 46

Parental Controls and V-Chip ........................................................ 47

V-Chip TV Rating Limit ............................................................ 48

V-Chip Movie Rating Limit ...................................................... 52

V-Chip Unrated Program Block ............................................... 53

Channel Block .......................................................................... 53

Front Panel Block ..................................................................... 53

Lock/Unlock Parental Controls ................................................ 53

Reference ........................................................................... 58

Troubleshooting ............................................................................. 54

Care and Cleaning .......................................................................... 55

Limited Warranty ........................................................................... 56

Accessory Information ................................................................... 58

Index .................................................................................. 61

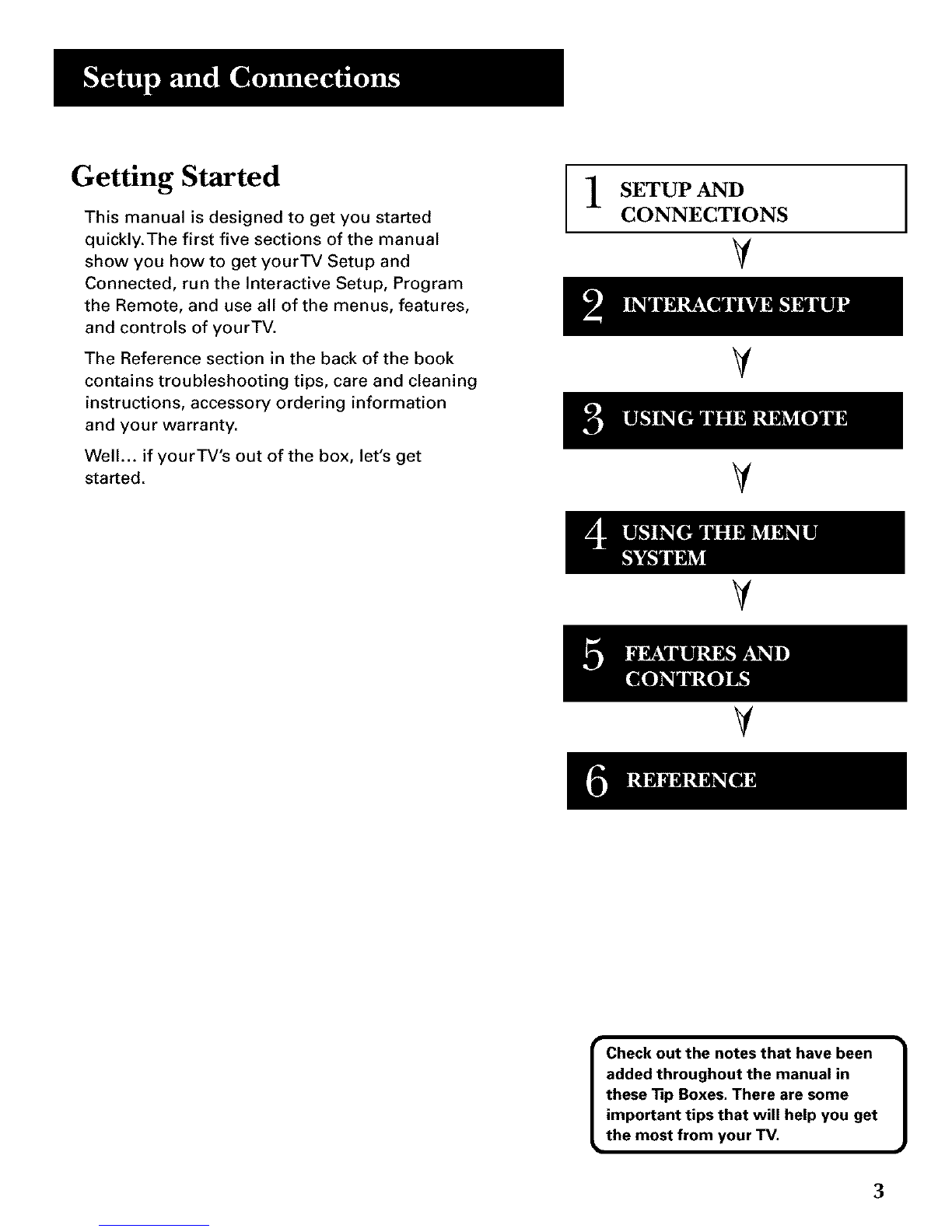

Getting Started

This manual is designed to get you started

quickly.The first five sections of the manual

show you how to get yourTV Setup and

Connected, run the Interactive Setup, Program

the Remote, and use all of the menus, features,

and controls of yourTV.

The Reference section in the back of the book

contains troubleshooting tips, care and cleaning

instructions, accessory ordering information

and your warranty.

Well... if yourTV's out of the box, let's get

started.

SETUP AND

CONNECTIONS

•Check out the notes that have been

added throughout the manual in

these 33pBoxes. There are some

important tips that will help you get

the most from your TV.

Step 1: Unpack the TV

Make sure to locate the remote control.

Step 2: Connect Your TV

There are three types of connections outlined in this section:

TV Only:

The Basic Connection:

If you're only going to connect the

TV to your home antenna or cable

system.

If you're going to connect theTV to a

VCR or satellite receiver.

Advanced Connections: If you're going to make multiple

connections, hooking up theTV to a

VCR and a satellite receiver.

Cable information and illustrations are given for each type of

connection. Once you have completed your desired connection

you may skip forward to Step 3.

TV Only

This is a basic connection from an antenna or cable system to

yourTV. Connect the cable into the Cable/Antenna jack as shown.

Cables

You will use the following cable to make your connection:

Coaxial Cable:These cables carry audio and

video signals to theTV from an antenna,

cable, or cable box.

Important Stand Information -'

CAUTION: Choose the location for

your TV carefully. Take precautions

that the stand or other furniture on

which the TV is placed is properly

located (see Important Safeguards

sheet) and of adequate size and

strength to prevent the TV from

accidentally being tipped over,

pushed off, or pulled off. This could

cause damage to the TV and/or

personal injury.

Before You Connect

Protect against power surges:

• Connect all components before

plugging any power cords into the

wall outlet.

•Turn off the TV and/or component

before connecting or disconnecting

any cables.

•Make sure all antennas and cables

are properly grounded. Refer to the

Important Safeguards sheet

packed with your TV.

CABLE, CABLE BOX, OR ANTENNA

CONTROL

5kVIDEO

I Once you have completed this 1

connection you may skip to Step 3.

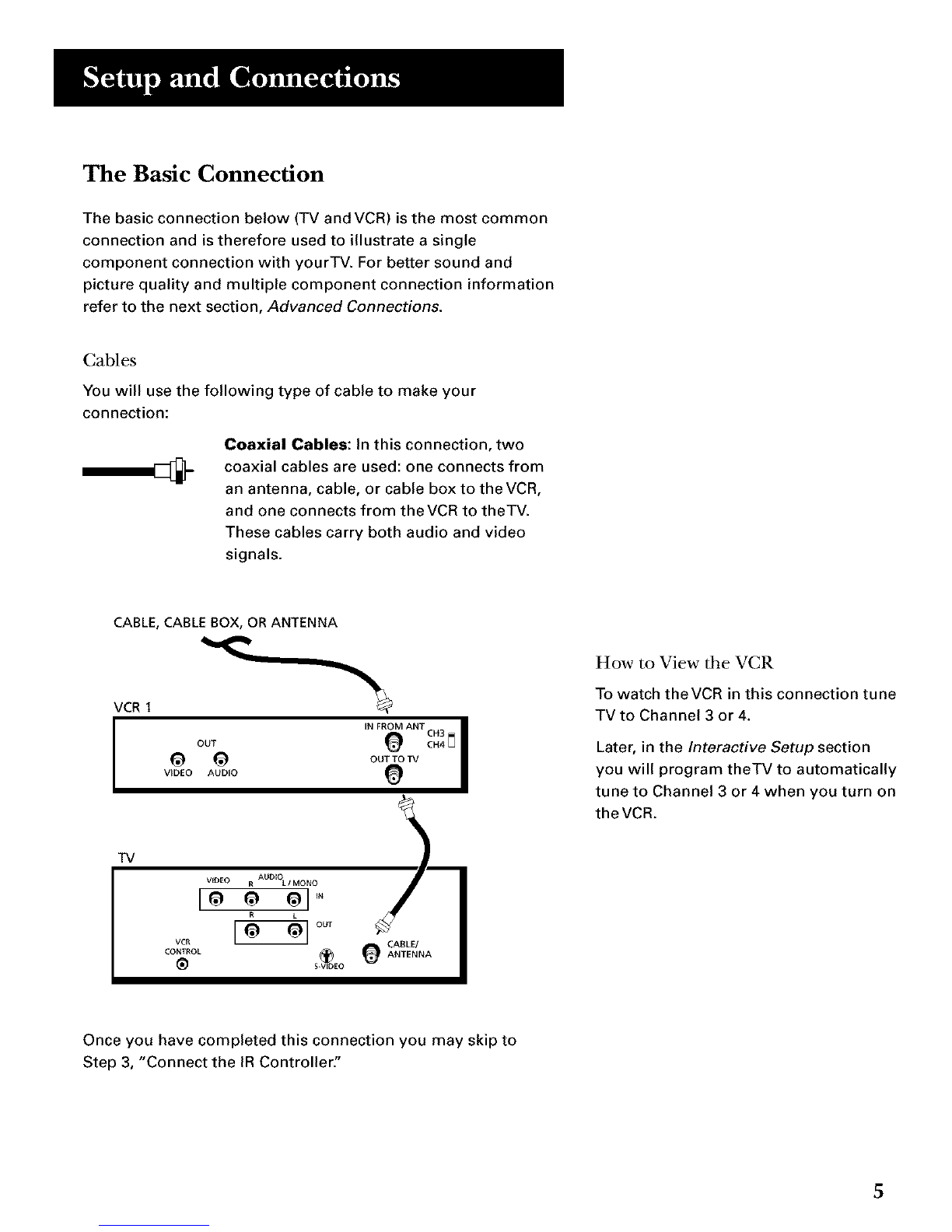

The Basic Connection

The basic connection below (TV and VCR) is the most common

connection and is therefore used to illustrate a single

component connection with yourTV. For better sound and

picture quality and multiple component connection information

refer to the next section, Advanced Connections.

Cables

You will use the following type of cable to make your

connection:

Coaxial Cables: In this connection, two

coaxial cables are used: one connects from

an antenna, cable, or cable box to the VCR,

and one connects from theVCR to theTV.

These cables carry both audio and video

signals.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

IN FROM ANT CH3 I

OUT _ TVOH4 I

VIDEO AUDIO

How to View tile VCR

To watch theVCR in this connection tune

TVto Channel 3 or 4.

Later, in the Interactive Setup section

you will program theTV to automatically

tune to Channel 3 or 4 when you turn on

theVCR.

VIDEO R AUDBOL 1MON O

vc. [ Oout

CABLE/CONTROL _ ANTENNA

S_VIDEO

Once you have completed this connection you may skip to

Step 3, "Connect the IR Controller"

Advanced Connections

Advanced connections give you better sound and video by

separating the audio and video signals and enabling you to

connect multiple components.

This section describes the types of inputs available on the back

of yourTV and suggests ways you can use them for optimum

performance.

Once you have made your

connections you will need to

program the TV to tune to the

correct Video INPUT channel in order

to see and hear audio and video from

the component, You will program

this later in the Interactive Setup.

Back of the TV

The diagram below describes each of the back panel jacks.When

connecting A!V cables, be sure to connect corresponding

OUTPUTS and INPUTS (Video to Video, Right Audio to Right

Audio, etc.).

Video and Audio Inputs

Connect any one of the following components:

•VCR •Internet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to VIDEO,

use theWHO.INPUT button on the remote.

\_ VIDEO

VCR

CONTROL <out

S_V_D_EO

VCR Control

Connect the GUIDE Plus-

system IR controller for

one-button recording and

channel tuning from the

GUIDE Plus+ system.

S-Video

This optional

connection can be

used for better

video quality

• picture.

Audio Outputs

Connect to an audio receiver

or amplifier for variable

controlled or fixed level sterec

output.

CABLE/

ANTENNA

Cable/Antenna

Takes the signal input from a cable,

cable box, or an off-air antenna. Can also be

used for basic component connections. J

Sample Connections

The following are sample connection scenarios you may

encounter when connecting components to yourTV. Note: those

components which offer an S-Video connection, such as DVD,

VCR or satellite receivers, must match their S-Video connection

with their audio INPUT connection.

Cables

You will use the following types of cables to make your

connection:

Coaxial Cables: Carries the signal from

the antenna or cable directly to the

television or through a cable box, as

needed by your cable system.

AudioNideo Cables: Carries audio and

video from a component to theTV.

S-Video Cable: Carries video from an S-

Video capable component which provides

best picture quality.

TV and Stereo VCR

Compared to the Basic Connection, using Audio/Video and

S-Video (if available) cables will enhance the sound and picture

quality from a component.

Cautions:

Position Cables to Avoid Audio Hum

or Interference

• Insert all cables firmly into jacks.

•Place the audio/video cables to the

sides of the TV's back panel

instead of straight down the

middle.

•Try not to coil any twin-lead cables

and keep them away from the

audio/video cables.

Protect Your Components From

Overheating

Do not block ventilation holes in

any of the components. Arrange

the components so that air can

•circulate freely,

Do not stack components.

•Allow adequate ventilation when

placing your components in a

•stand.

Place an amplifier on the top shelf

of the stand so heated air rising

from it will not flow around other

components.

CABLE, CABLE BOX, OR ANTENNA

VCR1

IN FROM ANT CH3 [_ I

OUT _ CH4

O O O ou TV

VIDEO RL

LIMONO

Ioo ol "

CABLE/

CONTROL _ ANTENNA

{_ S_VIDEO

How to View Your VCR

To watch theVCR in this connection, pressTV to put

the remote control intoTV mode, then press

WHO°INPUT to toggle to the video (VID) inputs.

In the Interactive Setup section you can program the

TV to automatically tune to theVID input channel

when you turn on theVCR.

• 1

Most Audio/Video cables are combined into

one cable with three heads

on each end. We show Wdeo(_,ow)

individual cables in these RightAudio(red)

sample connections.

Either may be used, but e)

you must be sure to connect

Video to Video, Right to Right

and Left to Left.

TV, VCR and Satellite Receiver

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

VCR I

SATELLITE SIGNAL

How to View Your Components

To watch the satellite receiver in this

connection, pressTV to put the remote

control intoTV mode, then pressWHO.INPUT

to scroll through the video input channels

until you tune toVID (or SVID) input.

To watch the VCR in this connection, enter 03

to tune to the VCR channel.

In the Interactive Setup you can program the

TV to automatically tune to the correct input

channel when you turn on your component.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA F25216 Bedienungsanleitung

RCA

RCA LED1526A2 Bedienungsanleitung

RCA

RCA P50930 Bedienungsanleitung

RCA

RCA F31665YX3CH Bedienungsanleitung

RCA

RCA Roku TV RTRU5827-B-US Bedienungsanleitung

RCA

RCA PS27108 Bedienungsanleitung

RCA

RCA F32550 Bedienungsanleitung

RCA

RCA F36695BCYX1CL Betriebsanleitung

RCA

RCA F27669TX71AA14 Bedienungsanleitung

RCA

RCA F35750ST Bedienungsanleitung

RCA

RCA F32669YX51 Bedienungsanleitung

RCA

RCA F31317 Bedienungsanleitung

RCA

RCA F32672SB Bedienungsanleitung

RCA

RCA R32C9A-EU Bedienungsanleitung

RCA

RCA G27692 Bedienungsanleitung

RCA

RCA RT2412-B Bedienungsanleitung

RCA

RCA MR13401, M14300, M19401, M2030 Bedienungsanleitung

RCA

RCA RLDED5098-UHD Bedienungsanleitung

RCA

RCA PS27600 Bedienungsanleitung

RCA

RCA F25424TX51AC5 Bedienungsanleitung

RCA

RCA RBA29550 Bedienungsanleitung

RCA

RCA 27GT730TX41AA4 Bedienungsanleitung

RCA

RCA E13327 Bedienungsanleitung

RCA

RCA F36669 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
