WARNING

To reduce the risk of fire or shock

hazard, do not expose this TV to

rain or moisture.

I,_ To reduce the risk of electric shock, do not remove

_ cover (or back). No user serviceable parts inside. Refer

servicing to qualified service personnel.

This symbol indicates _, This symbol indicates

"dangerous voltage" inside _ important instructions

the product that presents a accompanying the product.

risk of electric shock or

personal injury.

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, fully insert.

Attention: Pour eviter les chocs electriques, introduire la

lame la plus large de la fiche darts la borne

correspondante de la prise et pousserjusqu au fond.

Refer to the identification/rating label located on the back panel of your

product for its proper operating voltage.

FCCRegulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving) images are left on the screen for long periods,

they may be permanently imprinted on the screen. Such images

include network Iogos, phone numbers, and video games. This

damage is not covered by your warranty. Extended viewing of

channels displaying these images should be avoided.

Cable TV Installer: This reminder is provided to call your attention to Article

820-40 of the National Electrical Code (Section 54 of the Canadian Electrical

Code, Part 1) which provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be connected to the

grounding system of the building as close to the point of cable entry as

practical.

Product Registration

Please fill out the product registration card and return it immediately. Returning the card allows us to contact

you ir needed.

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and

record the serial and model numbers in case you need them. The numbers are located on the back of the

television.

Model No.

Serial No.

Purchase Date:

Dealer/Address/Phone:

VCR Plus+, C3,PlusCode and GUIDE Plus+ are trademarks of Gemstar Development Corporation.

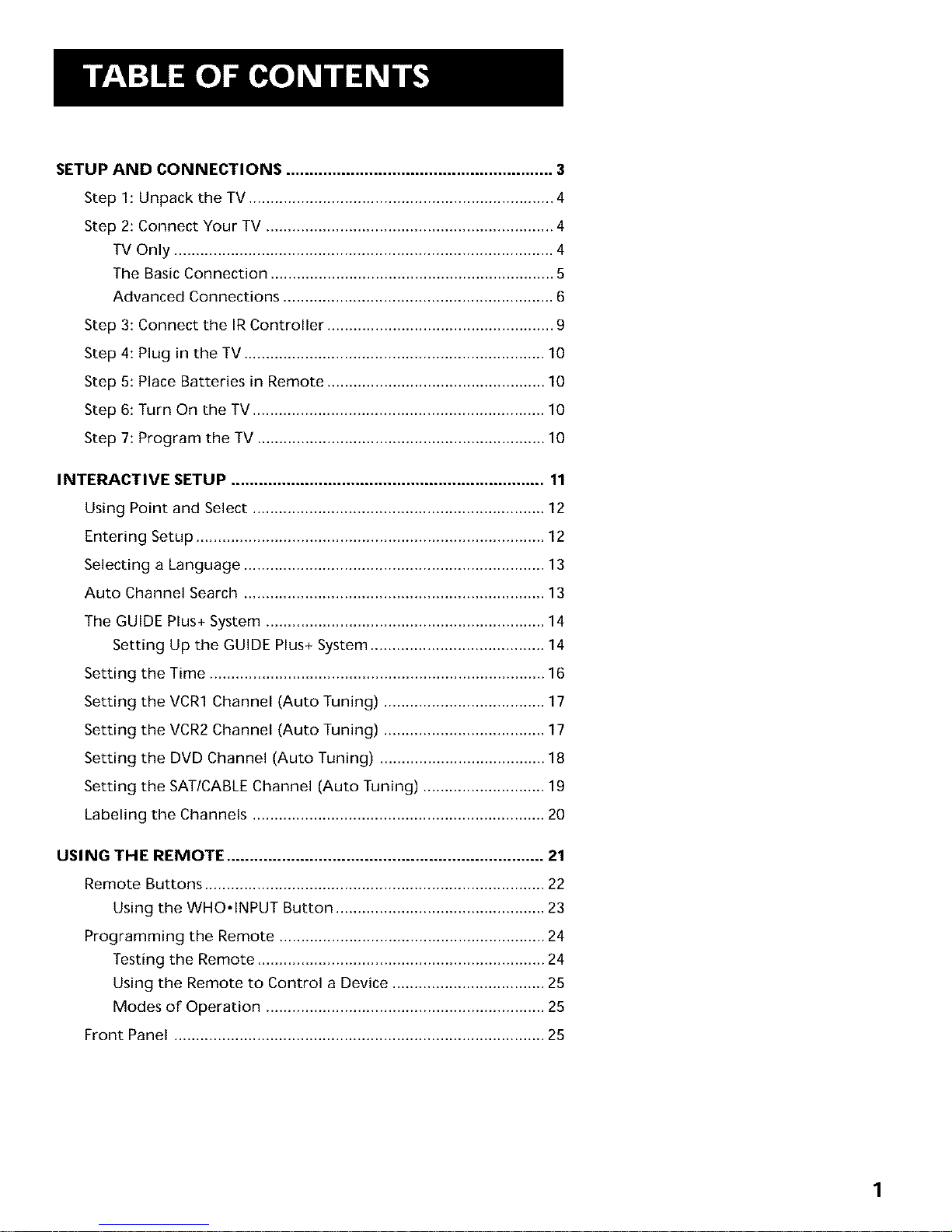

SETUP AND CONNECTIONS ..........................................................3

Step 1: Unpack the TV ...................................................................... 4

Step 2: Connect Your TV .................................................................. 4

TV Only ....................................................................................... 4

The Basic Connection ................................................................. 5

Advanced Connections .............................................................. 6

Step 3: Connect the IR Controller .................................................... 9

Step 4: Plug in the TV ..................................................................... 10

Step 5: Place Batteries in Remote .................................................. 10

Step 6: Turn On the TV ................................................................... 10

Step 7: Program the TV .................................................................. 10

INTERACTIVE SETUP .................................................................... 11

Using Point and Select ................................................................... 12

Entering Setup ................................................................................ 12

Selecting a Language ..................................................................... 13

Auto Channel Search ..................................................................... 13

The GUIDE Plus+ System ................................................................ 14

Setting Up the GUIDE Plus+ System ........................................ 14

Setting the Time ............................................................................. 16

Setting the VCR1 Channel (Auto Tuning) ..................................... 17

Setting the VCR2 Channel (Auto Tuning) ..................................... 17

Setting the DVD Channel (Auto Tuning) ...................................... 18

Setting the SAT/CABLE Channel (Auto Tuning) ............................ 19

Labeling the Channels ................................................................... 20

USING THE REMOTE ..................................................................... 21

Remote Buttons .............................................................................. 22

Using the WHO,INPUT Button ................................................ 23

Programming the Remote ............................................................. 24

Testing the Remote .................................................................. 24

Using the Remote to Control a Device ................................... 25

Modes of Operation ................................................................ 25

Front Panel ..................................................................................... 25

USING THE MENUS .......................................................................27

Menus and Control Panels ............................................................. 28

Audio Menu .................................................................................... 30

Using the Remote to Select an Audio Processor .......................... 31

Picture Quality Menu ..................................................................... 32

Screen Menu ................................................................................... 33

Using Closed Captioning ......................................................... 34

Channel Menu ................................................................................ 35

Time Menu ...................................................................................... 36

Other Menus ................................................................................... 36

FEATURES AND CONTROLS ......................................................... 37

GUIDE Plus+ Menu ......................................................................... 38

About the GUIDE Plus+ System ..................................................... 38

Getting In & Out of the GUIDE Plus+ System ......................... 39

Downloading Data .................................................................. 39

The Different GUIDE Plus+ System Menus ............................. 39

Grid Guide ........................................................................... 40

Sort ...................................................................................... 41

Schedule .............................................................................. 42

Messages ............................................................................. 43

Editor ................................................................................... 44

Channel Marker .............................................................................. 46

Parental Controls and V-Chip ........................................................ 47

V-Chip TV Rating Limit ............................................................ 48

V-Chip Movie Rating Limit ...................................................... 52

V-Chip Unrated Program Block ............................................... 53

Channel Block .......................................................................... 53

Front Panel Block ..................................................................... 53

Lock/Unlock Parental Controls ................................................ 53

REFERENCE ..................................................................................... 58

Troubleshooting ............................................................................. 54

Care and Cleaning .......................................................................... 55

RCA Limited Warranty ................................................................... 56

Accessory Information ................................................................... 58

INDEX ............................................................................................. 61

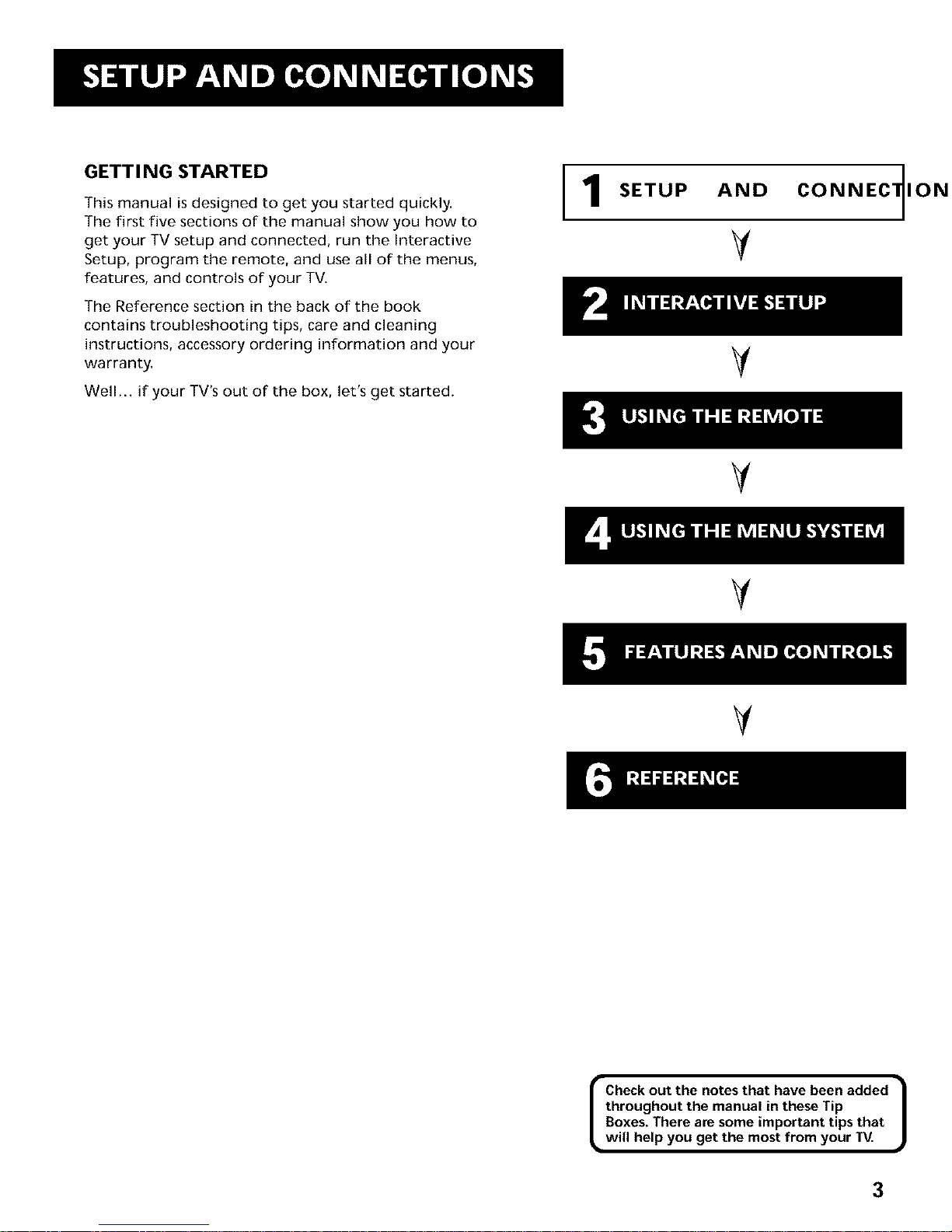

GETTI NG STARTED

This manual is designed to get you started quickly.

The first five sections of the manual show you how to

get your TV setup and connected, run the Interactive

Setup, program the remote, and use all of the menus,

features, and controls of your TV.

The Reference section in the back of the book

contains troubleshooting tips, care and cleaning

instructions, accessory ordering information and your

warranty.

Well... if your TV's out of the box, let's get started.

[1 SETUPA.D CO..ECt.O.S

I Check out the notesthat havebeen added |

throughout the manual in theseTip J

Boxes.There aresome important tips that

will help you get the mostfrom your TV.

STEP 1: UNPACK THE TV

Make sure to locate the remote control.

STEP 2: CONNECT YOUR TV

There are three types of connections outlined in this section:

TV Only:

The Basic Connection:

If you're only going to connect the

TV to your home antenna or cable

system.

If you're going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you're going to make multiple

connections, hooking up the TV to a

VCR and a satellite receiver.

Cable information and illustrations are given for each type of

connection. Once you have completed your desired connection you may

skip forward to Step 3.

TV ONLY

This is a basic connection from an antenna or cable system to your TV.

Connect the cable into the Cable/Antenna jack as shown.

Important Stand Information

CAUTION: Choose the location for your TV

carefully. Take precautions that the stand

or other furniture on which the TV is

placed is properly located (see Important

Safeguards sheet) and of adequate size

and strength to prevent the TV from

accidentally being tipped over, pushed off,

or pulled off. This could cause damage to

the TV and/or personal injury.

rBefore You Connect

Protect against power surges:

• Connect all components before

plugging any power cords into the wall

outlet.

•Turn offthe TV and/or component

before connecting or disconnecting any

cables.

•Make sure all antennas and cables are

properly grounded. Refer to the

Important Safeguards sheet packed

with your TV.

Cables

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio and video

signals to the TV from an antenna, cable, or cable

box.

CABLE, CABLE BOX, OR ANTENNA

CABLE/CONTROL (_ ANTENNA

_VIDEO

Once you have completed this connection you may skip to Step 3.

IPlease note that models F25625 and |

F27625 do not include an S-Video jack or J

Audio Output jacks.

THE BASIC CONNECTION

The basic connection below (TV and VCR) is the most common

connection and is therefore used to illustrate asingle component

connection with your TV. For better sound and picture quality and

multiple component connection information refer to the next section,

Advanced Connections.

Cables

You will use the following type of cable to make your connection:

Coaxial Cables: In this connection, two Coaxial

Cables are used: one connects from an antenna,

cable, or cable box to the VCR, and one connects

from the VCR to the TV. These cables carry both

audio and video signals.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

OUT

0 0

VIDEO AUDIO

iN FROM ANT II

OUT TO TV

VEDEO R AUDIO[ j MONO

Ioo ol

R L

vcR [o o]

CONTROL (_

_ S VIDEO CABLE/

ANTENNA

How to View the VCR

To watch the VCR in this connection tune TV to

Channel 3 or 4.

Later, in the Interactive Setup section you will

program the TV to automatically tune to Channel 3 or

4 when you turn on the VCR.

Once you have completed this connection you may skip to Step 3,

"Connect the IR Controller."

IPlease note that models F25625 and /

F27625 do not include an S-Video jack or J

Audio Outputjacks.

ADVANCED CONNECTIONS

Advanced connections give you better sound and video by separating

the audio and video signals and enabling you to connect multiple

components.

This section describes the types of inputs available on the back of your

TV and suggests ways you can use them for optimum performance.

Once you have made your connections

you will need to program the TV to tune

to the correct Video INPUT channel in

order to see and hear audio and video

from the component. You will program

this later in the Interactive Setup.

Back ofthe TV

The diagram below describes each of the back panel jacks. When

connecting A/V cables, be sure to connect corresponding OUTPUTS and

INPUTS (Video to Video, Right Audio to Right Audio, etc.).

VIDEO and Audio Inputs

Connect any one of the following components:

• VCR • Internet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to VIDEO,

use the WHO.INPUT button on the remote.

'I_ VIDEO

VCR

CONTROL

®S-V_DEO

VCR Control

Connect the GUIDE Plus+

system IR controller for

one-button recording

and channel tuning from

the GUIDE Plus+ system.

* S-Video

This optional

connection can

be used for

better video

• quality picture.

*Audio Outputs

Connect to an audio receiver or

amplifier for variable controlled

or fixed level stereo output.

CABLE/

ANTENNA

ICable/Antenna ]

Takes the signal input from a cable,

cable box, or an off-air antenna. Can also

be used for basic component connections.

* These features are not available in models F25625 and F27625.

Sample Connections

The following are sample connection scenarios you may encounter when

connecting components to your TV. Note: those components which offer

an S-Video connection, such as DVD, VCR or satellite receivers, must

match their S-Video connection with their audio INPUT connection.

Cables

You will use the following types of cables to make your connection:

Coaxial Cables: Carries the signal from the

antenna or cable directly to the television or

through a cable box, as needed by your cable

system.

AudioNideo Cables: Carries audio and video

from a component to the TV.

S-Video Cable: Carries video from an S-Video

capable component which provides best picture

quality.

TV and Stereo VCR

Compared to the Basic Connection, using Audio/Video and

S-Video (if available) cables will enhance the sound and picture quality

from a component.

Cautions:

Position Cables to Avoid Audio Hum

or Interference

• Insert all cables firmly into jacks.

•Place the audio/video cables to the

sides of the TV's back panel instead of

straight down the middle.

•Try not to coil any twin-lead cables and

keep them away from the audio/video

cables.

Protect Your Components From

Overheating

•Do not block ventilation holes in any of

the components• Arrange the

components so that air can circulate

freely•

•Do not stack components.

•Allow adequate ventilation when

placing your components in a stand•

•Place an amplifier on the top shelf of

the stand so heated air rising from it

will not flow around other

components•

CABLE, CABLE BOX, OR ANTENNA

VCR I _..

OUT IN FROM_ANT OH3

I 1_ 1_ 1_ OUTTOTV II

I v'_° R _ _d

_v,oEo .... _A_0o%No I

CABLE/CONTROL (_ ANTENNA

S VIDEO

IPlease note that models F25625 and |

F27625 do not include an S-Video jack or J

Audio Output jacks.

How to View Your VCR

To watch the VCR in this connection, press TV to put the

remote control into TV mode, then press WHO,INPUT to

toggle to the video (VID) inputs.

In the Interactive Setup section you can program the TV to

automatically tune to the VlD input channel when you turn

on the VCR.

Most Audio/Video cables are combined |

into one cable with three

heads on each end.

We show individual _4Y --

• _ RFqht AudFo([e_RightAudio (red)

cables in these

sample connections. _ --

•Left Audio (white)

Either may be used,

but you must be sure to

connect Video to Video,

Right to Right and Left to Left.

TV, VCR and Satellite Receiver

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

VCR 1

SATELLITE SIGNAL

How to View Your Components

To watch the satellite receiver in this connection,

press TV to put the remote control into TV mode,

then press WHO.iNPUT to scroll through the video

input channels until you tune to VID (or SVID)

input.

To watch the VCR in this connection, enter 03 to

tune to the VCR channel.

In the Interactive Setupyou can program the TV to

automatically tune to the correct input channel

when you turn on your component.

Please note that models F25625 and |

F27625 do not include an S-Video jack or J

Audio Output jacks.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere RCA Fernseher Handbücher

RCA

RCA 27F530T Bedienungsanleitung

RCA

RCA G27343 Bedienungsanleitung

RCA

RCA RLDED3258A Bedienungsanleitung

RCA

RCA 27R410T Bedienungsanleitung

RCA

RCA E13344 Bedienungsanleitung

RCA

RCA J13801CL Bedienungsanleitung

RCA

RCA F27TF12 Bedienungsanleitung

RCA

RCA F25649TX51AA9 Bedienungsanleitung

RCA

RCA G27692 Bedienungsanleitung

RCA

RCA 20F410T - 20" TruFlat TV Bedienungsanleitung

RCA

RCA CR20805 Bedienungsanleitung

RCA

RCA RLDED4079A-SM Bedienungsanleitung

RCA

RCA RNSMU8220 Bedienungsanleitung

RCA

RCA F32685YX2CN1 Bedienungsanleitung

RCA

RCA F36683 Bedienungsanleitung

RCA

RCA F26645 Bedienungsanleitung

RCA

RCA F32649YX57CA10 Bedienungsanleitung

RCA

RCA F27703 Bedienungsanleitung

RCA

RCA F19440TX1R9 Bedienungsanleitung

RCA

RCA F31665YX3CH Bedienungsanleitung

RCA

RCA E13208 Bedienungsanleitung

RCA

RCA 27F520T - 27" TruFlat Picture Tube TV Kurzanleitung

RCA

RCA RNSMU5536 Bedienungsanleitung

RCA

RCA F25423TX41AC4 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
