RCF RM-KIT DMA-DPA Bedienungsanleitung
USER MANUAL
MANUALE D’USO
RM-KIT DMA-DPA RACK MOUNT KIT FOR DMA
/ DPA AMPLIFIERS UNITS
KIT MONTAGGIO A RACK
PER AMPLIFICATORI DMA /
DPA
TABLE OF CONTENTS
INDICE
ENGLISH
ITALIANO
4
10
4
ENGLISH
SAFETY PRECAUTIONS
IMPORTANT
IMPORTANT
This manual is an addendum to DMA and DPA amplifiers
units user manuals.
Refer to DMA or DPA user manuals for safety precautions
and system use.
Before installing RM-KIT, please read this instruction manual
carefully and keep it on hand for future reference, as it is to
be considered a part of DMA and DPA units and must
accompany it when it changes ownership as a reference for
correct installation.
RCF S.p.A. will not assume any responsibility for the incorrect
installation and / or use.
DESCRIPTION
RM-KIT DMA / DPA is a brackets kit that allows to install
amplifiers units DMA and DPA into 19’’ rack cabinets or on
wall, ceiling or false ceiling configurations.
ENGLISH
5
Kit package includes the following components:
RM-KIT DMA / DPA allows to install the amplifier units in 3
different configurations:
1. Single unit in 1 rack unit
2. Double units in 1 rack unit
3. Single unit on wall or ceiling
KIT COMPONENTS
x 1
x 4
[A] M4x6 [B] M2.9x6.5 [C] M4x12 [D] M4x10
SCREWS
BRACKETS
Long front bracket
Short front bracket Lateral supportWall / ceiling bracket Lower support
x 4 x 4 x 4
x 2 x 4 x 2 x 2
6
ENGLISH

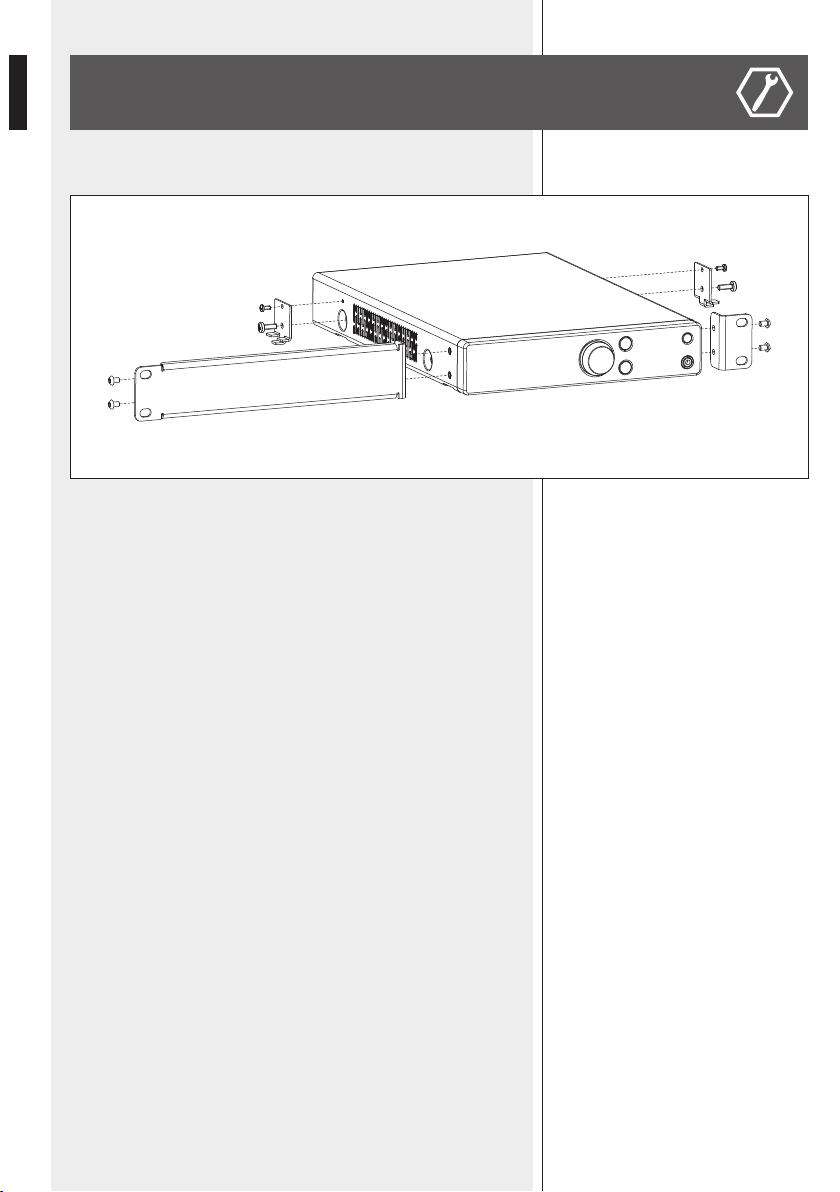

SINGLE UNIT IN 1 RACK UNIT
Installation procedure:
1.
2.
3.
4.
Remove the 4 rubber feet under the unit.
Fix the long front bracket and a short front bracket to the
unit using 4 screws [A].
Fix the lateral supports using 2 screws [B] and 2 screws [C].
Install the assembly into a 19’’ rack cabinet using suitable
lateral supports (e.g. RCF accessory AR 1050).
To guarantee a proper ventilation and avoid
overheating, leave at least 1/2 rack unit free above
and below the unit.
ENGLISH
7
DOUBLE UNITS IN 1 RACK UNIT
Installation procedure:
1.
2.
3.
4.
5.
6.
Remove the 4 rubber feet under the unit.
Fix 1 short front bracket to each unit using 4 screws [A].
Fix 1 lateral support to each unit using 2 screws [B] and 2
screws [C].
Fix 1 screw [B] in the lateral hole of one unit to work as a
spacer between units.
Fix the units together with the 2 lower supports using 4
scews [D].
Install the assembly into a 19’’ rack cabinet using suitable
lateral supports (e.g. RCF accessory AR 1050).
To guarantee a proper ventilation and avoid
overheating, leave at least 1/2 rack unit free above
and below the unit.
8
ENGLISH
SINGLE UNIT ON WALL OR CEILING
Installation procedure:
1.
2.
Fix the 4 wall / ceiling brackets using 4 screws [C].
Fix the unit on wall or ceiling.
Wall / ceiling brackets are designed in order to leave
a free space under the unit, to guarantee a proper
ventilation and avoid overheating.
10
ITALIANO
AVVERTENZE PER LA SICUREZZA E PRECAUZIONI D’USO
IMPORTANTE
IMPORTANTE
Questo manuale è aggiuntivo a quello d’uso dellè unità
amplificatore DMA e DPA.
Riferirsi al manuale delle unità DMA e DPA per quanto
riguardo il funzionamento del sistema e le precauzioni d’uso.
Prima di installare il kit staffe RM-KIT, si prega di leggere
attentamente le istruzioni contenute in questo manuale, il
quale è da conservare per riferimenti futuri, costituisce parte
integrante delle unità DMA e DPA e deve accompagnare
queste ultime anche nei passaggi di proprietà, per permettere
al nuovo proprietario di conoscere le modalità
d’installazione.
L’installazione e l’utilizzo errati esimono la RCF S.p.A. da
ogni responsabilità.
DESCRIZIONE
RM-KIT DMA / DPA è un kit staffe che permette di installare
le unità amplificatore DMA e DPA all’interno di armadi rack
di larghezza 19’’, oppure a muro o soffitto.
