ASSEMBLY INSTRUCTIONS
& PARTS LIST
Mobile Ready Rack
WASH • DRY • STORE • PROTECT
ITEM#:MSS
2021-1
2

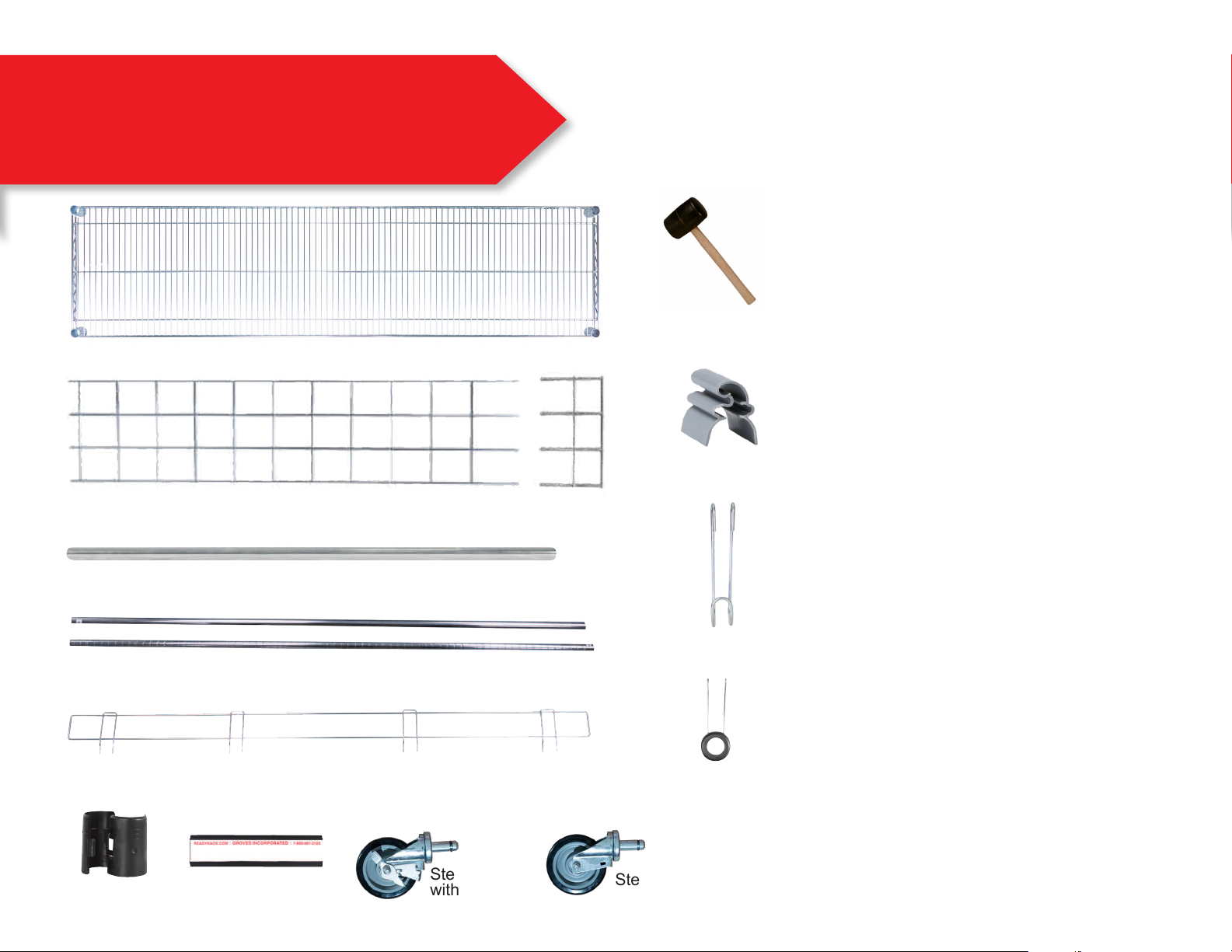

PARTS
ALL PARTS SHOWN BELOW:
- Divider panel
- Divider panel top
- Shelving
- Posts
- Shelf grippers
- Split sleeves
- Back ledge
- Hanging pole
- Label holder
- Hanging grommet
- Stem casters
- Stem casters with brake
HARDWARE NEEDED:
- Rubber mallet
Divider panel top
Self grippers
Rubber Mallet
Divider panel
Split sleeves
Hanging pole
Posts
Label holder
Hanging grommet
(HWGR)
Bunker pant hook
Back ledge
Shelving
Stem Casters
with Brakes Stem Casters
3
STEP 1
Attach casters to the open end of
the 74” tall posts (four posts per
unit). Put caster stem into the post
and tap in with rubber
mallet.
STEP 2
Next you will need to attach your split
sleeves to the bottom of the posts
with the lines matching up. Make sure
the split sleeve is in the same
position on all four posts.
You can now run your post through
the holes on the bottom shelf. Move
the longer end of the posts through
the shelf rst for the split sleeves to
function properly.
STEP 3
4
Measure 64 inches from the top of the
bottom shelf to the top of the next split
sleeve. This will ensure that your top
shelf is level and at the proper height
for the divider panels. Once you nish,
you can place the top shelf on your
rack. Tap the shelf with a rubber mallet
to ensure it is secure.
STEP 5
You are now ready to install your
divider panel. Remove the top portion
of your divider panel.The space
between these will match with the
model purchased. *If you purchased
an 18-inch model they will be 18
inches apart, just as if you got a
24 inch model they’ll be 24
STEP 6STEP 4
Once nished, you can stand up
your rack and make sure the shelf is
secure against the four posts by
tapping the shelf with a rubber
mallet.
Once you’re sure your divider panel is
straight, you can now put the top on,
securing it to the rack.
STEP 7
5
Add two shelf grippers to the top and
bottom, as shown. This will secure
your divider panel to the shelf. Repeat
this step for the rest of your divider
panel.
STEP 8
Take your hanging pole and slide it
through the top middle section of the
divider panel just below the top shelf.
Slide your hanging hooks on to the
hanging pole and space them out
evenly. Now connect the hanging
hooks to the top shelf.
**When using multiple hanging poles, use
the pole connector to bring them together
and make one continuous hanging pole.
Take one nut of the pole connector and
hammer it into one end of the pole. Take
the other nut and hammer it into the end
of the adjoining pole. Insert the thread-
ed bolt into both nuts and twist to bring
together.**
STEP 9
The last step is putting on the label
holders and bunker pant hooks
STEP 11
6
Attach the 4 inch back ledges to both
shelf levels by sliding the wire bottoms
over the quarter inch truss wire.
STEP 10
Please visit readyrack.com/guides to nd
more information and other assembly
instruction guides.
GROVES INCORPORATED
818 TRAKK LN, WOODSTOCK, IL 60098
WWW.READYRACK.COM
"WE TAKE CARE OF THE GEAR THAT TAKES CARE OF YOU"
