INFINIX210
Basic Flush Ceiling Mount
with Quick Release
Assembly Instructions
PARTS LIST
Qty Description
1 Arm Assembly with Ceiling Plate
1 Mounting Bracket Head
1 Pressure Plate w/ 4 Countersunk Boreholes
1 Pressure Plate
4 Swivel Arms
Qty Description
4 Countersunk Phillips Screws
4 Clamping Screws
1 Pkg. M3 Distance Bolts with Screws & Washers
1 Pkg. M4 Distance Bolts with Screws & Washers
1 Pkg. M5 Distance Bolts with Screws & Washers
1 Pkg. M6 Distance Bolts with Screws & Washers
4 Countersunk Phillips Bolts
(These bolts can be used to replace the
clamping screws for security)
2 Allen Wrenches
HARDWARE LIST

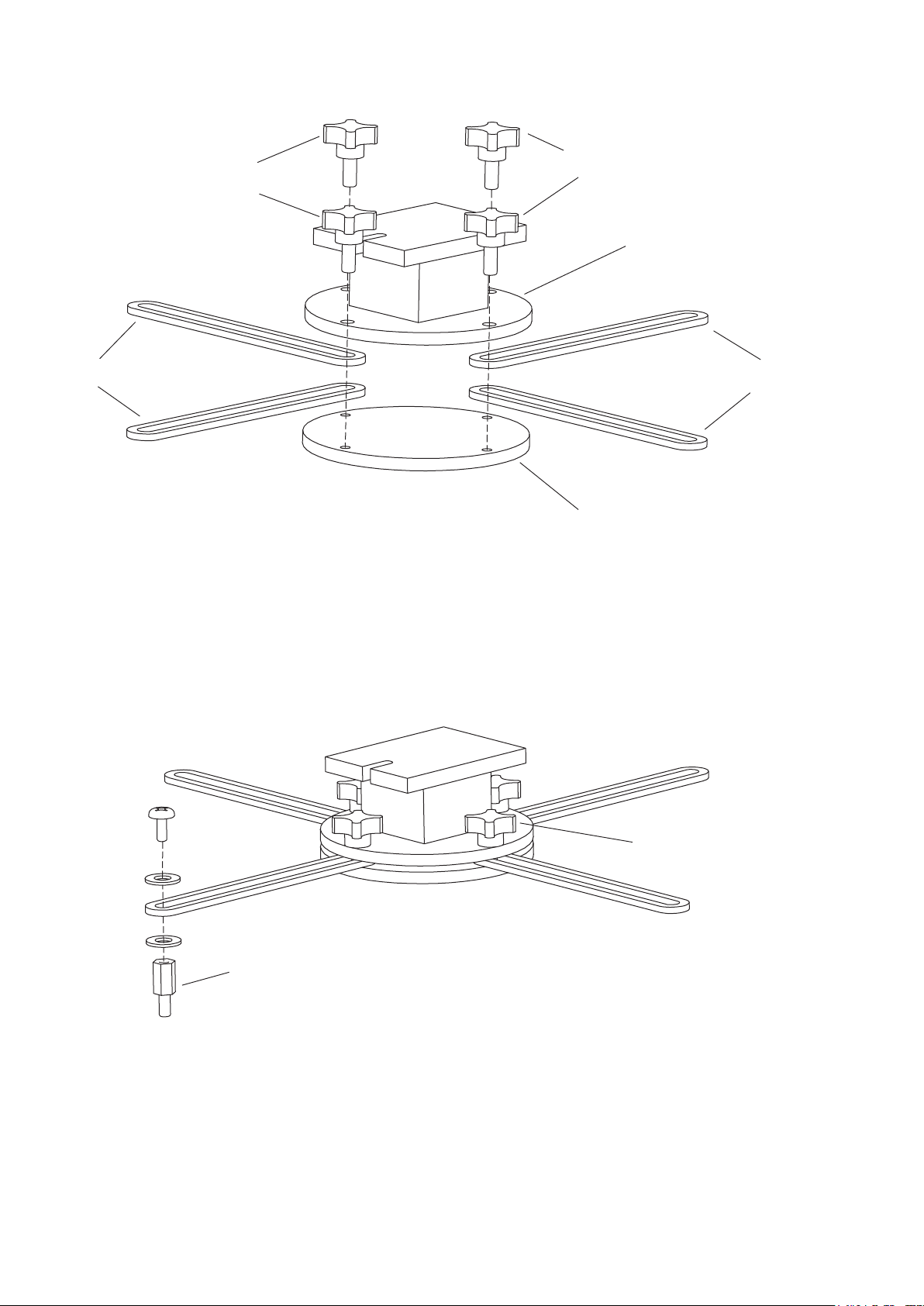

STEP 1
FIGURE 1
FIGURE 2
Turn Knob to Release
Mounting Head
WARNING: This arm mount is intended to support projectors with a maximum weight of 26 lbs. If your
projector does not have mounting nuts embedded in the bottom, it cannot be attached to this arm mount.
THIS ARM MOUNT IS INTENDED AS A CEILING MOUNT ONLY.A QUALIFIED PROFESSIONAL THIS ARM MOUNT IS INTENDED AS A CEILING MOUNT ONLY.A QUALIFIED PROFESSIONAL
SHOULD BE USED TO PROPERLY INSTALL THIS UNIT TO THE CEILING. RECORDEX DOES SHOULD BE USED TO PROPERLY INSTALL THIS UNIT TO THE CEILING. RECORDEX DOES
NOT RECOMMEND THE USE OF POWER TOOLS AND WILL NOT BE LIABLE FOR THE NOT RECOMMEND THE USE OF POWER TOOLS AND WILL NOT BE LIABLE FOR THE
IMPROPER USE OR INSTALLATION OF ITS PRODUCTS.IMPROPER USE OR INSTALLATION OF ITS PRODUCTS.

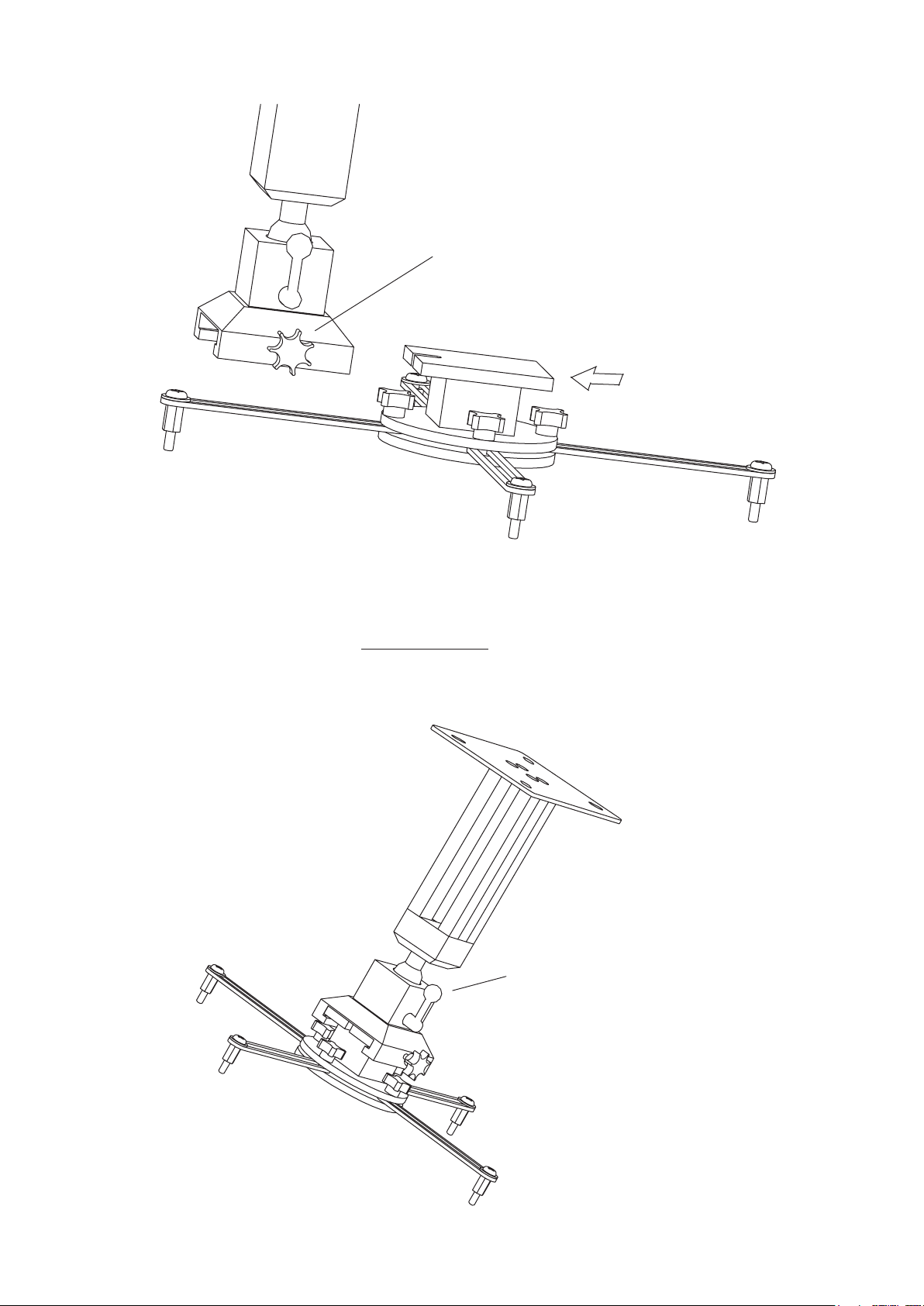

Remove the mounting bracket head from the arm assembly by unscrewing the knob as
shown in FIGURE 1. Position the pressure plate (the one with the countersunk boreholes)
onto the mounting bracket head. Using supplied Allen wrench secure together with the
countersunk screws as shown in FIGURE 2.
