BERWICK FIREPLACE INSERT

Regency Berwick Fireplace Insert

Thank-you for purchasing a

REGENCY FIREPLACE PRODUCT.

The pride of workmanship that goes into each of our products will give you years of trouble-free

enjoyment. Shouldyouhaveany questions about your product that are not covered in this manual,

please contact the REGENCY DEALER in your area.

Keep those REGENCY FIRES burning.

SAFETY NOTE: If this wood ﬁre is not properly installed, a house ﬁre may result. For your safety,

followtheinstallationinstructions,contactlocalbuilding,ﬁreofﬁcials,orauthorityhavingjurisdiction

about restrictions and installation inspection requirements in your area.

The authority having jurisdiction should be consulted before installation to determine the need to

obtain a permit.

Regency Berwick Fireplace Insert 3

TABLE OF CONTENTS

OPERATING INSTRUCTIONS

Operating Instructions .........................................................12

Air Slide Control...................................................................12

First Fire ..............................................................................12

MAINTENANCE

Creosote..............................................................................13

- Ways to Prevent & Keep Units Free of Creosote.......13

Maintenance........................................................................13

Glass Maintenance..............................................................13

Door Latch Adjustment........................................................13

Wood Storage......................................................................13

PARTS LIST

Stove Assembly...................................................................14

WARRANTY

Warranty..............................................................................15

Data Badge............................................................................4

Unit Dimensions ....................................................................5

INSTALLATION

Before Installing Your Insert...................................................6

Residential Installation...........................................................6

Safety Guidelines and Warnings...........................................7

Chimney Speciﬁcations.........................................................7

Wood Insert Speciﬁcations....................................................7

Brick Installation ....................................................................7

Zero Clearance Dimensions..................................................8

Zero Clearance Box Dimensions...........................................8

Fireplace Clearances.............................................................9

Installation into a Masonry Fireplace...................................10

Installation into a Factory Built Fireplace.............................10

Faceplate & Fan Installation................................................11

Regency Berwick Fireplace Insert

This is a copy of the label that accompanies each

I100 -1 Fireplace Insert. We have printed a copy of

the contents here for your review.

SAFETY LABEL

NOTE: Regency units are constantly being

improved. Check the label on the unit and if

there is a difference, the label on the unit is the

correct one.

Regency Berwick Fireplace Insert 5

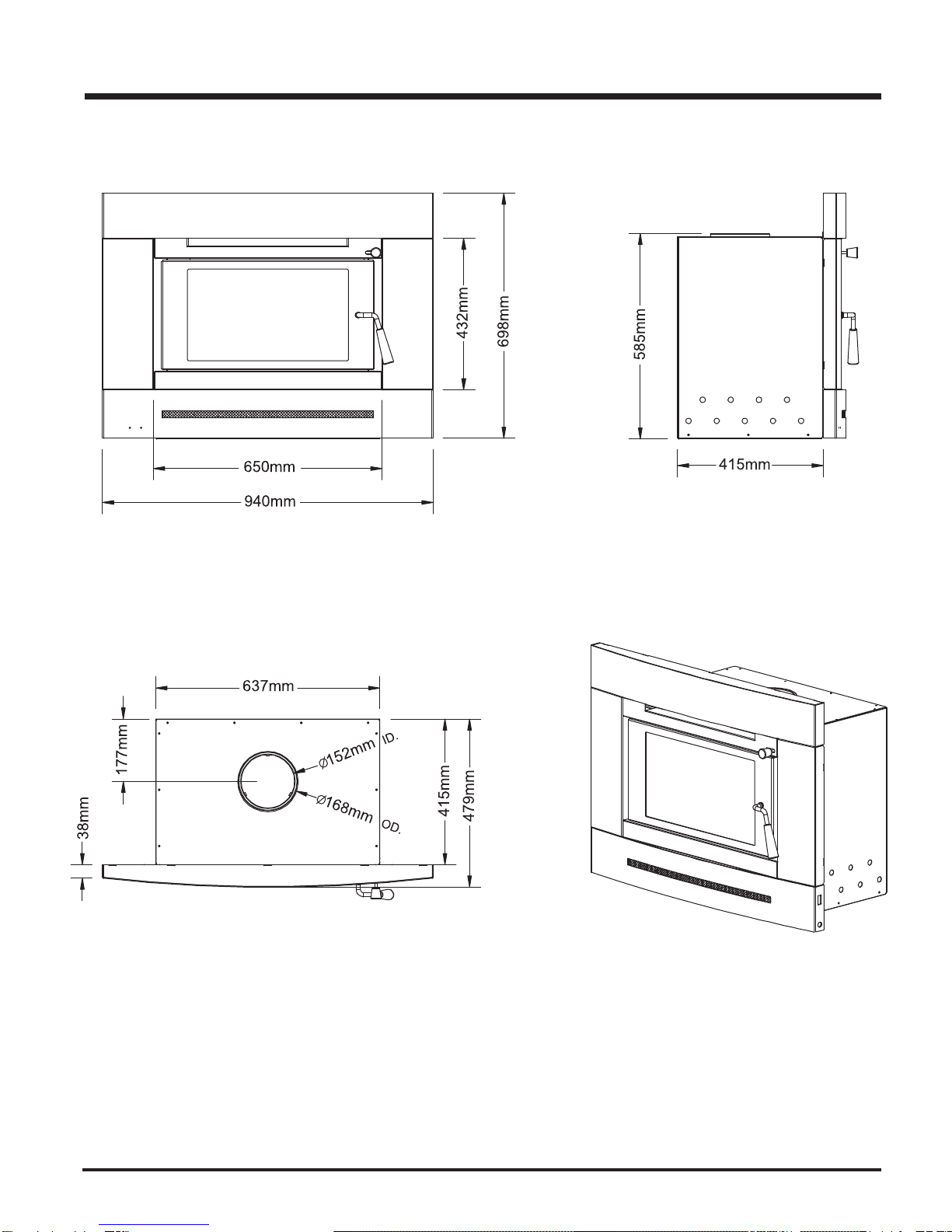

UNIT DIMENSIONS

Regency Berwick Fireplace Insert

INSTALLATION

1) Please read this entire manual before you

install and use your new wood ﬁre. Failure

to follow instructions may result in property

damage, bodily injury or even death. Be

awarethatlocalCodesandRegulationsmay

override some items in this manual. Check

with your local inspector.

2) THE APPLIANCE AND FLUE-SYSTEM

SHALL BE INSTALLED IN ACCORD-

ANCE WITH AS/NZS 2918:2001 AND

THE APPROPRIATE REQUIREMENTS

OFTHERELEVANTBUILDINGCODEOR

CODES.

APPLIANCES INSTALLED IN ACCORD-

ANCE WITH THIS STANDARD SHALL

COMPLYWITHTHEREQUIREMENTSOF

AS/NZS4013WHEREREQUIREDBYTHE

REGULATORY AUTHORITY.

ANYMODIFICATIONOFTHEAPPLIANCE

THAT HAS NOT BEEN APPROVED IN

WRITING BY THE TESTING AUTHORITY

IS CONSIDERED TO BE IN BREACH OF

THEAPPROVALGRANTEDFORCOMPLI-

ANCE WITH AS/NZS 4013.

RESIDENTIAL

INSTALLATION

Regency Inserts are constructed with the high-

estqualitymaterialsandassembledunderstrict

quality control procedures that ensure years of

trouble free and reliable performance.

It is important that you read this manual thor-

oughly and fully understand the safe instal-

lation and operating procedures. The more

you understand the way your Regency Insert

operates, the more enjoyment you will experi-

ence from knowing that your unit is operating

at peak performance.

BEFORE INSTALLING

YOUR INSERT

1) Please read this entire manual before you

installanduseyournewwoodinsert.Failure

to follow instructions may result in property

damage, bodily injury or even death. Install

anduseonlyinaccordancewithmanufactur-

er’s installation and operating instructions.

2) Check your local building codes - Building

Inspection Department. You may require

a permit before installing your insert. Be

awarethatlocalcodesandregulationsmay

override some items in the manual.

WARNING: Careless installation is the

major cause of safety hazard. Check all

local building and safety codes before

installation of unit.

3) Notify your home insurance company that

youplantoinstallaﬁreplaceinsertorhearth

heater.

4) Your ﬁreplace insert is heavy and requires

two or more people to move it safely. The

insert can be badly damaged by mishan-

dling.

5) If your existing ﬁreplace damper control

will become inaccessible once you have

installed your Regency Insert, you should

either remove or secure it in the open posi-

tion.

6) Inspect your ﬁreplace and chimney prior

to installing your insert to determine that it

is free from cracks, loose mortar or other

signs of damage. If repairs are required,

they should be completed before installing

yourinsert. Do notremove bricks ormortar

from your masonry ﬁreplace.

7) Do not connect the insert to a chimney

system servicing another appliance or

an air distribution duct.

CAUTION: MIXING OF APPLIANCE OR

FLUE-SYSTEM COMPONENTS FROM

DIFFERENT SOURCES OR MODIFYING

THE DIMENSIONAL SPECIFICATION OF

COMPONENTS MAY RESULT IN HAZ-

ARDOUS CONDITIONS. WHERE SUCH

ACTION IS CONSIDERED, THE MANU-

FACTURER SHOULD BE CONSULTED

IN THE FIRST INSTANCE.

3) Re-conﬁrm the clearance from the insert to

combustibles to insure that they are within

the prescribed limits.

4) Installchimneyaccordingtochimneymanu-

facturers instructions. The performance of

your wood ﬁre is governed to a very large

part by the chimney system. Too short a

chimney can cause difﬁcult start-up, dirty

glass,backsmokingwhendoorisopen,and

evenreducedheatoutput.Tootallachimney

maypromptexcessivedraftwhichcanresult

invery short burntimes and excessiveheat

output.

5) Theﬂoorprotectormustbeofnon-combus-

tible material.

6) Do not connect this unit to a chimney

serving another appliance.

Regency Berwick Fireplace Insert 7

BRICK

INSTALLATION

Firebrick comes installed in each stove and is

made to extend the life of your stove and to

radiate heat more evenly.

Important: Remove the packing material from

above and below the top bricks. Check to see

thatallﬁrebricksareintheircorrectpositionsand

have not become misaligned during shipping.

SAFETY GUIDELINES

AND WARNINGS

1) Never use petrol, petrol type lantern fuels,

kerosene, charcoal lighter fuel, or similar

liquids to start or ‘freshen up’ a ﬁre in your

heater.Keepallsuchliquidswellawayfrom

the heater while it is in use.

2) Keep the door closed during operation and

maintain all seals in good condition.

3) Donotburnanyquantitiesofpaper,garbage,

and never burn ﬂammable ﬂuids such as

petrol, naptha or engine oil in your stove.

4) Ifyouhavesmokedetectors,preventsmoke

spillage as this may set off a false alarm.

5) Do not overﬁre heater. If the chimney con-

nector, ﬂue bafﬂe or the stove top begin to

glow,youareoverﬁring.Stopaddingfueland

closethedraftcontrol. Overﬁringcancause

extensive damage to your stove including

warpage and premature steel corrosion.

Overﬁring will void your warranty.

6) Do not permit creosote or soot build-up

in the chimney system. Check and clean

chimney at regular intervals. Failure to do

so can result in a serious chimney ﬁre.

7) Your Regency stove can be very hot. You

may be seriously burned if you touch the

stove while it is operating, keep children,

clothing and furniture away. Warn children

of the burn hazard. For safety reasons a

guard around the ﬁre is recommended.

8) The stove consumes air while operating,

provide adequate ventilation with an air

duct or open a window while the stove is in

use.

9) Do not use grates or andirons or other

methods for supporting fuel. Burn directly

on the base or bricks where supplied.

10) Open the draft control fully for 10 to 15

seconds prior to slowly opening the door

when refuelling the ﬁre.

11) Do not connect your unit to any air distribu-

tion duct.

12) Your wood ﬁre should burn dry, standard

ﬁrewood only. The use of cut timber, ply-

wood,“mill ends”, etc. is notallowed asthis

fuel can easily overheat your wood ﬁre.

Evidenceofexcessiveoverheatingwillvoid

your warranty. As well, a large portion of

sawmill waste is chemically treated timber,

which is illegal to burn in many areas. Salt

drift wood and chemically treated ﬁre logs

also must not be burned in your wood ﬁre.

13) DO NOT OPERATE WITH BROKEN

GLASS.

CHIMNEY

SPECIFICATIONS

Beforeinstalling,checkandcleanyourchimney

system thoroughly. If in doubt about its condi-

tion, seek professional advice. Your Regency

Insertisdesignedforinstallationintoamasonry

ﬁreplace.

Theappliance,wheninstalled,mustbeelectrical-

ly grounded in accordance with local codes.

Height 589 mm

Width 640 mm

Depth 420 mm

WOOD INSERT

SPECIFICATIONS

Your ﬁreplace opening requires the following

minimum sizes:

INSTALLATION

Regency Berwick Fireplace Insert

INSTALLATION

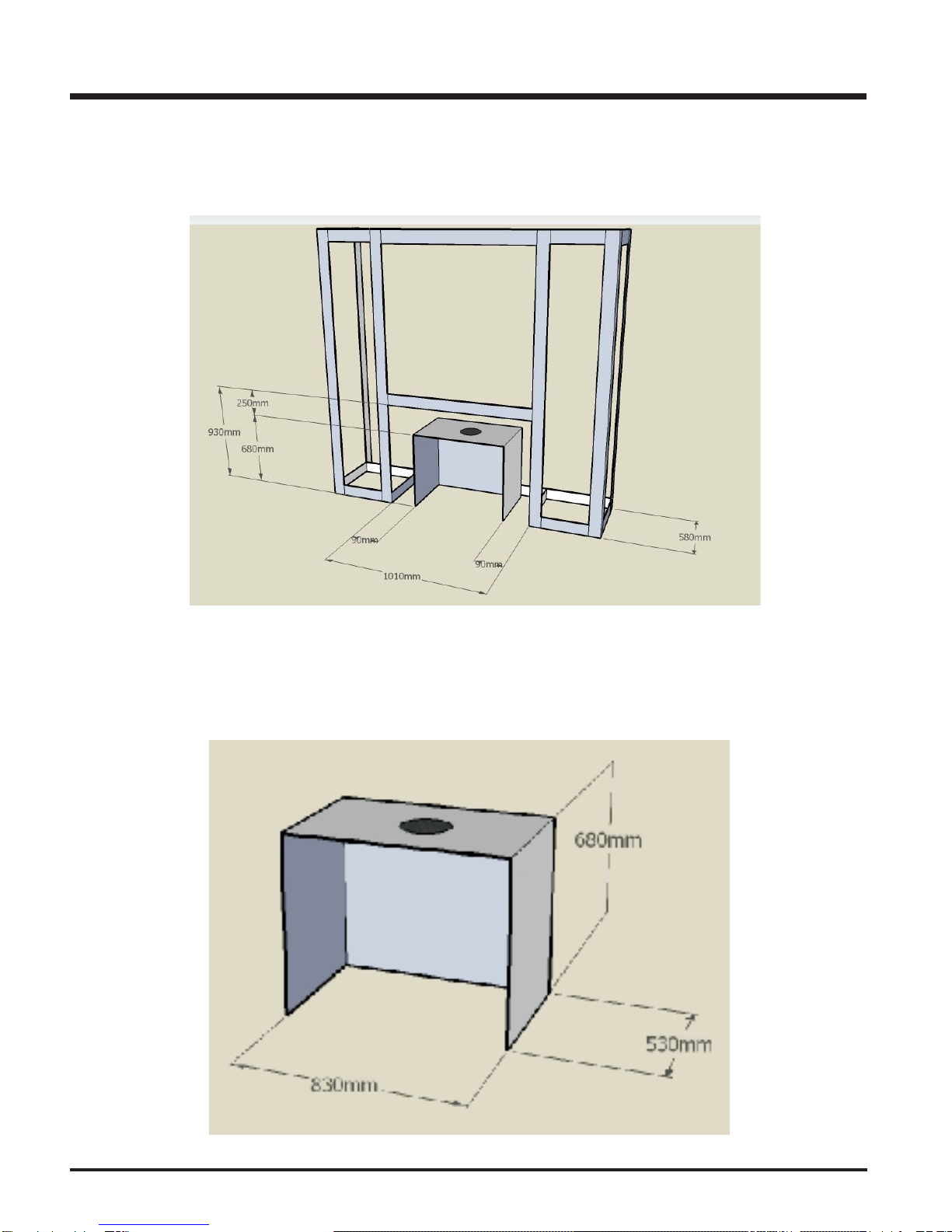

ZERO CLEARANCE

DIMENSIONS

ZERO CLEARANCE

BOX DIMENSIONS

Regency Berwick Fireplace Insert 9

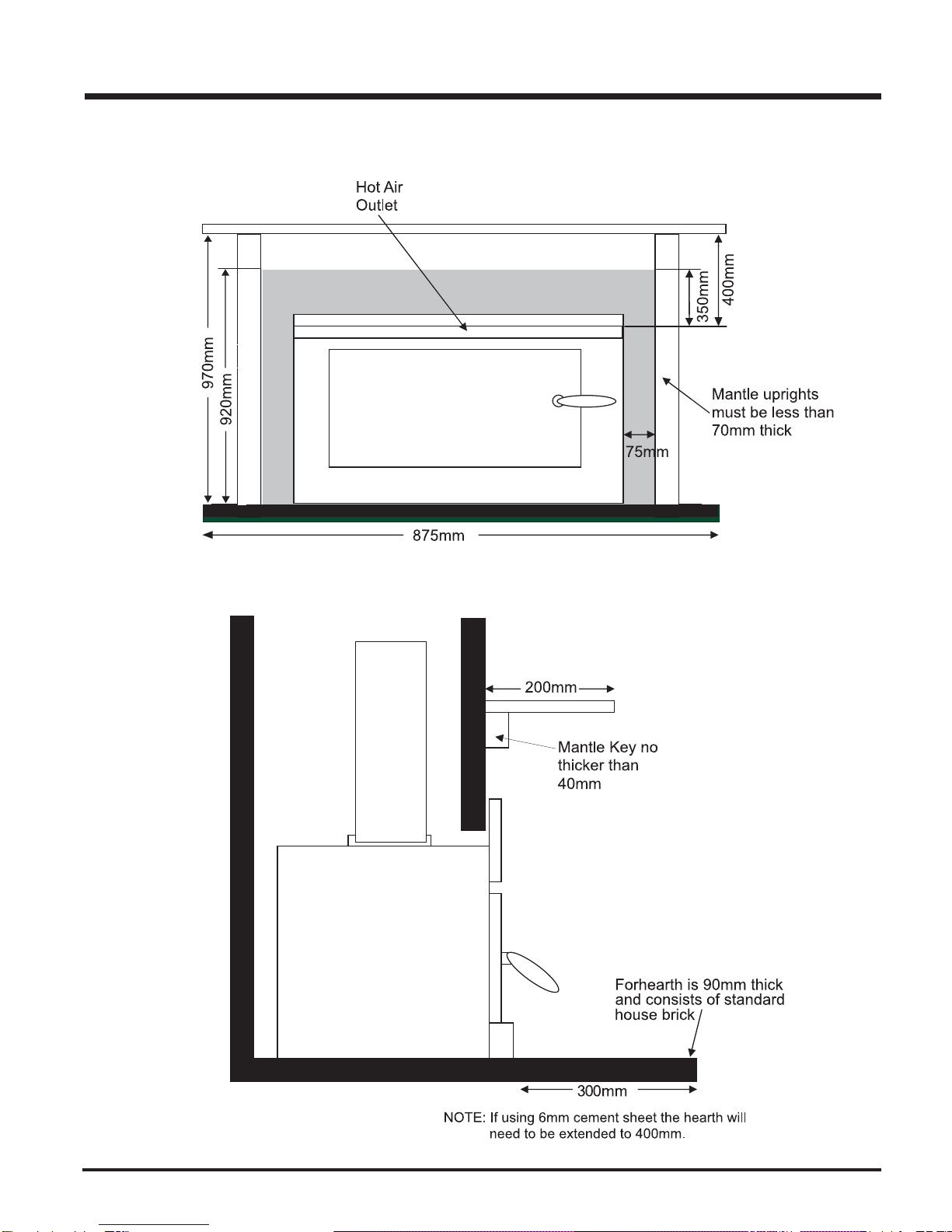

FIREPLACE CLEARANCES

INSTALLATION

Regency Berwick Fireplace Insert

INSTALLATION INTO A

MASONRY FIREPLACE

The insert must be installed as per the require-

ments of your local inspection authority.

Regency highly recommends the use of a full

liner as the safest installation and provides the

mostoptimumperformance. Yourretailershould

be able to help you decide which system would

be the best for your application.

Full Flue Liner

The use of this connection method not only

increases the safety of your insert by directing

the hot gases up the ﬂue, but will also help

increase the unit's efﬁciency and decrease

creosote deposits in the chimney.

When a connected ﬂue or liner is in use, the

insert is able to “breathe” better by allowing a

greaterdrafttobecreated. Thegreaterdraftcan

decrease problems such as, difﬁcult start-ups,

smoking out the door, and dirty glass.

INSTALLATION INTO A

FACTORY BUILT

FIREPLACE

1) When installed in a factory built ﬁreplace, a

fullstainlesssteelrigidismandatory,forboth

safety and performance purposes. When

a ﬂue or liner is in use, the insert is able to

breathe better by allowing a greater draft to

becreated. Thegreaterdraft candecrease

problemssuchas,difﬁcultstart-ups,smoking

out the door, and dirty glass.

2) In order to position the ﬂue liner, the exist-

ing rain cap must be removed from your

chimney system. In most cases the ﬂue

damper should also be removed to allow

passage of the liner.

3) In most cases opening the existing spark

screens fully should give enough room for

the insert installation. If it does not, remove

and store.

4) If the ﬂoor of your ﬁreplace is below the

level of the ﬁreplace opening, adjust the

inserttoaccommodatethedifference.When

shimmingisrequired, usenon-combustible

masonry or steel shims.

5) Measureapproximatelythealignmentofthe

ﬂue liner with the position of the ﬂue outlet

holeontheinserttocheckforpossibleoffset.

Ifanoffsetisrequired,useaproperstainless

steel unit available with the chimney liner.

6) Once the above items have been checked,

slide your insert into position after ﬁrst po-

sitioning the ﬂue liner and offset if required.

(Re-installraincapatcompletionofinstalla-

tion).

INSTALLATION

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Regency Fireplace Products Kamin im Innenbereich Handbücher

Regency Fireplace Products

Regency Fireplace Products U41 Bedienungsanleitung

Regency Fireplace Products

Regency Fireplace Products HZ54E Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products E21 Gas Insert Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products E33-NG10 Service-Handbuch

Regency Fireplace Products

Regency Fireplace Products Bellavista B41XTCE Bedienungsanleitung

Regency Fireplace Products

Regency Fireplace Products City Series ACV40ENG Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTCE Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Panorama P33CE Series Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Alterra F175B-2 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Grandview G600EC-NG Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products GFI300LNG-R Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Bellavista B41XTCE-NG10 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products GF950L-NG Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Cascades I2500 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Bellavista B41XTE Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products F180B-2 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products E18 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products U900E-11 Bedienungsanleitung

Regency Fireplace Products

Regency Fireplace Products Pro Series Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTE-10 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Grandview G600C-1 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products P33-4 Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products Classic I2453M Kurzanleitung

Regency Fireplace Products

Regency Fireplace Products City Series CC40LE-NG12 Kurzanleitung

Beliebte Kamin im Innenbereich Handbücher anderer Marken

Brigantia

Brigantia 35-DVRS31N-2 Betriebsanleitung

Nordpeis

Nordpeis Bergen Bedienungsanleitung

Superior

Superior BCT2536TMN Bedienungsanleitung

Quadra-Fire

Quadra-Fire 5100I-GD-B Bedienungsanleitung

Renaissance

Renaissance RUMFORD 1000 Bedienungsanleitung

Lacunza

Lacunza IV-800 Bedienungsanleitung

Baxi

Baxi 940 Gebrauchsanweisung

Dru

Dru Maestro 60/2 Tall RCH Bedienungsanleitung

Diamond Fireglass

Diamond Fireglass SS-O22 Bedienungsanleitung

HearthStone

HearthStone Windsor Bay 8830 Programmierhandbuch

Napoleon

Napoleon ASCENT B42 Bedienungsanleitung

Enviro

Enviro E33GI Bedienungsanleitung

Smeg

Smeg L30 FABE Montageanleitung

KEDDY

KEDDY K700 Bedienungsanleitung

Godin

Godin 3451 Bedienungsanleitung

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Bedienungsanleitung

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Bedienungsanleitung

Desa

Desa CCFPDFT Bedienungsanleitung
