F1 and F1FR Series Conventional Sprinklers
Sprinkler
Model
K-Factor gpm/
psi1/2 (lpm/bar1/2)Orientation Response Listings &
Approvals
Max. Working
Pressure psi (bar)
Sprinkler
Identification
Number (SIN)
F1-56 5.6 (80) Conventional SR LPCB, VdS, CE 175 psi (12 bar) RA1375
F1FR56 5.6 (80) Conventional QR LPCB, VdS, CE, WM 175 psi (12 bar) RA1475
F1-80 8.0 (115) Conventional SR LPCB, VdS 175 psi (12 bar) R1772
F1FR80 8.0 (115) Conventional QR LPCB 175 psi (12 bar) R3672
Table A
Features
• Standard Response or Quick Response
• Conventional deflector
• Low profile, compact design
• Available in a wide variety of finishes
Product Description
Conventional (or “old-syle” sprinklers) direct approximately
40% of their water discharge up against the ceiling and the
remainder downward to the floor, and may be used in either
the upright or pendent position.
Reliable Model F1 Conventional Sprinklers are standard
response fire sprinklers utilizing a 5.0 mm glass bulb thermal
element.
Reliable Model F1FR Conventional Sprinklers are quick
response fire sprinklers utilizing a sensitive 3.0 mm thermal
glass bulb element.
These sprinklers are available in 5.6 (80 metric) and 8.0 (115
metric) K factor.
When used in the pendent position, sprinklers may be
installed exposed or surface mounted using escutcheons
such as the Reliable Models B, C, or HB (reference Technical
Bulletin 204).
Table A provides a summary of the approvals and availability
of specific Model F1 and F1FR Series Conventional sprinkler
configurations. Additional technical information for each
sprinkler model is provided on the following pages.
www.reliablesprinkler.com
K-factor 5.6 (80) and 8.0 (115)
F1 and F1FR Series
Conventional Sprinklers
Bulletin 182 January 2022
Model F1-56 Conventional Sprinkler SIN RA1375
Technical Specifications
Style: Upright or Pendent
Threads: 1/2” NPT or ISO 7-R1/2
Nominal K-Factor: 5.6 (80 metric)
Max. Working Pressure: 175 psi (12 bar)
Material Specifications
Thermal Sensor: 5 mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Standard Response
Temperature Ratings
135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)
360°F (182°C)
Sprinkler Wrench
Model W2
Listings and Approvals
LPCB
VdS
CE

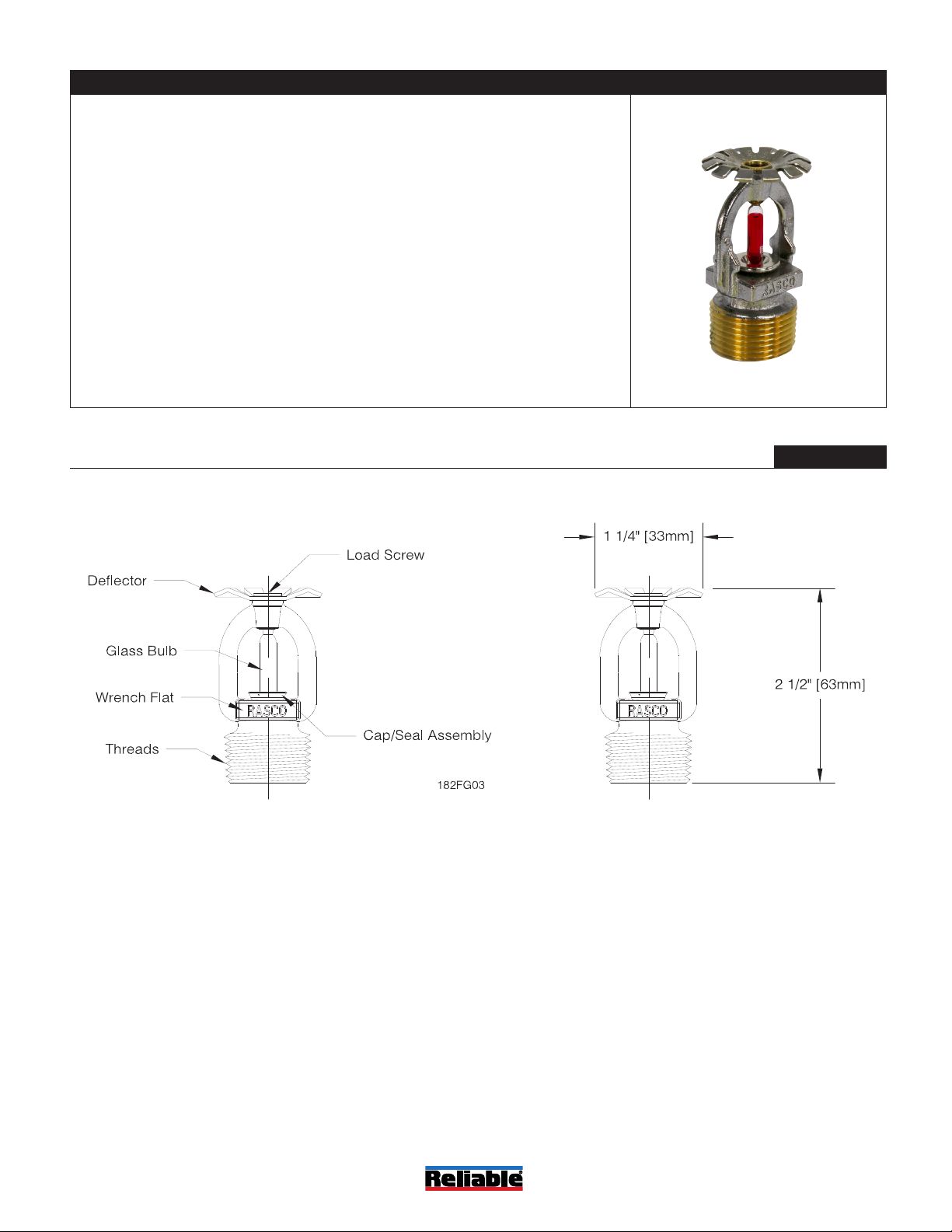

Model F1-56 Conventional Sprinkler Components and Dimensions Figure 1
Bulletin 182
January 2022
Page 2 of 6
www.reliablesprinkler.com
Model F1FR56 Conventional Sprinkler SIN RA1475
Technical Specifications
Style: Upright or Pendent
Threads: 1/2” NPT or ISO 7-R1/2
Nominal K-Factor: 5.6 (80 metric)
Max. Working Pressure: 175 psi (12 bar)
Material Specifications
Thermal Sensor: 3 mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Quick Response
Temperature Ratings
135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)
Sprinkler Wrenches
Model W2
Listings and Approvals
LPCB
VdS
CE
WM
Model F1FR56 Conventional Sprinkler Components and Dimensions Figure 2
Bulletin 182
January 2022
Page 3 of 6
www.reliablesprinkler.com
Model F1-80 Conventional Sprinkler SIN R1722
Technical Specifications
Style: Upright or Pendent
Threads: 3/4” NPT or ISO 7-R3/4
Nominal K-Factor: 8.0 (115 metric)
Max. Working Pressure: 175 psi (12 bar)
Material Specifications
Thermal Sensor: 5 mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Standard Response
Temperature Ratings
135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)
360°F (182°C)
Sprinkler Wrenches
Model W2
Listings and Approvals
LPCB
VdS
Model F1-80 Conventional Sprinkler Components and Dimensions Figure 3
Bulletin 182
January 2022
Page 4 of 6
www.reliablesprinkler.com
Model F1FR80 Conventional Sprinkler SIN R3672
Technical Specifications
Style: Upright or Pendent
Threads: 3/4” NPT or ISO 7-R3/4
Nominal K-Factor: 8.0 (115 metric)
Max. Working Pressure: 175 psi (12 bar)
Material Specifications
Thermal Sensor: 3 mm Glass Bulb
Sprinkler Frame: Brass Alloy
Cap: Bronze Alloy
Sealing Washer: Nickel with PTFE
Load Screw: Copper Alloy
Deflector: Brass Alloy
Sprinkler Finishes
(See Table B)
Sensitivity
Quick Response
Temperature Ratings
135°F (57°C)
155°F (68°C)
175°F (79°C)
200°F (93°C)
286°F (141°C)
Sprinkler Wrenches
Model W2
Listings and Approvals
LPCB
Model F1FR80 Conventional Sprinkler Components and Dimensions Figure 4
Bulletin 182
January 2022
Page 5 of 6
www.reliablesprinkler.com
Installation
Model F1 and F1FR Series sprinklers must be installed with the
Reliable Model W-2 sprinkler installation wrench as identified
in the Design and Installation Information table in this Bulletin.
Any other wrench may damage the sprinkler. The Model W-2
wrench has two sets of jaws. Use the smallest set of jaws that
fit on the wrench flats of the sprinkler. A leak tight sprinkler joint
can be obtained with a torque of 8 to 18 lb-ft (11 to 24 N-m).
Do not tighten sprinklers over the maximum recommended
installation torque. Exceeding the maximum recommended
installation torque may cause leakage or impairment of the
sprinkler.
Glass bulb sprinklers have orange bulb protectors or protective
caps to minimize bulb damage during shipping, handling
and installation. Reliable sprinkler installation wrenches are
designed to install sprinklers with bulb protectors in place.
Remove the bulb protector at the time when the sprinkler
system is placed in service for fire protection. Removal of the
bulb protector before this time may leave the bulb vulnerable
to damage. Remove bulb protectors by undoing the clasp by
hand. Do not use tools to remove bulb protectors.
Maintenance
Reliable Model F1 and F1FR series sprinklers should be
inspected and the sprinkler system maintained in accordance
with NFPA 25, as well as the requirements of any Authorities
Having Jurisdiction.
Prior to installation, sprinklers should remain in the original
cartons and packaging until used. This will minimize the
potential for damage to sprinklers that could cause improper
operation or non-operation.
Do not clean sprinklers with soap and water, ammonia liquid or
any other cleaning fluids. Remove dust by gentle vacuuming
without touching the sprinkler.
Replace any sprinkler which has been painted (other than
factory applied). A stock of spare sprinklers should be
maintained to allow quick replacement of damaged or
operated sprinklers. Failure to properly maintain sprinklers
may result in inadvertent operation or non-operation during a
fire event.
Standard Finishes Special Application Finishes
Bronze Electroless Nickel PTFE
Chrome Plated Bright Brass(3)
White Polyester Chrome Dull
Notes:
1. Other finishes and colors are available on special order.
Consult your Reliable sales representative for details.
2. Paint or any other coating applied over the factory finish will
void all approvals and warranties.
3. For 200°F (93°C) maximum temperature rated sprinklers
only.
Sprinkler Finishes(1)(2) Table B
Guarantee
For the Reliable Automatic Sprinkler Co., Inc. guarantee,
terms, and conditions, visit www.reliablesprinkler.com.
Ordering Information
Specify the following when ordering:
• Sprinkler
F1-56 Conventional
F1FR56 Conventional
F1-80 Conventional
F1FR80 Conventional
• Temperature Rating
• Sprinkler Finish
See Table B
• Sprinkler Wrench
Model W-2
Model W2 Wrench Figure 5
P/N 9999970606
Bulletin 182
January 2022
Page 6 of 6
