Renault 2009 X79 Bedienungsanleitung

"The repair procedures given by the manufacturer in this document are based on the

technical specifications current when it was prepared.

The procedures may be modified as a result of changes introduced by the manufacturer in

the production of the various component units and accessories from which the vehicles are

constructed".

Copying or translating, in part or in full, of this document or use of the service part reference

numbering system is forbidden without the prior written authority of Renault.

NOVEMBER 2009 EDITION ANGLAISE

X79

6Air conditioning

61A HEATING

62A AIR CONDITIONING

DUSTER - Chapitre 6

Contents

Pages

DUSTER - Chapitre 6ContentsPages

61A HEATING

Heating: List and location of

components 61A-1

Cabin ﬁlter: Removal -

Reﬁtting 61A-8

Front air distribution duct:

Removal - Reﬁtting 61A-9

Rear air distribution duct:

Removal - Reﬁtting 61A-10

Recirculation control cable:

Removal - Reﬁtting 61A-11

Air distribution cable:

Removal - Reﬁtting 61A-13

Air mixing cable: Removal -

Reﬁtting 61A-15

Distribution unit: Removal -

Reﬁtting 61A-17

Heater matrix: Removal -

Reﬁtting 61A-21

Fan assembly:Removal -

Reﬁtting 61A-24

Heating resistor relays:

Removal - Reﬁtting 61A-25

Heating resistors: Removal -

Reﬁtting 61A-26

Passenger compartment fan

assembly control unit:

Removal - Reﬁtting 61A-28

Control panel: Removal -

Reﬁtting 61A-29

62A AIR CONDITIONING

Air conditioning: List and

location of components 62A-1

Air conditioning: Parts and

consumables for the repair 62A-9

Condenser: Removal -

Reﬁtting 62A-10

Compressor: Removal -

Reﬁtting 62A-12

Expansion valve: Removal -

Reﬁtting 62A-16

Refrigerant pipe seal:

Removal - Reﬁtting 62A-18

Refrigerant circuit pipe:

Removal - Reﬁtting 62A-21

Pressure sensor: Removal -

Reﬁtting 62A-23

61A-1

HEATING

Heating: List and location of components 61A

VALEO distribution unit

107799

143994

61A-2

HEATING

Heating: List and location of components 61A

143997

61A-3

HEATING

Heating: List and location of components 61A

BEHR distribution unit

143995

61A-4

HEATING

Heating: List and location of components 61A

143998

61A-5

HEATING

Heating: List and location of components 61A

143996

61A-6

HEATING

Heating: List and location of components 61A

128024

121595

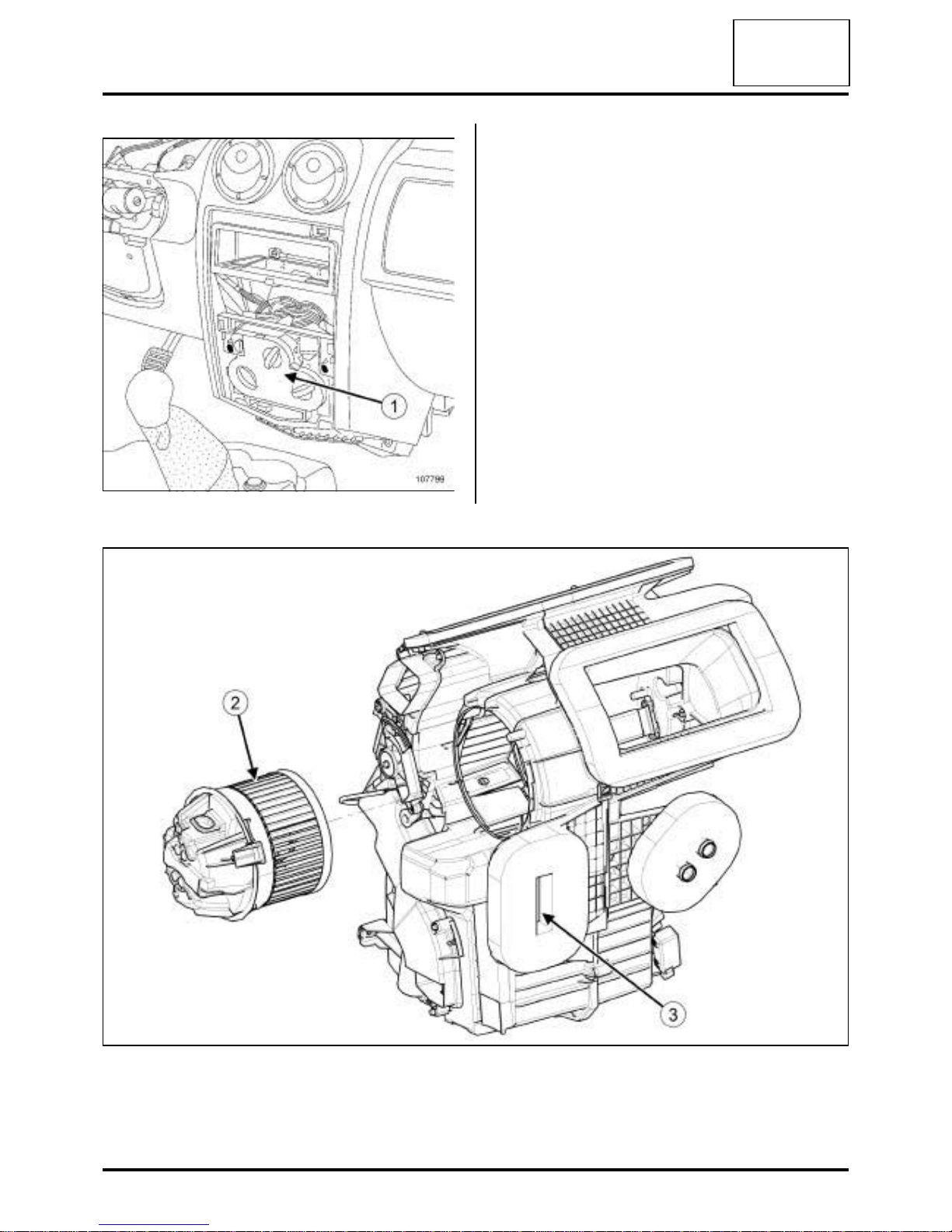

1Control panel (see 61A, Heating, Control panel: Removal -

Reﬁtting, page 61A-29)

2Passenger compartment fan assembly (see 61A, Heating, Fan assembly: Removal -

Reﬁtting, page 61A-24)

61A-7

HEATING

Heating: List and location of components 61A

3Expansion valve (see 62A, Air conditioning, Expansion valve:

Removal - Reﬁtting, page 62A-16)

4Passenger compartment fan assembly control

unit (see 61A, Heating, Passenger compartment

fan assembly control unit: Removal - Reﬁt-

ting, page 61A-28)

5Heater matrix (see 61A, Heating, Heater matrix: Removal -

Reﬁtting, page 61A-21)

6Air distribution cable (see 61A, Heating, Air distribution cable:

Removal - Reﬁtting, page 61A-13)

7Recirculation control cable (see 61A, Heating, Recirculation control

cable: Removal - Reﬁtting, page 61A-11)

8Air mixing cable (see 61A, Heating, Air mixing cable: Removal

- Reﬁtting, page 61A-15)

9Heating resistors (VALEO type) (see 61A, Heating, Heating resistors:

Removal - Reﬁtting, page 61A-26)

10 Evaporator sensor (VALEO type) (see Evaporator sensor: Removal - Reﬁtting)

11 Front side air distribution duct (see 61A, Heating, Front air distribution duct:

Removal - Reﬁtting, page 61A-9)

12 Front central air distribution duct

13 C-pillar air distribution duct (see 61A, Heating, Rear air distribution duct:

Removal - Reﬁtting, page 61A-10)

14 A-pillar air distribution duct (see Front footwell air distribution duct:

Removal - Reﬁtting)

61A-8

HEATING

Cabin filter: Removal - Refitting

AIR CONDITIONING

61A

REMOVAL

OPERATION FOR REMOVAL OF PART

CONCERNED

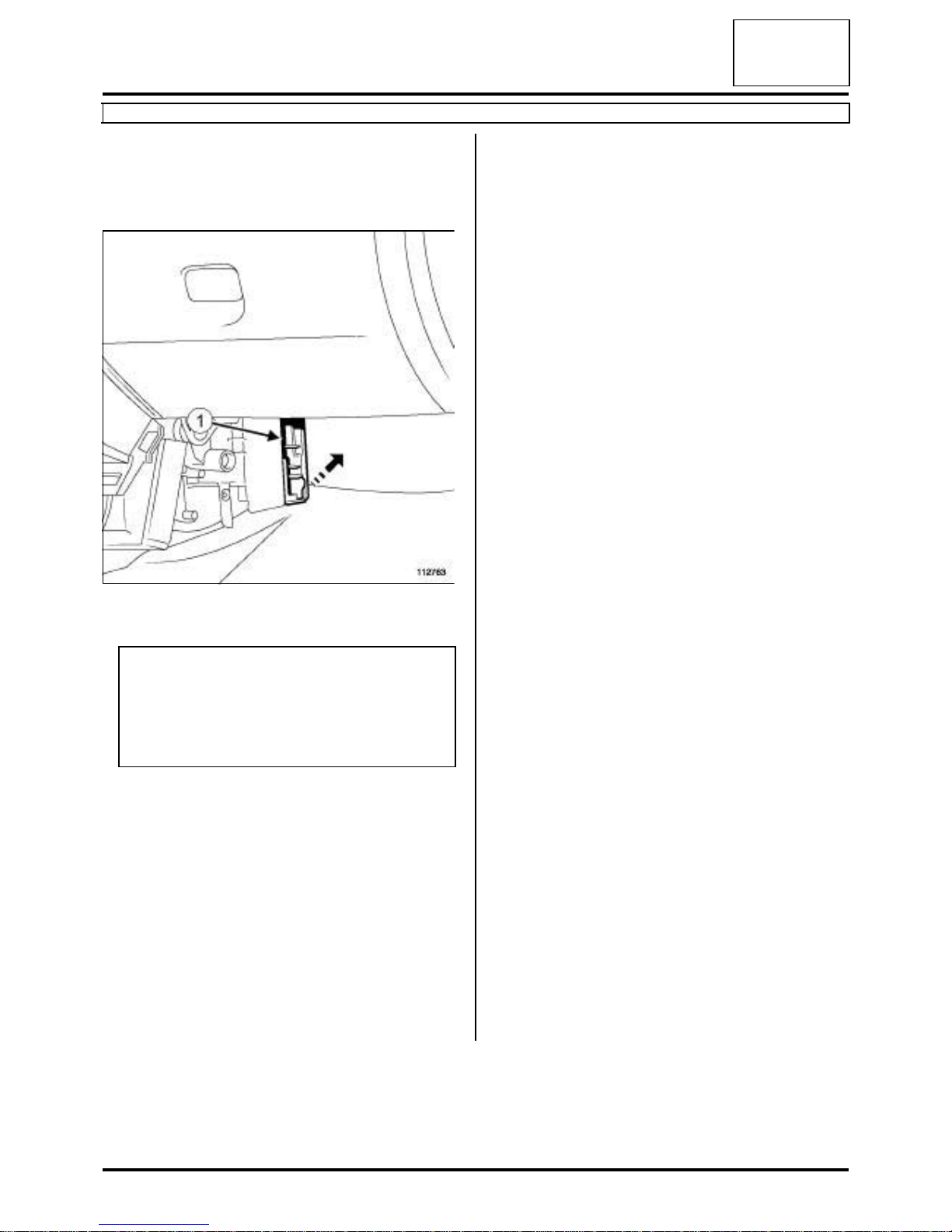

aUnclip the passenger compartment filter (1) .

aRemove the cabin filter.

REFITTING

I - REFITTING PREPARATIONS OPERATION

aCheck for foreign bodies in the cabin filter housing,

and clean thoroughly if necessary.

II - REFITTING OPERATION FOR PART

CONCERNED

aRefit the cabin filter.

aClip on the cabin filter.

112763

Note:

Foreign bodies (leaves, insects etc.) are likely to

accumulate in the passenger compartment ﬁlter.

Remove the cabin ﬁlter with care so as to prevent

foreign bodies getting into the evaporator.
