Quick Start Guide: RL78G14 Motor Control Starter Kit

YRMCKITRL78G14 Kit Quick Start Guide 1 D011044-11 V0101

Document Contents

1.0 Introduction 1

2.0 Board Layout 1

3.0 Stand Alone Demonstration Mode 2

4.0 Installation 3

5.0 Using the GUI 4

6.0 RL78/G14 Programming 6

7.0 RL78/G14 Debugging 7

8.0 Next Steps 8

9.0 Support 8

1.0 Introduction

This quick start guide is provided to assist the user in connecting and using up the RL78G14 motor control

starter kit for the first time. The RL78G14 microcontroller flash memory on the board is supplied pre-

programmed with the motor control demonstration project. Please check the contents of the kit using the

supplied package contents list and notify your supplier if anything is missing

Note: PLEASE DO NOT CONNECT THE BOARD TO THE HOST PC BEFORE INSTRUCTED

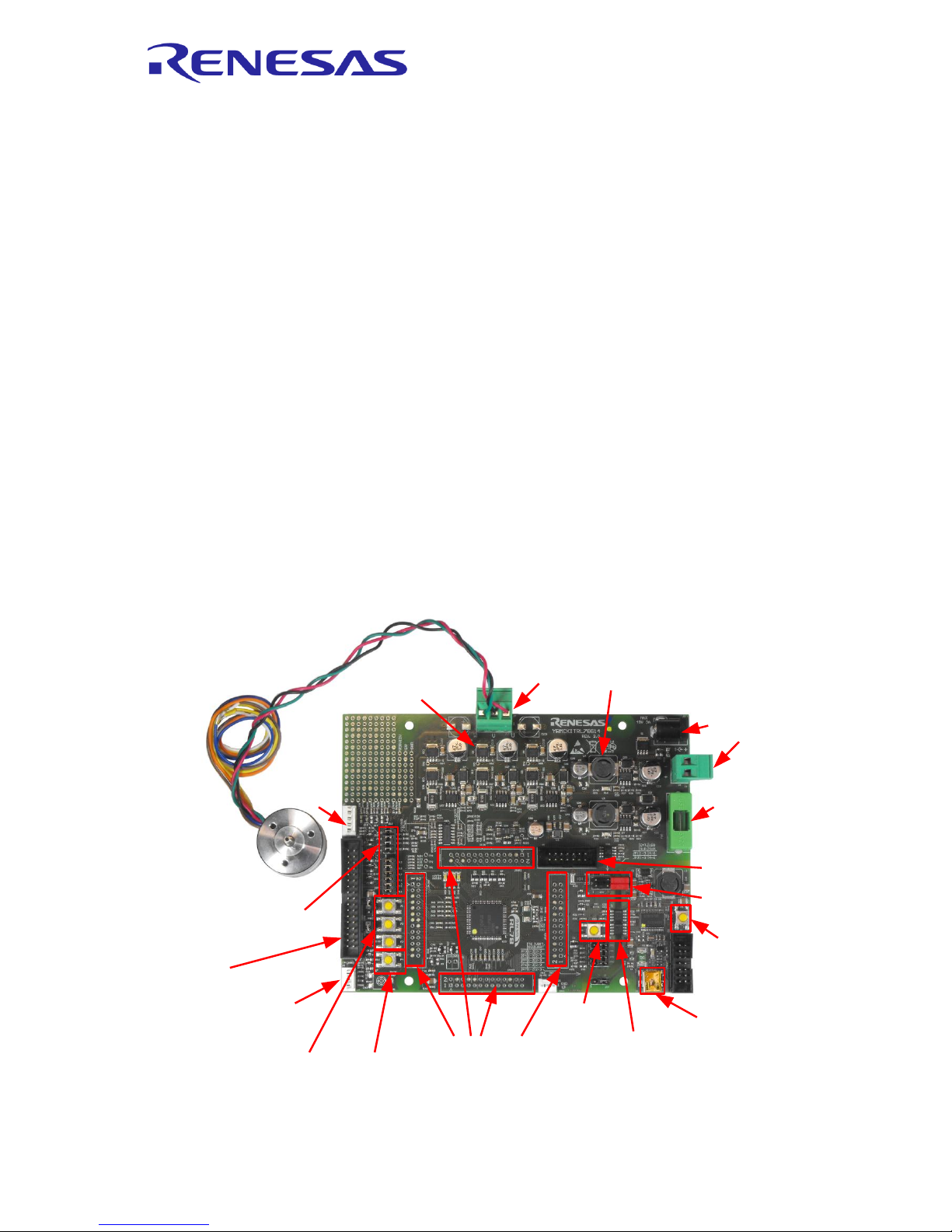

2.0 Board Layout

BLDC

Demonstration

Motor

JPUP1-4: RL78/G14

IO Pinout

JP1 / JP2

J1: USB

Interface &

Power

Isolation

Barrier

P6: RL78/G14

Reset

P5 USB

reset

5A Fuse

J3-J4: Ext.

Power supply

connectors

Int. Power

supplies

J5 –E1

Connector

J7: Motor

Connector

Internal

inverter

J8: Hall

Sensor

Connector

J10-J19:

Inverter

selection

jumpers

J10: Ext.

inverter

and power

interface J9: Encoder

connector

P4: Demo

start/stop

P1-P3: User

programmable

For further details, please refer to chapter 2 of the YRMCKITRL78G14 Motor Control Starter Kit user manual.

Quick Start Guide: RL78G14 Motor Control Starter Kit

YRMCKITRL78G14 Kit Quick Start Guide 2 D011044-11 V0101

3.0 Stand-alone Demonstration Mode

The RL78G14 motor control starter kit is supplied pre-configured with the embedded motor control program

and to operate in a stand-alone demonstration mode that does not require the installation of the GUI. To use

this mode, all that is required is to connect the demonstration motor and connect the USB cable to your PC to

power the board. Before connecting the USB cable to the PC and the YRMCKITRL78G14 board please follow

the setup procedure below

1. To connect the demonstration BLDC motor place the connector in the motor connector on the PCB and

connect the three wires to the as follows (the green connector is pre-fitted).

a. Red Motor wire to “U” connection

b. Black motor wire to the “V” connection

c. Green motor wire to the “W” connection

Note: The Hall sensor wires do not need to be connected

2. Check that the jumpers JP1 and JP2 are both connected between pins 2 and 3:

Check that the jumpers are connected as shown below.

JP3 pins 2 –3 JP10 fitted

JP4 pins 2 –3 JP11 fitted

JP5 pins 2 –3 JP12 fitted

JP6 pins 2 - 3 JP13 fitted

JP7 pins 2 –3 JP14 fitted

JP15 fitted JP16 fitted

JP17 fitted JP18 fitted

JP19 fitted Jumpers JP8 and JP9 can be either connected or open

3. Connect the USB cable to your PC and connect the to the USB connector on the board.

The following LEDs should be lit:-

The orange LED DL1 should blink at approximately ½ second intervals

The orange LED DL4 should be on

The green power supply LEDs (DL5 and DL6) and DL7 (USB connection) should be on

4. If all is correct then press the push button switch P4 and the motor demonstration should start.

The demonstration should follow the following sequence:-

The motor will accelerate up to a set speed

The motor should then run in a steady state for approx 10 seconds

The Motor direction will be reversed

(This will stop the motor and accelerate to the same speed but in the opposite direction)

The motor should then run in a steady state for approx. 10 seconds and then stop.

5. Once completed, the demonstration can be restarted by pressing the button (P4) again

6. When the demo is completed, the USB lead can be removed and proceed to install the GUI, software and

documentation (See section 4).

Quick Start Guide: RL78G14 Motor Control Starter Kit

YRMCKITRL78G14 Kit Quick Start Guide 3 D011044-11 V0101

4.0 Installation

Insert the Software CD into your computer’s CD-ROM drive. The CD should start the installation automatically.

If the installer does not start, browse to the CD root folder and double click on the “setup.exe” file.

Windows™Vista and 7 users may see “User Account Control” dialog box. If applicable, enter the administrator

password and click <OK>. It is recommended that the user has sufficient administration rights to install the

software on the CD. The following shall be installed:

a. The Motor Control GUI

b. The IAR Embedded Workbench (Kick Start Evaluation version)

c. Renesas Flash Programmer

d. The motor control IAR project

e. The RL78 IEC self test code and test harness project

f. All necessary documentation

g. Virtual UART USB drivers

h. Manual Navigator

Please note that the IAR Embedded Workbench will require license registration. Please follow the instructions

during installation and ensure no other instance of the IAR Embedded Workbench is open.

The documentation will be copied and is designed to be viewed with the Manual Navigator, which is installed

with this kit. It is recommended that a USB port or hub is used that does not have any other peripheral devices

connected.

The virtual UART drivers are included separately with the CD_ROM and are also included in the IAR installation

The correct driver needs to be installed before using the GUI RFP or IAR Workbench.

To install the virtual UART drives:-

1. Connect the USB cable to the board and the PC

2. When the Host PC detects the new hardware, locate the Renesas Virtual UART driver appropriate to the

Windows operating system (i.e. 32/64bit OS) and follow the windows installation directions.

3. For 32-bit Windows OS

a. If using the YRMCKITRL78G14 installation:-

32-bit USB drivers should be used (i.e. Windows XP, Vista and W7) and are located here

C:\Program Files\Renesas\YRMCKITRL78G14\Virtual UART\32bit

b. If using the IAR installation:-

C:\Program Files\IAR Systems\Embedded Workbench 6.0\rl78\drivers\renesas\VirtualCOM\32bit

4. For 64-bit Windows OS

a. If using the YRMCKITRL78G14 installation:-

64-bit USB drivers (i.e. Windows Vista and W7) and are located here:

C:\Program Files\Renesas\YRMCKITRL78G14\Virtual UART\64bit

b. If the IAR installation:-

C:\Program Files\IAR Systems\Embedded Workbench 6.0\rl78\drivers\renesas\VirtualCOM\64bit

On completion the driver installation should be set to “Renesas Starter Kit Virtual UART”. This can be verified

in the Device Manager and note the “com” port assigned.

Quick Start Guide: RL78G14 Motor Control Starter Kit

YRMCKITRL78G14 Kit Quick Start Guide 4 D011044-11 V0101

5.0 Using the Graphical User Interface (GUI)

5.1 Demonstration using the GUI

The GUI is installed during the installation process. To start the GUI click on the Motor Control Demonstration

ICON in the start menu.

Please note that for Windows Vista and Windows 7 users, it is necessary to run the GUI as “Run as

administrator”.

It is suggested that the USB cable should be connected to the PC and the board before opening the GUI as this

makes the connection process easier. The GUI can be opened without the board being connected.

It is also recommended that that there are no other peripheral devices connected to the port or hub being

used for the motor control kit.

Once the GUI is open use the following procedure to connect the GUI to the YRMCKITRL78G14 board.

If more than one “setup”file is in the GUI installation directory (C:\MCDEMO\..) then the user has to

select the appropriate “setup”file from the “Select Board Setup” drop down menu bar in the

Communication Settings box, located in top left hand corner of the GUI panel. Otherwise the default

“setup”file is selected by automatically.

Select the “setup” file (or alternative setup file name as required)

Select the “serial Port” drop down box and select the communications port that the YRMCKITRL78G14

board is connected to

Click on the “connect” button

5.2 The GUI should now be connected to the board

To start the demonstration, press the “DEMO”button in the GUI.

The board should follow the same sequence as described for the stand alone operation. (Section 3)

5.3 Manual Control of the motor

The GUI can also be used to control the motor manually using the Speed Control window.

Click the “Speed Control” button to open this window.

Here the user can start, stop and set direction and speed of the motor.

5.4 Motor parameter Monitoring

The motor operation can be monitored with the Property monitor and the three run time graph displays.

The parameter window can be used to dynamically set many of the operating parameters for the motor

control algorithm and aid in the tuning of new or different motors.

Quick Start Guide: RL78G14 Motor Control Starter Kit

YRMCKITRL78G14 Kit Quick Start Guide 5 D011044-11 V0101

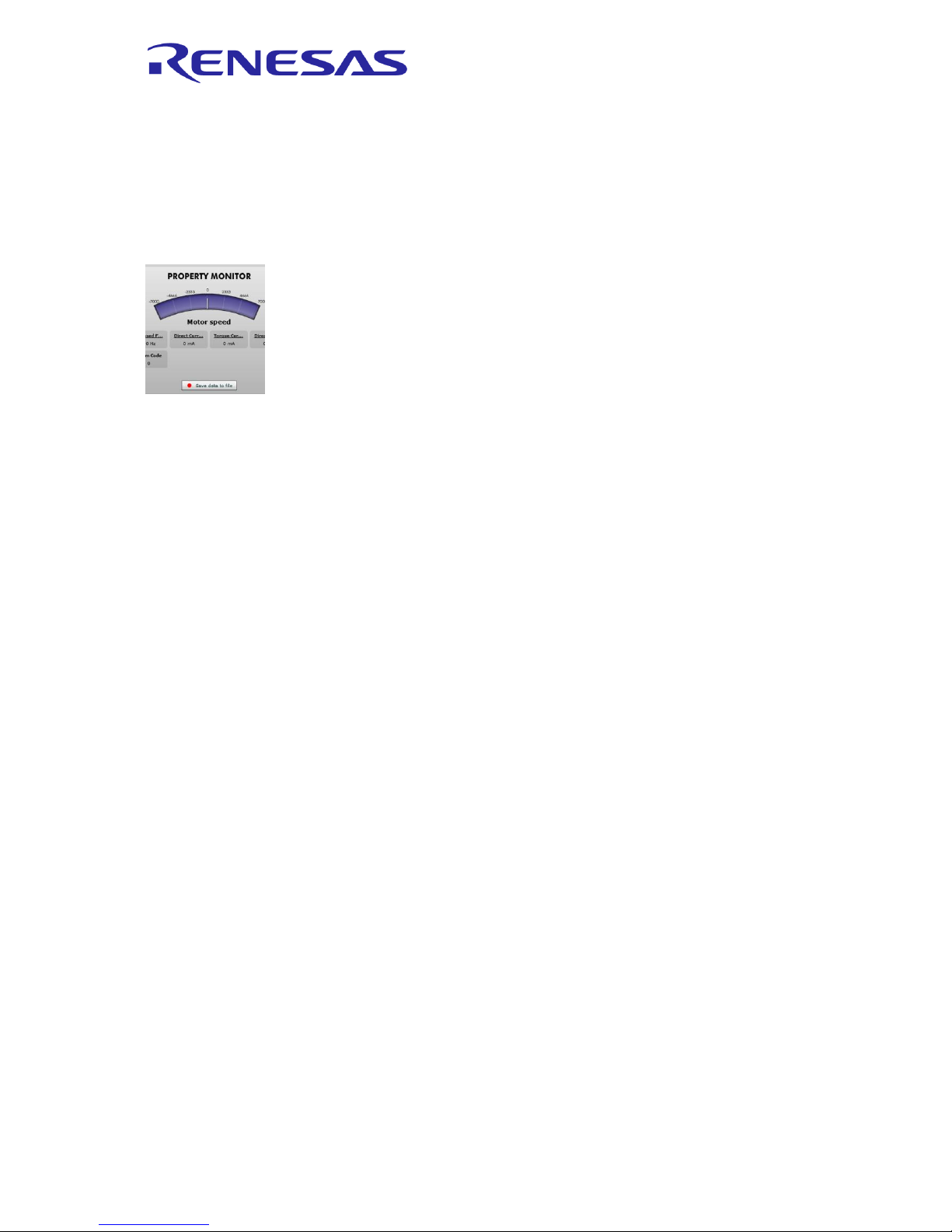

5.5 Saving monitor data

It is possible to save the run time data to an excel file. This can be started by clicking the “save data to file”

button in the Property Monitor window. The data will start to be saved once the file has been selected. All the

data shown in the Property Monitor window is saved at each update of the GUI as a new entry in the excel file.

5.6 System Status

The system state can be monitored using the “System Monitor” window. This shows an overview of the

RL78G14 internal configuration, the results of the internal self tests and the indication of the motor alarm

function.

5.7 Algorithm Selection

The algorithm selection shows the available options together with the board jumper settings for each selection.

The jumper settings for operation of the board can be displayed by clicking on the “Verify Jumper Settings”

button when the algorithm window is open. This shows all the jumper settings for the different modes of

operation as described in the user manual.

The GUI can be closed by either clicking on the “Exit” button in the bottom left hand corner or the usual

windows close button.

Quick Start Guide: RL78G14 Motor Control Starter Kit

YRMCKITRL78G14 Kit Quick Start Guide 6 D011044-11 V0101

6.0 RL78/G14 Programming

The RL78/G14 can be programmed in two ways

1. Using the Renesas Flash Programmer and the E1 module (Not included in this kit).

It is generally not required to change the jumper settings on the YRMCKITRL78G14 board when using the

E1 programmer. Please refer to the user manuals included in the documentation for this kit for the correct

operation of the E1 programmer and the RFP.

2. Using the main USB interface

Please note that it is not possible to connect both the GUI and the RFP at the same time via the USB

interface. To use the RFP directly with the USB interface please set jumpers to the following the settings:

JP3, JP4, JP5, JP6 and JP7 to Pins 1 –2

The RFP should be configured to use the Serial port connection.

Please refer to the RFP user manual for the correct operation and settings

Note: the YRMCKITRL78G14 board can be programmed with an isolated USB interface when using an

external power supply and non-isolated when board is powered only by the USB interface.

Quick Start Guide: RL78G14 Motor Control Starter Kit

YRMCKITRL78G14 Kit Quick Start Guide 7 D011044-11 V0101

7.0 RL78/G14 Debugging

As part of the installation process the IAR Embedded Workbench (Kick Start version) is installed. This allows

some additional development and testing of the motor control operation

Code development for the RL78/G14 can be made and debugged in two ways

1. Using the IAR Embedded Workbench and the E1 unit in On Chip Debug (OCD) mode.

As the E1 is not included in this kit it usage details are not included with this guide.

Please refer to E1 documentation included on the software CD and the YRMCKITRL78G14 Motor

Control Starter Kit user manual. It is possible to use the E1 debugger together with the motor control

GUI although limitations exist.

2. Using the IAR Embedded Workbench in direct mode (TK)

The IAR debugger can be used directly with the board using the “TK” setting in the Debugger options.

This utilises the same serial port and virtual UART configuration as the RFP.

Note: the IAR debugger cannot be used together with either the motor control GUI or RFP.

To use the IAR debugger set the Jumpers as follows:

JP3, JP4, JP5, JP6 and JP7 to Pins 1 –2

When the IAR CSPY debugger is activated it will connect and download (program) the built program

open in the workbench IDE. The same debugging functions are available for this mode as for the E1

OCD module.

This mode of debugging can be used with or without an external power supply as the operation of the

interface can operate as both isolated and non-isolated.

The full operation of the IAR Embedded Workbench is beyond the scope of this guide. Please refer to

the IAR documentation included with the IAR installation and the YRMCKITRL78G14 Motor Control

Starter Kit user manual.

Quick Start Guide: RL78G14 Motor Control Starter Kit

YRMCKITRL78G14 Kit Quick Start Guide 8 D011044-11 V0101

8.0 Next Steps

After you have completed this quick start procedure, please review documentation that came with the kit. The

sample code project contains all you need to get started developing your own projects. The software tools

provided are Evaluation versions and may have limitations that are described in the documentation. To

purchase fully functional versions, please contact your usual Renesas supplier.

9.0 Support

Online technical support and information is available at the following locations

Technical Contact Details

America: techsupport.america@renesas.com

Europe: www.renesas.com/motor

Japan: cs[email protected]

Websites:

America: www.am.renesas.com/motor

Europe: www.renesas.eu/motor

Japan: www.renesas.com

Andere Handbücher für RL78G14

Inhaltsverzeichnis

Andere Renesas Computerhardware Handbücher

Renesas

Renesas SH7751 Group Bedienungsanleitung

Renesas

Renesas M3T-DUMMY80 Bedienungsanleitung

Renesas

Renesas H8/36024 Bedienungsanleitung

Renesas

Renesas H8/33937 Bedienungsanleitung

Renesas

Renesas HD74UH04 Bedienungsanleitung

Renesas

Renesas H8 Series Bedienungsanleitung

Renesas

Renesas IECUBE2 Bedienungsanleitung

Renesas

Renesas Single-Chip Microcomputer H8/36079 Betriebsanleitung

Renesas

Renesas 38K0 Bedienungsanleitung

Renesas

Renesas R0E521134CFG00 Bedienungsanleitung

Renesas

Renesas R0E420000CFG40 Bedienungsanleitung

Renesas

Renesas 9FGV100 Series Bedienungsanleitung

Renesas

Renesas M34559T-PTCB Bedienungsanleitung

Renesas

Renesas NU85E Bedienungsanleitung

Renesas

Renesas RL78/I1D Montage- und Bedienungsanleitung

Renesas

Renesas PROM Programming Adapters PCA7438F-64A Bedienungsanleitung

Renesas

Renesas R0E33062PMSRC0 Bedienungsanleitung

Renesas

Renesas SDI Emulator System M32100T-EZ-E Bedienungsanleitung

Renesas

Renesas SH7147 Bedienungsanleitung

Renesas

Renesas RZ/G1M Bedienungsanleitung

Renesas

Renesas User System Interface Board HS7047ECH61H Bedienungsanleitung

Renesas

Renesas F-ZTAT H8 Series Bedienungsanleitung

Renesas

Renesas RSKM16C6NK Bedienungsanleitung

Renesas

Renesas H8/36109 Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
