ISL9241EVAL1Z

User’s Manual: Evaluation Board

Battery and Optical

Aug.26.19

UG184 Rev.3.00 Page 2 of 28

Aug.26.19

ISL9241EVAL1Z

Evaluation Board

User’s Manual

The ISL9241 is a configurable buck-boost Narrow Output Voltage DC (NVDC) and Hybrid Power Buck-Boost

(HPBB) combo charger that uses the advanced Renesas R3™ Technology to provide high light-load efficiency,

fast transient response, and seamless DCM/CCM transitions for a variety of mobile and industrial applications.

In Charge mode, the ISL9241 takes input power from a wide range (4V to 20V) of DC power sources (such as

conventional AC/DC charger adapters, USB PD ports, travel adapters) and safely charges battery packs with up

to four cells in a series configuration.

The ISL9241 supports On-the-Go (OTG) functionality for 2-cell and 4-cell battery applications. When OTG

function is enabled, the ISL9241 operates in Reverse Buck mode to provide 5V at the USB port.

Serial communication through SMBus/I2C allows programming of many critical parameters to deliver a

customized solution. These programming parameters include, but are not limited to, adapter current limit, charger

current limit, system voltage setting, and trickle charging current limit.

The ISL9241EVAL1Z evaluation board is designed to demonstrate the performance of the ISL9241. From the

PROG pin to GND, the resistor can be used to program the default value numbers of the battery in series, the

switching frequency, and the adapter current limit charging function. The default value numbers can also be set by

SMBus.

Key Features

• Buck-boost NVDC and HPBB charger for 2-, 3-, and 4-cell Li-ion batteries

• Autonomous End of Charge (EOC) option

• System power monitor PSYS output

• PROCHOT# open-drain output

• Allows trickle charging of depleted battery

• Supplemental power (Intel VMIN active protection)

• Ideal diode control in Turbo mode

• Reverse buck, boost, and buck-boost operation from battery

• Two-level adapter current limit available

• Battery Ship mode option

• SMBus and auto-increment I2C compatible

Specifications

•V

IN = 3.8V to 24V (no dead zone)

•V

OUT = 3.9V to 18.304V

• MAX Icharge up to 6A

Ordering Information

Related Literature

For a full list of related documents, visit our website:

•ISL9241 device page

Part Number Description

ISL9241EVAL1Z ISL9241 buck-boost charger evaluation board

ISL9241EVAL1Z

UG184 Rev.3.00 Page 3 of 28

Aug.26.19

Recommended Equipment

• 0V to 25V power supply with at least 6A source current capability

• Electronic load capable of sinking current up to 6A

• Battery emulator capable of sinking and sourcing current up to 6A

• Digital Multimeters (DMMs)

• 100MHz quad-trace oscilloscope

Note: You can use a power supply (that can source but cannot sink current) in parallel with an e-load Constant

Current (CC) mode to emulate the battery. For example, when charging, set the charging current command lower

than the CC mode e-load. If the e-load CC mode current is set at 3A, the charge current command is 2A and the

e-load takes 2A from the charger and another 1A from the power supply in parallel with it. When discharging, the

power supply acts just like the battery to discharge current. You can also use the e-load Constant Voltage (CV)

mode to emulate the battery to take the charging current from the charger and set the e-load CV voltage below

the MaxSysV register setting. However, this e-load CV mode cannot source current like a battery.

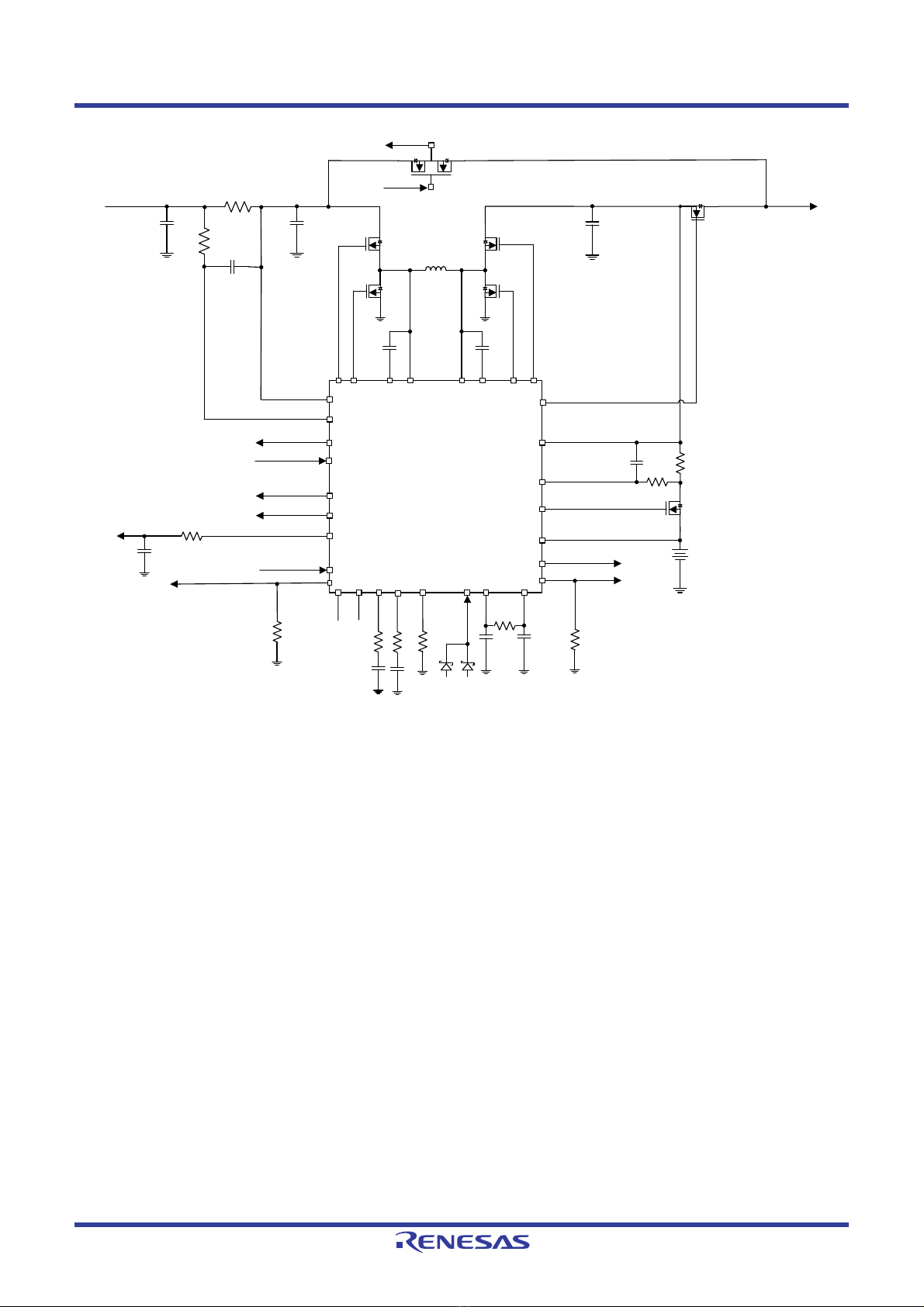

Figure 1. ISL9241EVAL1Z Block Diagram

ISL9241

BOOT1

PHASE1

UGATE1

VDDP

LGATE1

LGATE2

UGATE2

PHASE2

BOOT2

SCL

SDA

VBAT

CSOP

CSON

DCIN

VDD

COMPF

PSYS

BGATE

PROCHOT#

ACOK

GND

CSIP

CSIN

AMON/BMON

VADP

2S-4S

Battery

PROG

CMOUT/INT#

OTGEN/CMIN

Rs1

Rs2

BATGONE/NTC

NGATE

VSYS

BYPSRC

RTHM

VSYS

VADP

BYPSG

BYPSRC

COMPR

RPSYS

ISL9241EVAL1Z 1. Installing the ISL9241 Software

UG184 Rev.3.00 Page 4 of 28

Aug.26.19

1. Installing the ISL9241 Software

The ISL9241 Control Software communicates with the ISL9241 controller using the USB to on-board SMBus

Graphical User Interface (GUI). The GUI facilitates access to the ISL9241 SMBus registers.

This section describes how to install, start, and use the GUI.

1.1 Required Hardware

• ISL9241EVAL1Z evaluation board

• USB 2.0 A/B cable

1.2 Required Software

The software Installation Wizard package includes all three required components:

• ISL9241 SMBus Control Tool

• National Instruments Runtime VISA Engine

• USB interface module driver

1.3 Installing the GUI

Both the ISL9241 Control Software and the National Instruments Runtime Engine are installed automatically from

the installation wizard.

Note: Close all other applications before this installation and reboot the computer when the installation is

complete.

1. Extract the zip file to the local drive, not the network drive. The security of the network prohibits the .inf file from

being copied onto the network.

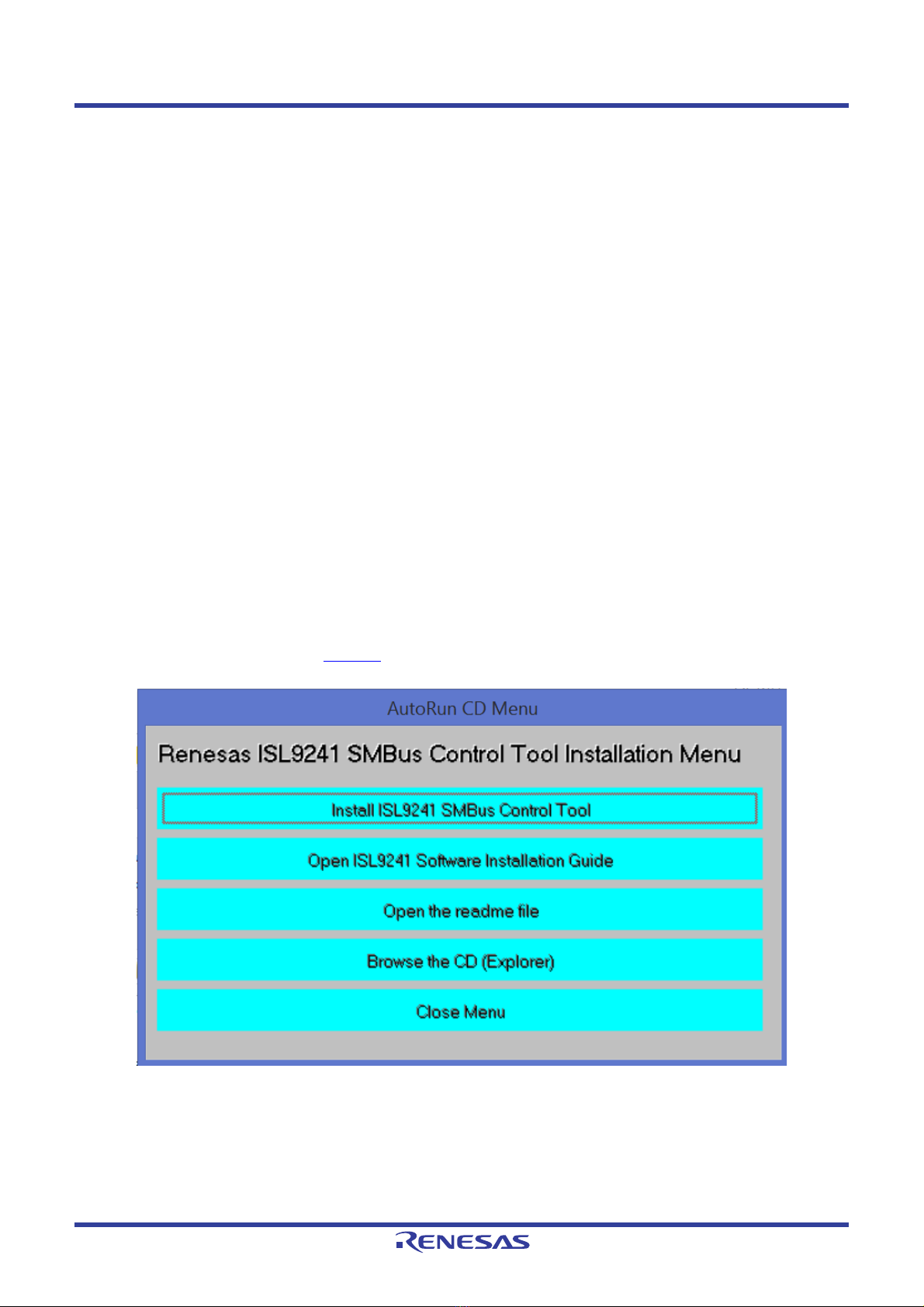

2. Run autorun.exe. The menu in Figure 2 appears.

Figure 2. ISL9241 SMBus Control Tool Installation Wizard

ISL9241EVAL1Z 1. Installing the ISL9241 Software

UG184 Rev.3.00 Page 5 of 28

Aug.26.19

3. Click Install ISL9241 SMBus Control Tool.

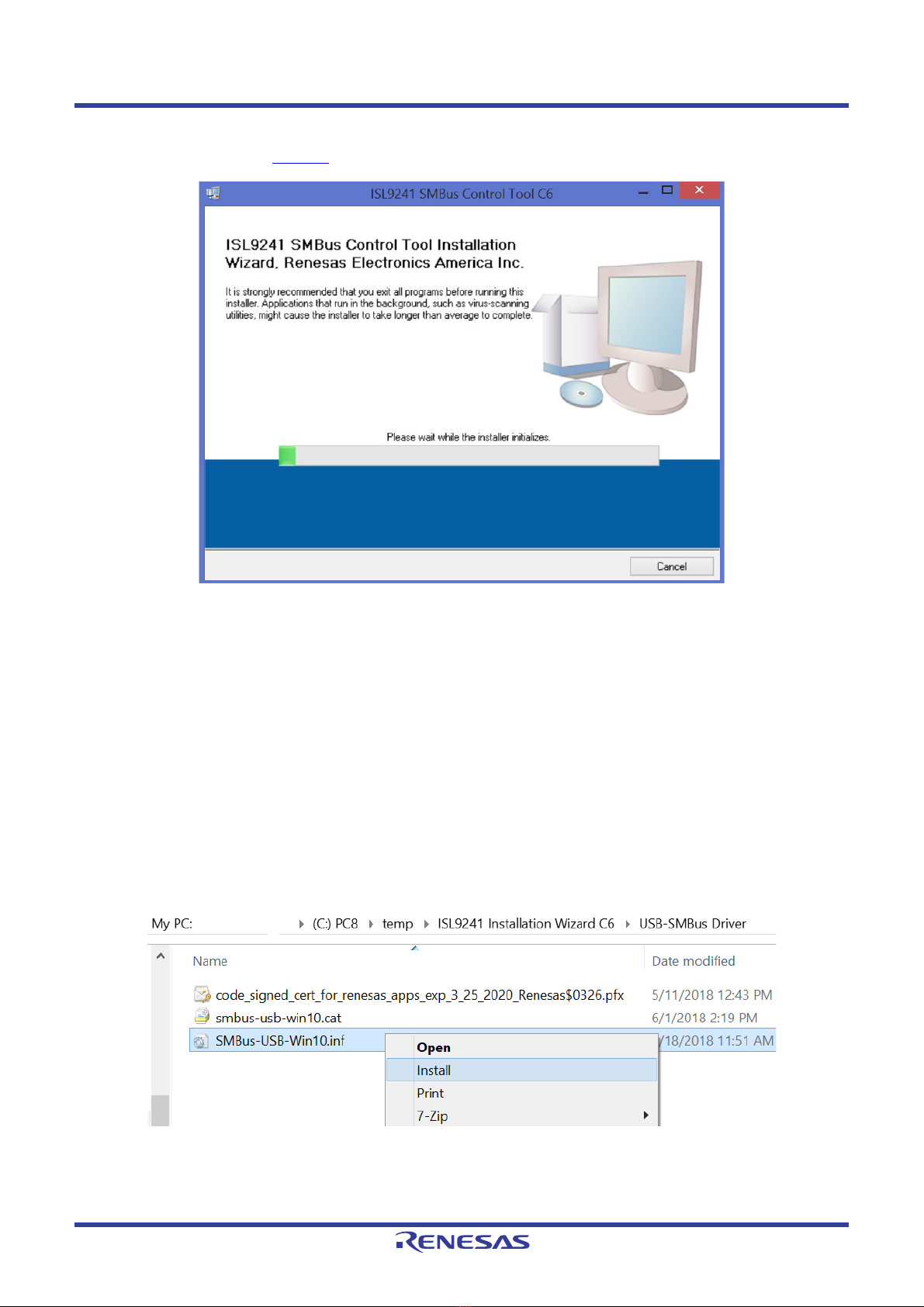

a. The window shown in Figure 3 appears. Click Next.

Figure 3. ISL9241 Control Software Installer

4. Follow the instructions to accept the two End User License Agreements to complete the software installation.

5. Click Close Menu from the installation wizard.

1.4 Installing the USB Driver

This process explains how to install the SMBus to USB interface driver.

The driver supports Microsoft Vista, Windows 7, Windows 8, and Windows 8.1 operating systems.

Note: If you installed the driver or certificate previously, skip this section.

1. Open the installation wizard package.

2. Navigate to USB-SMBus Driver. Right-click the SMBus-USB-Win10.inf file and select Install.

Note: Install the driver from the local drive. The driver installation fails due to network security if you install from

the network drive.

Figure 4. ISL9241 USB Driver Location

ISL9241EVAL1Z 1. Installing the ISL9241 Software

UG184 Rev.3.00 Page 6 of 28

Aug.26.19

3. The message in Figure 5 appears when the driver is successfully installed.

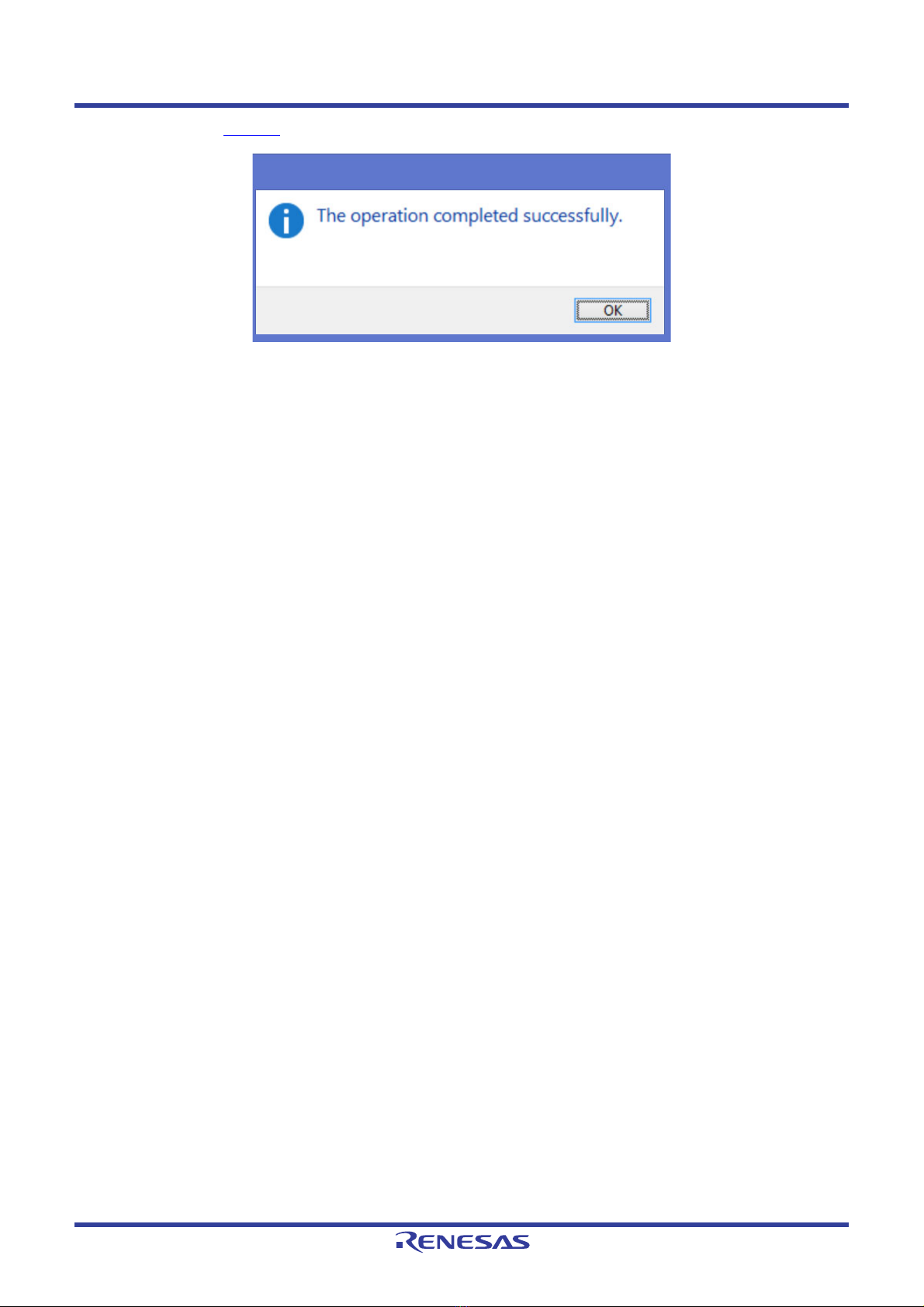

Figure 5. ISL9241 Successful Driver Installation

4. If the installation fails the Digital Signature required in Windows 10 or security settings, complete the following

steps to bypass it.

Note: To complete the process, print and complete the steps below. The system restarts and these instructions

are needed.

5. Open the Command Prompt from the Start menu.

6. Enter the command “shutdown /r /o /f /t 00” in the Command Prompt.

7. Click OK.

8. The system restarts to the Choose an option screen.

9. Select Troubleshoot from the Choose an option screen.

10. Select Advanced options from the Troubleshoot screen.

11. Select Windows Startup Settings from the Advanced options screen.

12. Click Restart.

13. The system restarts to the Advanced Boot Options screen.

14. Select Disable Driver Signature Enforcement.

15. Restart and install the drivers.

ISL9241EVAL1Z 2. Using the GUI

UG184 Rev.3.00 Page 7 of 28

Aug.26.19

2. Using the GUI

The ISL9241 SMBus Control Tool Software must be installed to use the evaluation system. Do not connect the

ISL9241EVAL1Z evaluation board to the USB port until installation is complete.

Connect the ISL9241EVAL1Z to a power supply before using the SMBus GUI.

2.1 Setting the USB Connection

Connect the USB cable from the USB of the computer port to the connector J10 of the ISL9241EVAL1Z.

2.2 Starting the GUI

To start the GUI, navigate to the Start menu , then select All Programs → Renesas →

ISL9241 SMBus Control Tool.

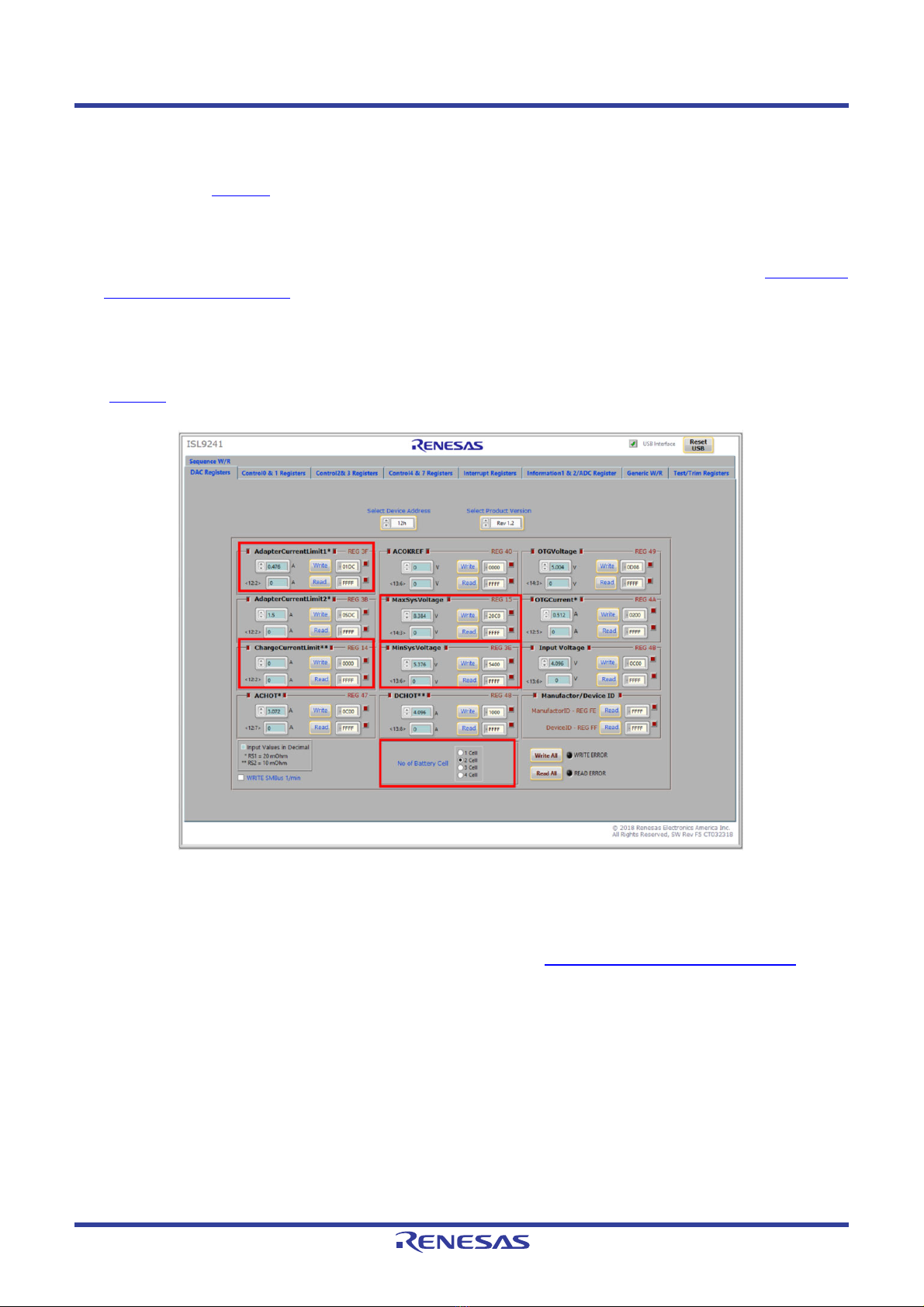

Figure 6 shows the GUI.

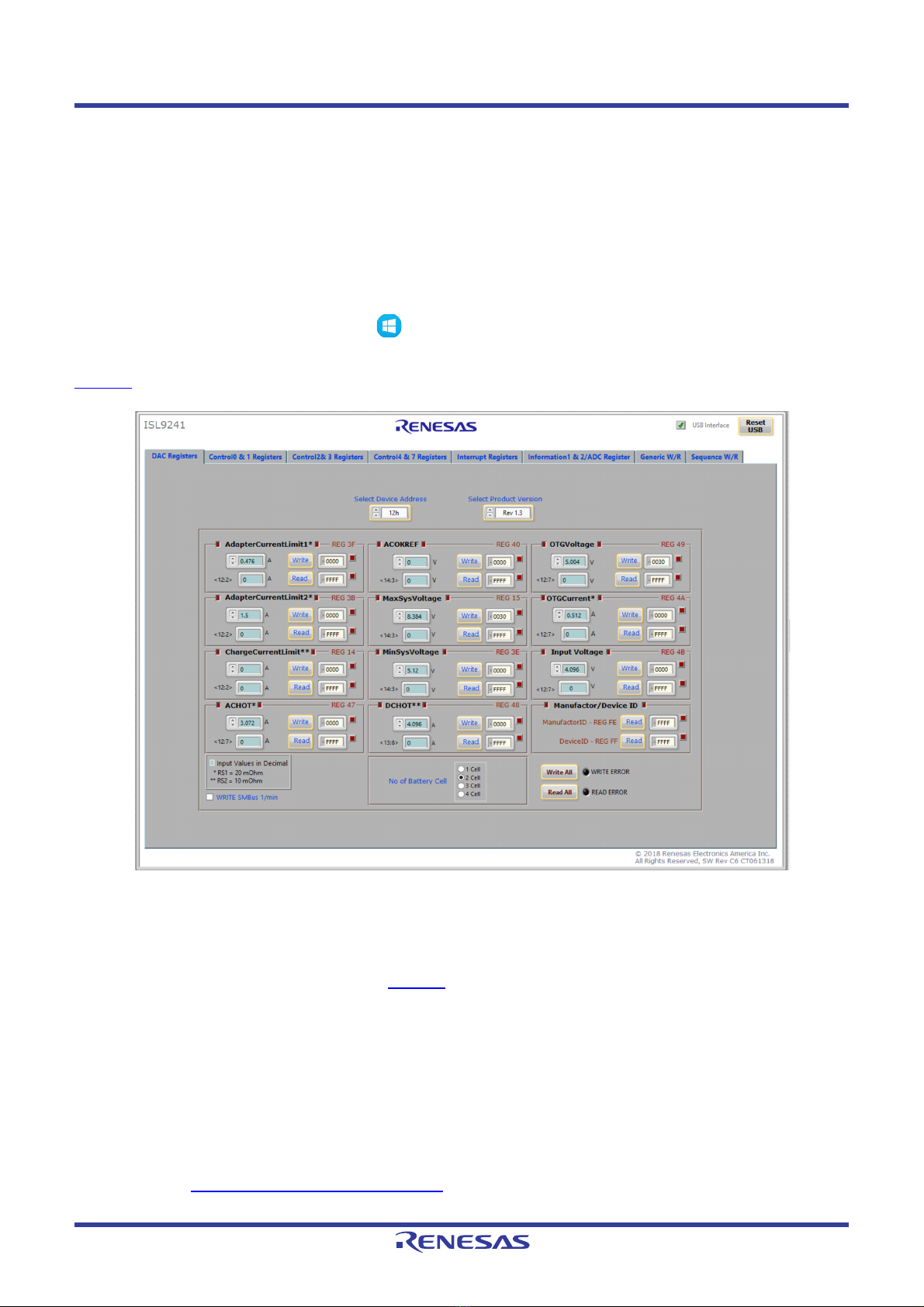

Figure 6. ISL9241 Graphical User Interface

2.3 Troubleshooting the GUI

Check the status of the USB interface at the top of the GUI. If the USB communication is OK, the USB Interface

status shows a green check mark, as seen in Figure 6.

If the USB Interface status shows a red X, the computer cannot establish the connection. Complete the following

steps to troubleshoot:

1. Make sure the driver files for the USB interface are installed correctly. The driver files are in the USB-I2C Driver

folder.

2. Check the USB cable connections from the ISL9241EVAL1Z to the USB port of the computer.

3. Try different sequences: plug in the ISL9241EVAL1Z first or start the GUI first.

If the problem continues, the USB driver may not be properly installed; therefore, the ISL9241EVAL1Z is not

recognized. See “Installing the USB Driver” on page 5 for driver installation instructions.

ISL9241EVAL1Z 3. Functional Description

UG184 Rev.3.00 Page 8 of 28

Aug.26.19

3. Functional Description

The ISL9241EVAL1Z evaluation board provides all circuits required to evaluate the features of the ISL9241. A

majority of the features of the ISL9241 are available on the ISL9241EVAL1Z, such as adjustable output voltage,

On-the-Go (OTG) mode, Trickle Charging mode for a depleted battery, and system power monitor at Buck, Boost,

and Buck-Boost modes. The charger can be controlled through firmware to operate in Hybrid Power Buck-Boost

or Bypass mode. See AN1994, ISL9241 Operation Modes for detailed information about the operation modes.

3.1 Quick Start Guide

The number of battery cell and adapter current limit default values can be configured with a standard 1% 0603

resistor (R23) from the PROG pin to GND. The Prog Pin Programming Options table in the ISL9241 datasheet

shows the programming options. After the default number of cells in series is set, the default values for

MaxSystemVoltage and MinSystemVoltage are set accordingly. These values can also be changed through the

SMBus control registers, which are implemented with the Renesas GUI shown in Figure 8 on page 10.

The three LEDs indicate the ACOK, PROCHOT, and OTGPG/CMOUT status, respectively. For more details about

the functions of these three pins, see the ISL9241 datasheet.

Complete the following steps to evaluate the ISL9241 key functions, including system voltage regulation, input

current limit regulation, Charging mode, trickle Charging mode, and OTG mode. Figure 7 on page 9 shows the top

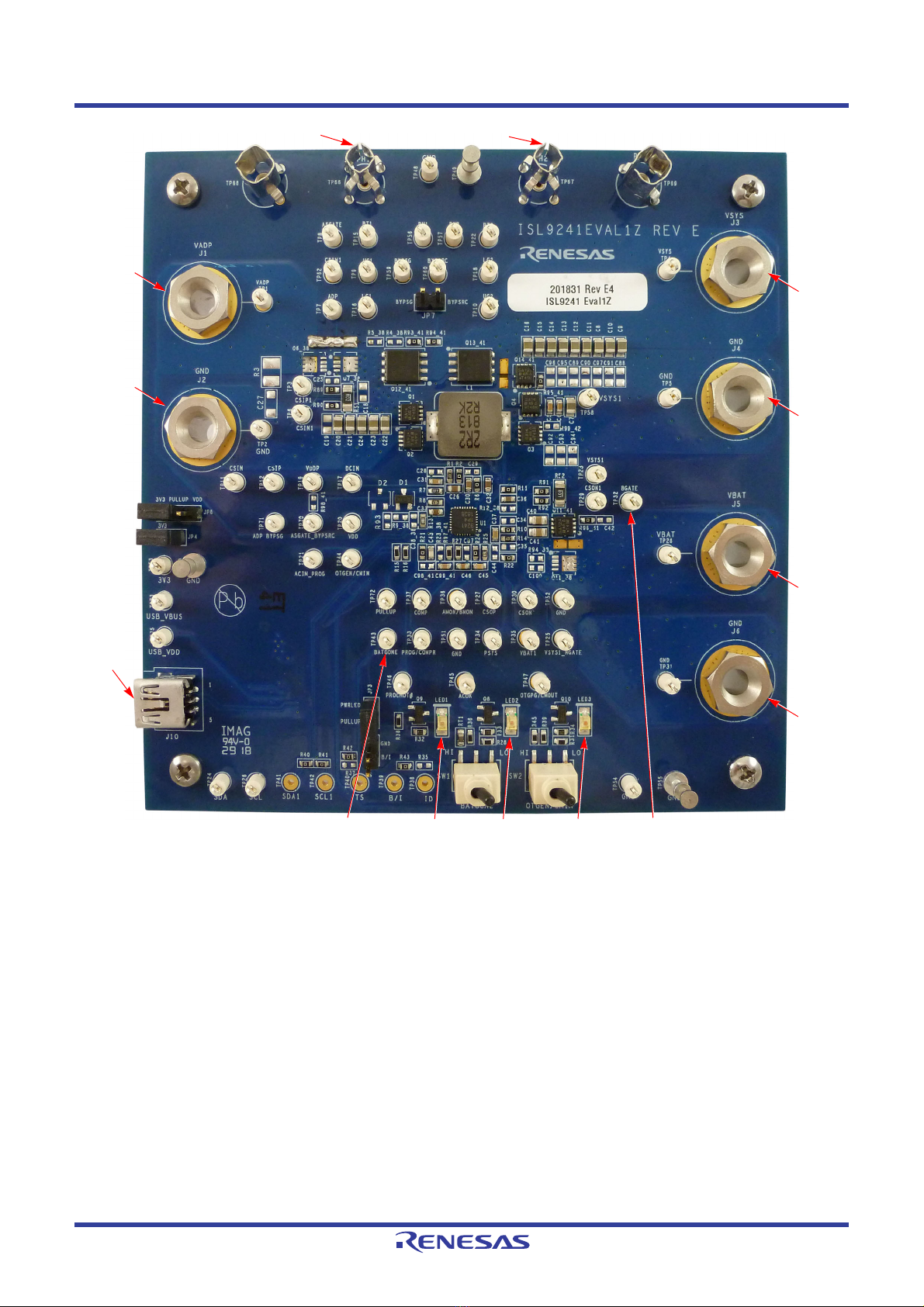

view of the ISL9241EVAL1Z and highlights the key testing points and connection terminals. For more information

about the ISL9241, including other operation modes, see the ISL9241 datasheet and AN1994.

ISL9241EVAL1Z 3. Functional Description

UG184 Rev.3.00 Page 9 of 28

Aug.26.19

3.2 Regulating System Voltage

1. Set the power supply to 5V. With the output disabled, connect the (+) end to J1 and the (-) end to J2.

2. Ensure jumpers JP3, JP4, and JP6 are shorted. SW1 and SW2 should switch to the low position.

3. Turn on the power supply and measure VSYS using the DMM across (+) and (-) TP5. VSYS should read 8.38V.

The current meter on the supply should read <100mA. Increase VIN from 5V to 15V slowly. Monitor PH1 and

PH2 to observe seamless switching from Boost mode to Buck-Boost mode and finally into Buck mode.

3.3 Regulating Input Current Limit

1. Keep VIN as a constant value between 3.8V and 24V. Set the battery emulator voltage to 7.8V and connect the

battery emulator output to battery leads J5 and J6.

2. Turn on the battery emulator; there is no charge and discharge current for the battery, which is consistent with

BGATE FET being off.

Figure 7. ISL9241EVAL1Z Connections

(+) Supply

(-) Supply

USB Port

for SMBus

(+) DMM

(-) DMM

(+) Battery

(-) Battery

BGATELED 1BATGONE

Lead

PH1 PH2

LED 2 LED 3

ISL9241EVAL1Z 3. Functional Description

UG184 Rev.3.00 Page 10 of 28

Aug.26.19

3. Add an electrical load on VSYS and GND terminals J3 and J4. Turn on the load and increase the electrical load

slowly; the input current increases correspondingly and VSYS keeps stable at 8.38V. The output voltage

(VSYS) starts dropping as the input current reaches the 0.476A input current limit. For the input current limit

details, see the ISL9241 datasheet. If the VSYS voltage is 150mV lower than the battery voltage, the BGATE

FET turns on at a low voltage level so that the battery supplies the current to the load.

3.4 Configuring the ISL9142EVAL1Z for Charging Mode

1. Set the power supply to a constant value between 3.8V and 24V, then complete Steps 1 and 2 in “Regulating

System Voltage” on page 9. Make sure the input current does not exceed the limit.

2. Set the battery emulator voltage to 7.8V and connect the battery emulator output to battery leads J5 and J6.

3. Connect the USB cable at the USB port for the SMBus. LED1, 2, and 3 all turn on.

4. Turn on the power supply; LED3 goes out. Turn on the battery emulator and open the Renesas ISL9241 GUI

(Figure 8).

Note: A green check mark in the USB Interface status indicates the GUI is ready to communicate with the

ISL9241EVAL1Z. If the USB Interface shows a red X, the GUI is not ready to communicate with the

ISL9241EVAL1Z. Click the Reset USB button until a green check mark appears in the USB Interface. If the

green check mark does not appear, check the USB connection. See “Troubleshooting the GUI” on page 7 for

troubleshooting information.

5. Select 2 Cell in the No of Battery Cell section and click the Write All button. All controller register values are

set to the default values correspondingly. The system voltage is 8.4V, which is the value of MaxSysVoltage in

the GUI. There is no charge and discharge current for the battery. Set the minimum system voltage

(MinSysVoltage) to a non zero value. Change the charge current limit (ChargeCurrentLimit) from 0A to 2A

and click Write. The battery is now in 2A current charge operation. The charge current value can be monitored

in the GUI by clicking Read in the ChargeCurrentLimit column. Monitor the BGATE signal status to confirm

the battery is in Charging mode.

6. To turn on charging (trickle and fast/normal), set the MinSysVoltage register and the ChargeCurrentLimit

Figure 8. ISL9241 GUI

Andere Handbücher für ISL9241EVAL1Z

Inhaltsverzeichnis

Andere Renesas Hauptplatine Handbücher

Renesas

Renesas QB-R5F10Y16-TB Bedienungsanleitung

Renesas

Renesas Intersil ISL68201-99135DEMO1Z Bedienungsanleitung

Renesas

Renesas 8V97003 Bedienungsanleitung

Renesas

Renesas ZL9024MEVAL1Z Bedienungsanleitung

Renesas

Renesas ISL85003EVAL2Z Bedienungsanleitung

Renesas

Renesas RTKA226110DE0040BU Bedienungsanleitung

Renesas

Renesas RTKA212831DR0000BU Bedienungsanleitung

Renesas

Renesas ISL91134IIQ-EVZ Bedienungsanleitung

Renesas

Renesas ISL80410EVAL1Z Bedienungsanleitung

Renesas

Renesas RTKA788152DE0000BU Bedienungsanleitung

Renesas

Renesas Synergy S3A3 Bedienungsanleitung

Renesas

Renesas HS4000-EVK Bedienungsanleitung

Renesas

Renesas P9412 Bedienungsanleitung

Renesas

Renesas ZMOD4510AI1V Bedienungsanleitung

Renesas

Renesas ISL6225EVAL2 Bedienungsanleitung

Renesas

Renesas FS3000 Pmod Bedienungsanleitung

Renesas

Renesas RA4 Series Bedienungsanleitung

Renesas

Renesas RA6 Series Installations- und Betriebshandbuch

Renesas

Renesas ISL81801EVAL2Z Bedienungsanleitung

Renesas

Renesas RTKA214023DE0000BU Bedienungsanleitung

Renesas

Renesas RTKA211630DE0010BU Bedienungsanleitung

Renesas

Renesas RTKA211450DE0000BU Bedienungsanleitung

Renesas

Renesas RL78/G1N Bedienungsanleitung

Renesas

Renesas ZSSC5101 Bedienungs- und Montageanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
