Reolink E1 Series Kurzanleitung

EN/DE/FR/IT/ES

58.03.005.0007

Apply to: E1, E1 Pro

Operational Instruction

@ReolinkTech https://reolink.com

Contents What’s in the Box

What’s in the Box

Camera Introduction

Set up the Camera

Mount the Camera

Troubleshooting

Speciﬁcations

Notiﬁcation of Compliance

2English1 English

E1 Series Camera

Quick

Start Guide

Pack of Screws

Mounting

Hole Template

Mounting Plate Power Adapter

Surveillance Sign

Speaker

Power Port

Micro SD Card Slot

Camera Introduction

LAN Port

Built-in Mic

Status LED

Lens

Reset Button

*Rotate the lens to ﬁnd the reset

button and the SD card slot.

4English3 English

Meaning of the Status LED:

• On Smartphone

Download and launch the Reolink App or Client software

and follow the onscreen instructions to ﬁnish initial setup.

Scan to download the Reolink App.

Set up the Camera

• On PC

Download path of the Reolink Client: Go to

https://reolink.com > Support > App & Client.

WiFi connection failed

Status/LED LED in Blue

WiFi is not conﬁgured

Camera is starting up

WiFi connection succeeded

Blinking

Mount the Camera

Step 1

Drill two holes on the

wall according to the

mounting hole

template.

Step 2

Insert the two plastic

anchors into the holes.

Step 3

Secure the base unit in

place by tightening the

screws into the plastic

anchors.

Step 4

Align the camera with

the bracket and turn the

camera unit clockwise

to lock it in position.

NOTE:

1. To remove it from the

wall, turn the camera

anticlockwise.

2. In case your camera is

mounted upside down, its

picture shall be rotated

as well. Please go to

Device Settings ->

Display on Reolink

app/Client and click

Rotation to adjust the

image.

6English

5 English

If your camera is not powering on, please try the

following solutions:

• Plug the camera into another outlet.

• Use another 5V power adapter to power up the camera.

If these won't work, please contact Reolink Support

https://support.reolink.com/.

Troubleshooting

Camera is not Powering on

If the camera failed to scan QR code on your phone,

please try the following solutions:

• Remove the protective ﬁlm from the camera lens.

• Wipe the camera lens with a dry paper/towel/tissue.

Failed to Scan QR Code on Smartphone

8English7 English

Tips for Camera Placement

• Do not face the camera towards any light sources.

• Do not point the camera towards a glass window. Or, it

may result in poor image performance because of the

window glare by infrared LEDs, ambient lights or status

lights.

• Do not place the camera in a shaded area and point it

towards a well-lit area. Or, it may result in poor image

performance. For better image quality, please make sure

that the lighting condition for both the camera and the

capture object is the same.

• For better image quality, it’s recommended to clean the

lens with a soft cloth from time to time.

• Make sure the power ports are not exposed to water or

moisture or blocked by dirt or other elements.

• Vary the distance (about 30cm) between your camera

and the mobile phone, which enables the camera to

focus better.

• Try scanning the QR code under a brighter atmosphere.

If these won't work, please contact Reolink Support

https://support.reolink.com/.

If the camera fails to connect to WiFi, please try the

following solutions:

• Please make sure the WiFi band meets the network

requirement of the camera.

• Please ensure you have entered the correct

WiFi password.

• Put your camera close to your router to ensure a

strong WiFi signal.

• Change the encryption method of the WiFi network to

WPA2-PSK/WPA-PSK (safer encryption) on your router

interface.

• Change your WiFi SSID or password and make sure

that SSID is within 31 characters and password is within

64 characters.

• Set your password using only the characters on the

keyboard.

If these won't work, please contact Reolink Support

https://support.reolink.com/.

WiFi Connection Failed During Initial

Setup Process

10English9 English

Display Resolution: 4MP(E1 Pro)/3MP(E1)

IR Distance: 12 meters (40ft)

Pan/Tilt Angle: Horizontal: 355°/Vertical: 50°

Power Input: DC 5V/1A

Hardware

Speciﬁcations

12English

11 English

Frame Rate: 15fps (default)

Audio: Two-way audio

IR Cut Filter: Yes

Software Features

Operating Frequency: 2.4 GHz (E1)/Dual-band (E1 Pro)

Operating Temperature: -10°C to 55°C (14°F to 131°F)

Size: Φ76 x 106 mm

Weight: 200g (E1/E1 Pro)

General

This device complies with Part 15 of FCC Rules. Operation

is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device

must accept any interference received, including

interference that may cause undesired operation. For

more information, visit:

https://reolink.com/fcc-compliance-notice/.

Reolink declares that this device is in compliance with

the essential requirements and other relevant provisions

of Directive 2014/53/EU.

This marking indicates that this product should not be

disposed with other household wastes throughout the

EU. To prevent possible harm to the environment or

human health from uncontrolled waste disposal, recycle

it responsibly to promote the sustainable reuse of

material resources. To return your used device, please

use the return and collection systems or contact the

retailer where the product was purchased. They can take

this product for environment safe recycling.

FCC Compliance Statement

Notiﬁcation of Compliance

Simpliﬁed EU Declaration of Conformity

Correct Disposal of This Product

14English13 English

This product comes with a 2-year limited warranty that

is valid only if purchased from Reolink ocial stores or a

Reolink authorized reseller. Learn more:

https://reolink.com/warranty-and-return/.

Reolink product, you agree to the terms of this End User

License Agreement (“EULA”) between you and Reolink.

Learn more: https://reolink.com/eula/.

Limited Warranty

Use of the product is subject to your agreement to the

out of the reach of children.

Terms and Privacy

2412MHz—2472MHz (17dBm)

5GHz for E1 Pro only:

5150MHz—5350MHz (18dBm)

5470MHz—5725MHz (18dBm)

OPERATING FREQUENCY

(the maximum transmitted power)

By using the Product Software that is embedded on the

End User License Agreement

This equipment complies with RSS-102 radiation

exposure limits set forth for an uncontrolled

environment. This equipment should be installed and

operated with minimum distance 20cm between the

radiator & your body.

ISED Radiation Exposure Statement

NOTE: We hope that you enjoy the new purchase. But if

you are not satisﬁed with the product and plan to return,

we strongly suggest you to reset the camera to factory

default settings and take out the inserted SD card

before returning.

Überblick Lieferumfang

Lieferumfang

Allgemeine Einführung

Einrichtung der Kamera

Installation der Kamera

Fehlerbehebung

Speziﬁkationen

Konformitätserklärung

16Deutsch15 Deutsch

E1 Serie Kamera

Kurzanleitung

Päckchen

mit Schrauben

Lochschablone

zur Montage

Montageplatte Netzadapter

Schild

Videoüberwachung

Lautsprecher

Strom Port

Micro-SD-Kartenslot

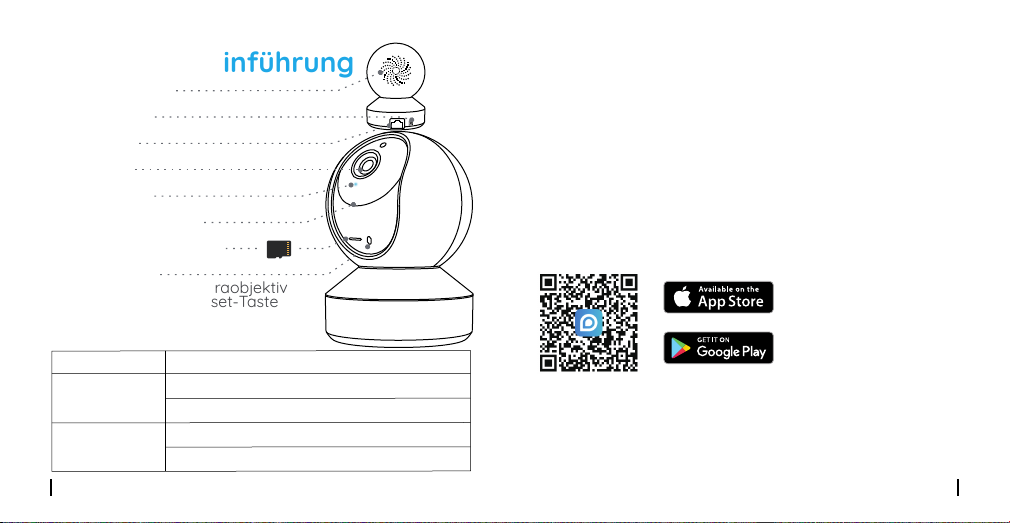

Allgemeine Einführung

LAN Port

Internes Mikrofon

Status LED

Objektiv

Reset Taste

*Drehen Sie das Kameraobjektiv

für den Zugri auf Reset-Taste

und SD/Kartenslot.

18Deutsch17 Deutsch

• Smartphone

Installieren und starten Sie die Reolink App oder

Client-Software und dann befolgen Sie die Anweisungen

auf dem Bildschirm, um die Ersteinrichtung abzuschließen.

Scannen zur Installation der Reolink App.

Einrichtung der Kamera

• PC

Download-Pfad des Reolink Clients: Gehen Sie auf

https://reolink.com/de > Support > App & Client.

Bedeutung der Status-LED:

WLAN-Verbindung fehlgeschlagen

Status-LED LED leuchtet blau

WLAN nicht konﬁguriert

Kamera startet jetzt

WLAN-Verbindung erfolgreich

Ein

Blinkend
