Introduction
The Respirex powered respirator protective suit training version, PRPS(T), has
been primarily developed to train emergency service personnel on the correct
use of the operational version of the Respirex PRPS. The PRPS(T) incorporates a
full range of features similar to those found on the fully operational version of the
PRPS as detailed in the ‘General Information’ section on page 2.
The product is CE marked to a manufacturers specification, RILS0003, based
upon the requirements for respiratory protective devices - powered filtering
devices incorporating a helmet or hood as detailed in EN12941:1998 and satifies
the Basic Health and Safety Requirements, ANNEX II of the PPE Regulation (EU)
2016/425 and Regulation 2016/425 on personal protective equipment as brought
into UK law and amended. Note: the total mass of the PRPS(T) exceeds that
stipulated for a normal EN12941:1998 filtering device.
For changes to manufacturer’s designed duration refer to 3M
Jupiter™ AFU user instructions, 3M Ref QX-3800-1080-8. It is
important to note that the PRPS(T) does not provide protection against
either liquid or gaseous chemicals but does provide respiratory protection to
the level of EN12941:1998 TH3, nominal protection factor = 500.
All declarations of conformity: http://www.respirex.co.uk/doc (and page 21)
1
General Information
The suit is manufactured from a durable PVC coated polyester fabric and
incorporates a 3M Jupiter ™ Air Filter Unit (AFU). The AFU is powered by
re-chargeable NiMH battery and is worn on a waist belt within the suit. The AFU
draws air through externally mounted filters and feeds it through a breathing tube into
the head space. A remote warning and indicator device, featuring three coloured
lights, is mounted at chin level in the head space and connected to the AFU via a cable.
The AFU also features an audible warning alarm.
During use the AFU should be fitted with 3M 453-09-25 filters. The filters, when
used in conjunction with the 3M Jupiter™ AFU as part of an approved system,
conform to the RILS0003, based upon EN12941:1998 (see introduction). Please
refer to the instructions for use supplied with the 3M Jupiter™ AFU for
limitations, storage, cleaning instructions etc, 3M Ref. QX-3800-1080-8.
Garment features include:
·Large flexible visor bonded to the suit.
·Four exhalation valves fitted to the rear of the suit.
·Integral ‘HAZMAX’ safety boots with steel toe-caps and mid-soles.
·Dual glove system consisting of a laminated inner glove ( Kemblok™)
bonded to an outer Neoprene glove. The gloves are fitted to the suit by
means of the Respirex locking cone and grommet system.
·Optional re-hydration facility.
·Exterior attachment point for distress signal unit.
2
Limitations of Use
Failure to follow all instructions on the use of this product may adversely affect the
wearer’s health, may lead to severe illness or permanent disability or even death.
Only for use by trained competent personnel.
The PRPS(T) suit should not be used in areas immediately dangerous to life or health
(IDLH), or in atmospheres containing less than 19.5% oxygen.
The PRPS(T) does not provide any protection against either liquid or gaseous
chemical contamination but does provide respiratory protection to the level of
EN12941:1998 TH3, nominal protection factor=500.
If the suit is mechanically damaged in any way it MUST NOT be used and MUST be
disposed of.
It is likely that the wearer's body temperature will rise whilst wearing the suit and care
should be taken to guard against excessive loss of body fluid. Use of the optional
re-hydration facility is recommended.
Leave the work area immediately and remove the suit if:
a) Any part of the system becomes damaged e.g. tears or punctures in the suit.
b)Airflow into the suit decreases or stops, or visor misting occurs.
c) Breathing becomes difficult.
d)Dizziness or other distress occurs.
e) You taste or smell contaminants or an irritation occurs.
f) An alarm condition occurs.
Never modify or alter this product.
The usable temperature range of the ensemble is -5°C to +40°C <90% humidity.
If the wearer notices any discolouration of the visor the suit MUST NOT be used.
NEVER change any component parts associated with the suit in a contaminated
area.
Materials used in the construction of the system are not known to cause allergic
reactions to the majority of individuals. The system contains no components made
from natural rubber latex.
This equipment is not to be used in oxygen-deficient environments, e.g. confined
spaces. For further information refer to the instructions for the 3M Jupiter™ AFU.
For any enquiries please contact the Respirex customer services department on
Tel : +44(0) 1737 778600 or Fax : +44(0) 1737 779441.
3
The PRPS(T) does not provide protection against heat or flame, it should therefore
not be worn in potentially flammable or explosive atmospheres.
Storage
To prevent damage occurring during storage the system is supplied in a plastic
container. Suits should always be stored in a clean and dry condition at ambient
temperature. If being stored for long periods of time the suits should be kept out of
direct sunlight.
Spares and Accessories
Cotton gloves
Sea boot socks
Peakless safety helmet
Re-hydration pack
Replacement neck seal
Hazbag with tie and tag
453-09-25 (A2B1E1K1P R) filters (6 pairs)
Re-chargeable NiMH battery pack
Battery charger
‘Fog-Off’ anti-misting agent (100 ml)
‘Synodor’ anti-bacterial cleaner (5 l)
‘Citrikleen’ cleaning agent (5 l)
H01021
H00075
G01001
G01002
G01011
G01652
F00959
F00957
F00958
F00934
F00937
F00938
Cleaning
Respirex do not recommend laundering the PRPS(T). When the suit becomes dirty it
should be wiped with a sponge using warm water and Citikleen*, rinsed and allowed
to dry naturally. The inner surfaces of the suit should be sanitized using Synodor*.
Do not use solvents or strong cleaning and disinfecting agents, these may degrade the
materials from which the suit is constucted.
Do not allow water to enter the breathing tube, any part of the AFU assembly or
filters.
* see Spares and Accesories
4
Based upon real time use, the PRPS(T) suit system has a minimum shelf life of five
years.
In order to maintain the level of protection offered, care should be taken to
minimize the risk of damage occurring to the PRPS(T) suits during transportation
between work areas. It is recommended that all PRPS(T) suits are transported in a
suitably sized rigid container resistant to penetration by sharp objects, abrasive
surfaces, chemicals, oils, solvents etc.
For the purposes of disposal a sealable hazbag is included with the system. For further
information on disposal refer to page 19.
Product labelling

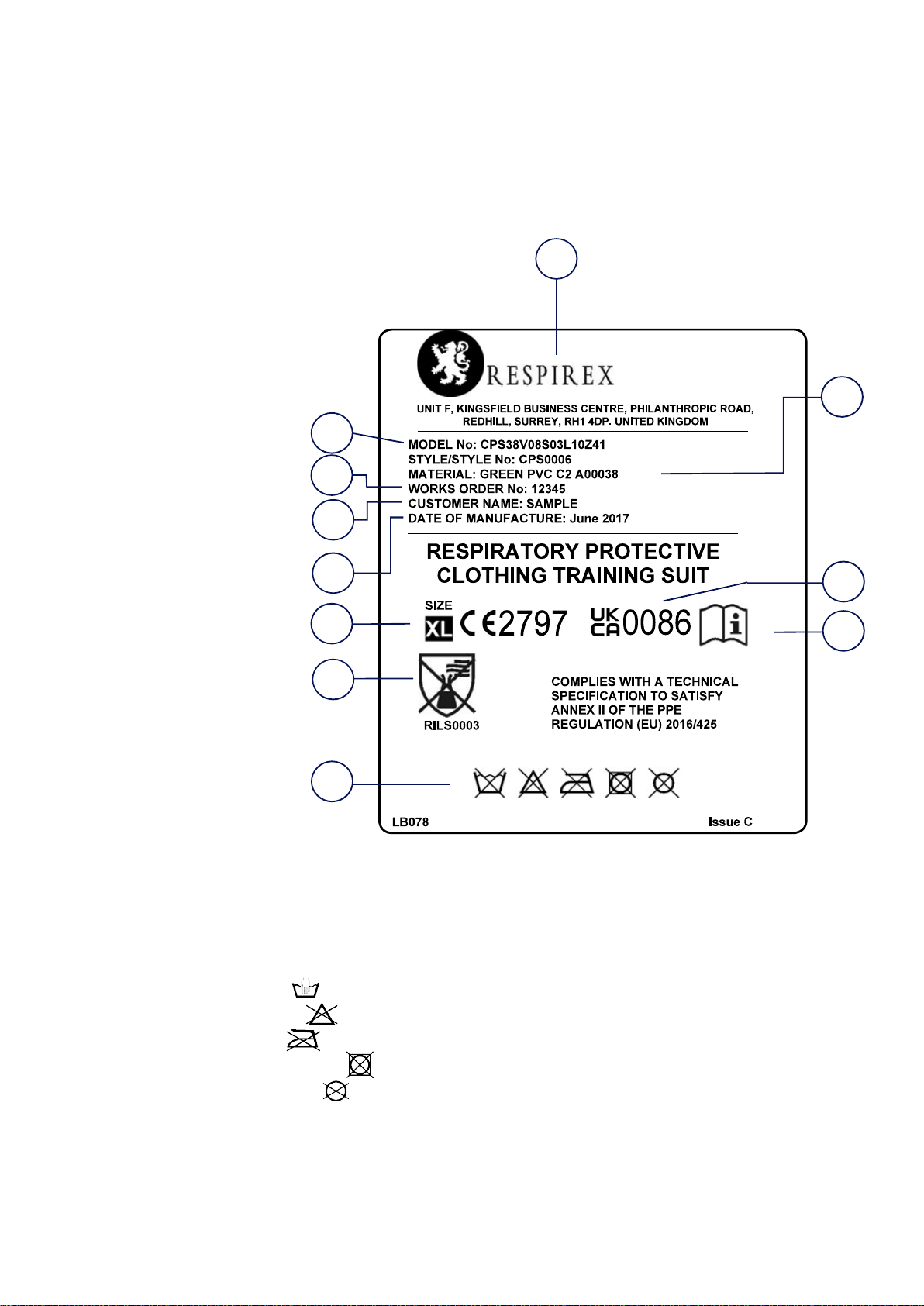

1. Manufacturer of garment and address:
Respirex Interna onal Ltd.
2. Manufacturer’s Model number
3. Material of Manufacture.
4. Manufacturer’s Order No.
5. Customer Name.
6. Date of manufacture: Day/Month/Year.
7. Standard Garment Size for wearer
Size Chest (cm)
S 88 - 96
M 96 - 104
L 104 - 112
XL 112 - 124
XXL 124 - 136
info@respirex.co.uk
FAX +44 (0)1737 779441
TEL +44 (0)1737 778600
8. CE and UKCA mark with No fi ed Body and UK Approved Body code.
9. “Open Book Pictogram”; wearer must refer to the “Instruc ons for use” for further informa on.
10. Pictogram deno ng no protec on against chemical contamina on.
11. Five care pictograms indica ng that clothing is not suitable for cleaning and reuse.
• Pictogram 1 Hand wash
• Pictogram 2 Do not bleach
• Pictogram 3 Do not iron
• Pictogram 4 Do not machine dry
• Pictogram 5 Do not dry clean
11
7
10
1
9
68
3
5
4
2
5
Fitting and removal of replaceable neck seal

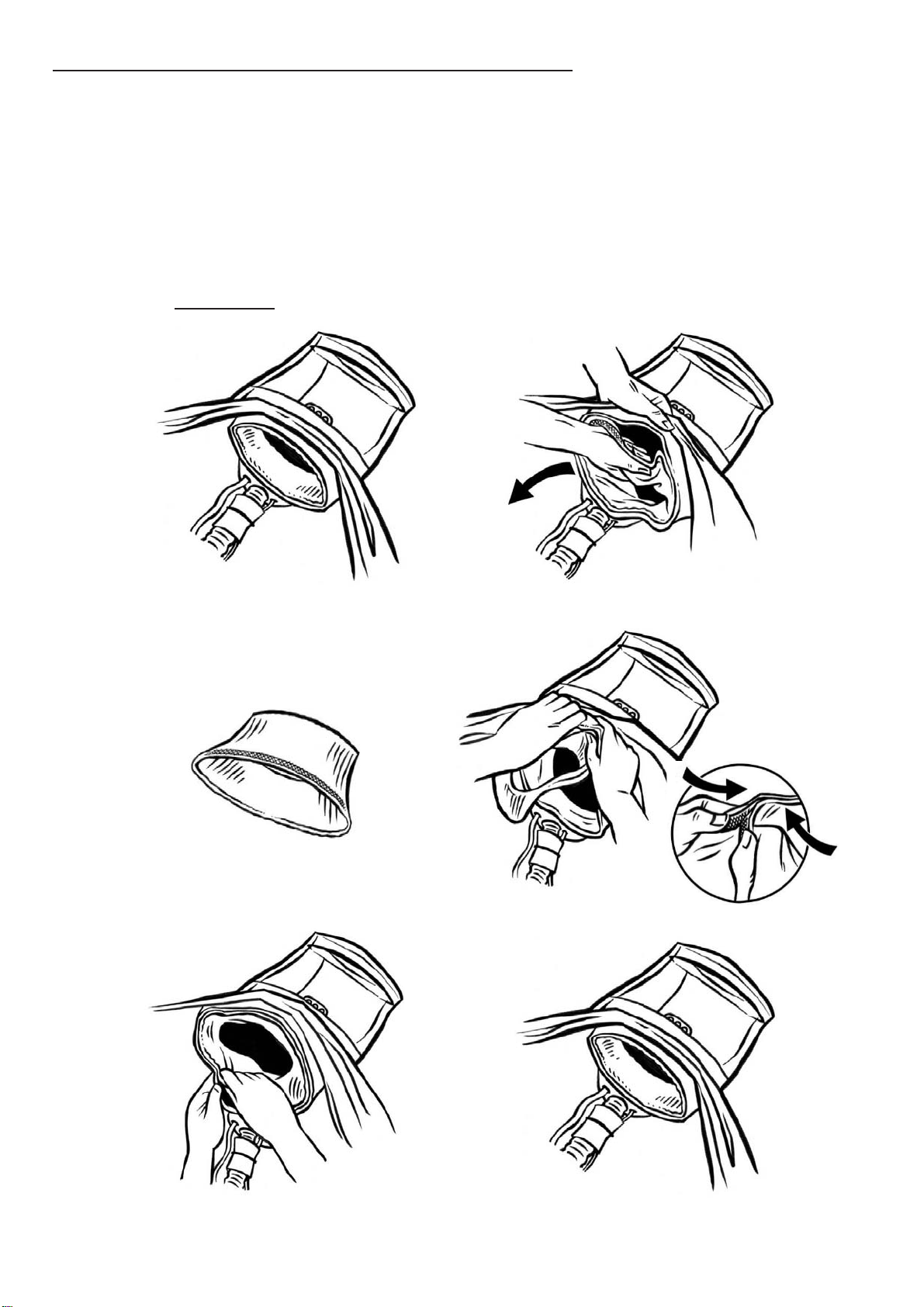

For hygienic reasons the PRPS(T) is fitted with a replaceable neck seal (fig. 1) that is
attached to the suit by means of a Velcro fastening strip. To remove, simply break
apart the fastening strip and withdraw the neck seal from the suit (fig. 2). Take a new
seal (fig. 3, Part no. G01011) and align the fastening strip. Working around the
circumference of the neck opening, press the Velcro fastening firmly together until
the strip is completely joined (figs. 4 & 5). Finally, check that there are no gaps in the
join that may reduce the efficiency of the seal. It is important that a correctly fitted
neck seal is ALWAYS in position when using the suit.
6
Fig.1 Fig.2
Fig.3
Fig.4
Fig.5 Fig.6
Preparation for use
The suit is supplied in a sealed bag, fully tested and in full working order. Nevertheless
it is advisable for the following checks to be carried out in a clean area prior to donning
the suit:
1. Visually inspect the suit for any damage that may reduce the level of
protection; pay particular attention to the seam areas and gloves.
2. Check the suit is free from contamination both externally and internally.
3. Check vision through the visor is not impaired by scratches or heavy scuff
marks.
4. Check the zip operates correctly and the pull tag is in good condition.

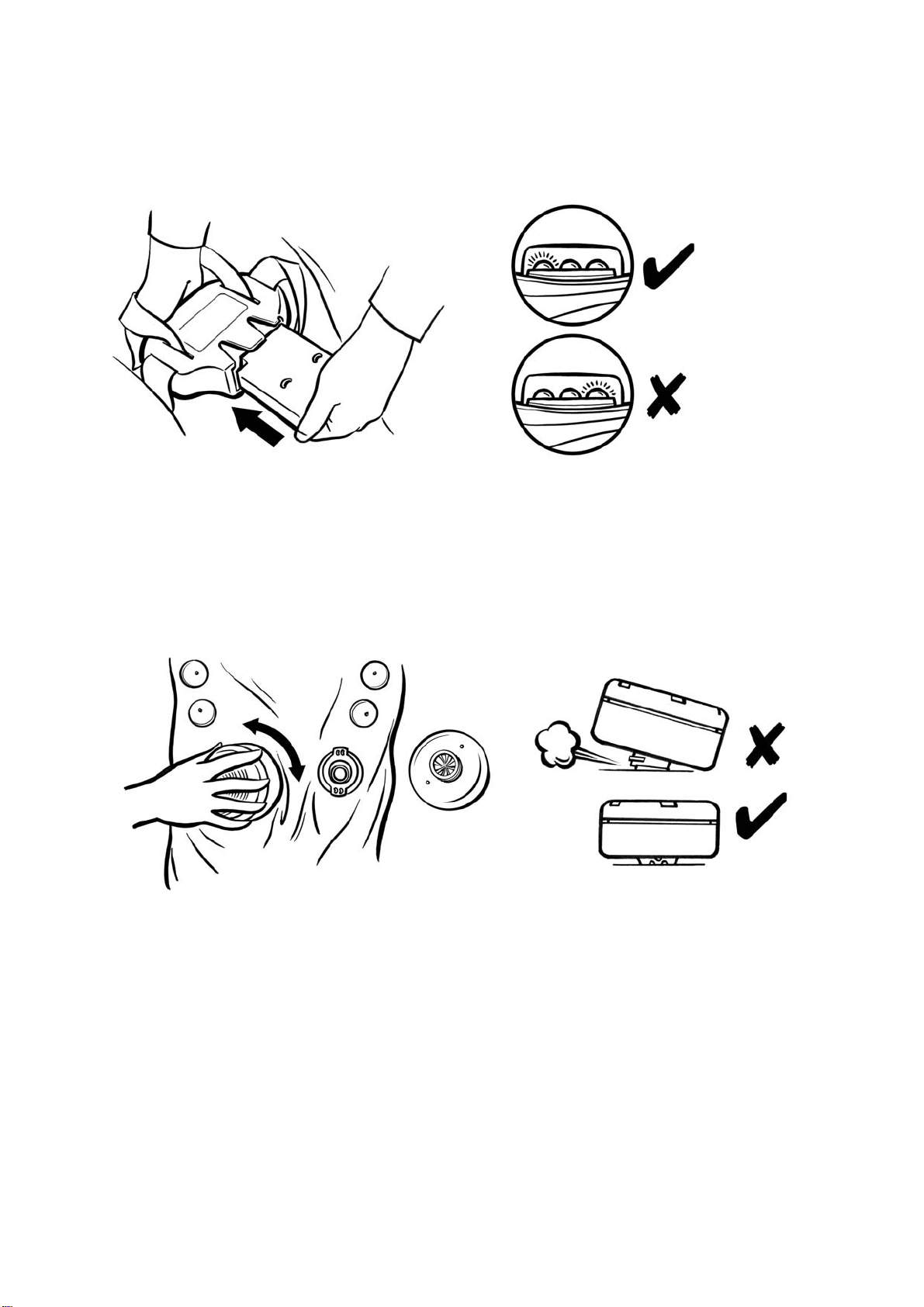

5. Verify the breathing tube and remote warning device are connected to the
AFU (fig. 8).
7

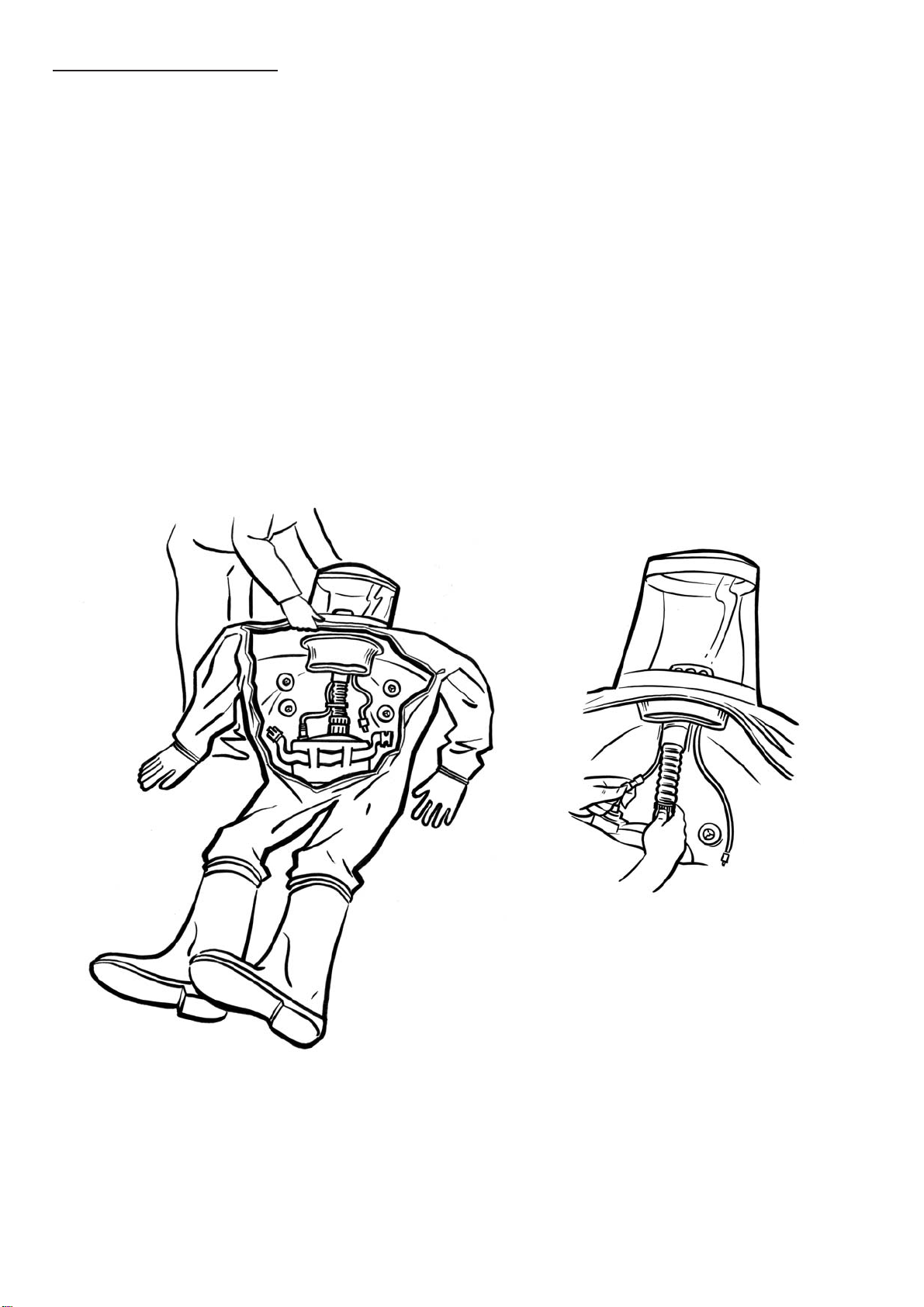

Fig.7
Fig.8
6. Fit the battery to the AFU (fig 9).
7. Switch on the AFU. The AFU will beep, the lights on the remote warning
device will cycle for a short time, then the green light will remain illuminated
(fig 10). At this point the 60 minute timer begins.
8. Remove the small plastic screw caps and fit the two filters to the suit (figs. 11
& 12). Important: The clear plastic filter lids should remain in place
whilst the filters are in use.
8
Fig.9 Fig.10
Green light
Red light
Note: Lights as viewed
from exterior of suit
Fig.11
Fig.12
