Revel®Performa™F30 Loudspeaker

TABLE OF CONTENTS

INTRODUCTION...............................................3

ABOUT THE MANUAL AND WARRANTY.................................3

DESCRIPTION .................................................4

WOOFER ..........................................................................4

MIDRANGE .......................................................................5

TWEETER .........................................................................5

CROSSOVER NETWORK .....................................................5

CABINET...........................................................................5

UNPACKING....................................................6

INSTALLING TOP GRILLES (OPTIONAL)..............7

PLACEMENT ...................................................8

ROOM ACOUSTICS.............................................................9

ROOM TREATMENT..........................................................10

INSTALLING SPIKES.......................................11

CONNECTIONS..............................................12

SINGLE-WIRED SYSTEM CONNECTIONS ............................13

BI-WIRED SYSTEM CONNECTIONS ....................................13

BI-AMPLIFIED SYSTEM CONNECTIONS...............................14

SYSTEM OPTIMIZATION ..................................16

CABINET CARE..............................................16

LOUDSPEAKERS AND POWER........................17

SERVICE INFORMATION..................................17

SPECIFICATIONS............................................18

REVEL PERFORMA F30

Owner’s Manual

Figure 1. The REVEL

PERFORMA F30

loudspeaker.

INTRODUCTION

Revel®leads the loudspeaker world in research, advanced

engineering techniques, and unique production processes. The

REVEL PERFORMA™F30 loudspeaker is the perfect demonstra-

tion of Revel’s unparalleled engineering capabilities.

The Revel Performa F30 loudspeaker utilizes much of the advanced

engineering found in Revel’s famed Ultima™ loudspeakers. Each one

has an inverted magnesium/aluminum-alloy dome woofer and

midrange and an aluminum dome tweeter that achieve fully pistonic

performance to yield extraordinary freedom from coloration. We also

use our groundbreaking measurement process to seamlessly integrate

the superb transducers with the high-order crossover network to achieve

a truly full-range sound with stunning realism and superb dynamics.

As a result, the REVEL PERFORMA F30 loudspeaker sets a whole

new standard in sound quality at anywhere near its price range. Its

superior performance, assured by our ongoing research, will greatly

contribute to the enjoyment of music or film sound in your home.

ABOUT THE MANUAL AND WARRANTY

To begin enjoying your new loudspeakers, first read and then perform

the instructions in this owner’s manual. Maximum performance

depends on following all instructions described here, as well as those

found in the owner’s manuals of associated components in your audio

system. Save these instructions for future reference.

REVEL PERFORMA F30 loudspeakers are covered by a limited

5-year warranty, so save the bill of sale to protect your purchase

and aid in any service-related questions.

REVEL PERFORMA F30

Owner’s Manual

,,,,,

,,,,,,,

,,,,,,

,,,,,

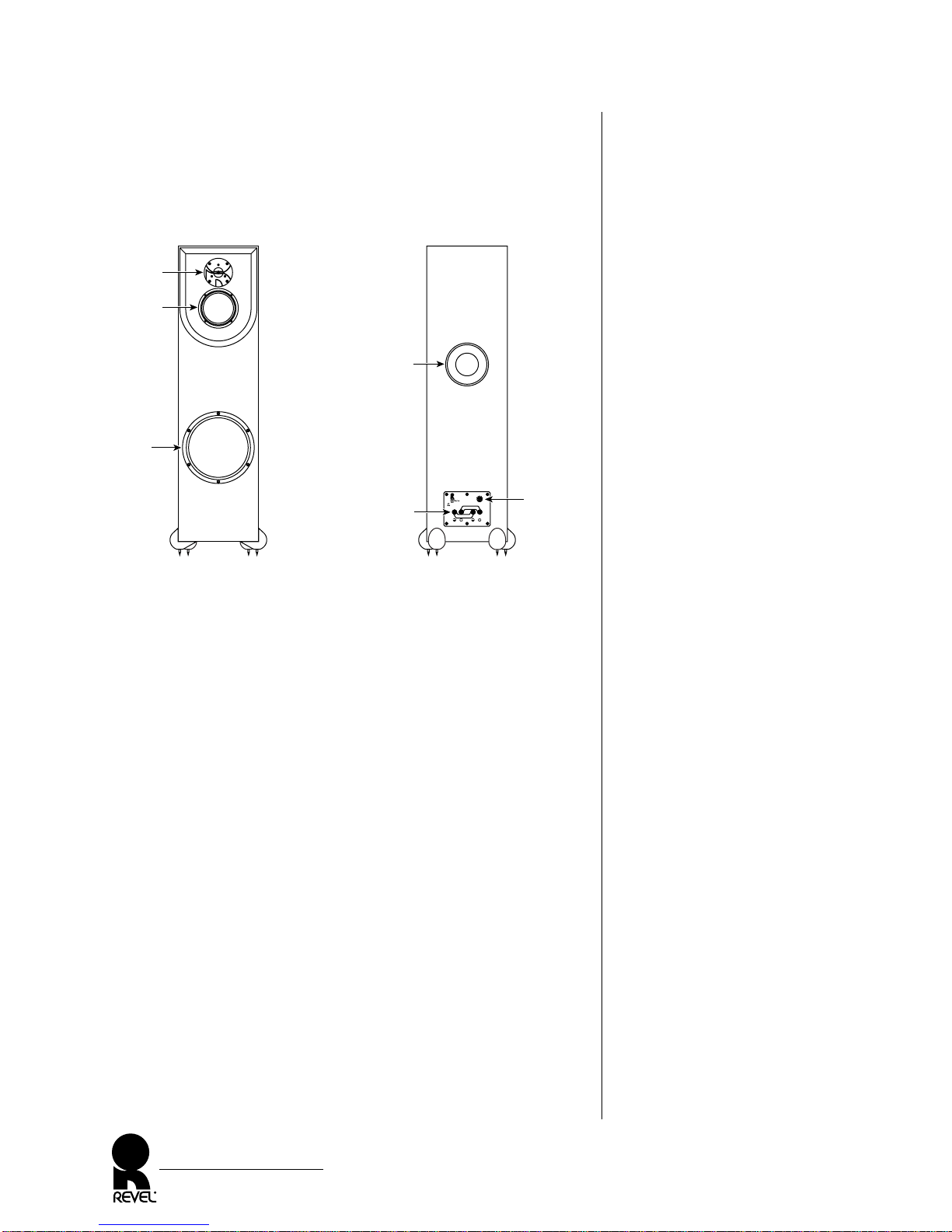

Figure 2. Transducer and con-

nection locations for the REVEL

PERFORMA F30 loudspeaker.

DESCRIPTION

The REVEL PERFORMA F30 loudspeaker features a transducer

complement (see Figure 2) of one 10-inch (250 mm) woofer, a

5.25-inch (133 mm) midrange driver, and a 1-inch (25 mm) tweeter.

Combined with an individually-optimized crossover network, this

transducer arrangement results in a superior off-axis response that

provides a large “listening window” and an uncolored in-room

response, even in the presence of strong wall reflections.

WOOFER

The 10-inch (250 mm) inverted aluminum-dome woofer features:

• True pistonic operation for increased freedom from coloration.

• Optimized and shielded magnetic circuits to minimize harmonic

distortion and prevent interference with video monitors.

• Butyl rubber surround for large, linear excursion capabilities.

• CCA (carbon composite aluminum) flat-wire voice coil on a

2–inch (50 mm) fiberglass bobbin for low mass with high

power handling.

• Vented center-pole piece for better cooling and low compression.

REVEL PERFORMA F30

Owner’s Manual

Installstraps for

single-wireoperation

Installstraps for

single-wireoperation

LowFrequency Input HighFrequency Input

Removestraps

forbi-wire

orbi-amp

+1-1

0+.5

-.5

FrontTweeterLevel (dB)

SerialNumber

Revel

Northridge,California

Madein U.S.A.

xxxx

REVEL PERFORMA F30 Front

(without grilles) REVEL PERFORMA F30 Rear

Tweeter

Woofer Port

Tweeter

Level Control

Midrange

Woofer

Connectors (with

shorting straps)

MIDRANGE

The 5.25-inch (133 mm) inverted magnesium-dome midrange

transducer features:

• True pistonic operation for increased freedom from coloration.

• Optimized and shielded magnetic circuits to minimize harmonic

distortion and prevent interference with video monitors.

• Butyl rubber surround for large, linear excursion capabilities.

• Oversized 1.5-inch (38 mm) voice coil wire on a Kapton®

bobbin for low mass with increased strength.

TWEETER

The 1-inch (25 mm) aluminum-alloy dome tweeter features:

• True pistonic operation for increased freedom from coloration.

• Underhung with copper-clad aluminum wire for low distortion.

• Ferrofluid for better power handling with reduced compression.

• Magnetically shielded to prevent interference with video monitors.

CROSSOVER NETWORK

Each REVEL PERFORMA F30 loudspeaker has an individually-

optimized crossover network with:

• A high-order crossover at 220 Hz and 2.8 kHz to optimize the

on- and off-axis response of the system.

• Filter networks with carefully selected components for optimum

performance with low distortion across a wide dynamic range.

• Provision for bi-amplified applications via removable external

shorting straps on the gold-plated binding posts.

CABINET

The cabinet is constructed of 1-inch (25 mm) thick MDF walls

with extensive internal bracing for unshakable performance.

A rounded front baffle is sculpted to reduce diffraction, and four

cast aluminum feet adorn the cabinet for superior coupling to any

floor. The wood-veneer cabinet is available in finishes of Cherry,

Sycamore, Rose, or Black Ash.

REVEL PERFORMA F30

Owner’s Manual

WARNING

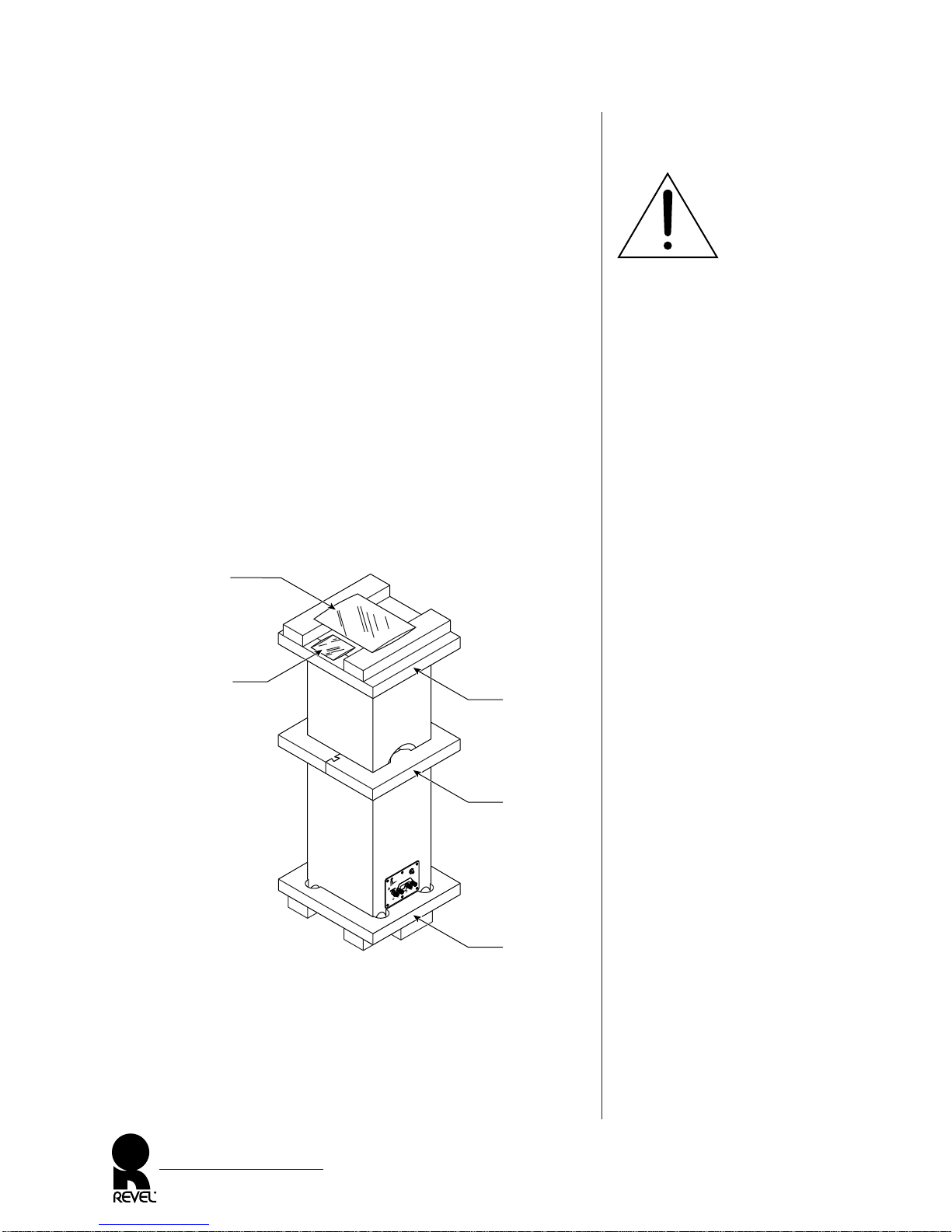

Figure 3. A REVEL

PERFORMA F30 loudspeaker

with its inner packing materials.

UNPACKING

IMPORTANT! Do not attempt to lift a REVEL PERFORMA F30

loudspeaker from its packing carton alone – use at least two strong

people to unpack the product properly. To avoid injury, use

extreme care during unpacking. Always stand as straight as possi-

ble and use your leg muscles to lift the REVEL PERFORMA F30

loudspeaker. Do not lift it while bending from the waist.

Each REVEL PERFORMA F30 loudspeaker is packed in its own

carton with a shipping weight of 102 pounds (46.3 kg). To avoid

personal injury and possible product damage, we strongly urge you

to enlist additional help before unpacking either carton.

To unpack a loudspeaker, perform the following steps:

1. Place a REVEL PERFORMA F30 loudspeaker onto its side.

2. Open the bottom flaps. Stand the unit in the up position.

3. Open the top flaps. Take out the spike foot kit and set it aside.

Remove the top pad.

4. Lift the carton off the loudspeaker and set it aside, being careful

not to damage the cabinet. Also, remove the middle pad.

5. Grasping the cabinet on the sides, lift it up and remove the bot-

tom pad. Use caution to avoid touching any of the transducers.

REVEL PERFORMA F30

Owner’s Manual

Installstraps for

single-wireoperation

Installstraps for

single-wireoperation

LowFrequency Input High Frequency Input

Removestraps

forbi-wire

orbi-amp

+1-1

0+.5

-.5

FrontTweeterLevel (dB)

SerialNumber

Revel

Northridge,California

Madein U.S.A.

Spike Foot Kit

Middle Pad

Top Pad

Bottom Pad

Warranty Card and

Owner’s Manual

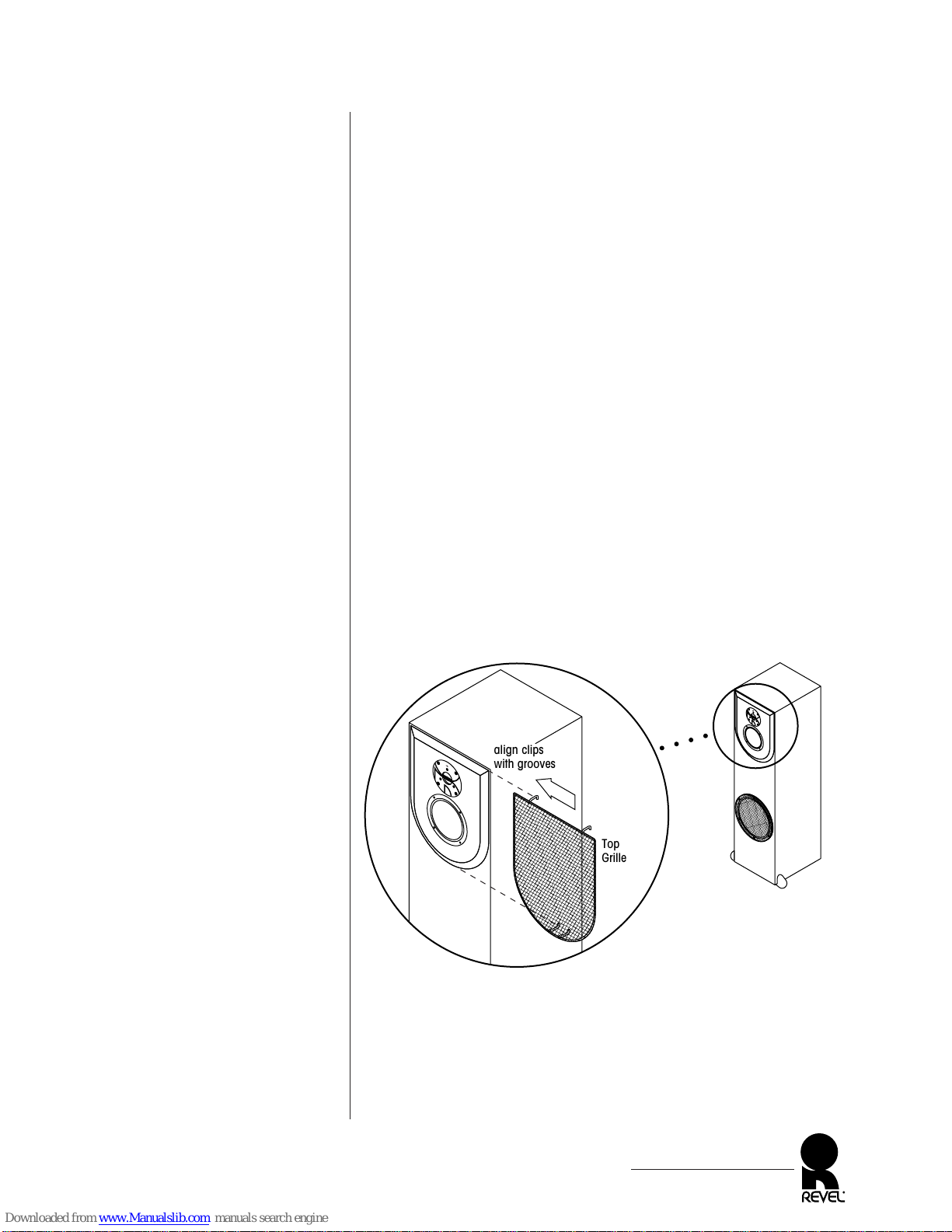

Figure 4. Installing

an optional top grille.

6. Repeat steps 1 through 5 for the other loudspeaker.

NOTE: We recommend installing spikes after determining final

speaker placement (see discussion starting on next page).

After unpacking both units, carefully inspect each one for possible

damage due to shipping. If you discover any damage, immediately

contact your Revel dealer for further assistance. To move an

unpacked REVEL PERFORMA F30 loudspeaker (e.g., when

experimenting with placement), rock it side-to-side into place,

using caution to avoid touching the tweeter and midrange.

Keep all packing materials for future shipping. In the unlikely

event a product will need repair, Revel will only accept a unit in its

original shipping carton. Using any other packing materials may

result in damage to the product and is not covered by the warranty.

See Service Information on page 17 for additional details.

INSTALLING TOP GRILLES

(OPTIONAL)

If desired, install an optional top grille onto each REVEL

PERFORMA F30 loudspeaker, as shown in Figure 4 below.

REVEL PERFORMA F30

Owner’s Manual

,,,,,,

,,,,,,,

,,,,,,,,

,,,,,,,

,,,,,,,,

,,,,

,,,,,

,,,,,,,,

,,,,,,,

,,,,,,,,

,,,,,,,

,,,,,,,,

,,,,

Top

Grille

align clips

with grooves

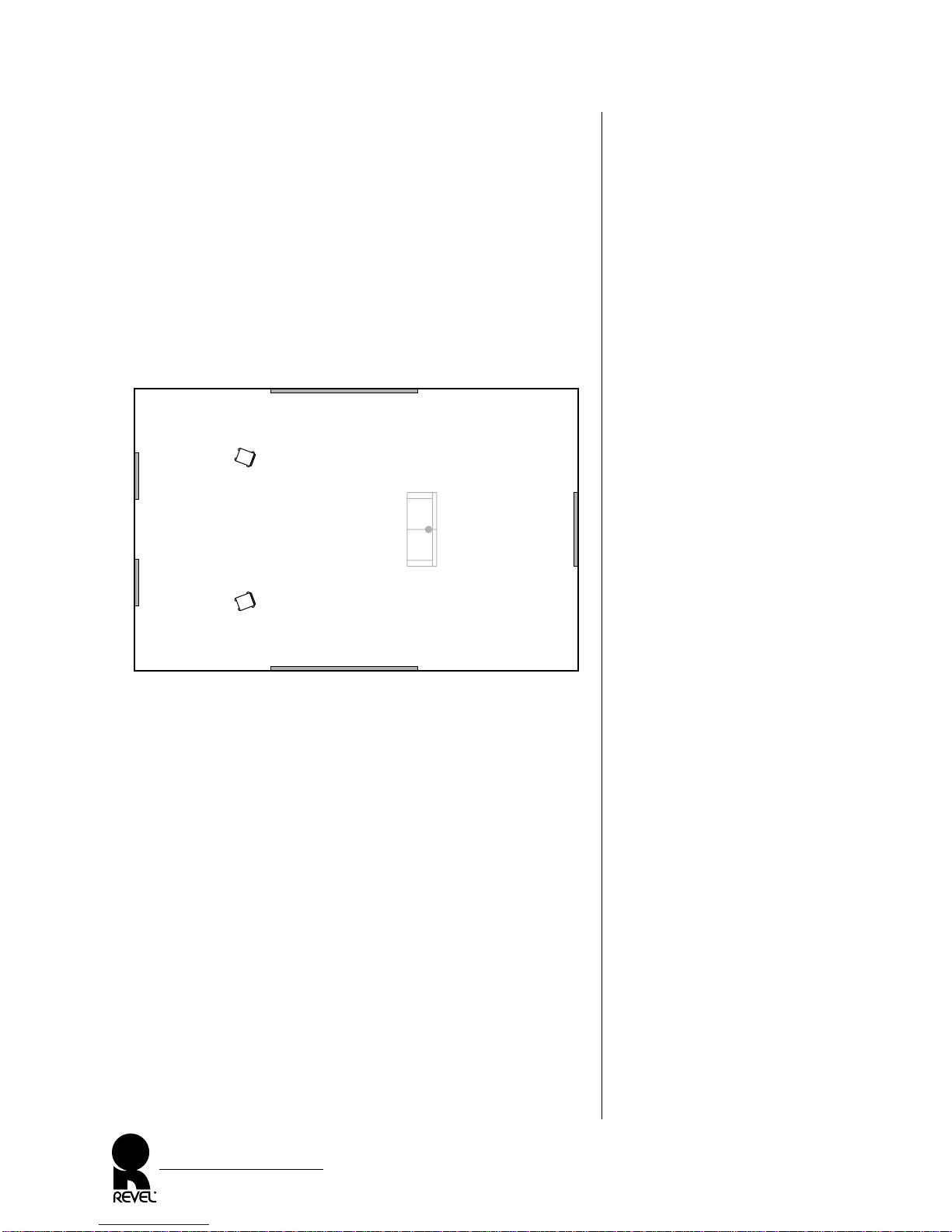

Figure 5. Typical placement of

REVEL PERFORMA F30

loudspeakers for stereo. Note sug-

gested room treatments due to the

primary reflection points.

PLACEMENT

Sound quality is heavily dependent on the accuracy of your loudspeak-

ers, their placement in the listening room, and the acoustics of the

room itself. Since the REVEL PERFORMA F30 loudspeakers are

extremely accurate, experimenting with their placement is the most

significant way to optimize their performance in a given environment.

The following guidelines will help you obtain the best results:

• For best stereo imaging, place the REVEL PERFORMA F30

loudspeakers at equal distances from the main listening position

and in symmetry with the room, as shown in Figure 5.

• Optimum timbre and imaging precision is obtained with the

loudspeakers pointing almost directly toward the prime listen-

ing position. Some listeners prefer a wider “soundstage,” which

is achieved by reducing the toe-in angle, perhaps to the point of

aiming the loudspeakers straight ahead.

• Imaging and a sense of spaciousness will improve as the

loudspeakers are moved away from the wall behind the loud-

speakers and the side walls.

NOTE: You may then need to move the listening position back to

maintain the best stereo image.

• For more bass reinforcement, try moving the loudspeakers closer

to the front wall or corners (also see Room Acoustics on next page).

NOTE: You may then need to move the listening position forward

to maintain an acceptable stereo image.

REVEL PERFORMA F30

Owner’s Manual

Listening Position

(e.g., on couch)

Absorption or

Diffusion

Panel

Absorption Panel

Absorption or

Diffusion

Panel

Absorption or

Diffusion

Panel

R REVEL PERFORMA F30

L REVEL PERFORMA F30

• For best results, make sure there are no objects between the

REVEL PERFORMA F30 loudspeakers and the intended listen-

ing area (e.g., a coffee table in front of the listener will degrade

timbre and imaging). If possible, avoid placing the loudspeakers

near large objects, which can cause unwanted reflections.

• Ideally, the listening room should be acoustically neutral, nei-

ther producing any distinct echoes nor sounding completely

“dead” and lifeless (also see Room Treatment on the next page).

• After choosing a final placement, add the spikes (and covers, if

desired) as described in Installing Spikes on page 11.

ROOM ACOUSTICS

Listening rooms have a profound impact on sound quality, espe-

cially at low frequencies. In fact, a listening room can actually

dominate the sound quality below about 300 Hz. Ideally, a new

room being built from scratch would include optimized dimen-

sional ratios to minimize the effects of standing waves.

However, most installations will be made in existing rooms. In

these cases, your only solution is to take special care in selecting

both the speaker and prime listening locations, which will pay off

in superior low frequency performance. Often the difference

between poor and excellent results is the result of relatively small

adjustments in speaker and listener placements.

The interaction of loudspeakers and rooms is quite complex, as the

loudspeaker and listener are affected by two mechanisms. First,

nearby surfaces, or boundaries, cause large peaks and dips in low

frequency response. These peaks and dips can often range 12 dB or

more. Second, the loudspeaker and listener locations interact with

the standing waves, or room modes. These standing waves, or reso-

nances, also result in large response errors. There are no simple for-

mulas that take both mechanisms into account. Even computer

programs that analyze one or both factors still may not provide

you with the proper speaker or listener placement values.

Here’s where real-world experience counts. We suggest consulting

your Revel dealer for help in determining the optimum loudspeak-

er and listener placement for your listening room.

REVEL PERFORMA F30

Owner’s Manual

PLACEMENT (CONTINUED)

ROOM TREATMENT

REVEL PERFORMA F30 loudspeakers have very accurate off-axis

response, which minimizes any degradation caused by overly “live”

rooms. However, far superior performance will be achieved by

placing at least minimal acoustic treatment materials at the primary

reflection points. Ideally, special acoustic absorbers should be

placed at the first reflection points on the side and front walls

along with either absorbers or diffusers at the first reflection points

on the rear wall. Short of using acoustic treatment materials, even

simple hanging rugs can be a great help in overly bright rooms.

Carpeting the floor area between the speakers and listener and

placing irregular surfaces, such as bookcases, will also help break

up strong reflections.

Since our ears and eyes are located on the same plane, we can use a

mirror (also known as the “mirror method”) to accurately deter-

mine the most important locations (the first reflection points) for

material treatment, as follows:

1. After the loudspeakers are placed, the listener should sit in the

prime listening position.

2. A second person should slide a mirror along the walls.

3. Note the locations at which the listener can see either of the

loudspeakers. These will be the reflection points that would

require acoustic treatment materials.

Using this method, find all treatment locations for side walls, front

wall, and rear wall with side walls taking priority. Where possible,

also determine the treatment locations for first ceiling reflections.

Your Revel dealer can recommend acoustic treatment materials,

and can help determine the best plan for your room. If it is a dedi-

cated listening room, qualified room treatment manufacturers or

even acousticians may be consulted for optimum results.

Remember, properly treated rooms provide dramatically better

results with any loudspeakers than untreated rooms.

REVEL PERFORMA F30

Owner’s Manual

Inhaltsverzeichnis

Andere REVELL Sprecher Handbücher

REVELL

REVELL I20 Bedienungsanleitung

REVELL

REVELL Performa B15a Bedienungsanleitung

REVELL

REVELL W970 Bedienungsanleitung

REVELL

REVELL Performa C50 Bedienungsanleitung

REVELL

REVELL Performa M20 Bedienungsanleitung

REVELL

REVELL Performa F32 Bedienungsanleitung

REVELL

REVELL PERFORMA Be4 Bedienungsanleitung

REVELL

REVELL Ultima Gem Bedienungsanleitung

REVELL

REVELL Ultima Studio Bedienungsanleitung

REVELL

REVELL C263 Bedienungsanleitung

REVELL

REVELL Concerta M8 Bedienungsanleitung

REVELL

REVELL Ultima Embrace Bedienungsanleitung

REVELL

REVELL Performa3 Bedienungsanleitung

REVELL

REVELL Ultima Gem Bedienungsanleitung

REVELL

REVELL C780 Bedienungsanleitung

REVELL

REVELL I20 Bedienungsanleitung

REVELL

REVELL Ultima Gem Bedienungsanleitung

REVELL

REVELL Ultima Gem Bedienungsanleitung

REVELL

REVELL Concerta IC6T2 Bedienungsanleitung

REVELL

REVELL Performa S30 Bedienungsanleitung

REVELL

REVELL Ultima Studio Bedienungsanleitung

REVELL

REVELL Concerta IC15 Bedienungsanleitung

REVELL

REVELL M16 Halftrack Bedienungsanleitung

REVELL

REVELL W126Be Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
