Unpacking Instruction

Revel®Ultima Voice™2 Pedestal

Harman Specialty Group

3 Oak Park Drive

Bedford, MA 01730-1413

USA

Tel 781-280-0300

Fax 781-280-0490

www.revelspeakers.com

Customer Service

Tel 781-280-0300

Fax 781-280-0495 (Sales)

Fax 781-280-0499 (Service)

Revel Part No. 353273-001 | Rev 0 | 03/07

Thank you for purchasing the Ultima Voice™2 Pedestal for your Revel®Ultima Voice™2 Loudspeaker.

Follow the instructions below to unpack the pedestal.

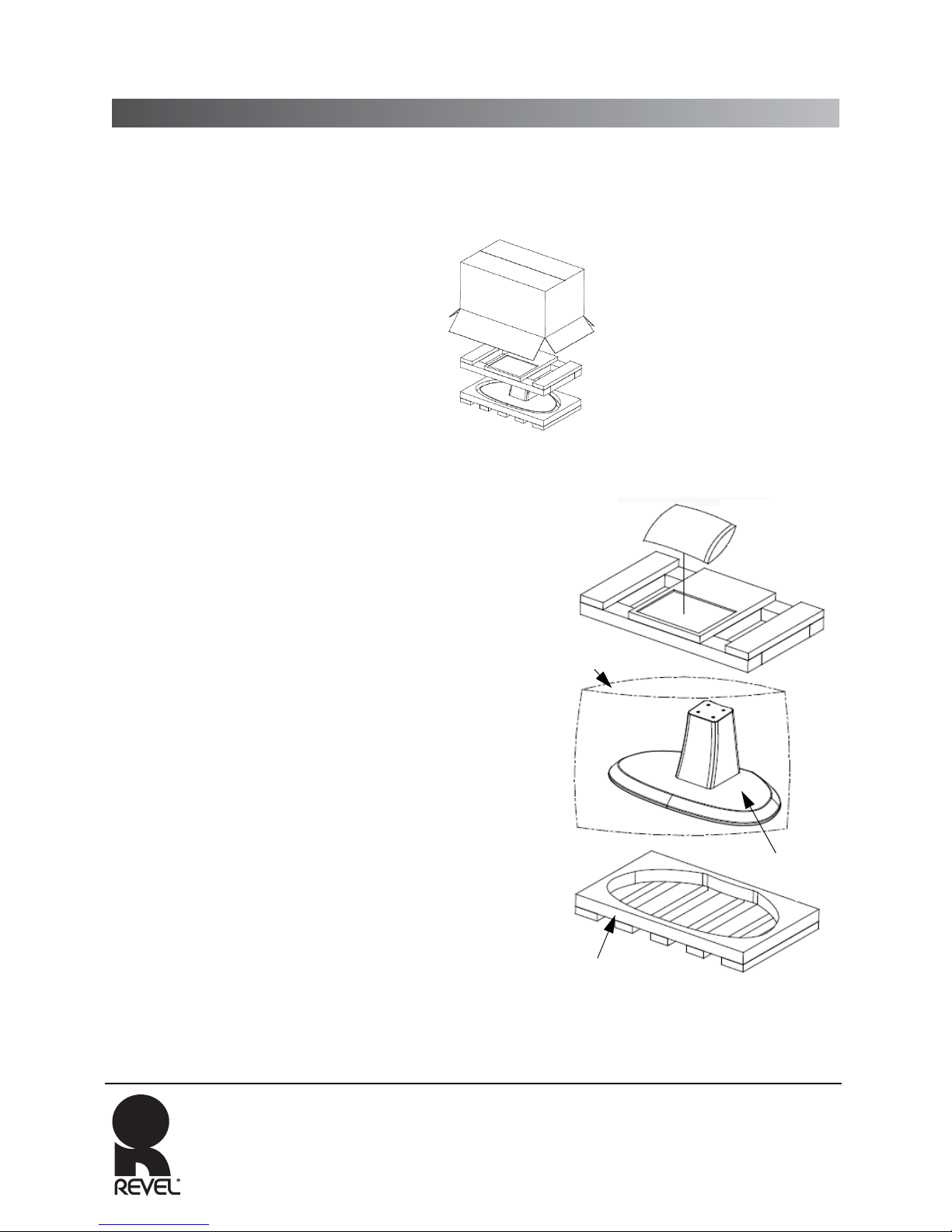

UNPACKING

Step 1: Place the packing carton upside-down

and fully open the bottom flaps.

Step 2: Without allowing the flaps to close,

invert the packing carton. Lift the packing

carton off of the pedestal, leaving the packing

material in place.

Step 3: To complete unpacking the pedestal,

remove the Unpacking & Installation

Instructions sheet from the end pad and refer

to the “Unpacking” instructions.

Step 4: Remove the Top End Pad from the top of the pedestal.

Step 5: Lift the pedestal from the Bottom End Pad. Put both end

pads aside.

Step 6: Remove the cloth bag. Handle carefully to ensure that the

pedestal isn’t scuffed or bumped.

You are now ready to begin the Pedestal installation procedure.

Turn this sheet over to begin.

NOTE: Save all original packaging materials.

Accessory

Top End

Bottom End Pad

Protective Bag

Pedestal

Bag

Pad

Installation Instruction

Revel®Ultima Voice™2 Pedestal

Harman Specialty Group

3 Oak Park Drive

Bedford, MA 01730-1413

USA

Tel 781-280-0300

Fax 781-280-0490

www.revelspeakers.com

Customer Service

Tel 781-280-0300

Fax 781-280-0495 (Sales)

Fax 781-280-0499 (Service)

Revel Part No. 353273-001 | Rev 0 | 03/07

Thank you for purchasing the Voice2 Pedestal for your Revel®Ultima Voice™2 Loudspeaker. Follow

the instructions below to install the pedestal.

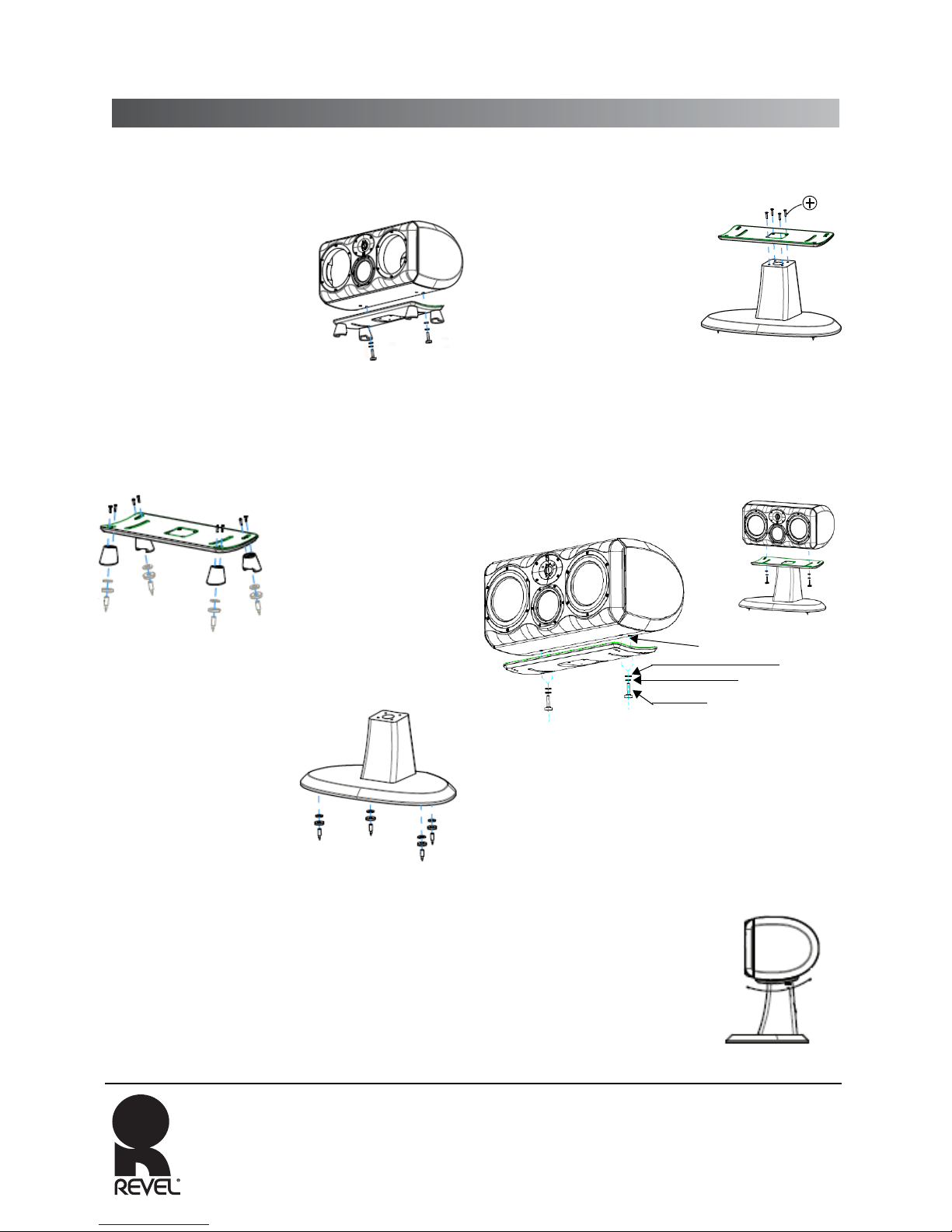

INSTALLATION

Step 1: Set the Ultima

Voice™2 Loudspeaker

upside down on a soft

non-scratch surface.

Step 2: Remove the speaker

from its cradle by carefully

removing the tilt

adjustment knobs, felt washers, and metal washers.

Note: Keep the knobs and washers together as

they’ll be re-used in Step 6.

Step 3: If the combination

spikes/glides were installed

on the cradle, remove the

spikes, felt washers, and

knurled locking rings. If

the combination spikes/

glides were not installed,

continue to Step 4.

Step 4: Remove the feet and screws from the

cradle. Put them aside.

Step 5: Install the

combination spikes/

glides with the felt

washers and knurled

locking rings to the

bottom of the pedestal.

Hand-tighten the spikes

firmly, but do NOT over-

tighten.

Note: If the combination spikes/glides were not

previously installed on the cradle, the hardware will

be with the loudspeaker hardware accessories.

Note: Refer to the Ultima Voice™2 Loudspeaker

Owner’s Manual for further instructions on how to

install the combination spikes/glides to the bottom

of the pedestal.

Step 6: Use the four Phillips

head screws located in the

Pedestal accessories bag to

install the cradle to the top

of the pedestal. Tighten the

screws firmly but do NOT

over-tighten.

Step 7: Install the loudspeaker onto the cradle/

pedestal assembly. Insert each threaded tilt

adjustment knob first through a metal washer and

then through a felt washer before inserting it into

one of the threaded inserts toward the rear of the

loudspeaker.

Step 8: Slide the loudspeaker in the cradle to

adjust the tilt. When the loudspeaker has been

appropriately positioned, firmly hand-tighten the

tilt adjustment knobs to lock the loudspeaker in

place. Do NOT over-tighten.

Front & rear tilt

adjustment threaded inserts

Felt washer

Metal washer

Lockdown knob
