RGBlink MSP 203 Bedienungsanleitung

MSP 203 – Quick Start

Interfaces

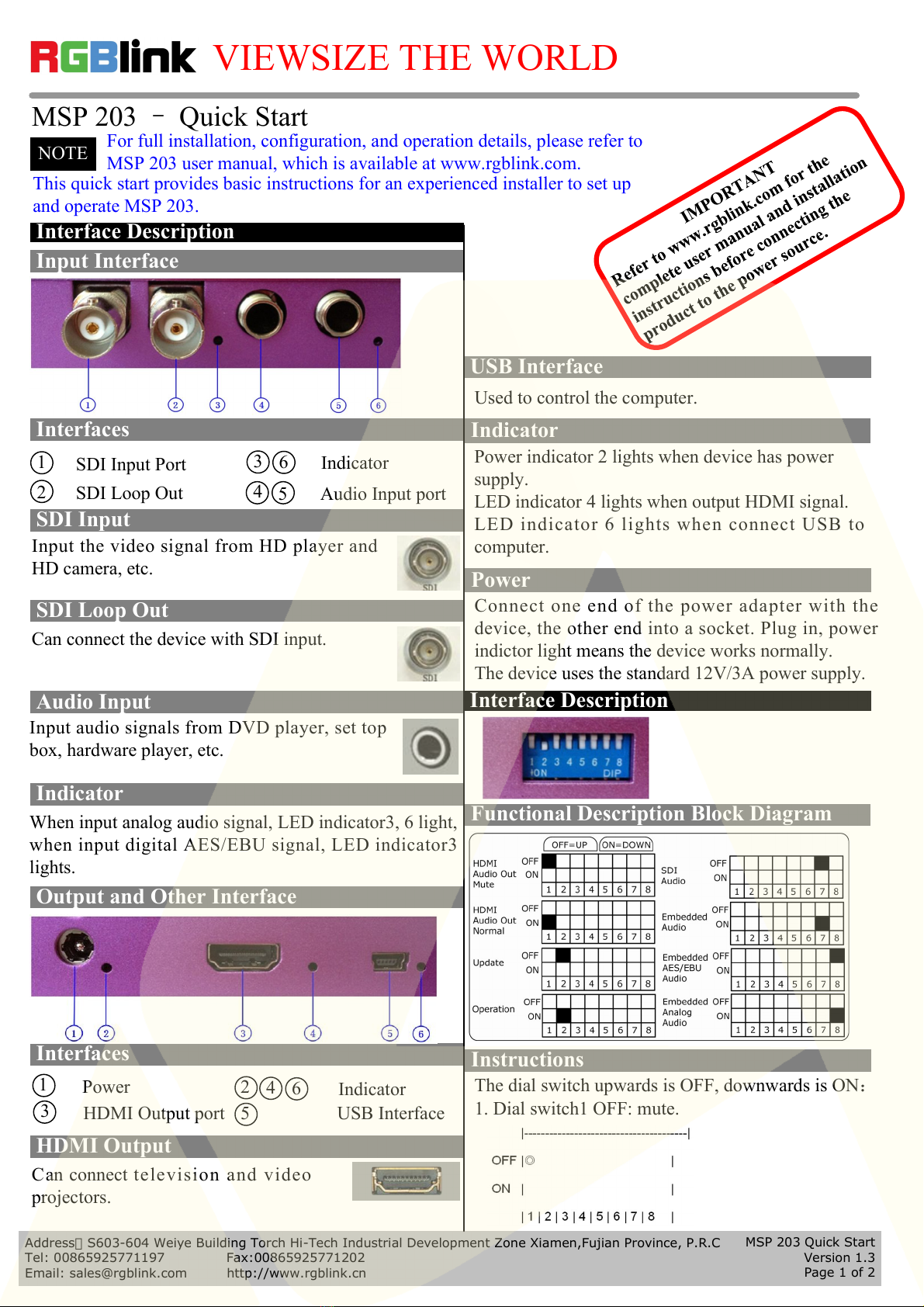

MSP 203 Quick Start

Version 1.3

Page 1 of 2

Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C

Tel: 00865925771197 Fax:00865925771202

Email: sales@rgblink.com http://www.rgblink.cn

VIEWSIZE THE WORLD

NOTE

This quick start provides basic instructions for an experienced installer to set up

and operate MSP 203.

For full installation, configuration, and operation details, please refer to

MSP 203 user manual, which is available at www.rgblink.com.

HDMI Output

Can connect television and video

projectors.

SDI Input

Input the video signal from HD player and

HD camera, etc.

Power indicator 2 lights when device has power

supply.

LED indicator 4 lights when output HDMI signal.

LED indicator 6 lights when connect USB to

computer.

Indicator

Functional Description Block Diagram

Interface Description

Input Interface

4Audio Input port

Indicator

1SDI Input Port

Audio Input

Input audio signals from DVD player, set top

box, hardware player, etc.

Indicator

When input analog audio signal, LED indicator3, 6 light,

when input digital AES/EBU signal, LED indicator3

lights.

Output and Other Interface

Interfaces

3HDMI Output port

Indicator

1Power 2

5 USB Interface

Power

Connect one end of the power adapter with the

device, the other end into a socket. Plug in, power

indictor light means the device works normally.

The device uses the standard 12V/3A power supply.

Interface Description

Instructions

The dial switch upwards is OFF, downwards is ON：

1. Dial switch1 OFF: mute.

2SDI Loop Out

SDI Loop Out

Can connect the device with SDI input.

USB Interface

Used to control the computer.

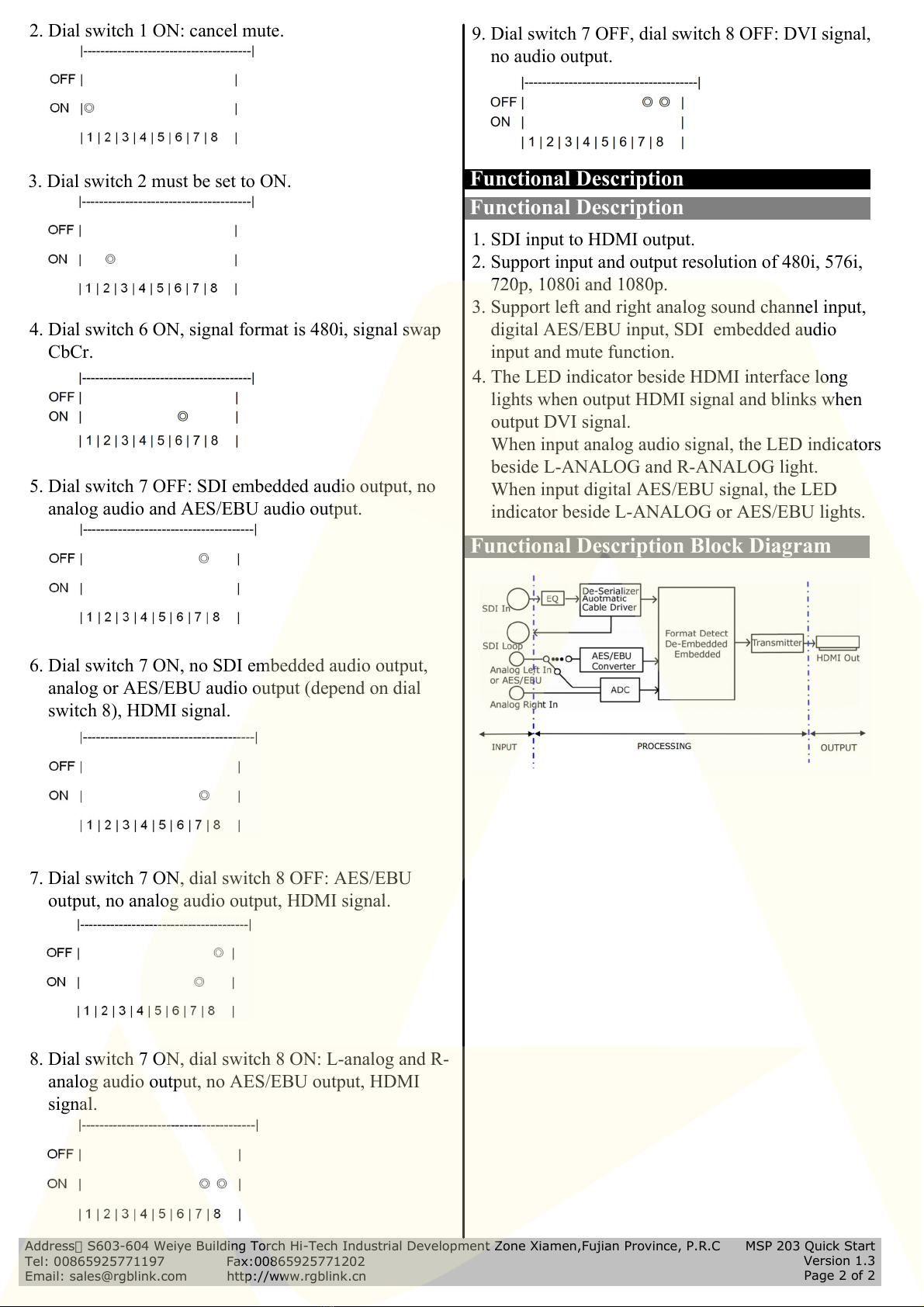

MSP 203 Quick Start

Version 1.3

Page 2 of 2

Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C

Tel: 00865925771197 Fax:00865925771202

Email: sales@rgblink.com http://www.rgblink.cn

4. The LED indicator beside HDMI interface long

lights when output HDMI signal and blinks when

output DVI signal.

When input analog audio signal, the LED indicators

beside L-ANALOG and R-ANALOG light.

When input digital AES/EBU signal, the LED

indicator beside L-ANALOG or AES/EBU lights.

2. Dial switch 1 ON: cancel mute.

3. Dial switch 2 must be set to ON.

5. Dial switch 7 OFF: SDI embedded audio output, no

analog audio and AES/EBU audio output.

6. Dial switch 7 ON, no SDI embedded audio output,

analog or AES/EBU audio output (depend on dial

switch 8), HDMI signal.

7. Dial switch 7 ON, dial switch 8 OFF: AES/EBU

output, no analog audio output, HDMI signal.

8. Dial switch 7 ON, dial switch 8 ON: L-analog and R-

analog audio output, no AES/EBU output, HDMI

signal.

Functional Description Block Diagram

Functional Description

1. SDI input to HDMI output.

2. Support input and output resolution of 480i, 576i,

720p, 1080i and 1080p.

3. Support left and right analog sound channel input,

digital AES/EBU input, SDI embedded audio

input and mute function.

Functional Description

4. Dial switch 6 ON, signal format is 480i, signal swap

CbCr.

9. Dial switch 7 OFF, dial switch 8 OFF: DVI signal,

no audio output.
