RHINO PilotTX Bedienungsanleitung
PilotTX
Series I
Document: PILOTTX.doc
Release: 26 August 2003
Instructions
Designed and Manufactured in Australia by
N517
2
PilotTX
The PilotTX is a unique device offering the ability for home automation. This device is
simply activated using a LED from an already existing hardwired detector. When the
LED turns “ON” the PilotTX will transmit a fixed code to a receiver that has the
ability to automatically do a given task.
Specifications
Number of Fixed Code: Up to 256 unique fixed codes can be transmitted.
Range: 30m Line Of Sight
Power Supply: 12V DC
Installation
The PilotTX
Picture 1: Top View
Picture 2: Bottom View
Power Leads:
Antenna:
LDR:
Power Leads: Antenna:
Fixed Code
DIP Switch
Selector:
3

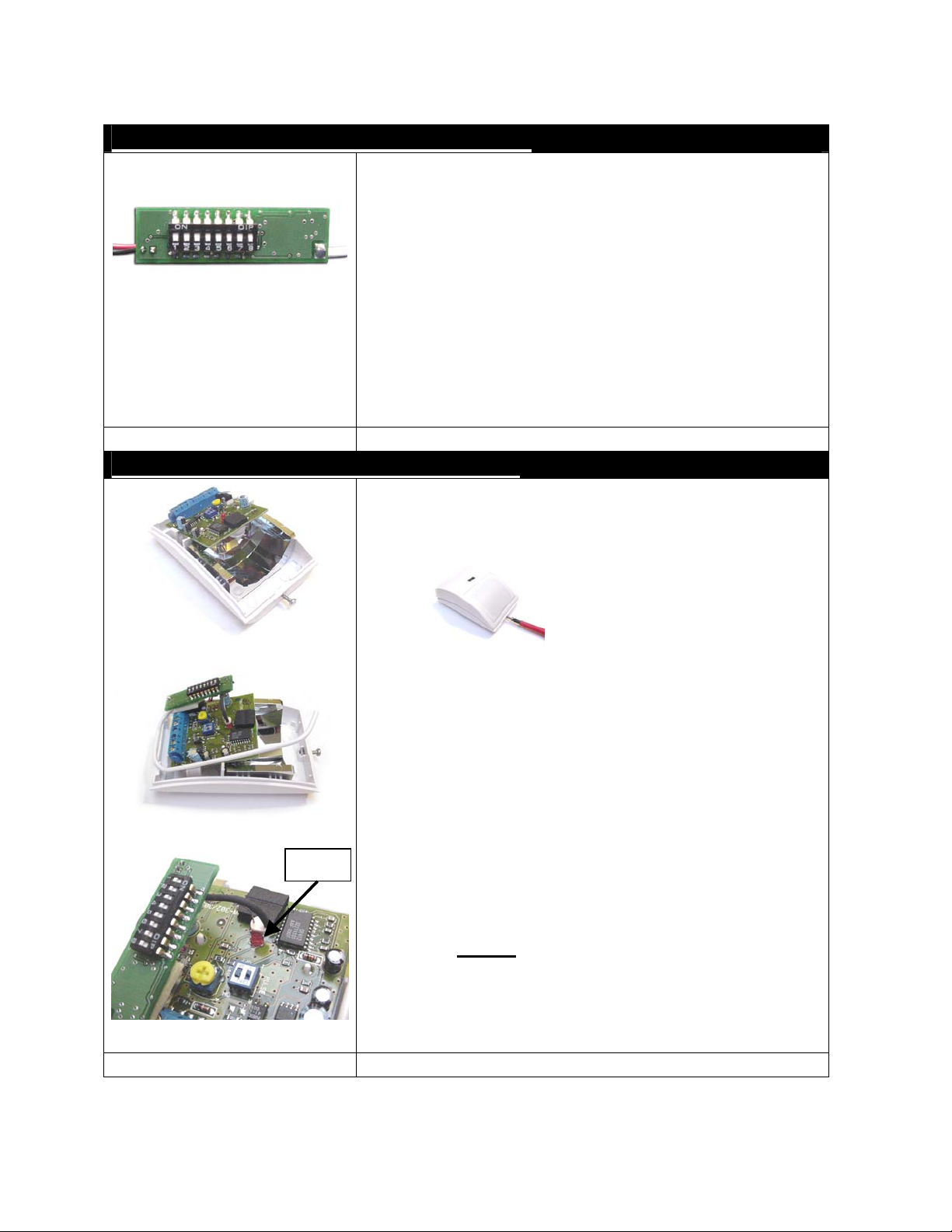

How To Set The Code For The PilotTX
To Set the fixed code that the PilotTX will transmit
when it is activated follow these steps:
1. Using a pair of tweezers or other implement with
a point, flick the some of the white switches to
the “ON” position to form a unique combination.
NOTE: No two PilotTX transmitters can have the same
code as this will cause false alarms. If two do have the
same DIP switch position simply switch one or more
switches to a different position.
Inserting The PilotTX Into A Detector
1. Remove the front cover of the PIR.
NOTE: You may need to undo a screw to be able to
remove the cover.
2. Connect the Red power lead of the PilotTX to
+12V DC. And the Black power lead to
EARTH.
3. The Antenna: For the best range, keep the
antenna away/off the detectors printed circuit
board and arranged so that it follows the edge of
the inside of the detector.
4. Place and secure the PilotTX so that the LDR
will be able to be placed in front of the LED.
You MUST ensure that the LDR is facing
directly into the LED.
5. Place the front cover back on the PIR and if
required tighten the screw back up.
ON Position
LED
