APX 1000+ Assembly Manual

AP-Xtreme

Sim-Racing Chassis

Master Assembly Guide

This guide covers all options available for the AP-Xtreme chassis.

Some sections of this guide will be skipped based on the options chosen.

APX1000

APX2000

APX3000

APX3000UW

SlipSense

gSense

VR Option

Pedal Options

Floor Mount

Hanging Mount

Dead Pedal

4th Monitor

Mount

Shaker

Option

Shifter Mount

Option

Speakers

Button Box

Hand Brake

Pro Shifter

Pro Seat Rails

WindSense

Page 2

Revised: 3/9/2020

Last Edited by: FR

APX 1000+ Assembly Manual

Tools needed:

#2 Phillips Screwdriver

#3 Phillips Screwdriver

½” Wrench

7/16” Wrench

10mm Wrench

Tape Measure

Drill with ¼” (7mm) drill bit*

Blanket or another soft surface to work on

*May only be required if mounting GTpro Pedals (floor or hanging version)

Refer to page 33

Required Assembly Time

Plan your time wisely. These are assembly time estimates based on the average novice builder. These times are for

assembly of the chassis and mounting the peripherals only. Connecting components, configuring your system and

cable management will require additional time.

APX-1000: about 4 hours

APX-2000: about 5 hours

APX-3000: about 6 hours

APX-3000UW: about 7 hours

Slip-Sense Add-On: about 3 additional hours

Pay particular attention to comments marked with the symbol.

Please call us if you have any problems during the assembly process, even if it is

after hours. You can press 1 when prompted and leave a voicemail after hours

and a technician will be attempted to be reached to return your call. We

understand these projects are usually undertaken outside of normal business

hours and we will try to help you as best we can during that time. (305)417-9241

Page 3

Revised: 3/9/2020

Last Edited by: FR

APX 1000+ Assembly Manual

Section 1: AP-Xtreme Slip Sense Assembly Contents

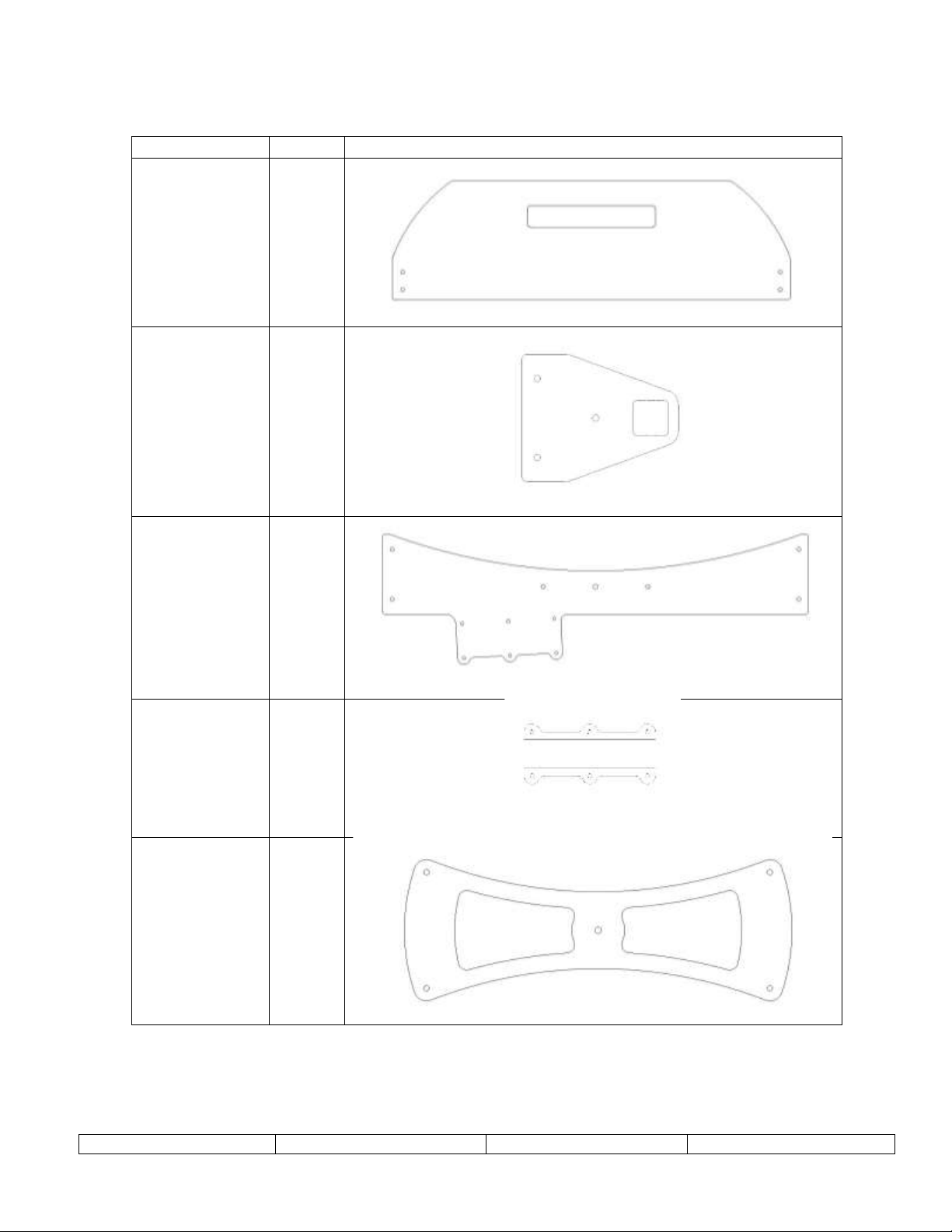

Panels Included

Item Code

Qty


Page 4

Revised: 3/9/2020

Last Edited by: FR

APX 1000+ Assembly Manual

Item Code

Qty


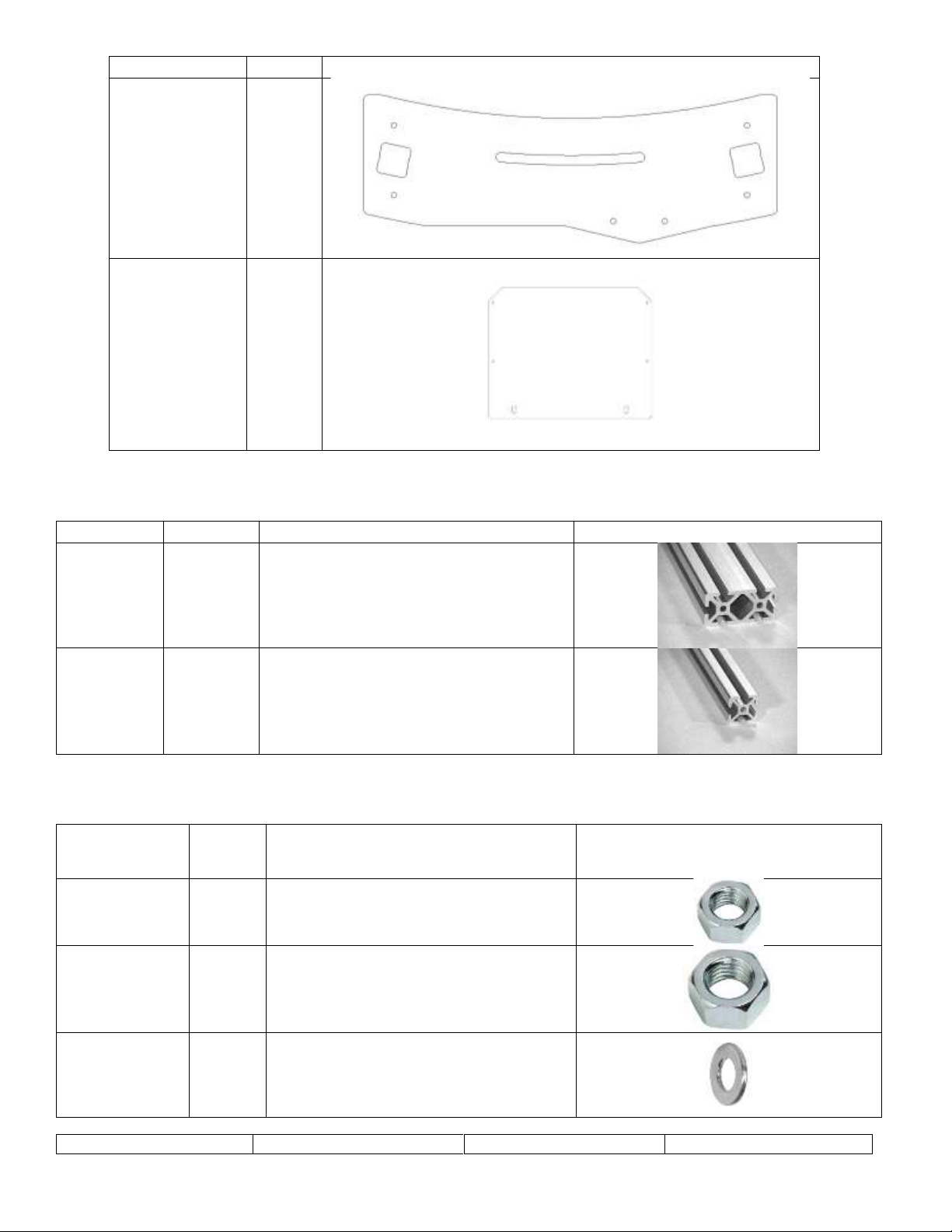

Extrusion Profile

Item Code

Qty

Size


ET1

3” x 1.5” x 66”

ET2

1.5” x 1.5” x 30.5”

Hardware Included

Item Code

Qty

Description


Hex Nut ¼-20

Hex Nut 5/16-18

Flat Washer ¼

Page 5

Revised: 3/9/2020

Last Edited by: FR

APX 1000+ Assembly Manual

Item Code

Qty

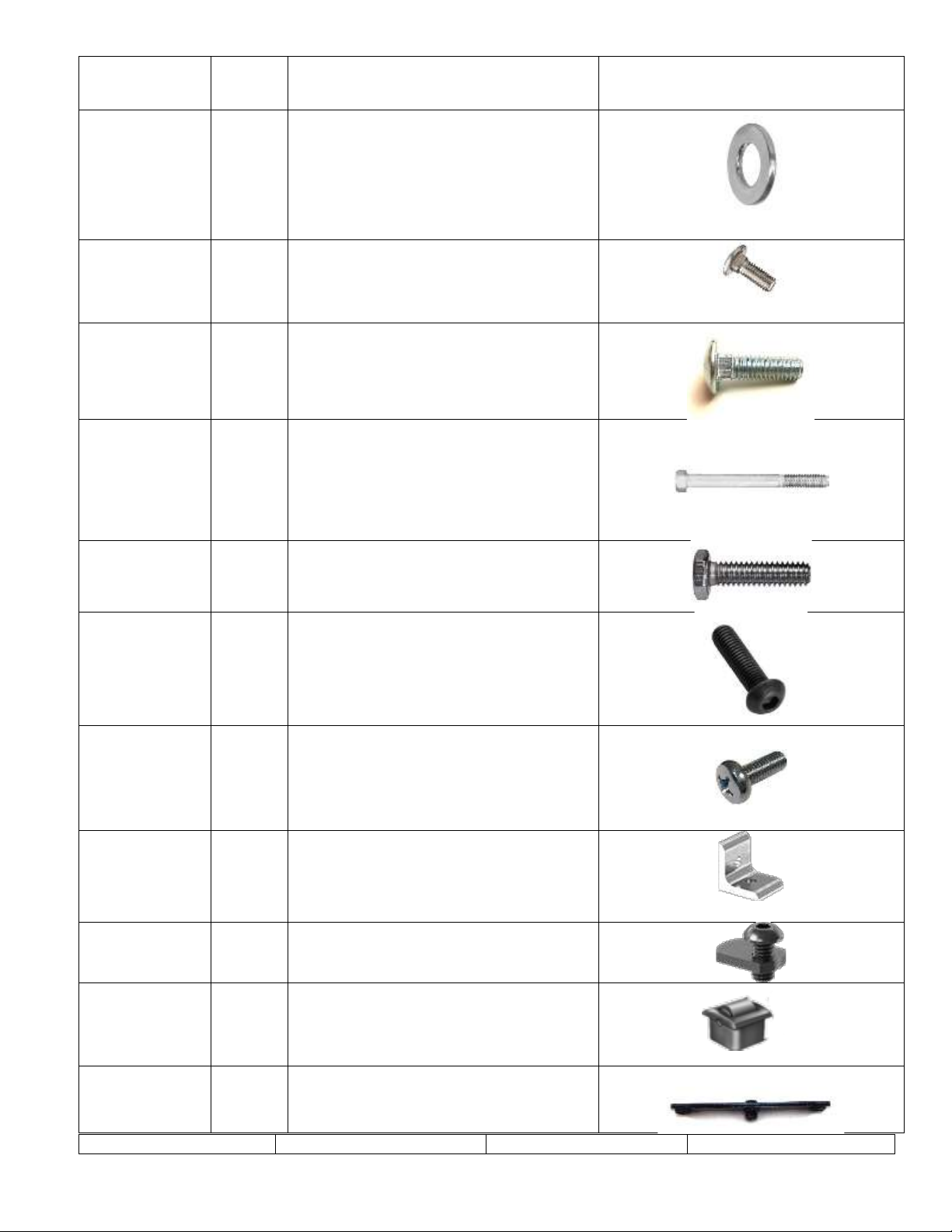

Description


Flat Washer 5/16

C2-1

Carriage Bolt 5/16-18 x 0.75

C2-2

Carriage Bolt 5/16-18 x 1.25

C1-3

Carriage Bolt ¼-20 x 3.25

H2-2

Hex Bolt 5/16-18 x 1.50

Button Head 5/16 x 1.25

Screw 8-32 x 0.50

Angle Bracket

5/16-18 T-Slot Nut and Bolt

Roller

N4-A

Threaded Insert Plate with 1 set screw

(may be pre-installed)

Page 6

Revised: 3/9/2020

Last Edited by: FR

APX 1000+ Assembly Manual

Item Code

Qty

Description


N4-B

Threaded Insert Plate with 2 set screws

(may be pre-installed)

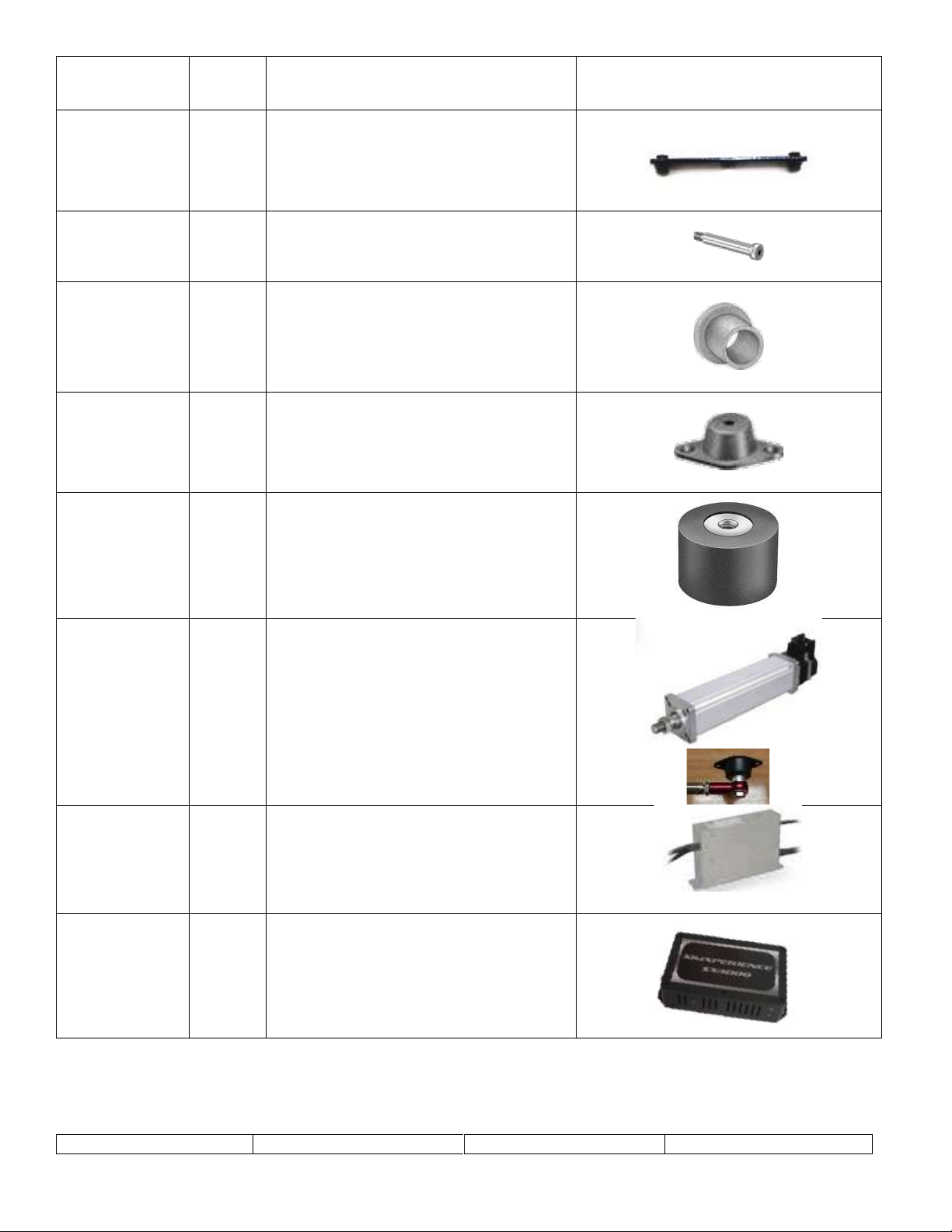

Guide Bolt

Bronze Bearing

A10

Vibration Mount

PF1

Rubber Feet

SX1

Slip Sense Actuator w/ Coupling

SX2

Actuator Control

SX4000

Power Supply

(Only 1 for SlipSense and G-Sense)

Page 7

Revised: 3/9/2020

Last Edited by: FR

APX 1000+ Assembly Manual

Item Code

Qty

Description


FGK

Finger Guard Kit

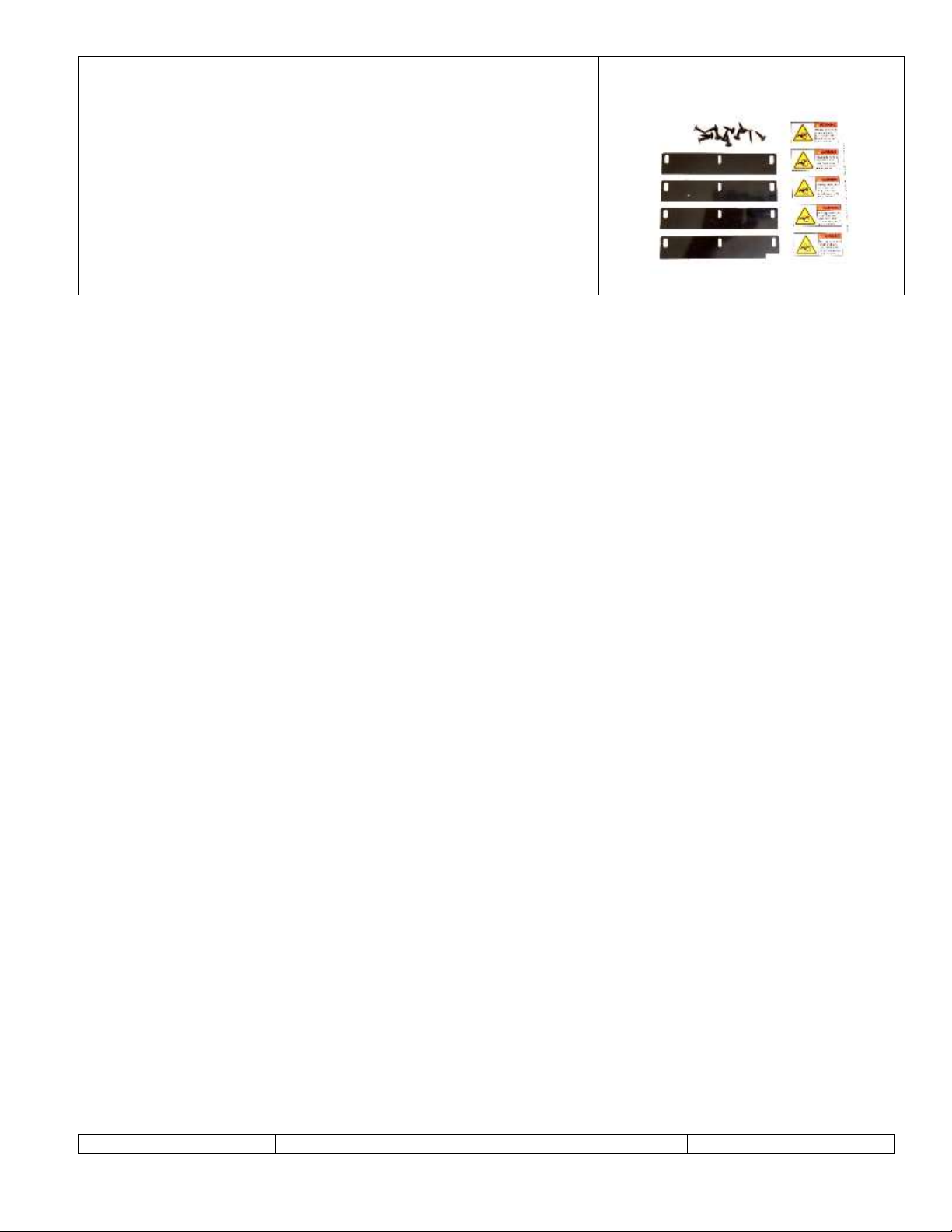

Page 8

Revised: 3/9/2020

Last Edited by: FR

APX 1000+ Assembly Manual

Section 2: G-Sense Components

Item Code

Qty

Description


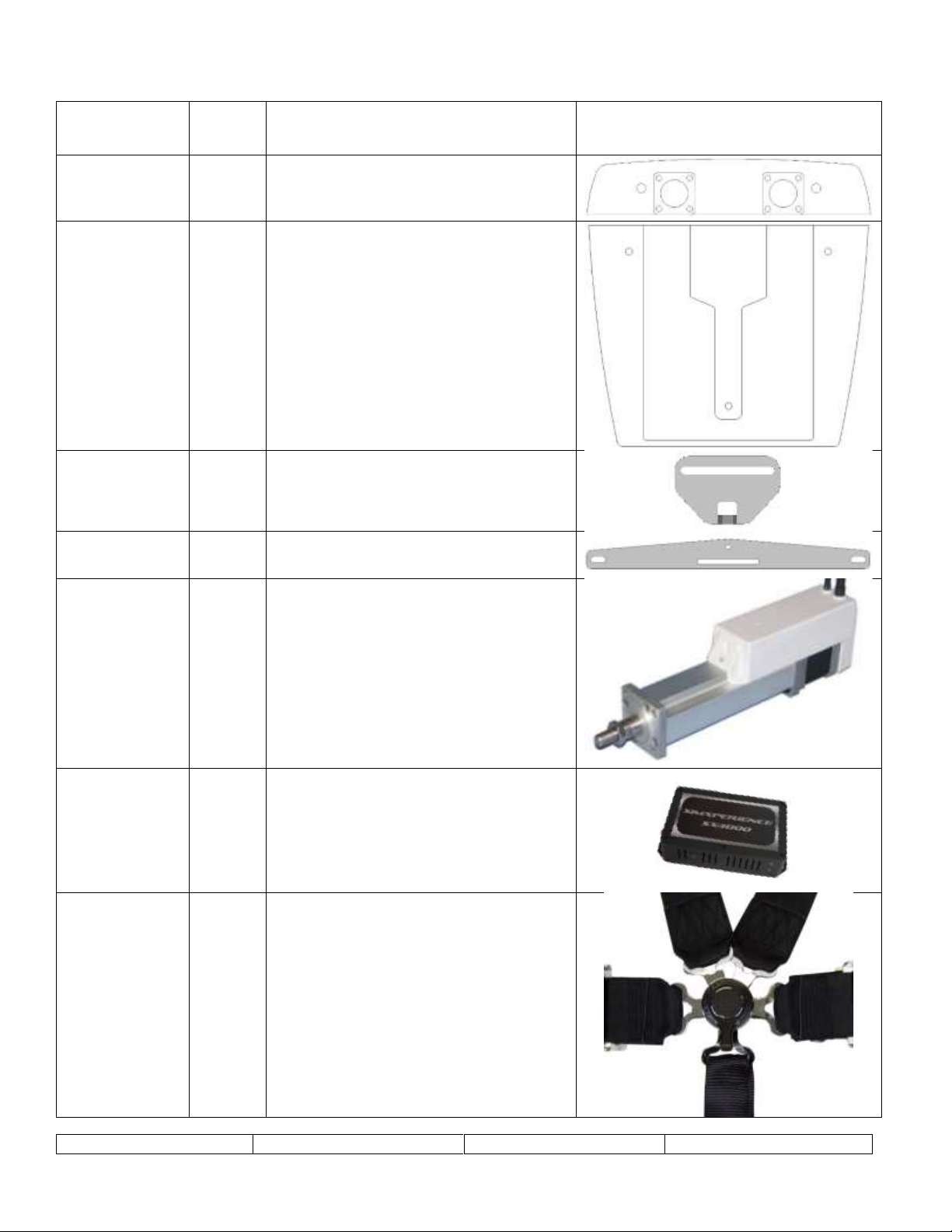

GB1

G-Sense Actuator Top

GB2

Actuator Cover Panel

GA1

Flat Washer ¼

GA2

SXG

G-Sense Actuator

SX4000

Power Supply

(Only 1 for SlipSense and G-Sense)

GBELT

Specially Modified Belts

for G-Sense System

Page 9

Revised: 3/9/2020

Last Edited by: FR

APX 1000+ Assembly Manual

Item Code

Qty

Description


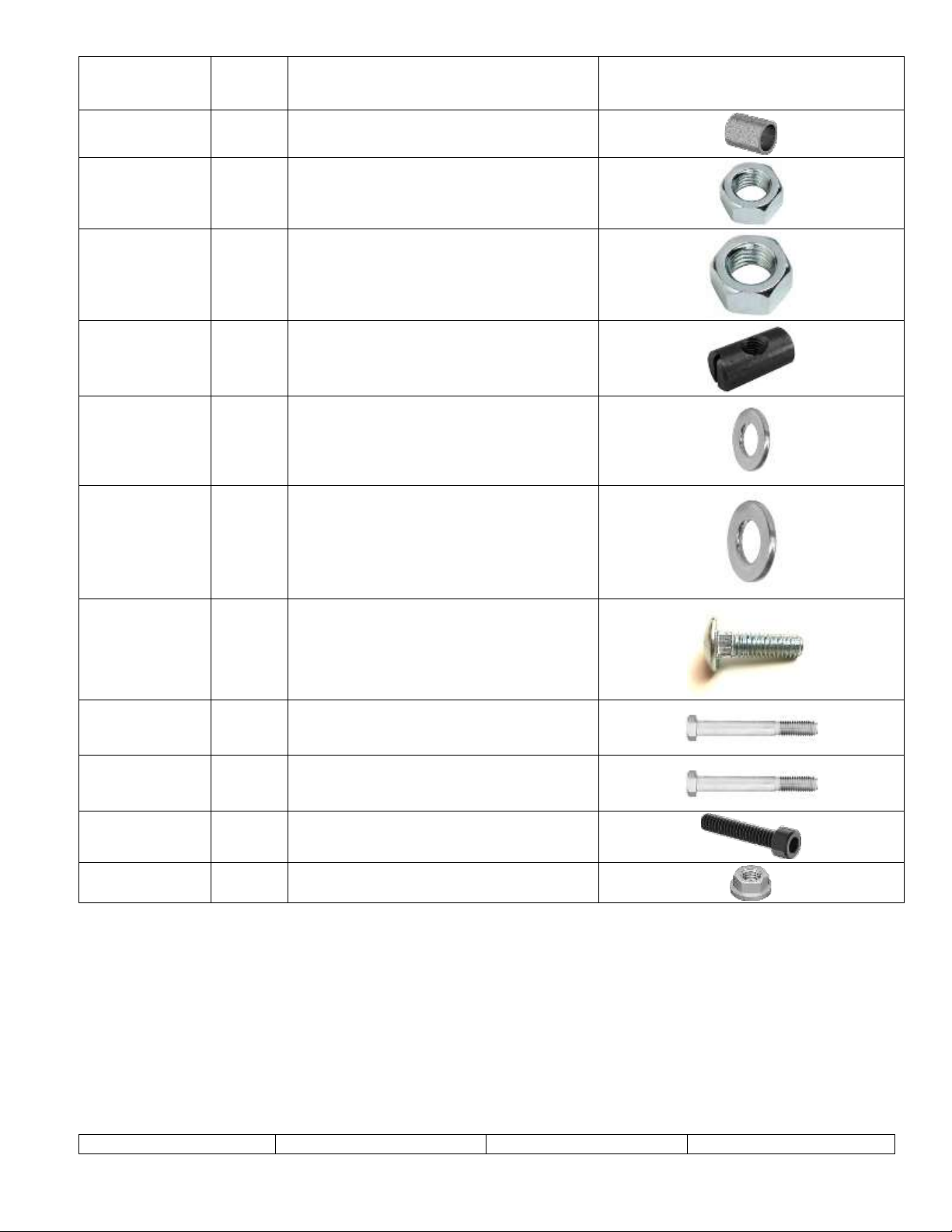

Anchor Sleeve

Hex Nut ¼-20

Hex Nut 5/16-18

Dowel Nut ¼-20

Flat Washer ¼

Flat Washer 5/16

C2-4

Carriage Bolt 5/16-18 x 1.25

H1-3

Hex Bolt ¼-20 x 2.25

H1-4

Hex Bolt ¼-20 x 3.00

HG1

Allen Head #10 x 1.00

NG1

#10 Flanged Nut

Page 10

Revised: 3/9/2020

Last Edited by: FR

APX 1000+ Assembly Manual

Section 3: AP-Xtreme Core Assembly Components

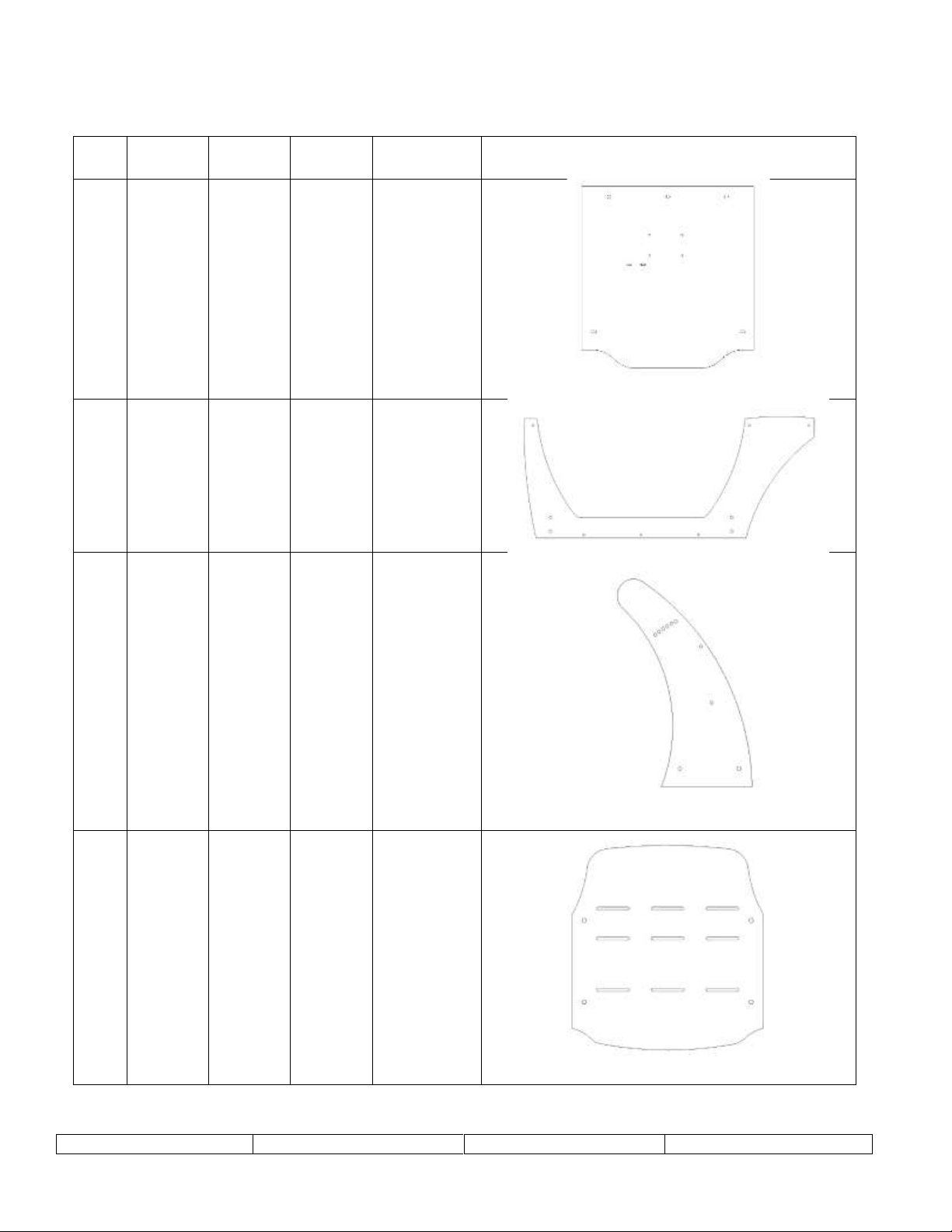

Panels Included (Box 1)

Item

Code

Qty for

APX1000

Qty for

APX2000

Qty for

APX3000

Qty for

APX3000UW


May have holes/slots based on pedal selection

May be omitted based on pedal selection
