Riedel CCP1116 Bedienungsanleitung

CCP1116

Quick Guide

Commentary Panel

Document Reference 1.2

S.Franke

01/2013

Dieses Handbuch ist urheberrechtlich geschützt. Das Kopieren, Vervielfältigen, Übersetzen oder Umsetzen in irgendein elektronisches Medium oder maschinell lesbare Form im

Ganzen oder in Teilen ohne vorherige schriftliche Genehmigung von Riedel ist nicht gestattet. Riedel übernimmt keine Gewähr für die Richtigkeit des Inhalts dieses Handbuchs.

Die Rechte an anderen in diesem Handbuch erwähnten Marken- und Produktnamen liegen bei ihren Inhabern und werden hiermit anerkannt.

Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Riedel. Every effort has been made to ensure that the information in

this manual is accurate. Riedel is not responsible for printing or clerical errors. All trademarks are the property of their respective owners.

CCP-1116 Commentary Control Panel –Quick Guide 1.2

TABLE OF CONTENT

1CONTROL ELEMENTS - DESCRIPTION..........................................................................................................................4

2CONNECTORS ..................................................................................................................................................................5

2.1 Connectors front side ..............................................................................................................................................................5

2.2 Connectors rear side................................................................................................................................................................6

3REAR SIDE - DIP SWITCHES ..........................................................................................................................................7

4AUDIO BLOCK DIAGRAM................................................................................................................................................8

5DIRECTOR CONFIGURATION OF A CCP-1116 .............................................................................................................9

5.1 Key assignment Commentator A/B................................................................................................................................... 10

5.2 GPIO functions....................................................................................................................................................................... 12

5.3 Commentary Audiopatch settings...................................................................................................................................... 13

6PANEL TEST / CONFIG MODE..................................................................................................................................... 15

6.1 Info .......................................................................................................................................................................................... 15

6.2 Key Test .................................................................................................................................................................................. 15

6.3 Config...................................................................................................................................................................................... 16

6.3.1 Config: Text Color............................................................................................................................................................... 16

6.3.2 Pan Type ............................................................................................................................................................................. 17

6.4 Demo Mode............................................................................................................................................................................ 17

7SPECIFICATIONS .......................................................................................................................................................... 18

8SERVICE......................................................................................................................................................................... 19

9NOTES ............................................................................................................................................................................ 20

CCP-1116 Commentary Control Panel –Quick Guide 1.2

Page 4

1CONTROL ELEMENTS - DESCRIPTION

Nr.

Function

Description

AUX 1 ON

Activating the button: Mixes analog input „AUX 1“ from the rear side to the

Headphones (depending of the dip-settings on the rear side to the left-, right- or

both ears). The button will light up in yellow. With the Levelmeter you can adjust

the listen level.

AUX 2 ON

Activating the button: Mixes analog input „AUX 2“ from the rear side to the

Headphones (depending of the dip-settings on the rear side to the left-, right- or

both ears). The button will light up in yellow. With the Levelmeter you can adjust

the listen level.

MIC B ON

Activating the button: Mixes the MIC B from 2nd commentator to the Headphones

(depending of the dip-settings on the rear side to the left-, right- or both ears). The

button will light up in yellow. With the Levelmeter you can adjust the listen level.

MIC A

Sidetone: Mixes the “MIC A” signal to the Headphones A (depending of the dip-

settings on the rear side to the left-, right- or both ears). With the Dip switch

“Always” you can choose to activate the Sidetone always or only when ON AIR is

pressed

MIC A Signal

LED

Indicates green, as soon a signal from MIC A is coming into the CCP-1116. LED-

color changes to orange, when the signal is clipping

PHONES A

Adjust the outgoing volume to Phones A

ON AIR A

(Latching)

Activates the “ON AIR” function. When activated, the Button light up red. The “MIC

A” is sent to the analog outputs “AIR A OUT” and “AIR A+B OUT”. Also GPI IN 1 is

internally activated and can be used within the Artist configuration. The Level

meter is showing the ON AIR Mic level with green and orange LEDs

MIC A MUTE

(Momentary)

Mute the “MIC A” input. When activated the button light up yellow. If “ON AIR” is

activated, also this button changes color to yellow. The “MIC MUTE” buttons can

also be activated via GPO 1 (A) and 2 (B) within the Artist configuration

CCP-1116 Commentary Control Panel –Quick Guide 1.2

Page 5

Intercom Mic

Connector for standard Artist microphones. Normally not used for commentary

mode, only when the CCP-1116 is used as ordinary Intercom panel.

Function keys

Standard Artist panel function keys (Shift, HS, OPT, F1, F2) + Master Volume.

ATTENTION: The Master Volume is not influencing the volume of Phones A or B

Speaker

Panel speaker. Normally not used for commentary mode, only when the CCP-

1116 is used as ordinary Intercom panel.

Intercom OLED

keys

Standard keys, to be configured within the Artist configuration

1-7 is identically also for Commentator B

2CONNECTORS

2.1 Connectors front side

1 2 3 4 5 6

Nr.

Function

Connector

Type

Artist Director

Pin out

PHONES A

6,35mm

Stereo Jack

Audio Patch:

Audio OUT A

Tip: Left

Ring : Right

Sleeve: GND

MIC A

XLR3 female

Audio Patch:

Audio IN A

Pin 1 : Shield

Pin 2 : Signal + (hot)

Pin 3 : Signal –(cold)

HEADSET A

INTERCOM

(only for pure

Intercom use)

2 3

XLR4 male

Audio Patch:

Headset A

Pin 1: Shield (Mic -)

Pin 2: MIC + (+4V - switchable within

Director)

Pin 3: Phones –

Pin 4: Phones +

HEADSET B

INTERCOM

(only for pure

Intercom use)

2 3

XLR4 male

Audio Patch:

Headset B

Pin 1: Shield (Mic -)

Pin 2: MIC + (+4V - switchable within

Director)

Pin 3: Phones –

Pin 4: Phones +

MIC B

XLR3 female

Audio Patch:

Audio IN B

Pin 1 : Shield

Pin 2 : Signal + (hot)

Pin 3 : Signal –(cold)

PHONES B

6,35mm

Stereo Jack

Audio Patch:

Audio OUT B

Tip: Left

Ring : Right

Sleeve: GND

CCP-1116 Commentary Control Panel –Quick Guide 1.2

Page 6

2.2 Connectors rear side

12345 6 78910 11 12 13 14

Nr.

Function

Connector Type

Artist

Pin out

Main Input

90-265V, 47-63Hz

DC EXT. 12V

2 3

XLR4 male

Pin 1: GND

Pin 2: n.c.

Pin 3: n.c.

Pin 4: +10 …+14VDC (3A)

GPIO

XLR5 female

Panel GPI IN 3

Panel GPI Out 3

Pin 1: OUT - ( > Director: GPI Out 3)

Pin 2: OUT + ( > Director: GPI Out 3)

Pin 3: IN - ( > Director: GPI IN 3)

Pin 4: IN + ( > Director: GPI IN 3)

Pin 5: +5V (250mA)

Shield: Ground

MATRIX (BNC)

BNC

Pin: Tx/RX Data +

Shield: Tx/Rx Data -

MATRIX (CAT5)

CAT5

Pin 1: TxD +

Pin 2: TxD –

Pin 3: RxD +

Pin 6: RxD -

Ext. Speaker

1 2

XLR3 male

Audio Patch:

Ext. OUT

Tip: Left

Ring : Right

Sleeve: GND

LINE IN

XLR3 female

Audio Patch:

External MIC

(only available in

Speaker Mode)

Pin 1 : Shield

Pin 2 : Signal + (hot)

Pin 3 : Signal –(cold)

AUX 1 IN

XLR3 female

n.a.

See 7

AUX 2 IN

XLR3 female

n.a.

See 7

DIRECT B OUT

(permanent)

XLR3 male

n.a.

See 6

AIR B OUT

XLR3 male

n.a.

See 6

AIR A+B OUT

XLR3 male

n.a.

See 6

DIRECT A OUT

(permanent)

XLR3 male

n.a.

See 6

AIR A OUT

XLR3 male

n.a.

See 6

CCP-1116 Commentary Control Panel –Quick Guide 1.2

Page 7

3REAR SIDE - DIP SWITCHES

Example for Commentator A. Identical functionality for Commentator B

Nr.

Function Group

Function

Description

PHONES MODE

MIC A

Routes MIC A signal (Sidetone) to left-(L), right- (R), or both ears (M)

PHONES MODE

MIC B

Routes MIC B signal to left-(L), right- (R), or both ears (M)

PHONES MODE

I/COM

Routes Intercom signal to left-(L), right- (R), or both ears (M)

PHONES MODE

AUX 1

Routes AUX 1 signal to left-(L), right- (R), or both ears (M)

PHONES MODE

AUX 2

Routes AUX 2 signal to left-(L), right- (R), or both ears (M)

ALWAYS

MIC A

Sidetone MIC A: Always routed to the phones A, or only when “ON AIR

A” is pressed

ALWAYS

MIC B

MIC B signal always routed to the phones or only when “ON AIR B” is

pressed. Only works when “MIC B ON” is activated.

MIC Settings

GAIN

Adjust Mic Input gain

MIC Settings

-20dB

Switch between Dynamic- (OFF) and Electret Microphone (-20dB ON)

MIC Settings

48V

Switch 48V Phantom power ON/OFF

CCP-1116 Commentary Control Panel –Quick Guide 1.2

Page 8

4AUDIO BLOCK DIAGRAM

CCP-1116 Commentary Control Panel –Quick Guide 1.2

Page 9

5DIRECTOR CONFIGURATION OF A CCP-1116

When you want to use the CCP-1116 Commentary panel with its full functionality for 2

commentators, you have to adapt some configuration settings in the Director.

First you have to create a new CCP-1116 on an odd digital port (for 2channel operation) and

activate „enable 2nd Audio channel“ in the properties of the port.

Open the Panel view with a double click on the port.

Hint: Up from Director 6.60 the CCP will be created automatically as a 2-channel port, when you

add it to an odd port and the following port is unused.

CCP-1116 Commentary Control Panel –Quick Guide 1.2

Page 10

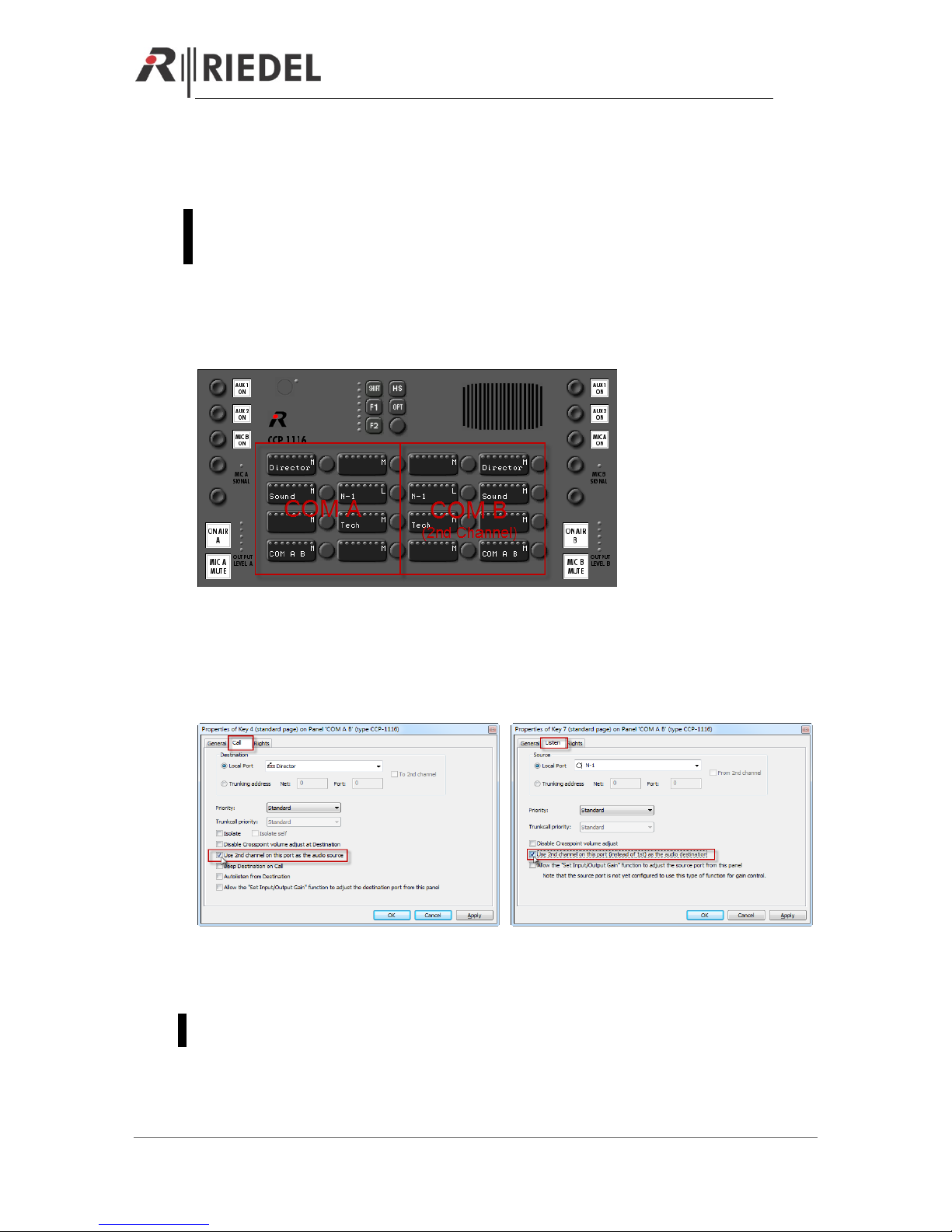

5.1 Key assignment Commentator A/B

Attention: The commentator Function buttons, like „ON AIR, MIC Mute, AUX1, AUX2, etc“ cannot be

configured and monitored in Remote control in the Director. They are just showing the Design of

the CCP-1116.

Now you can add all needed functions and calls to the keys of the CCP-1116 with drag and drop.

When you want to use the panel with 2 commentators you can virtually split the keys for example

in the middle and configure functions for Commentator A on the left and for commentator B on

the right keys.

Please keep in mind that on all functions for the Commentator B the 2nd audio channel as source

has to be enabled. You can find this option in the properties of the audio functions.

So open the properties of the keys with audio functionality for Commentator B one after the other

and enable the 2nd audio channel as source for “Call to…” functions, and also as source for “Listen

to…” functions.

When commentator Aneeds to talk directly with commentator Band reverse, just drag and drop

this CCP-1116 panel to both sides of the panel to create “Call to port” functionality. Afterwards it is

recommended to edit the key label of both keys manually.

ATTENTION: The other possibility is to activate the keys „MIC B ON“, resp. „MIC A ON“ direct on the

CCP-1116 to route the Mic signal of the other commentator permanently to the own Phone-mix.
