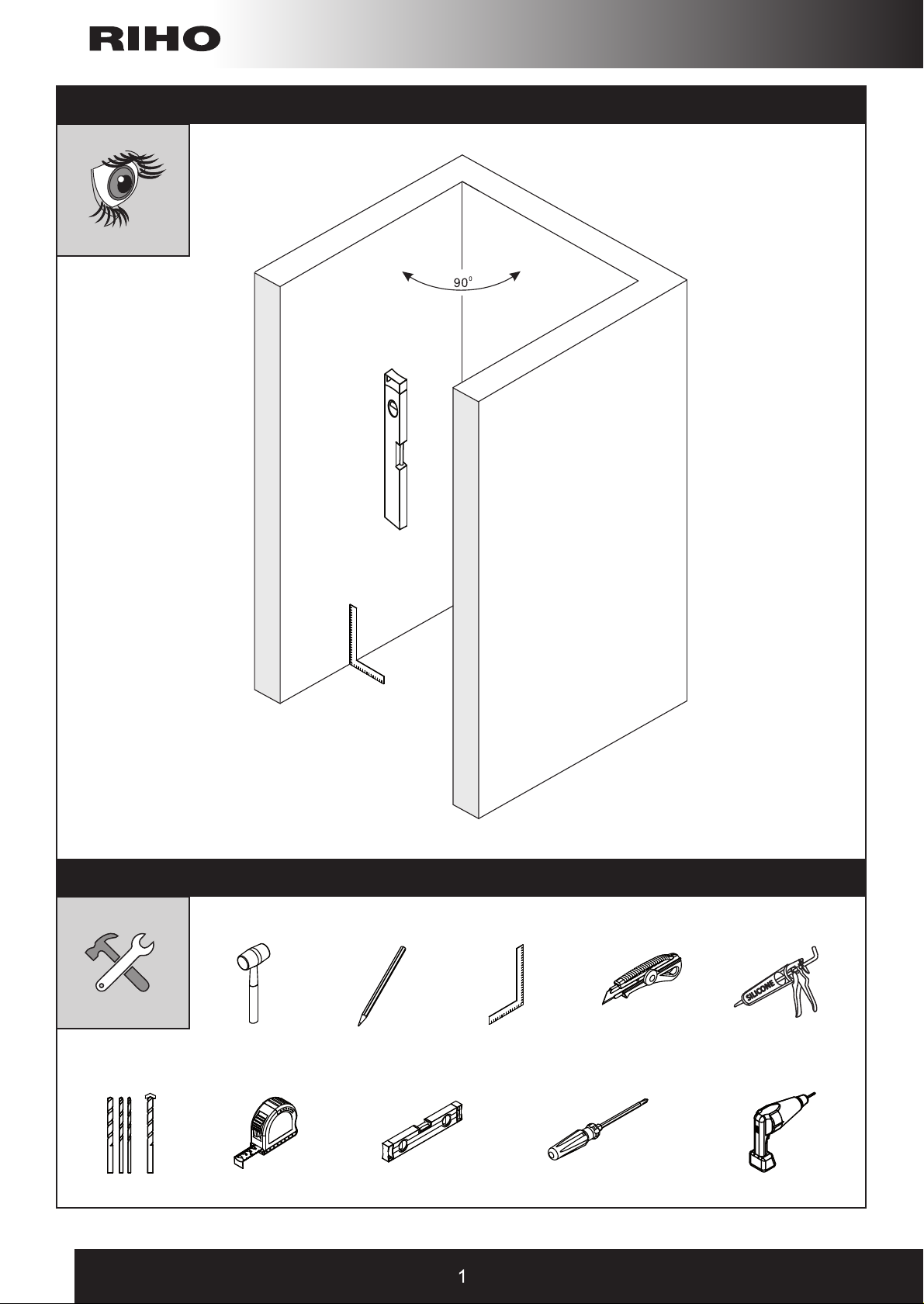

RIHO Spring Bedienungsanleitung
Spring Under Basin Cabinet
Installatiehandleiding | Installation manual | Manuel d’installation |
Montageanleitung | Návod k instalaci | Instrukcja instalacji |
Telepítési kézikönyv | Руководство по установке
IW00412.0
Spring Glow
Spring Rise
Spring Vow
600/800/1000
15
150
595
595
900
1200
15
150
600
595
595
900
600/800/1000
120
490
150
705
900
1000/1200
120
490
150
705
500/600
900
600/800/1000
80
150
745
530
900
1000/1200
80
150
745
530
500/600
900
Supply and discharge dimensions (mm)
IF00418.0
Supply and discharge dimensions (mm)
Spring Blush
600/800/1000/1200
15
150
595
900
Spring Dew
900
600/800/1000
15
150
595
900
1200
15
150
595
600
3
IF00418.0
Under Basin Cabinet
Page 3 & 4
2. Measure and mark holes
for attaching wall brackets
W
900
H
W-60
900-H-100
32
mmØ8
4x
1. Check supply & discharge dimensions
H = Height Washbasin W = Width Under Basin Cabinet
3. Drill holes and insert wall plugs
4. Mount wall brackets
5. Remove drawers from cabinet 6. Attach hanging brackets on cabinet
7. Mount cabinet on wall 8. Level under basin cabinet
Bottom drawers
2. Click & Lift
1. Slide out drawer first
4
IF00418.0
Under Basin Cabinet
9. Mark holes for safety pins
11. Drill the two holes and insert wall plugs
mmØ8
2x
10. Unmount cabinet from wall
12. Mount under basin cabinet back on wall
13. Screw in safety pins
14. Check level & attach
slide over bracket covers
15. Insert drawers back in cabinet
16. Level drawers
1
3
4
2
Vertical adjustment
Fixation
Remove front panel
Horizontal Adjustment
For lacquer cabinets:
Remove rubber bumpers on front of side panels
before adjusting drawers.
2. Gently push drawer &
pull slider until click sound
1. Pull out sliders &
place drawers on top
5
IF00418.0
IF00418.0
Under Basin Cabinet
16. Attach drawer system cover 17. Place washbasin & seal
19. Attach pop-up & siphon
18. Finish off sealing
Only for washbasin with overflow
6
