Roadragon G-V303 Bedienungsanleitung
G-V303 User manual
0
User Manual
G-V303
G-V303 User manual
1
Contents
1 Introduction.................................................................................................................................................... 2
1.1 product description..............................................................................................................................2
1.2 Product Feature................................................................................................................................... 2
1.3 Product Nameplate..............................................................................................................................3
1.4 The Product Configuration List.......................................................................................................... 3
2 Product Overview...........................................................................................................................................5
2.1 Parts List............................................................................................................................................. 5
2.2 Specifications......................................................................................................................................5
2.2.1 Specifications...........................................................................................................................5
2.2.2 Parameter index....................................................................................................................... 6
2.3 Interface Characteristics..................................................................................................................... 8
3 Product Interface Definition And Wiring Instructions.................................................................................. 9
3.1 Drawing...............................................................................................................................................9
3.2 Interface Definition...........................................................................................................................13
3.3 Instructions........................................................................................................................................15
3.3.1 Menu Indication.....................................................................................................................15
3.3.2 Definition Of Indicator Light................................................................................................ 18
3.3.3 Operation............................................................................................................................... 19
4 Analysis of Common Problems and After-sales Service.............................................................................20
4.1 Common Problem Analysis And Solution....................................................................................... 20
4.2 Attention............................................................................................................................................22
4.3 After-Sale Service.............................................................................................................................22
G-V303 User manual
2
1 Introduction
1.1 product description
G-V303 is an intelligent driving assistant system based on image recognition technology.
This technology can not only monitor the unsafe behavior of driver's fatigue driving,
distraction driving, lane deviation, front car proximity, blind area pedestrian and so on, but
also cooperate with the monitoring driving platform to upload data and dispatch intervention.
It suggests that the driver should regulate driving, bring the driver more active and intelligent
safety guarantee, and reduce the accident rate.
1.2 Product Feature
◆In line with relevant national policy standards: Beidou Standard Protocol （JT/T 794-
2011 、JT/T 808-2011 ）, National Standard Protocol （GB/T 19056-2012 ）, Beidou
Standard Video Protocol（JT/T 1076-2016、JT/T 1078-2016）
◆Support 6 channels 720P HD video real-time storage and upload.
◆Support for built-in printers.
◆Support for remote intercom.
◆Support one 2.5-inch hard disk (solid/mechanical) and two SD card cyclic storage
◆Built-in driving recorder, that is, the car "black box". Provide an important basis for the
determination of liability for accidents.
◆Multiple expansion interface, support to connect to fuel sensor, advertising screen,
broadcast station, etc.
◆It can be connected to the ADAS intelligent driving assistance system to provide voice
warning prompts for dangerous driving behaviors such as vehicle deviation and collision risk;
provide voice warnings for drivers' dangerous driving, such as fatigue, smoking, making
phone calls, chatting and other dangerous driving behaviors.
◆Blind area detection system, exclude the blind area of rearview mirror, detecting
pedestrians in the blind area of rearview mirror on the side of the vehicle through the camera,
reminding drivers and pedestrians, so as to avoid accidents caused by pedestrians moving to
the blind area of rearview mirror during driving.
◆Through the USB connection of senior assistant (APP), the equipment parameters can be
configured flexibly, the active safety intelligent prevention and control and blind area
detection system can be calibrated, and the camera angle adjustment and fault query can be
facilitated.
G-V303 User manual
3
1.3 Product Nameplate
Product Name: Car Video Monitoring Terminal
Product Model: G-V303 4G
Product Specifications: L172mm*W188mm*H59mm
Implementation Standards: GB/T 19056-2012, JTt/T 794-2011, JT/T 808-2011, JT/T
1076-2016, JT/T 1078-2016
1.4 The Product Configuration List
Table 1 Product Standard List
No
Name
Quantity
Remark
1
Host
1
2
Power Cable
1
16PIN
3
Audio and video
1
Connect camera, AV display screen
4
T7 Audio Transfer Line
1
Connect the TTS speaker and pickup
5
4G Communication
Antenna
1
6
Positioning antenna
1
7
TTS Speaker
1
8
Color IC Card
1
Pink high temperature card
9
Key
1
10
Iron Bracket
2
With screws
11
Specification, warranty
card, certificate of
qualification
1
Three-in-one
12
Car Video Neutral Packing
box
1
13
ADAS camera
1
720P
14
ADAS extension line/3m
1
15
DSM camera
1
6PIN/720P
G-V303 User manual
4
16
Hard disk carrier assembly
1
With screws
Note: The above is a list of the standard configuration of the complete set of products, and
accessories that are out of the above range must be paid extra fee
Table 2 Product Optional List
No.
Name
Quantity
Remark
1
V511H/AHD 720P plastic
big conch camera (with
infrared and audio) red
head
1
Line length is 0.5 m
2
Camera extension cable
(5 m)
1
Extension cord can be connected to
extension cord to achieve greater
length
3
Camera extension cable
(10 m)
1
4
AV screen
1
7 inch
5
Emergency SOS Button
1
6
Velcro
1
7
Pickup
1
8
IC Card
1
Green High Temperature Card
9
National standard
integrated machine anti-
theft box and accessories
1
Note: Pickup intercom needs to be equipped with pickups and TTS speakers.
G-V303 User manual
5
2 Product Overview
2.1 Parts List
Property
description
Product size
Host size: L172mm*W188mm*H59mm
DMS anti-fatigue camera size:76mm *38mm *92mm
ADAS camera size : 62mm *43mm *75mm
BSD camera size: 90mm*64mm*58mm
Acousto-optic alarm: 143mm*125mm*37mm
AV display :172 mm*112mm*47mm ( without bracket)
Product renderings
2.2 Specifications
2.2.1 Specifications
Category
Name
Parametric description
Host
RAM
ARM ：64Mb (external FLASH) T707:
EMMC :8GBT707: DDR :4GB*2
External storage unit
Single hard disk (maximum support 2 T) and
double SD card (maximum support 128 G)
2G/3G/4G
Mobile TD-LTE, Unicom TD-LTE, Unicom FDD-
LTE, Telecom TD-LTE, Telecom FDD-LTE,
Mobile 3 G (TD-SCDMA), Unicom 3(WCDMA),
Telecom 3 G (CDMA2000), Unicom 2 G/ Mobile
2(G SM)
Positioning
GPS/BD double mode, precision <10 m, cold start
time <40
DMS fatigue
Resolution
1280*720
G-V303 User manual
6
camera
Lens parameters
4G，6mm, D=65° H=56° V=31°
Frame rate
25fps
Video format
PAL system
ADAS
camera
Resolution
1280*720
Lens parameters
4G，3.6mm, D=85° H=60° V=53°
Frame rate
25fps
Video format
PAL system
Other
With the speaker
BSD camera
Resolution
1280*720
Lens parameters
4G，6mm, H=75° V=40°
Frame rate
30fps
Video format
PAL system
AV display
Screen size
7 inches
Resolution
800*480
Video format
PAL&NTSC
Video input
CVBS
Interface
4PIN Aviation Head
2.2.2 Parameter index
Technical Item
Technical Specifications
Operating
System
Operating System
Linux
Control Mode
Panel Key, Network, Phone App
AHD720P
6 channels 720P
Output
1 channels CVBS
G-V303 User manual
7
Video signal
PAL
Audio
Input
Most 5 channel audio
Output
Most 2 channel audio
Display
Screen Shows
1 /2 /4 /6 screen display
Video
Video and audio
compression format
Video H.264, audio g711a
Image resolution ratio
CIF、HD1、D1、720P
Video mode
Boot/manual/timing/planning/alarm video events
Real-time video
Support
ACC off delay video
Delay parameter range :10-65535 s, default 300
seconds
Mirror video
Support
Alarm video
Support
Video Download
Support
Playback
Playback Channel
Support local multi-channel synchronous
playback, PC software remote single-channel
playback
Browse Mode
Time，Channel
Network
2G/3G/4G
GSM/CDMA/WCDMA/TD-
SCDMA/EVDO/FDD-LTE/TDD-LTE
Storage
SD Card
Double SD Card （Maximum Of Single Card Is
128G）
Hard Disk
Support 1 Hard Disk ，Maximum Of Hard Disk
Capacity Is 2T
G-V303 User manual
8
2.3 Interface Characteristics
Interface Characteristics
Parameter Description
Interface
DB9 Serial
Used for accident suspect data export
Front USB Interface
Data export, ADAS calibration and parameter
setting of part mark for driving recorder
Driver signs IC card
Driver Sign Card
SATA interface
Connect the hard disk
SIM card
Single card (for GPS data upload and video data
transfer)
SD card slot
Support dual cards, SD1 and SD2
4G antenna interface
Connect 4G antenna
GNSS antenna
interface
Connected positioning antenna
AV1-AV6/AV OUT
interface
Connect video wires and AV screens
Pass mouth
Connections to load sensors / LED advertising
screens / meters and other peripherals
Gorge line
Connect oil rod/card reader and other peripherals
SPK/TTS
Interphone, TTS voice broadcast
485/ CAN interface
Connect fingerprint instrument / cloud head and
other peripherals / CAN data acquisition
Power interface
Connect 16 pin power cord
Other
Characteristi
cs
Working Voltage
DC 9-36V
Working Current
600mA@12V；300mA@24V (No load)
Backup Battery
3.2V 1200mah Lithium Iron Phosphate Battery
Working Temperature
-25℃— +80℃
Storage Temperature
-40℃— +85℃
G-V303 User manual
9
3 Product Interface Definition And Wiring Instructions

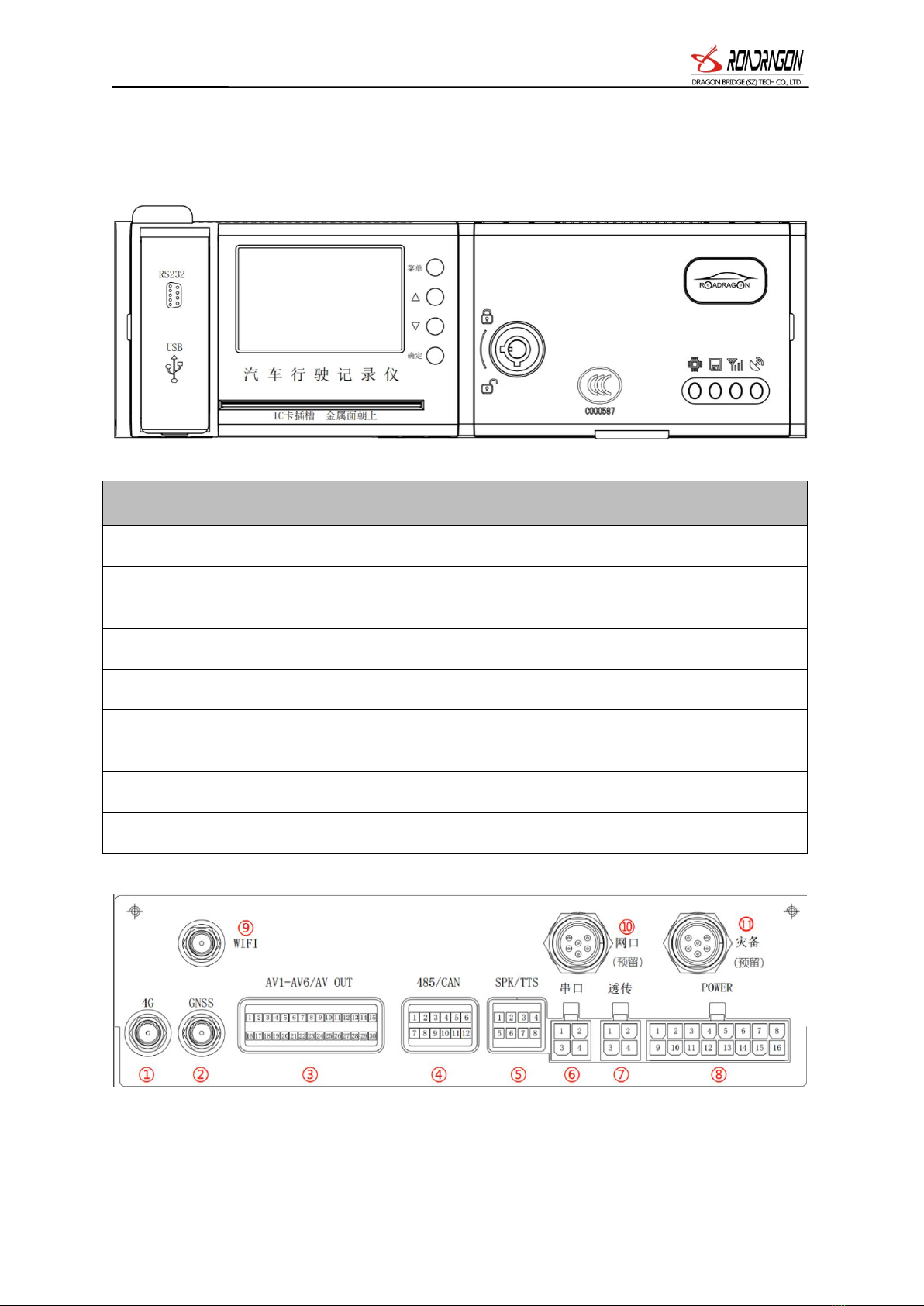

3.1 Drawing
G-V303 Terminal Front
No.
Connect
Interface Specifications
1
RS232
Used for accident suspect data export
2
USB
Connect mobile phone for ADAS calibration,
parameter setting, etc
3
IC card slot
Driver Sign Card
4
Hard drive slot
Hard disk (maximum support 2 T)
5
SIM
Single card (for GPS data upload and video data
transfer)
6
SD1
SD card can be inserted, maximum support 128G
7
SD2
SD card can be inserted, maximum support 128G
G-V303 Terminal Back
