Robe Painte Bedienungsanleitung
1
Version 1.0
Version 1.0
2
Table of contents
1. Safety instructions ......................................................................................................... 3
2. Fixture exterior view ...................................................................................................... 5
3. Installation....................................................................................................................... 6
3.1 Connection to the mains ............................................................................................ 6
3.2 Rigging the xture ...................................................................................................... 7
3.3 DMX-512 connection.................................................................................................. 9
3.4 Ethernet connection ................................................................................................ 10
3.5. Wireless DMX operation ......................................................................................... 11
3.6. Replacing rotating gobos ........................................................................................ 12
4. Remotely controllable functions................................................................................. 13
5. Control menu map........................................................................................................ 15
6. Control menu ............................................................................................................... 19
6.1 Tab " Address" .......................................................................................................... 20
6.2 Tab "Information" ...................................................................................................... 21
6.3 Tab "Personality" ...................................................................................................... 24
6.4 Tab "Manual Control"................................................................................................ 26
6.5 Tab "Stand-alone" .................................................................................................... 26
6.6 Tab "Service" ............................................................................................................ 27
7. RDM ............................................................................................................................... 30
8. Error and information messages ................................................................................ 31
9. Technical Specications.............................................................................................. 34
10. Maintenance and cleaning......................................................................................... 37
10.1 Replacing the fuse ................................................................................................. 37
10.2 Checking plastic parts of the xture ....................................................................... 38
10.3 Disposing of the product ........................................................................................ 38
11. ChangeLog ................................................................................................................. 39
12. Appendix .................................................................................................................... 40
12.1 Changing the LED light source ............................................................................ 40
12.2 Obtaining information about the LED light source by mobile phone .................... 42
Robin Painte
Robin Painte EPS
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR ROBIN PAINTE !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en-
sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes
written in this manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modication to the device.
Please consider that damages caused by manual modications to the device are not subject to warranty.
The Robin Painte was designed for indoor use and it is intended for
professional application only. It is not for household use.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
Make sure that the available voltage is not higher than stated on the rear panel of the xture.
This xture should be operated only from the type of power source indicated on the marking label. If you are
not sure of the type of power supplied, consult your authorized distributor or local power company.
WARNING! This unit does not contain an ON/OFF switch. Always disconnect power input cable
to completely remove power from unit when not in use or before cleaning or servicing the unit.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture and the power
cord from time to time.
Refer servicing to qualied service personnel.
This xture falls under protection class I. Therefore this xture has to be connected to
a mains socket outlet with a protective earthing connection.
Do not connect this xture to a dimmer pack.
LED light emission. Risk of eye injury. Do not look into the beam at short distance of
the of the product. Do not view the light output with optical instruments or any device
that may concentrate the beam.
If the xture has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on
immediately. The arising condensation water might damage your device. Leave the device switched o until
it has reached room temperature.
Avoid brute force when installing or operating the xture.
This xture was designed for indoor use only, do not expose this unit to rain or use near water.
When choosing the installation spot, please make sure that the xture is not exposed to extreme heat, moisture
or dust.
Air vents and slots in the xture´s head and base are provided for ventilation, to ensure reliable operation of
the device and to protect it from overheating.
4
Do not block the front lens with any object when the xture is under operation.
CAUTION! Risk group 2, RG-2
The cooling openings should never be covered with cloth or other materials, and never must be blocked.
This xture should not be placed in a built-in installation unless proper ventilation is provided.
Only operate the xture after having checked that the housing is rmly closed and all screws are tightly fastened.
Always use a secondary safety wire when rigging this xture.
Make sure that the area below the installation place is blocked when rigging, de-rigging or servicing the xture.
The xture becomes very hot during operation. Allow the xture to cool approximately 20 minutes prior to ma-
nipulate with it.
Operate the xture only after having familiarized with its functions. Do not permit operation by persons not
qualied for operating the xture. Most damages are the result of unprofessional operation!
Please use the original packaging if the xture is to be transported.
Please consider that unauthorized modications on the xture are forbidden due to safety reasons!
If this device will be operated in any way dierent to the one described in this manual, the product may suer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-cir-
cuit, burns, electric shock, crash etc.
Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard
EN55103-2 ed.2 Electromagnetic compatibility. Product family standard for audio, video, audiovisual and
entertainment lighting control apparatus for professional use. Part 2: Immunity.
The product (covers and cables) must not be exposed to a high frequency electromagnetic eld higher than 3V/m.
The installation company should check levels of possible interferences above the tested levels E1,E2,E3 given
by this standard (e.g. transmitters in surrounding area) before installing the equipment.
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia
equipment – Emission Requirements according to class B.
To avoid damage of the internal optical system of the xture, never let the sunlight or
other xture lights directly to the front lens , even when the xture is not working !
5
2. Fixture exterior view
1- Moving head
2- Yoke
3 - Base
4 - Handle
5 - Touch screen
6 - Control buttons
7 - Pan lock
Rear panel of the base
8 - Tilt lock
9 - DMX OUT (5-pin XLR)
10 - DMX IN (5-pin XLR)
11 - Fuse holder
12 - Mains IN (Neutrik powerCON TRUE1)
13 - Mains OUT(Neutrik powerCON TRUE1)
14 - Ethernet IN (RJ 45) - EP version only
15 - Ethernet OUT (RJ 45) - EP version only
The head has to be locked for transportation - the pan lock latch (7) and the tilt lock latch (8) have to be in the
locked positions. To unlock the head, move these latches to unlock positions before operating the xture.
Rear panel of the base - EP version
6
3. Installation
Fixtures must be installed by a qualied electrician in accordance with all
national and local electrical and construction codes and regulations.
3.1 Connection to the mains
For protection from electric shock, the xture must be earthed!
The Robin Painte is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC
power source from 100-240 Volts.
If you need to install a power plug on the power cable to allow connection to power outlets, install a ground-
ing-type (earthed) plug following the plug manufacturer’s instructions. If you have any doubts about proper
installation, consult a qualied electrician.
.
Core (EU) Core (US) Connection Plug Terminal Marking
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth
This device falls under class one and must be earthed (grounded)!
Design of the ROBIN Painte allows you to connect several xtures to AC mains power in one interconnected
chain using power input and throughput connectors. Needed daisy chain cords are stated in the chapter “Tech-
nical specications “
Maximum number of linked xtures depends on input voltage:
CE: US:
7 xtures at power supply= 230V 5 xtures at power supply= 230V
6 xtures at power supply= 208V 5 xtures at power supply= 208V
4 xtures at power supply= 120V 3 xtures at power supply= 120V
Real numbers of xtures may dier from values stated above as you have to take into account the length of
supply cables, circuit breaker etc. at projecting of the xtures installation Do not overload the supply line and
connecting leads.
!
7
3.2 Rigging the xture
A structure intended for installation of the xture (s) must safely hold weight of the xture(s) placed on it. The
structure has to be certicated to the purpose.
The xture (xtures) must be installed in accordance with national and local electrical and construction codes
and regulations.
For overhead installation, the xture must be always secured with a safety wire that
can bear at least 10 times the weight of the xture.
When rigging, de-rigging or servicing the xture staying in the area below the installation place, on bridges,
under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled
person once a year.
The xture should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to)
calculating working load limits, installation material being used, and periodic safety inspection of all installation
materials and the xture. If you lack these qualications, do not attempt the installation yourself, but instead use
a professional structural rigger. Improper installation can result in bodily injury or damage to property.
The xture has to be installed out of the reach of people.
The xture must never be xed swinging freely in the room.
Caution: Fixture may cause severe injuries when crashing down! If you have doubts concerning the safety of
a possible installation, do not install the moving head!
Before rigging make sure that the installation area can hold a minimum point load of 10 times the xture’s weight.
When installing the device, make sure there is no highly inammable
material (decoration articles, etc.) in a distance of min. 0.4 m.
CAUTION!
Use an appropriate clamps to rig the xture on the truss.
Make sure that the device is xed properly! Ensure that the
structure (truss) to which you are attaching the xture is secure.
The xture can be placed directly on the stage oor or rigged in any orientation on a truss without altering its
operation characte ristics .
For securing the xture to the truss, install a safety wire which can hold at least 10 times the weight of the xture.
Use only the safety wire with a snap hook with screw lock gate.
8
Truss installation
1. Bolt each clamp (1) to the omega holder (2) with M12 bolt and lock nut through the hole in the holder.
2. Fasten the omega holders to the bottom of the base by inserting both quick-lock fasteners (1) into
the holes of the base and tighten fully clockwise.
3. Clamp the xture on a truss (3) and tighten the rigging clamps.
4. Pull a safety wire (5) through the carrying handle and the truss (3) as shown on the picture above in a suitable
position so that the maximum fall of the xture will be 20 cm. Fasten a snap hook in the attachment point (6).
Use only the safety wire with snap hooks with screw lock gates.
1-Quick-lock fastener
2-Omega holder
3-Trust
4-Clamp
5-Safety wire with snap hooks
with screw lock gates
6-Attachment point
When installing xtures side-by-side, avoid illuminating one xture with another!
9
3.3 DMX-512 connection
The xture is equipped with 5-pin XLR sockets for DMX input and output. Only use a shielded twisted-pair
cable designed for RS-485 and 5-pin XLR-plugs and connectors in order to connect the controller with the
xture or one xture with another.
DMX output DMX input
XLR socket: XLR plug:
If you are using the standard DMX controller, you can connect the DMX output of the controller directly with the
DMX input of the rst xture in the DMX chain. If you wish to connect DMX controllers with other XLR output,
you need to use adaptor cables.
Building a serial DMX-chain.
Connect the DMX output of the rst xture in the DMX chain with the DMX input of the next xture. Always
connect one output with the input of the next xture until all xtures are connected. Up to 32 xtures can be
interconnected.
Caution: At the last xture, the DMX cable has to be terminated with a terminator. Solder a 120 Ω resistor
between Signal (–) and Signal (+) into a (5-pin) XLR plug and plug it in the DMX output of the last xture
1 - Shield
2 - Signal (-)
3 - Signal (+)
4 - Not connected
5 - Not connected
1 - Shield
2 - Signal (-)
3 - Signal (+)
4 - Not connected
5 - Not connected
10

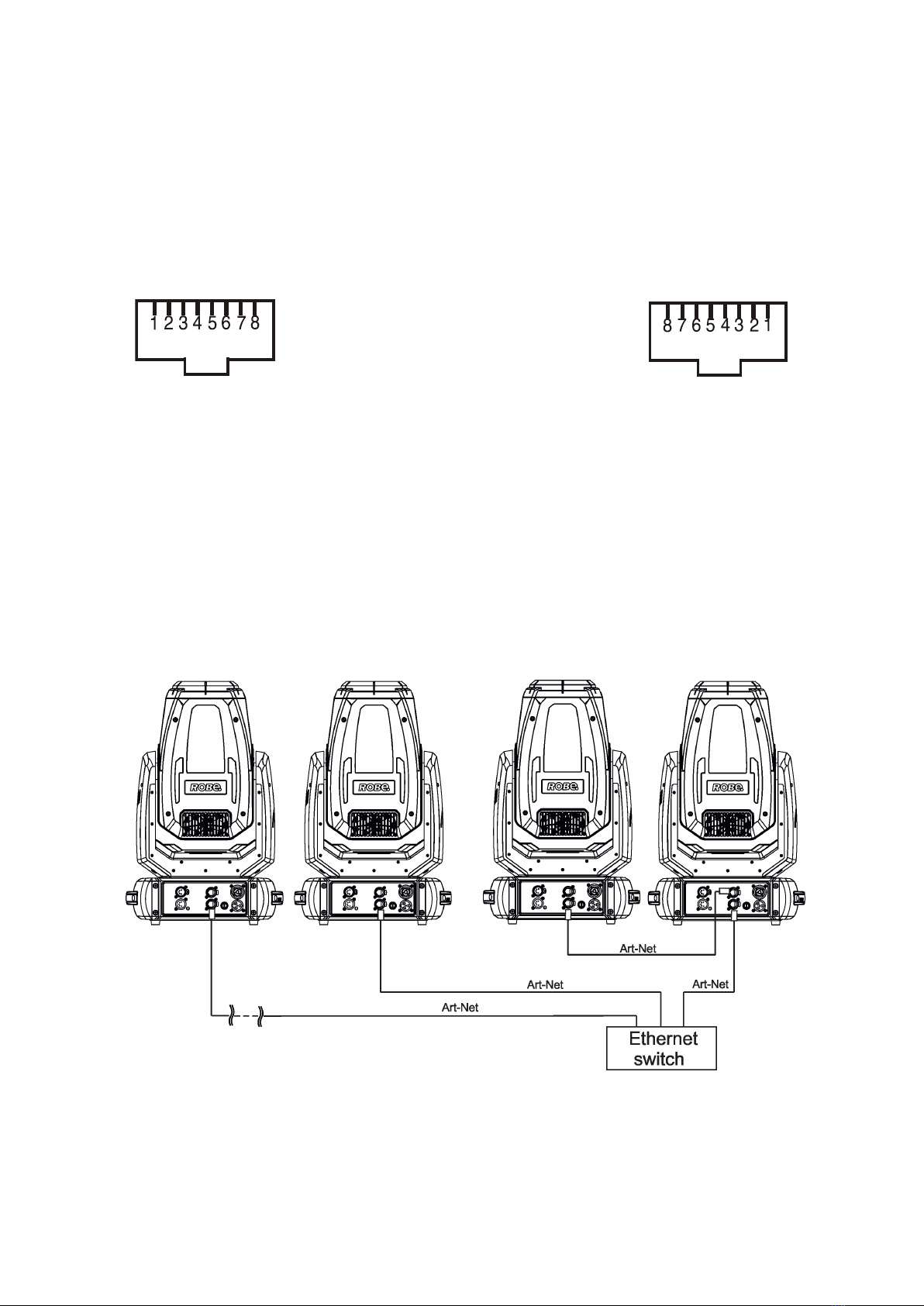

3.4 Ethernet connection
The xtures on a data link are connected to the Ethernet with appropriate communication protocol (e.g. Art-Net).
The control software running on your PC (or light console) has to support this communication protocol.
Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.I ts purpose is to allow
transfer of large amounts of DMX 512 data over a wide area using standard network technology.
The IP address is the Internet protocol address.The IP uniquely identies any node (xture) on a network.
The Universe is a single DMX 512 frame of 512 channels.
The Robin Painte is equipped with 8-pin RJ- 45 sockets for Ethernet connection. Use a network cable category
5 (with four “twisted” wire pairs) and standard RJ-45 plugs in order to connect the xture to the network.
RJ-45 socket (front view): RJ-45 plug (front view):
1- TD+ 5- Not connected
2- TD- 6- RX-
3- RX+ 7- Not connected
4- Not connected 8- Not connected
Patch cables that connect xtures to the hubs or LAN sockets are wired 1:1,that is,pins with the same numbers
are connected together:
1-1 2-2 3-3 4-4 5-5 6-6 7-7 8-8
If only the xture and the computer are to be interconnected,no hubs or other active components are needed.A
cross-cable has to be used:
1-3 2-6 3-1 4-8 5-7 6-2 7-5 8-4
Connect the Ethernet inputs of all xtures to the Ethernet network. Set their IP addresses and Net Masks
Correct communication protocol (e.g. “ArtNet") has to be selected from the menu “Ethernet Mode” in the xtures
(Addressing-->Ethernet -->Ethernet Mode). Set Universe(s) according to communication protocol.
Example of connection:
(DMX address=1)
IP addres=002.168.002.002
Universe=1
(DMX address=45)
IP addres=002.168.002.003
Universe=1
(DMX address=88)
IP addres=002.168.002.004
Universe=1
(DMX address=174)
IP addres=002.168.002.008
Universe=1
An advised PC setting: IP address: 002.xxx.xxx.xxx (Dierent from xtures IP addresses)
NET mask: 255.0.0.0
The EP version of the xture is equipped with Ethernet Pass Through Switch which sustains Ethernet integrity,
when the xture has no power, it automatically maintains network connectivity.
If you use the Ethernet IN-OUT way for the Ethernet connection, max. 8 xtures can be connected in
the IN-OUT line.
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Robe DJ-Equipment Handbücher
Robe
Robe Anolis Eminere 2 Wireless DMX Bedienungsanleitung
Robe
Robe WeatherShield 575W Series Bedienungsanleitung
Robe
Robe ROBIN UV Strobe Bedienungsanleitung
Robe
Robe ROBIN T11 MFS Bedienungsanleitung
Robe
Robe CityLine 48 Bedienungsanleitung
Robe
Robe Spot 575 XT Bedienungsanleitung
Robe
Robe Spot 575 XT Bedienungsanleitung
Robe
Robe Robin Tarrantula TW Bedienungsanleitung
Robe
Robe redwash 3-192 Bedienungsanleitung
Robe
Robe ROBIN iParfect 150 RGBA Bedienungsanleitung
Robe
Robe Robin SuperSpike Bedienungsanleitung
Robe
Robe ANOLiS Eminere Remote UV 2 Bedienungsanleitung
Robe
Robe pixelPATT Bedienungsanleitung
Robe
Robe ColorSpot 575 AT Bedienungsanleitung
Robe
Robe Robin LedBeam 150 Bedienungsanleitung
Robe
Robe ROBIN SilverScan Wireless DMX Bedienungsanleitung
Robe
Robe ColorSpot 575E AT Bedienungsanleitung
Robe
Robe ROBIN iForte Bedienungsanleitung
Robe
Robe Anolis Calumma XL MC Bedienungsanleitung
Robe
Robe Strobe IP Bedienungsanleitung
Beliebte DJ-Equipment Handbücher anderer Marken
thomann
thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung
Eagletone
Eagletone 6 Eyes Flower Bedienungsanleitung
EuroLite
EuroLite FLD-1508 Bedienungsanleitung
Technical Pro
Technical Pro LG8xSEA Bedienungsanleitung
JB Systems
JB Systems Lounge Laser DMX Bedienungsanleitung
Lightmaxx
Lightmaxx Vega Halo 90 Bedienungsanleitung
Elation
Elation FUZE WASH Z350 Bedienungsanleitung
Maverick
Maverick MK3 WASH Bedienungsanleitung
Infinity
Infinity TF-260C7 Fresnel Bedienungsanleitung
Chauvet
Chauvet EVE E-50Z Bedienungsanleitung
Eliminator Lighting
Eliminator Lighting E 138 Bedienungsanleitung
EuroLite
EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung
