Robe Calumma Classic M MC Bedienungsanleitung
Version
1
.
1
QR code for user manual
Calumma Classic M
2
Table of contents
1. Safety instructions ...................................................................................................................................................... 3
2. Fixture exterior view ................................................................................................................................................... 4
3. Installation .................................................................................................................................................................. 5
3.1 Mounting the fixture ............................................................................................................................................ 5
2.2 Connection to driver ............................................................................................................................................. 5
4. Technical specifications .............................................................................................................................................. 8
5. Cleaning and maintenance ....................................................................................................................................... 11
5.1 Disposing of the product .................................................................................................................................... 11
6. ChangeLog ................................................................................................................................................................ 11
Calumma Classic M
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR CALUMMA CLASSIC M !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure
safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this
manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Unauthorized modification will void warranty.
This device is for professional use only. It is not for household use.
1. Safety instructions
Consider respective national norms during fixture installation.
Always disconnect the fixture from power before cleaning, servicing or installing.
Do not install the unit near an open flame.
Make sure the power cable is not damaged by sharp edges.
LED light emission. Risk of eye injury. Do not look into the beam from a short distance without suitable
protective eyewear. Do not look at LEDs with magnifiers or similar optical instruments that may concentrate
the light output.
The fixture was designed for outdoor use. This fixture must not be used for underwater installation.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
Avoid using the unit in locations subject to possible impacts.
The fixture body never must be covered with cloth or other materials when the fixture is under operation.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
The fixture becomes hot during operation. Allow the fixture to cool approximately 30 minutes prior to servicing,
cleaning or maintenance.
Immunity of the equipment is designed for electromagnetic environments E1, E2, E3 according to the standard
EN55103-2 ed.2 Electromagnetic compatibility. Product family standard for audio, video, audiovisual and
entertainment lighting control apparatus for professional use. Part 2: Immunity.
The product (covers and cables) must not be exposed to a high frequency electromagnetic field higher than 3V/m.
Calumma Classic M
4
The installation company should check levels of possible interferences above the tested levels E1,E2,E3 given by
this standard (e.g. transmitters in surrounding area) before installing the equipment.
Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia
equipment – Emission Requirements according to class B.
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
Please use the original packaging if the fixture is to be transported.
Refer servicing to qualified service personnel.
Warning for fixture with Harsh Environment Finish (HEF):
Handle with care!
Avoid any damage to the painted surface.
Damaging the paint may result in corrosion and loss of warranty.

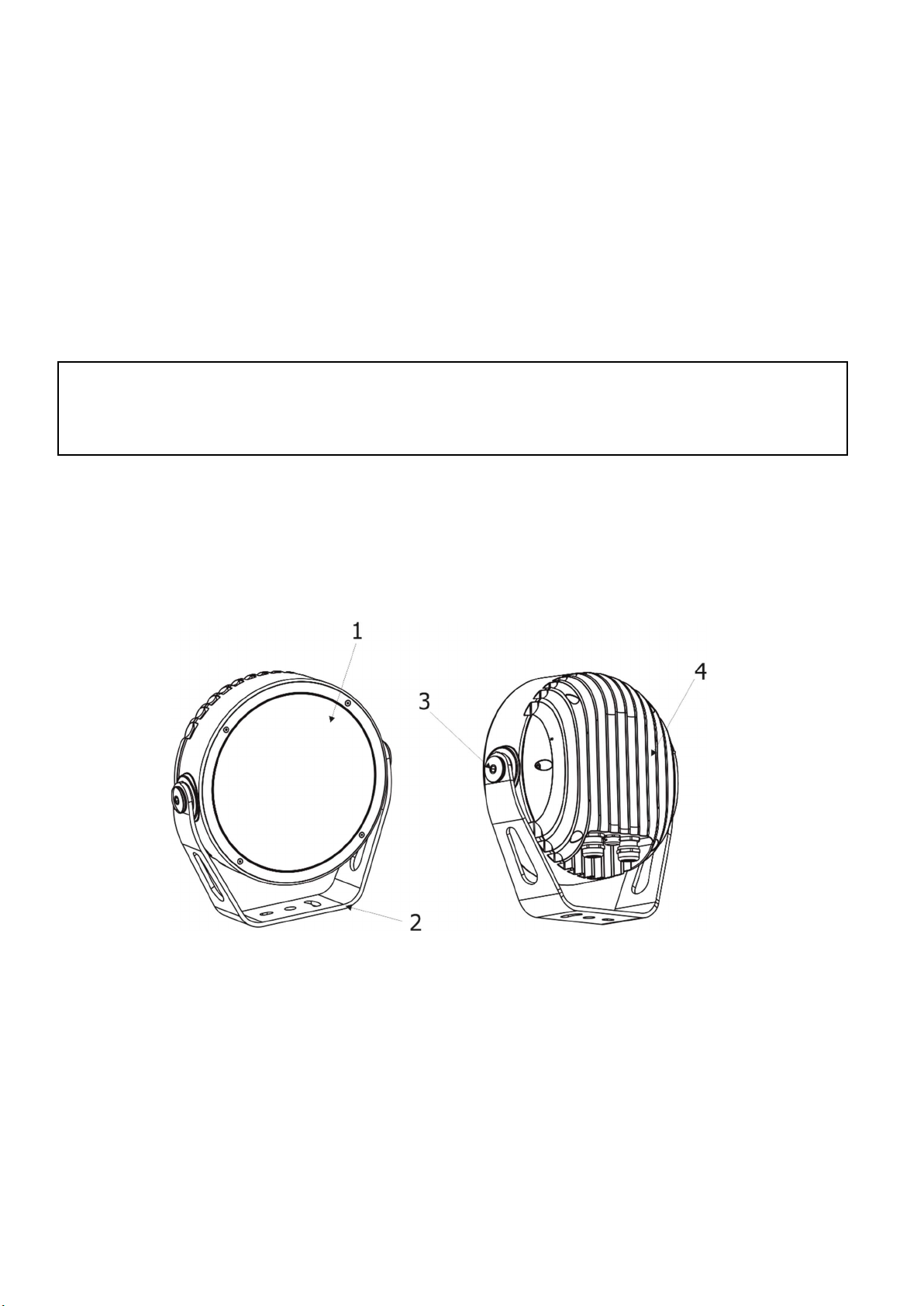

2. Fixture exterior view
1. Transparent glass cover
2. Mounting yoke
3. Tilt adjusting lock
4. LED module with heat sink
Calumma Classic M
5
3. Installation

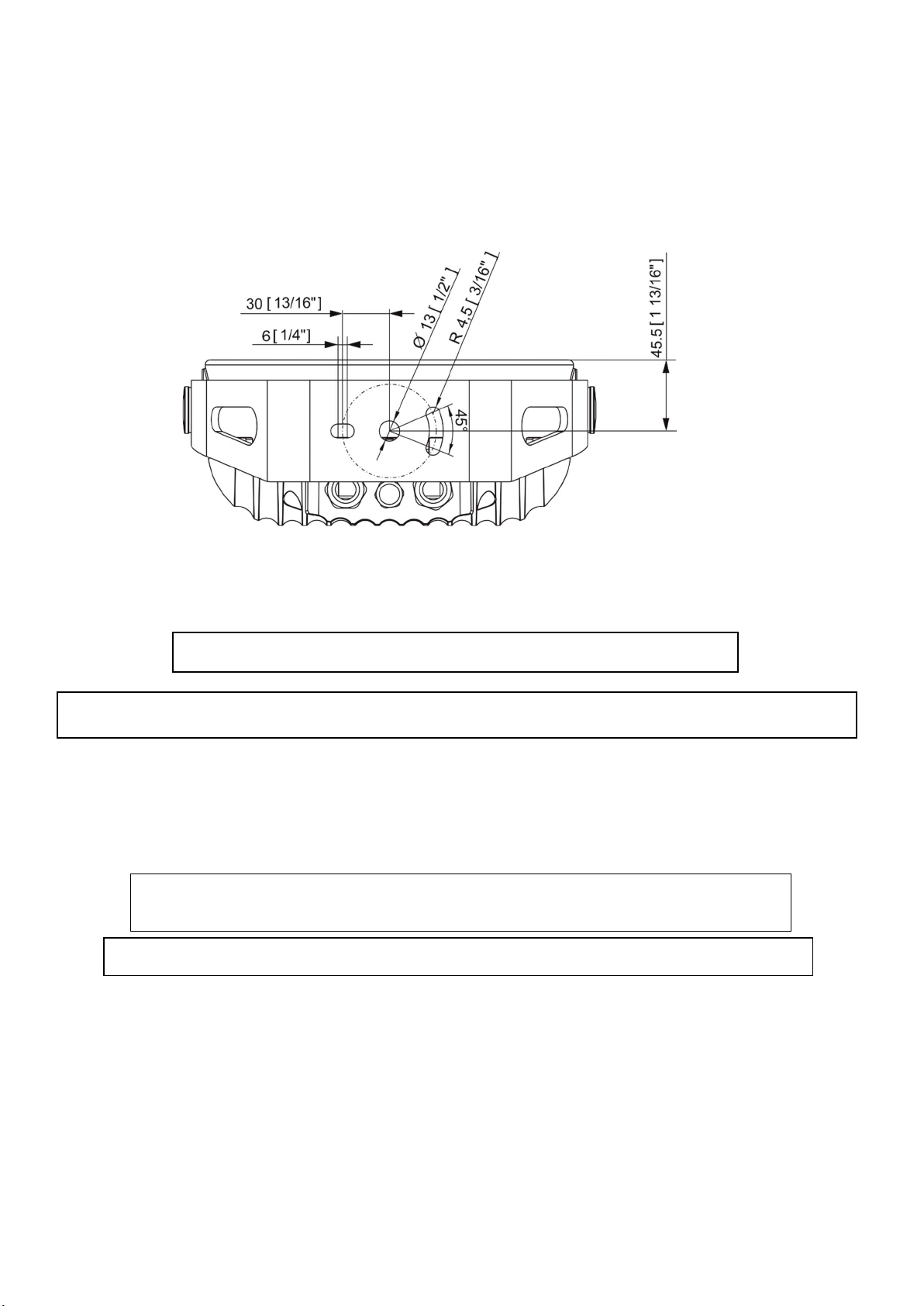

3.1 Mounting the fixture
The Calumma Classic M can be fastened in any orientation on a flat, non-flammable surface by means of mounting
yoke (2).
The LED module (4) can be tilted +180°/-180°. Use an Allen key 2.5 for adjusting a LED module position.
Ensure that the structure to which you are attaching
the fixture is secure.
A structure intended for installation of the fixture(s) must safely hold at least 5 times the weight of the fixture(s)
fastened on it.
2.2 Connection to driver
The fixture must be installed by a qualified electrician in accordance with all national
and local electrical and construction codes and regulations.
Do not connect (disconnect) Calummas Classic M to the driver when the driver is under voltage!
The Calumma Classic M should be connected to the ArcPower drivers (ArcPower 36/72/144, ArcPower Unit).
Note. Drivers ArcPower 36/72/144 offer LED current 350mA only, for LED current 500mA and 700mA serves the
ArcPower Unit.
Needed cables and connectors are stated in the chapter “Technical specifications“.
Calumma Classic M
6

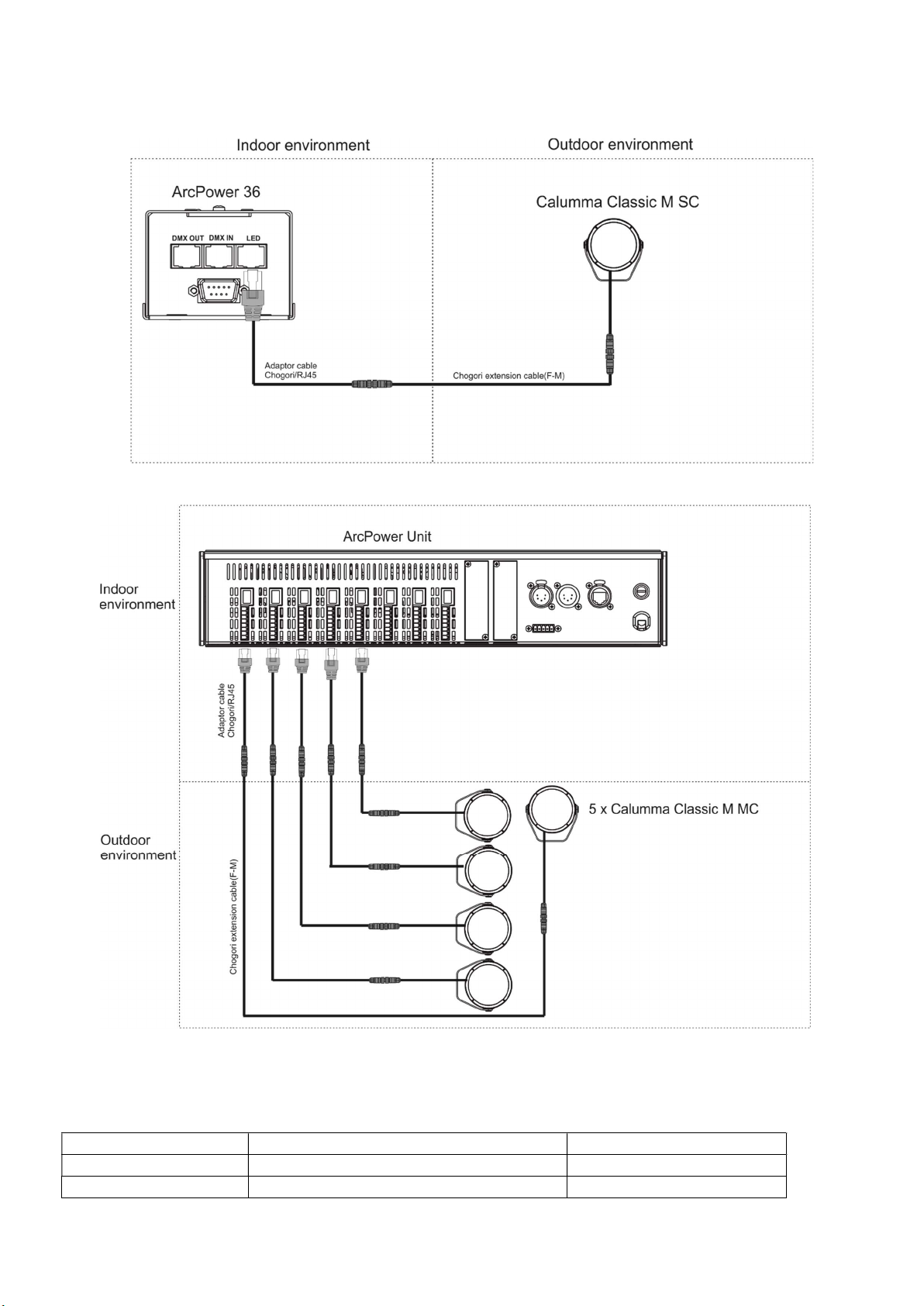

Examples of connection
Fixture´s Chogori connector is water protected according to IP 67 by mating with related Chogori connector. It
cannot stay disconnected outdoor without covering the waterproof cap (optional item).
Max. number of connected fixtures to one LED output of the ArcPower driver:
Type of
Calu
mma
ArcPower 36/ArcPower 72/ArcPower 144
ArcPower U
nit
Calumma C
lassic
M SC
1
1
Calumma Classic M MC
1
1
Calumma Classic M
7

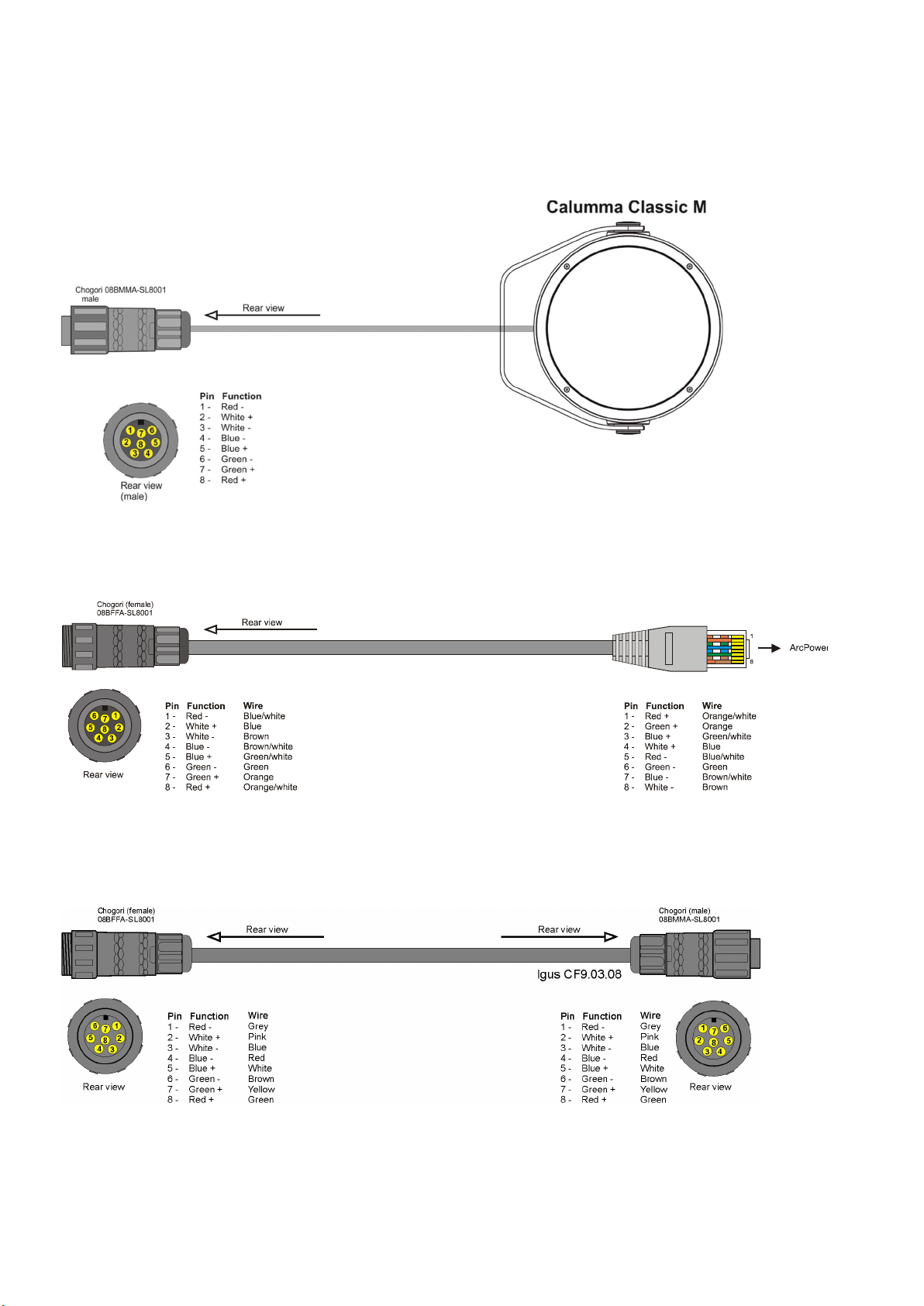

Wiring of cables and connectors
Calumma Classic M
Chogori (female) to RJ45 adaptor cable (for indoor use only)
Chogori extension cable (male-female)
Calumma Classic M
8
4. Technical specifications
Electrical
• Input voltage: 48V
• Max. input current (per colour):
Calumma Classic M MC: 350mA/500mA/700mA
Calumma Classic M SC: 350mA/500mA
• Power consumption:
Calumma Classic M MC: 65 W +/-10 % (@ 700mA)
Calumma Classic M SC: 60 W +/-10 % (@ 500mA)
Optical
• Light source:
Calumma Classic M MC: 7 x high power multi chip LEDs
Calumma Classic M SC: 37 x high power single chip LEDs
• Colour variants:
Calumma Classic M MC: RGBW, RGBA, PW, on request: TW (2700K-6500K)
Calumma Classic M SC: RGBW, RGBA, PW, on request: TW (2700K-6500K), 2200 K, 2500 K,
2700 K, 3500 K, 4000 K, 5000 K, 6500 K
• Beam Angle:
Calumma Classic M MC:
Symmetrical: 9°, 15°, 25°, 30°, 45°, 65°, 100°
Bi-symmetrical: 10° x 30°, 30° x 10°, 10° x 60°, 60° x 10°, 15° x 45°, 45° x 15°, 15° x 90°,
90° x 15°, 30° x 60°, 60°x 30°, 30° x 90°, 90° x 30°
Calumma Classic M SC:
Symmetrical: 10°, 15°, 25°, 30°, 45°, 65°, 100°
Bi-symmetrical: 10° x 30°, 30° x 10°, 10° x 60°, 60° x 10°, 15° x 45°, 45° x 15°, 15° x 90°,
90° x 15°, 30° x 60°, 60°x 30°, 30° x 90°, 90° x 30°
• Projected Lumen Maintenance: L90B10 >90.000 hrs, Ta = 25°C / 77°F
Compatible drivers
•For 350mA:
ArcPower 36/ArcPower 36 SmartWhite
ArcPower 72/ArcPower 72 SmartWhite
ArcPower 144/ArcPower 144 SmartWhite
•For 350/500/700 mA:
ArcPower Unit Rack Mount/ArcPower Unit Wall Mount
Mounting method
• Via yoke
• Adjustability: -180°/+180°
Housing
• High pressure die-cast aluminium body
• Tempered glass
Cooling system
• Convection
Total heat dissipation (calculated)
• Calumma Classic M MC: 167 BTU/h (calculated)
• Calumma Clasic M SC: 153 BTU/h (calculated)
Calumma Classic M
9
Protection factor
• CE: IP 67
• US: Suitable for wet location
Impact rating
• CE: IK06
Operating ambient temperature range
• -20°C /+40°C (-4°F /+104°F)
Connection
• 0.5m cable (standard) with connector Chogori IP67
Weight
• Calumma Classic M MC: 5.77 kg (12.77 lbs)
• Calumma Classic M SC: 5.9 kg (13 lbs)

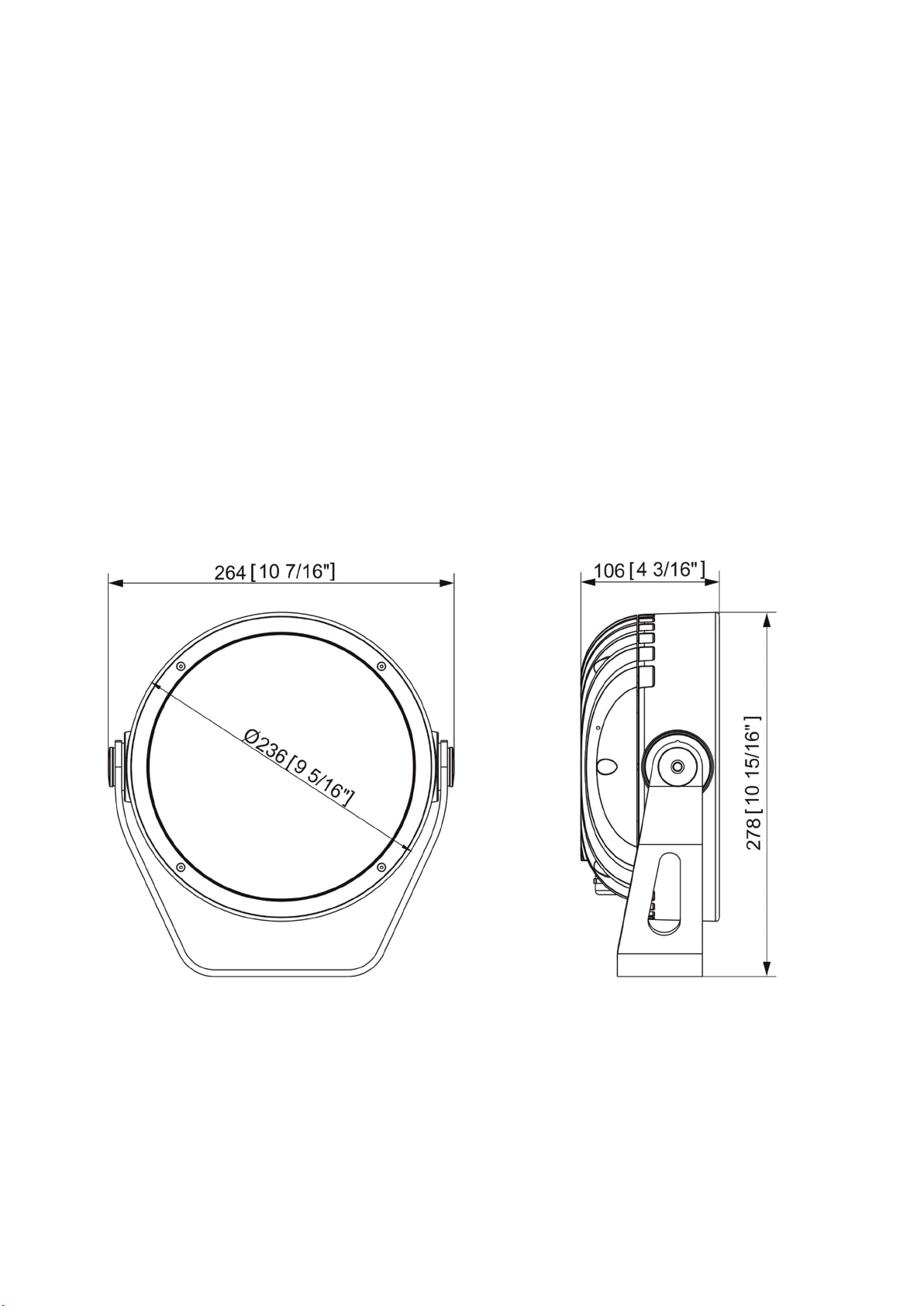

Dimensions (All dimensions in mm [inch])
Included items
• 1 x Calumma Classic M
• 1 x Connector Chogori CGRBDU-08BFFA (female), IP67, (P/N 13051601)
Calumma Classic M
10
Optional accessories
• Connectors
(P/N 13051601) Chogori connector, 8-Pin female IP67
(P/N 13051602) Chogori connector, 8-Pin male IP67
• End caps
(P/N 13051950) Chogori waterproof cap, male
(P/N 13052451) Chogori waterproof Cap, female
• CE Outdoor extension cables Chogori (8pin,F)/Chogori (8pin,M)
(P/N 13052187) Extension cable CGR8 F/M, L1m
(P/N 13051960) Extension cable CGR8 F/M, L3m
(P/N 13052084) Extension cable CGR8 F/M, L7m
(P/N 13052059) Extension cable CGR8 F/M, L10m
(P/N 13052156) Extension cable CGR8 F/M, L20m
• US Outdoor extension cables Chogori (8pin,F)/Chogori (8pin,M)
(P/N 13052847) Extension cable CGR8 F/M, L1m, US
(P/N 13052848) Extension cable CGR8 F/M, L3m, US
(P/N 13052849) Extension cable CGR8 F/M, L7m, US
(P/N 13052850) Extension cable CGR8 F/M, L10m, US
• Indoor extension cables Chogori (8-pin,F)/RJ45
(P/N 13051966) Extension cable CGR8-F/RJ45, L0,25m
(P/N 13051630) Extension cable CGR8-F/RJ45, L3m
(P/N 13051631) Extension cable CGR8-F/RJ45, L7m
(P/N 13051682) Extension cable CGR8-F/RJ45, L15m
(P/N 13051829) Extension cable CGR8-F/RJ45, L20m
• Top Hat Calumma M RAL9011 (P/N 10980734)
• Half Top Hat Calumma M RAL9011 (P/N 10980723)
• Tenon Adaptor for Calumma M
• Pole Mount Bracket for Calumma M
