Application

The Robertshaw 8600 is a single-stage thermostat designed to control

24 VAC gas or electric heating and cooling systems or single-stage

heat pumps.

Features

• Large backlit display.

• Four preprogrammed ENERGY STAR®setpoints for each day of

the week.

• Two AA ENERGIZER brand batteries retain time of day settings even

during power outages.

• Low battery indicator.

• Fahrenheit/Celsius display option.

• Programmable from 45°F (4°C) to 90°F (32°C).

• Accuracy within ± 1 degree.

• Adjustable temperature differential: 1-3 °F (1-1.5°C).

• Separate heating and cooling programs.

• Low temperature freeze protection. While in heat mode, the

thermostat will mechanically turn on the heat if the temperature

drops to 40°F (4°C) – even if the batteries are drained or missing.

110-1097B

5 - 2 Day Programmable

1 Heat / 1 Cool

User’s Manual

Quick Start

Installation and

Programming

DIGITAL

PROGRAMMABLE

THERMOSTAT

8600

ELECTRIC

GAS

OIL

NeW HEAT PUMP

As an ENERGY STAR®partner, Invensys Controls Americas has determined

that this thermostat product meets the ENERGY STAR®guidelines for

energy efficiency.

110-1097B 3/8/05 10:39 AM Page 1

WARNING:

•Always turn off power at the main power source by unscrewing

fuse or switching circuit breaker to the off position before installing,

removing, cleaning, or servicing thermostat.

•Read all of the information in this manual before installing or

programming this thermostat.

•DO NOT CONNECT TO 120 VAC. This is a 24V AC low voltage ther-

mostat. Do not install on voltages higher than 30V AC.

•All wiring must conform to local and national building and electrical

codes and ordinances.

•Do not short (jumper) across terminals on the gas valve or at the

system control to test installation. This will damage the thermostat

and void the warranty.

•Do not connect ground to any terminal in this unit.

Recycling Thermostat

If this thermostat REPLACES a thermostat that contains mercury,

DO NOT discard the old thermostat in the regular trash. Mercury

is harmful to humans and the environment. For this reason, do

not open, break, or crush the mercury cell. If mercury leaks from

a damaged cell, DO NOT touch or handle mercury with bare

hands. Use protective, non-absorbent gloves to place mercury

into a sealable container. Fill the container with sand or another

absorbent material and seal the container completely.

Return the mercury or mercury products, in a sealed container, to

Invensys Controls Americas or a local recycling center for proper

disposal. If you have any questions, call Robertshaw technical

support at 1-800-445-8299.

Invensys Controls Americas

28C Leigh Fisher Blvd.

El Paso, TX 79906

Attn: Mercury Recycling Center

Replacing Existing Thermostat

Wiring Table

Old Label New Label Description

M, W, RH, R5 or R RH Heat transformer, hot side

V or RC RC Cooling transformer, hot side

Y or Y6 Y1 Cooling control

H, W or 4 W1 Heating control

F or G G Fan control relay

O O Cool active reversing valve

B B Heat active reversing valve

NOTE: ON SOME OLDER MODELS, THE C TERMINAL CAN BE EITHER THE COOLING CONTROL OR

THE COMMON SIDE OF THE TRANSFORMER. CHECK FURNACE WIRING DIAGRAM TO

VERIFY C TERMINAL. IF IT IS THE COMMON SIDE OF THE TRANSFORMER, CAP THE

WIRE AND TUCK INTO THE WALL. IF IT IS THE COOLING CONTROL, CONNECT TO THE

Y TERMINAL.

110-1097B 3/8/05 10:39 AM Page 2

WARNING:

In heat pump applications, do not connect anything to the W1

terminal. When switched to HP mode, W1 is connected internally

to Y1 on the thermostat.

1. Turn off power to heating and cooling system.

2. Remove cover of old thermostat to expose wires. Do not

disconnect wires. (See Figure 1)

3. Label wires per the Wiring Table.

4. After labeling wires, remove wires from terminals.

5. Remove existing thermostat base from wall.

6. Refer to the following section for instructions on how to

install thermostat.

Figure 1

Installing Item 8600 Thermostat

NOTE: FOR NEW INSTALLATIONS, MOUNT THERMOSTAT ON AN INSIDE WALL, 4-5 FEET

ABOVE THE FLOOR. DO NOT INSTALL BEHIND A DOOR, IN A CORNER, NEAR AIR VENTS,

IN DIRECT SUNLIGHT, OR NEAR ANY HEAT OR STEAM GENERATING FIXTURES. INSTALLATION

AT THESE PLACES WILL AFFECT THERMOSTAT OPERATION.

1. Turn power off to the heating and cooling systems.

2. Place HEAT-OFF-COOL in OFF position.

3. Place AUTO–ON switch

into AUTO position.

4. Remove the cover using a coin

or screwdriver (see Figure 2).

5. Place thermostat against the

wall at desired location. Make

sure wires will feed through

opening on base of thermostat.

heat off cool

hold

vac

prog

run/sethold

temp

clock

set

auto on

MON

select set

heat off cool

hold

vac

prog

run/set hold

temp

clock

set

auto on

MON

heat off cool auto on

Figure 2

110-1097B 3/8/05 10:39 AM Page 3

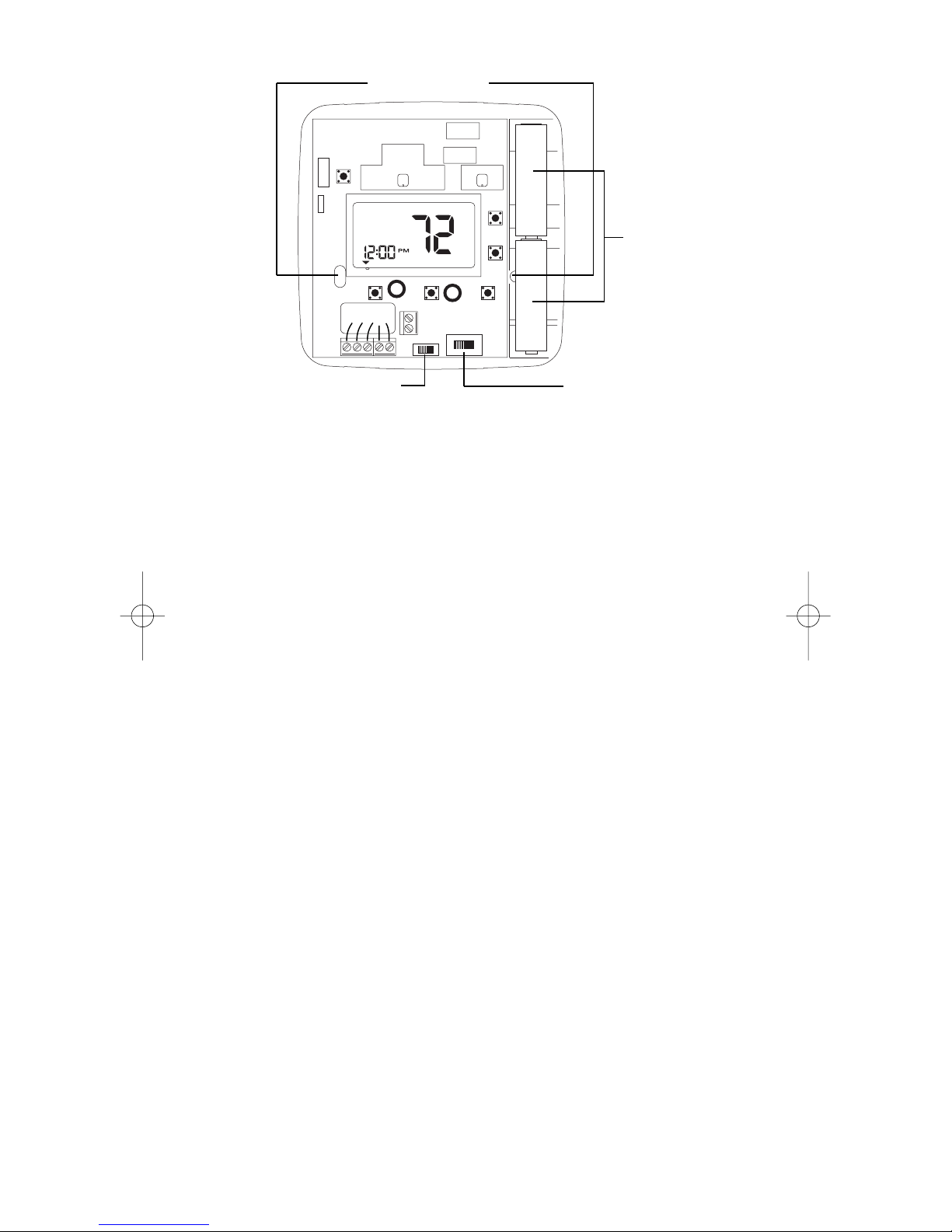

6. Mark placement of mounting holes (see Figure 3). Set base aside.

7. Drill the marked holes using a 3/16” (5mm) drill bit. NOTE: Enclosed

plastic anchors do not require a drilled hole for drywall.

8. Tap plastic anchors into the wall.

9. Align base with plastic anchors and feed wires through opening

(see Figure 3).

10. Secure base to wall with supplied screws.

11. Connect wires to terminal strip. Refer to wiring diagrams on page 5.

Make sure wire connections are secure.

12. Place Electric/Gas switch into either the ELEC or GAS position

depending on the type of furnace (see Figure 3).

13. Place the HP option switch into either the NON_HP or HP position

depending on the type of system you are using (see Figure 3). Use

the HP position for heat pumps ONLY. Use the NON_HP setting for

everything else.

14. Install two AA ENERGIZER brand batteries or equivalent into battery

compartment. Be sure to match positive (+) ends of batteries with

positive (+) battery terminals in the battery compartment. See Figure

3 for correct battery placement.

15. Replace cover on thermostat by snapping into place.

16. Turn on power to system. Test thermostat as described in the

section To Test Thermostat.

GOB Y1W1

MON

Mounting Holes

ELECTRIC/GAS SWITCH

Selects fan control.

HP OPTION SWITCH

Heat pump switch.

Figure 3

Correct battery

placement

110-1097B 3/8/05 10:39 AM Page 4

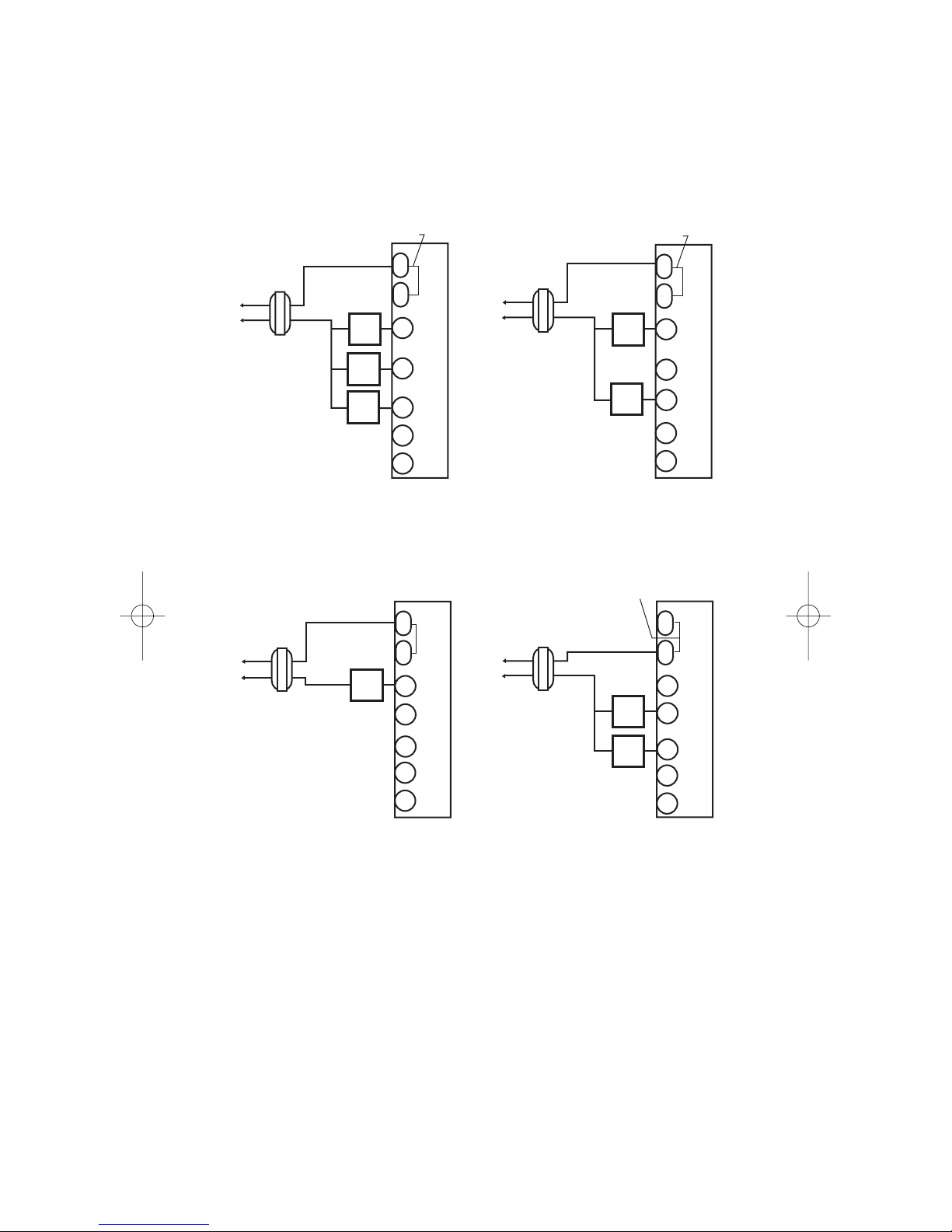

Wiring Diagrams

The following is just a sample of the most common types of HVAC

systems. Refer to your system’s installation manual for wiring information.

Hot

Heating

Control

Fan

Control

Cooling

Control

Transformer T

24 VAC

120 VAC

Hot

Heating

Control

Fan

Control

Transformer

24 VAC

120 VAC

Hot

Heating

Control

Transformer

24 VAC

120 VAC

HEAT/COOL

4-WIRE

SINGLE TRANSFORMER

HEAT ONLY

2-WIRE

SINGLE TRANSFORMER

HEAT ONLY

SINGLE TRANSFORMER

3-WIRE

Factory-Installed

Jumper

Hot

Cooling

Control

Fan

Control

Transformer

24 VAC

120 VAC

COOL ONLY

3-WIRE

SINGLE TRANSFORMER

Factory-Installed

Jumper

NOTE: Remove factory

installed jumper

110-1097B 3/8/05 10:39 AM Page 5

Heating

Control

(COOLING)

Transformer

(HEATING)

Transformer

Hot

120 VAC 24 VAC

24 VAC

Hot

120 VAC

Cooling

Control

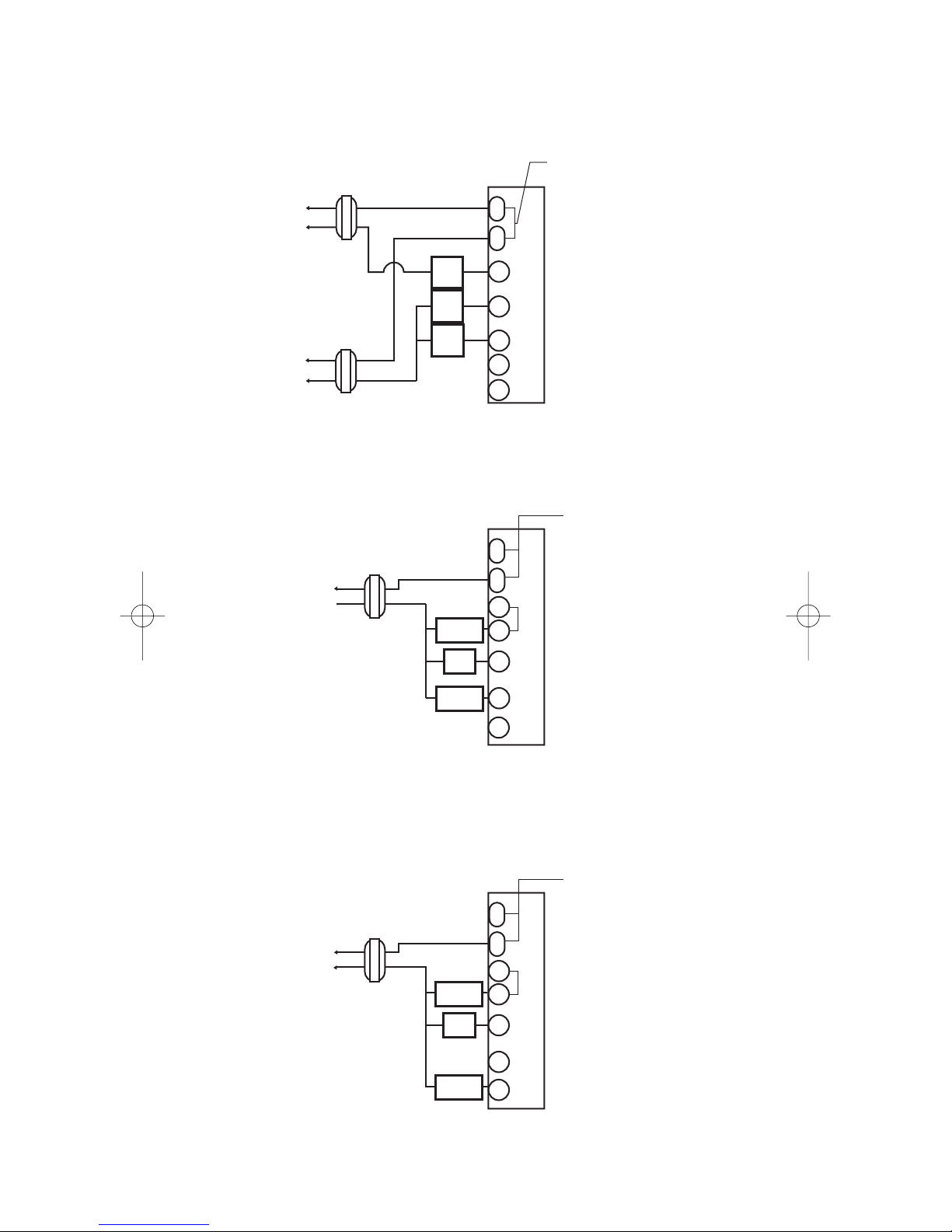

HEAT/COOL

5-WIRE

TWO TRANSFORMER NOTE: Disconnect

factory installed jumper.

Hot

Compressor

Contactor

Transformer

24 VAC

120 VAC

HEAT PUMP WITH

COOL ACTIVE

REVERSING VALVE

CAUTION: Both transformers

must be in phase or damage

may result.

to the equipment and thermostat

Hot

Transformer

24 VAC

120 VAC

HEAT PUMP WITH

HEAT ACTIVE

REVERSING VALVE

NOTE: Factory

Installed Jumper

NOTE: Factory

Installed Jumper

NOTE: Make sure the HP switch

is in the HP position.

NOTE: Make sure the HP switch

is in the HP position

When switched to HP mode,

W1 is connected internally to Y1.

Fan

Relay

Reversing

Valve

Fan

Relay

Compressor

Contactor Y1

Reversing

Valve

Fan

Relay

Wiring Diagrams

110-1097B 3/8/05 10:39 AM Page 6

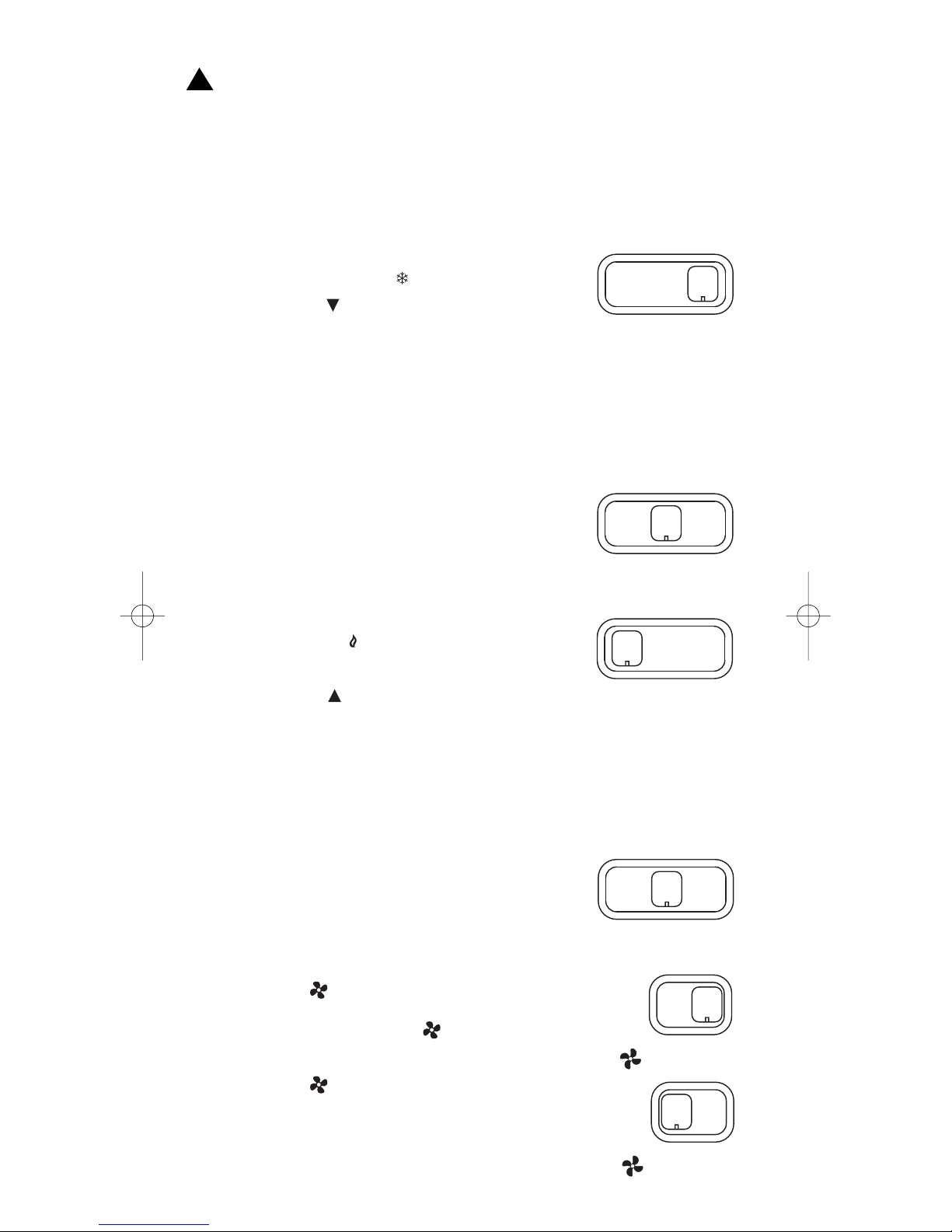

To Test Thermostat

WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS

VALVE OR SYSTEM CONTROL TO TEST OPERATION. THIS WILL

DAMAGE THE THERMOSTAT AND VOID YOUR WARRANTY.

CAUTION: DO NOT SWITCH SYSTEM TO COOL OR LEAVE IN COOL MODE

IF THE TEMPERATURE IS BELOW 50°F (10°C). THIS CAN

DAMAGE THE AIR CONDITIONING SYSTEM AND CAUSE

PERSONAL INJURY.

1. Place the HEAT-OFF-COOL switch into the

COOL position. The will be displayed.

2. Press the button until the temperature

setting is at least 3 degrees below the room

temperature. The air conditioning system

should turn on within a few seconds.

NOTE: ONCE THE THERMOSTAT TURNS OFF WHEN IN THE COOL MODE,

A BUILT IN 5-MINUTE DELAY PREVENTS THE SYSTEM FROM

TURNING ON AGAIN. THIS PROTECTS THE COMPRESSOR. NO

ADDITIONAL TIME DELAY RELAY IS REQUIRED. TO OVERRIDE THE

5-MINUTE DELAY FOR INSTALLATION, PRESS THE RESET BUTTON.

3. Put the HEAT-OFF-COOL switch into the OFF

position. The air conditioning system should

turn off.

4. Put the HEAT-OFF-COOL switch into the HEAT

position. The will be displayed.

5. Press the button until the temperature

setting is at least 3 degrees above room

temperature. The heating system should turn on. The fan may

not turn on immediately, depending on the fan delay built into

the furnace.

NOTE: If HP is selected, the heat will not come on until the 5 minute

short cycle protection has expired.

6. Put the HEAT-OFF-COOL switch into the OFF

position. The heating system should turn off.

The fan may continue to run for a short

period of time.

7. Put the AUTO-ON switch into the ON

position. The blower fan should turn on.

The display will show a .

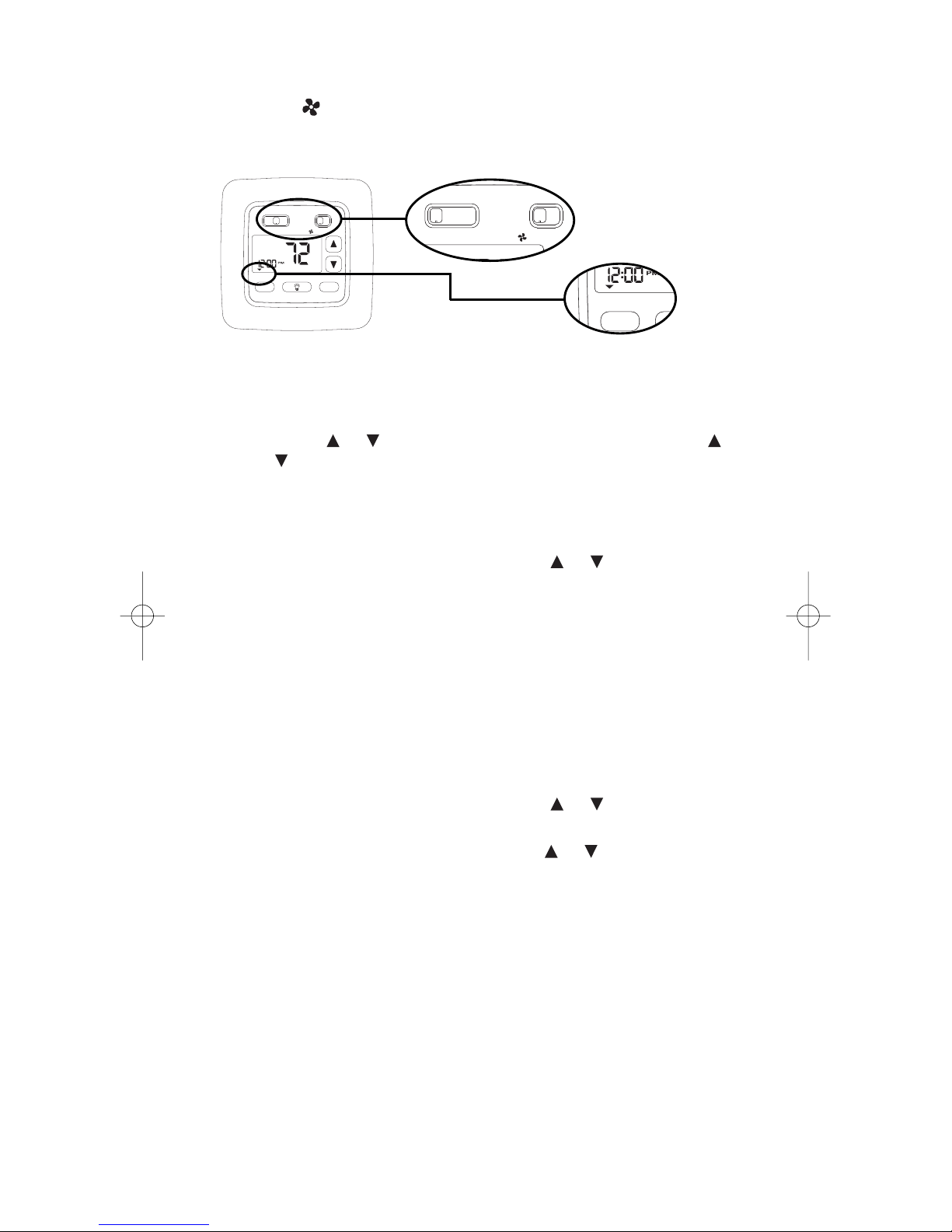

8. Put the AUTO-ON switch into the AUTO

position. The blower fan should turn off.

heat off cool

auto on

110-1097B 3/8/05 10:39 AM Page 7

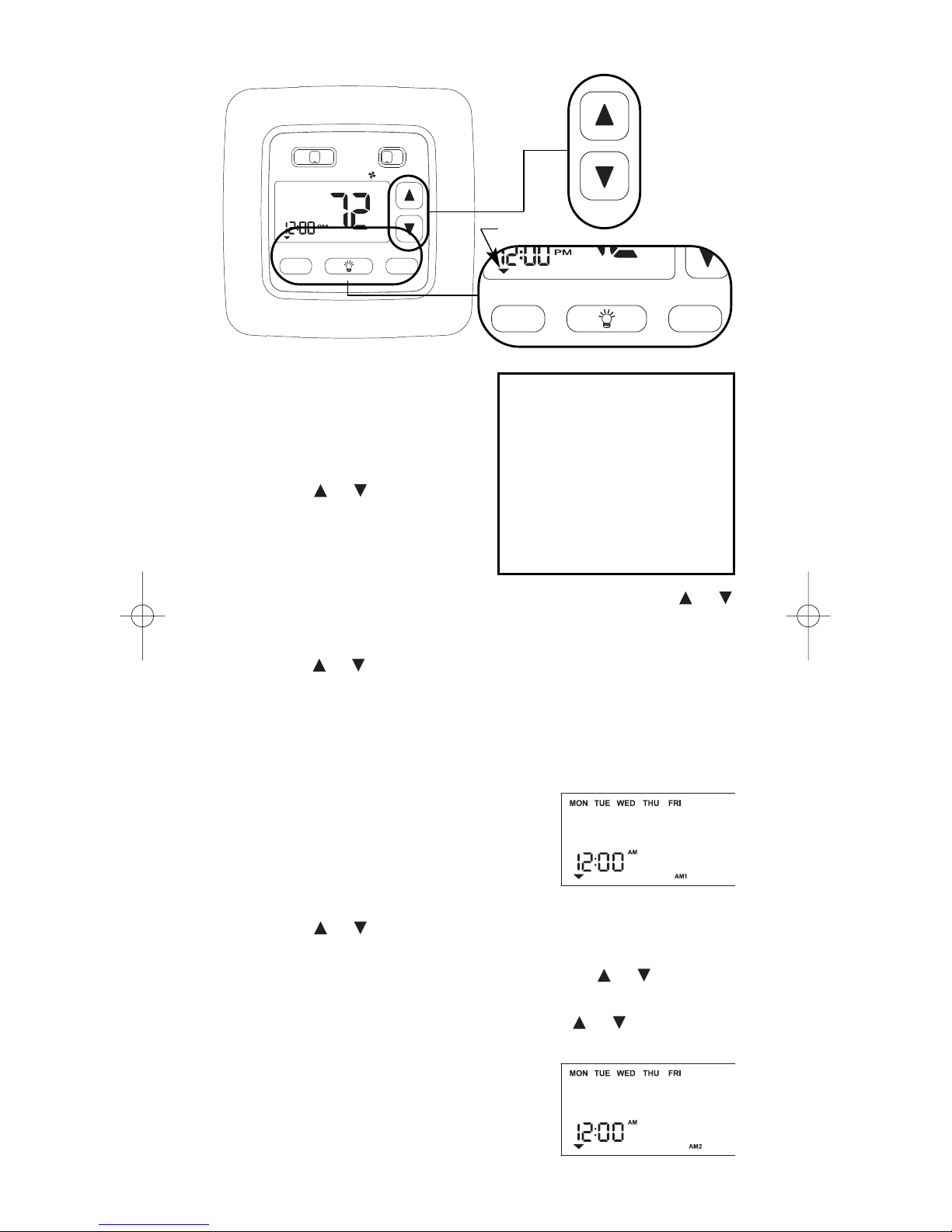

Programming Guide

SETTING TIME OF DAY AND

DAY OF WEEK

1. Press SELECT until the cursor is

over SET CLOCK. Press SET. The

HOURS segment will be blinking.

Use the or button to adjust

the hours setting. NOTE: The AM

or PM indicator will change as the

HOURS display rolls through a 24

hour cycle.

2. Press SET. The MINUTES segment will be blinking. Use the or

button to adjust the MINUTES setting.

3. Press SET. The DAY segment will be blinking at the top of the display.

Use the or button to adjust the day of the week. Press SET.

PROGRAMMING YOUR THERMOSTAT

The 8600 thermostat features 1-button programming. Simply follow these

steps to customize your thermostat for your lifestyle.

1. Place the HEAT-OFF-COOL switch into the HEAT position. Make sure

the cursor is in the RUN/SET PROG position. Press SET. The HOURS

segment will be blinking. MON thru FRI

(the work week) will be displayed across

the top. AM1 will be illuminated in the

lower right hand corner. You can now

start programming the first event of the

work week.

2. Use the or button to adjust the hour of the first event.

Press SET.

3. The MINUTES segment will be blinking. Use the or button to

adjust the minutes. Press SET.

4. The temperature should be blinking. Use the or button to

adjust the desired temperature of the first event. Press SET.

5. AM2 should now be displayed. Repeat

steps 2-4 to program the remaining events

(PM1 and PM2) for the work week. There

are a total of 4 events.

MON = MONDAY

TUE = TUESDAY

WED = WEDNESDAY

THU = THURSDAY

FRI = FRIDAY

SAT = SATURDAY

SUN = SUNDAY

select set

heat off cool

hold

vac

prog

run/set hold

temp

clock

set

auto on

MON

select set

hold

vac

prog

run/set hold

temp

clock

set

o on

Cursor

110-1097B 3/8/05 10:39 AM Page 8

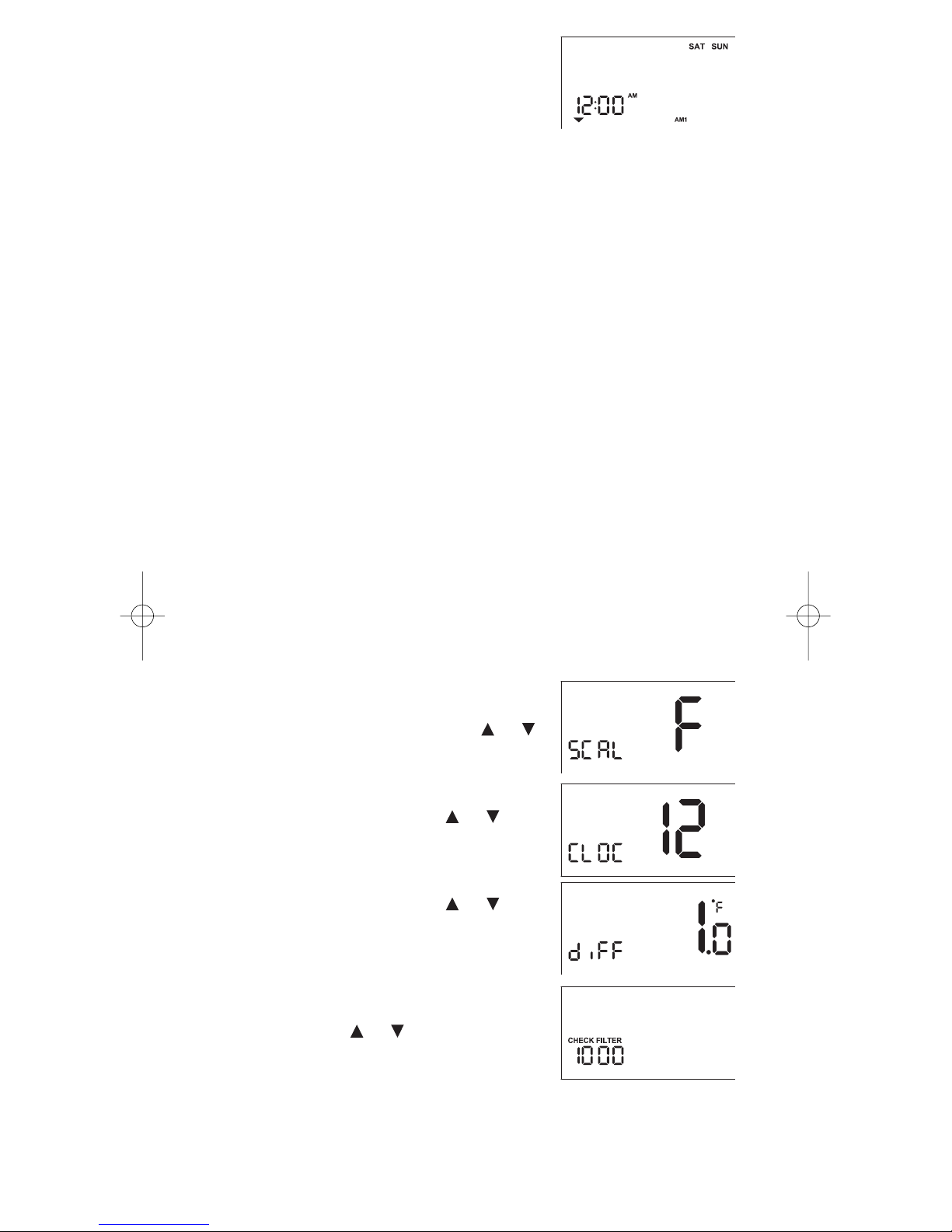

6. After pressing SET for the 4th event, the

day of the week along the top will switch

to SAT SUN and AM1 will be displayed.

Repeat steps 2-4 to program the

weekend settings.

7. With the weekend settings programmed, place the HEAT-OFF-COOL

switch in the COOL position. Repeat steps 2-6 to program the

cooling settings.

CUSTOMIZING YOUR THERMOSTAT

Settings

System

Cool: The thermostat controls the cooling.

Off: The heating and cooling systems are off.

Heat: The thermostat controls the heat.

Fan

Auto: Equipment controls the fan.

On: The fan operates continuously.

Temperature Differential

The temperature differential is factory set at 1.0°F (.5°C). This means that

whenever the room temperature changes by one degree Fahrenheit

from the temperature setting, the system will turn on. If the system turns

on too often, increase the temperature differential.

Changing Fahrenheit (°F) to Celsius (°C), Clock Setting, Temperature

Differential, and Filter Monitor

You can change temperature scales (F or C), set a 12 or 24 hour clock,

adjust differentials and change the filter monitor setting by following

these instructions.

1. Press SELECT and SET at the same time.

Hold for 3 seconds. An Fshould be

blinking in the display. Use the or

button to toggle between Farhenheit (F)

or Celsius (C).

2. Press SET. CLOC will be displayed in the

lower left corner. Use the or

button to toggle between 12 or 24 for the

clock setting.

3. Press SET. diFF will be displayed in the

lower left corner. Use the or

button to adjust the 1st stage differential

between 1°F and 3°F (1°C and 1.5°C).

4. Press SET. CHECK FILTER will be

displayed and the length of the filter set-

ting will be blinking in the lower left cor-

ner. Use the or button to adjust the

filter setting from 0 (OFF) to 9900 hours.

NOTE: The filter timer is based on

equipment run time. Select the length of time based on your filter's

recommended service interval.

5. Press SET or wait 5 seconds and the thermostat will return to the

normal operating mode.

110-1097B 3/8/05 10:39 AM Page 9

Begin Programmed Operation

1. Make sure the cursor is above RUN/SET PROG.

2. Place AUTO–ON switch into AUTO.

3. Place HEAT-OFF-COOL switch into COOL or HEAT depending on

the season.

Temporary Program Hold

You can temporarily increase or decrease the temperature and hold it for

3 hours or until the next program event, whichever comes first.

1. Press the or button. The temperature will blink. Using the

or button, adjust the temperature to the desired level.

2. Press SET.

Another way to select a temporary hold is:

1. Press SELECT until the cursor is over TEMP HOLD. Press SET.

The temperature will be blinking. Use the or button to change

the temperature.

2. Press SET.

To cancel a temporary hold, press SELECT until the cursor is above

RUN/SET PROG. Press SET.

Vacation Hold

You can set your thermostat to hold a desired temperature for 1-365 days.

Vacation hold terminates at midnight of the last day. The thermostat

returns to normal operation the next day at 12:01 AM.

1. Press SELECT until the cursor is over VAC HOLD. Press SET.

The temperature will be blinking. Use the or button to change

the temperature.

2. Press SET. 7d will be displayed. Use the or button to adjust

between 1 and 365 days.

3. Press SET.

To cancel a vacation hold, press SELECT until the cursor is above

RUN/SET PROG. Press SET.

select set

heat off cool

hold

vac

prog

run/set hold

temp

clock

set

auto on

MON

heat off cool auto on

select

hold

vac

prog

run/set hold

temp

clo

110-1097B 3/8/05 10:39 AM Page 10

Andere Handbücher für 8600

Inhaltsverzeichnis

Andere Robertshaw Thermostat Handbücher

Robertshaw

Robertshaw 7700 Bedienungsanleitung

Robertshaw

Robertshaw 9801i2 Bedienungsanleitung

Robertshaw

Robertshaw RS6110 Bedienungsanleitung

Robertshaw

Robertshaw RS4220C Bedienungsanleitung

Robertshaw

Robertshaw HOMEOWNER FRIENDLY 9715I Bedienungsanleitung

Robertshaw

Robertshaw RS10420T Bedienungsanleitung

Robertshaw

Robertshaw RS9220 Bedienungsanleitung

Robertshaw

Robertshaw smart 3000 Bedienungsanleitung

Robertshaw

Robertshaw RS8210 Bedienungsanleitung

Robertshaw

Robertshaw RS311N Betriebsanleitung

Robertshaw

Robertshaw 800 Bedienungsanleitung

Robertshaw

Robertshaw 8425 Bedienungsanleitung

Robertshaw

Robertshaw 300-202 Bedienungsanleitung

Robertshaw

Robertshaw SMART 2000 Bedienungsanleitung

Robertshaw

Robertshaw 300-206 Bedienungsanleitung

Robertshaw

Robertshaw RS5220C Bedienungsanleitung

Robertshaw

Robertshaw RS6000 Bedienungsanleitung

Robertshaw

Robertshaw RS9320T Bedienungsanleitung

Robertshaw

Robertshaw RS4110 Bedienungsanleitung

Robertshaw

Robertshaw 9710 Bedienungsanleitung

Robertshaw

Robertshaw 9901i Bedienungsanleitung

Robertshaw

Robertshaw RS9210 Bedienungsanleitung

Robertshaw

Robertshaw 9851i Bedienungsanleitung

Robertshaw

Robertshaw 300-203 Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung
