Robertshaw RS9110 Bedienungsanleitung

RS9110

Operation Manual

Table of Contents Page

Table of Contents 1

Thermostat Operation 2-3

Thermostat Quick Reference 4-7

Programming 8-10

Technician Setup Menu 11-15

Terminal Designations 16

Equipment damage hazard.

Do not operate the cooling

system if the outdoor

temperature is below 50°F

(10°C) to prevent possible

compressor damage.

Caution

RS9110

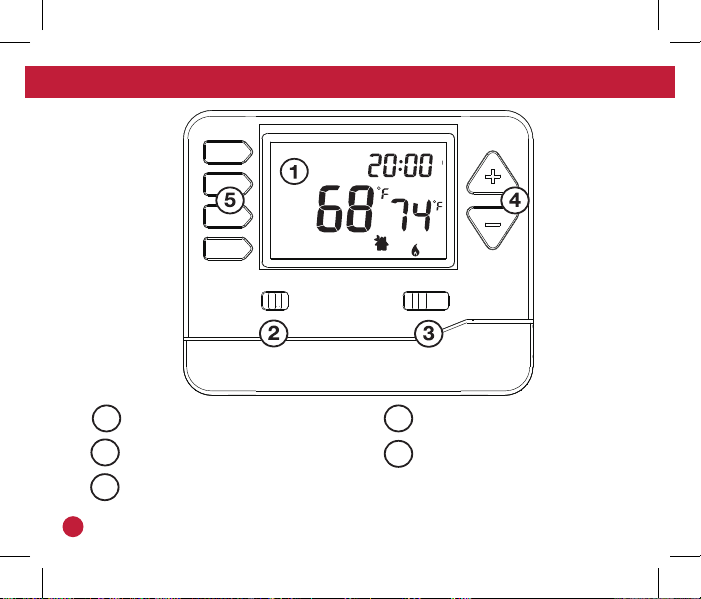

THERMOSTAT OPERATION

LCD Screen Temperature Setpoint Buttons

User ButtonsFan Switch

System Switch

Mon

Room

Set At

SLEEP

FAN

SYSTEM

ON AUTO COOL OFF HEAT

THERMOSTAT OPERATION

Caution:

LCD Screen

See page 4 for details about

thisdisplay readout.

Fan Switch

Select ON or AUTO. ON will run the

fan continuously. AUTO will cycle

the fan on only when the heating or

cooling system is running.

System Switch

Select the operationmode on

your HVAC system. Selecting

HEAT turns on the heat mode.

Selecting COOL turns on the air

conditioning mode.

Selecting OFF turns both heating

and cooling o.

Temperature Setpoint Buttons

Press the + or - buttons to selectthe

desired room temperature.

User Buttons

Use these buttons to set up

yourprogramming options. Refer to

the next page for detail.

When the battery icon appears replace your AAA batteries

immediately. Failure to do so may result in your heating and cooling

system becoming inoperable. Freezing or over heating can occur.

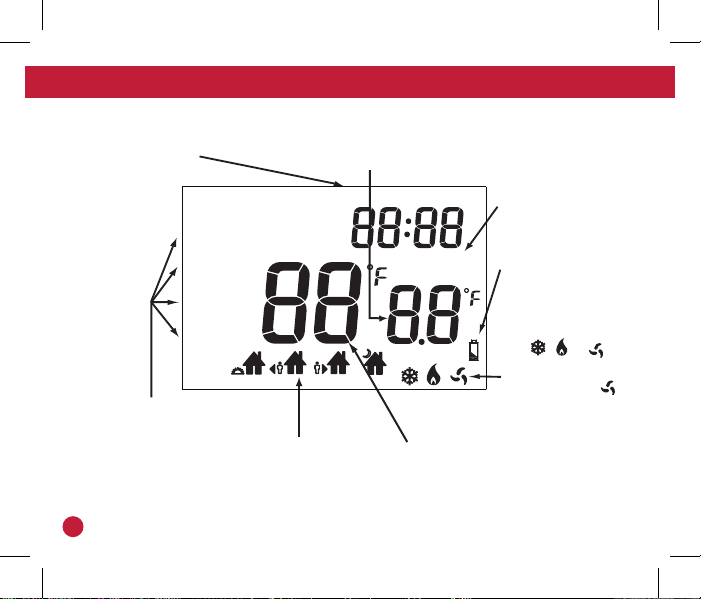

Days of the week

and time.

Button Options

Programmable Time Periods:

This thermostat has 4

programmable time periods per

day.

Indicates the current

room temperature.

Displays the user

selected setpoint

temperature.

Hold: Is displayed

when thermostat

program is

permanently

overridden.

Low Battery

Indicator:

Replace batteries

when indicator is

shown.

System Operation

Indicators:

The , or icon

will display when the

COOL, HEAT, or

(fan) is on.

NOTE: The compressor

delay feature is activeif

these icons are ashing.

The compressor will not

turn on until the 5 minute

delay has elapsed.

Tech Set

Next Step Min Com On

Com Delay H eat

Cool Swing

Room

Sun Mon Tue Wed Thu

Hold Filter

Set At

SatFri

Set Time

Run Sched

Set Sched

Hold

Prev Step

Done WAKE LEAVE RETURN SLEEP

+1 +2

THERMOSTAT QUICK REFERENCE

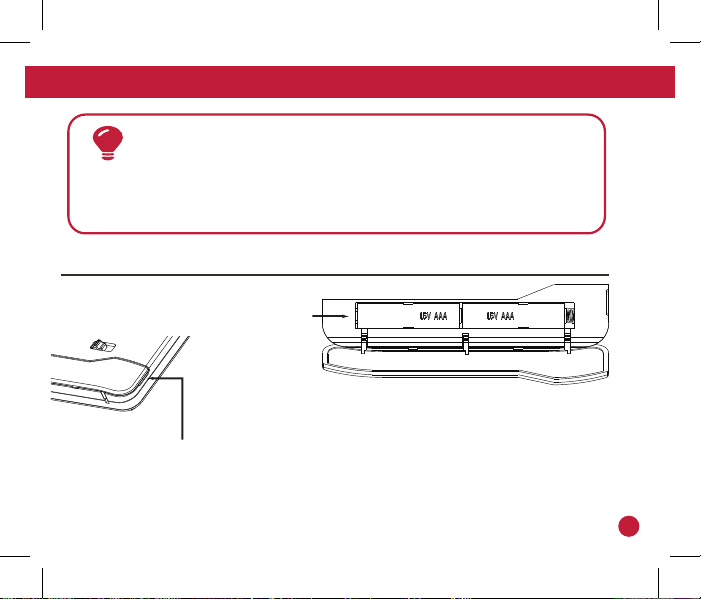

The low battery indicator is displayed when the 2x AAA batteries

need to be replaced.

Important:

Battery Door Information

Replace with

2xAAAAlkaline

Batteries. High

quality Alkaline

batteries are

recommended.

Use the finger bevel on

the lower portion of the

thermostat to open the

easyaccess battery door.

THERMOSTAT QUICK REFERENCE

Temporary and Permanent Hold Feature (if using programming)

Temporary Hold: The thermostat will display HOLD and RUNSCHED on the

left of your screen when you press the or key. If you do nothing, the

temperature will remainat this setpoint until next time period. Your program

setpoint will then replace your temporary setpoint.

Permanent Hold: If you press the HOLD key at the left of your screen, you will

see HOLD appear below the setpoint temperature in the display. The thermostat

will now permanently stay at this setpoint and can be adjusted using the or

keys.

To return to program: Press the RUN SCHED key at the left of your

screentoexit either temporary or permanent hold.

THERMOSTAT QUICK REFERENCE

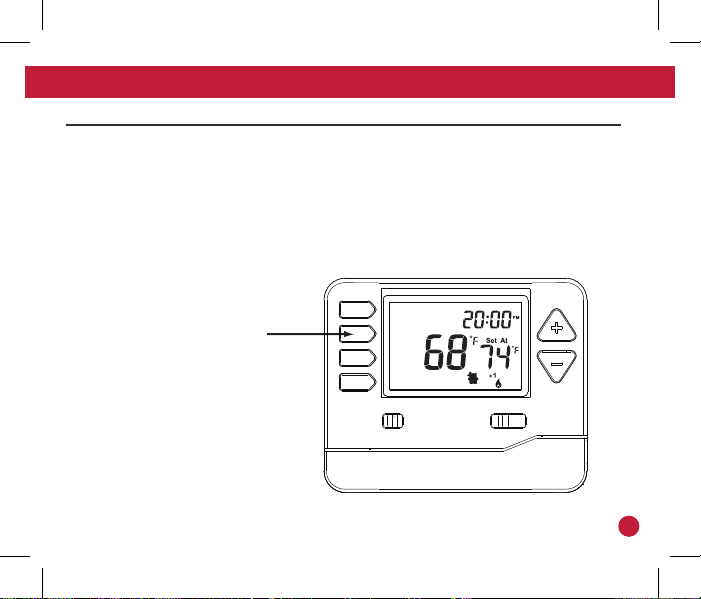

Filter Change Reminder

If your HVAC contractor has congured the thermostat to remindyou when the

air lter needs to be changed, you will see FILTER in the display when your air

lter needs to be changed.

Resetting the ﬁlter change reminder: When FILTER reminderis displayed, you

should change your air lter and reset thereminder by holding down the second

button from the top left side of the thermostat for 3 seconds.

Mon

Room

Set At

SLEEP

FAN

SYSTEM

ON AUTO COOL OFF HEAT

Hold down 3 seconds to

reset lter reminder.

THERMOSTAT QUICK REFERENCE

Set Time

1. Press the MENU button.

2. Press SET TIME.

3. Day of the week will be ashing. Use the or key to

select the current day of the week.

4. Press NEXT STEP.

5. The current hour is ashing. Use the or key to select

the current hour. When using 12-hour time, make sure the correct

a.m. or p.m. choice is selected.

6. Press NEXT STEP.

7. Minutes are now ashing. Use the or key to select

current minutes.

8. Press DONE when completed.

PROGRAMMING
