CL 20 D

Eng

SUMMARY

WARRANTY

IMPORTANT WARNING

INTRODUCTION TO YOUR NEW

VEGETABLE PREPARATION MACHINE

CL 20 “D” Version

SWITCHING ON THE MACHINE

•Advice on electrical

ASSEMBLY

USES AND CHOICE OF DISCS

CLEANING

TECHNICAL SPECIFICATIONS

•Weight

•Dimensions

•Working height

•Noise level

•Electrical data

SAFETY

STANDARDS

TECHNICAL DATA (page 75)

•Exploded views

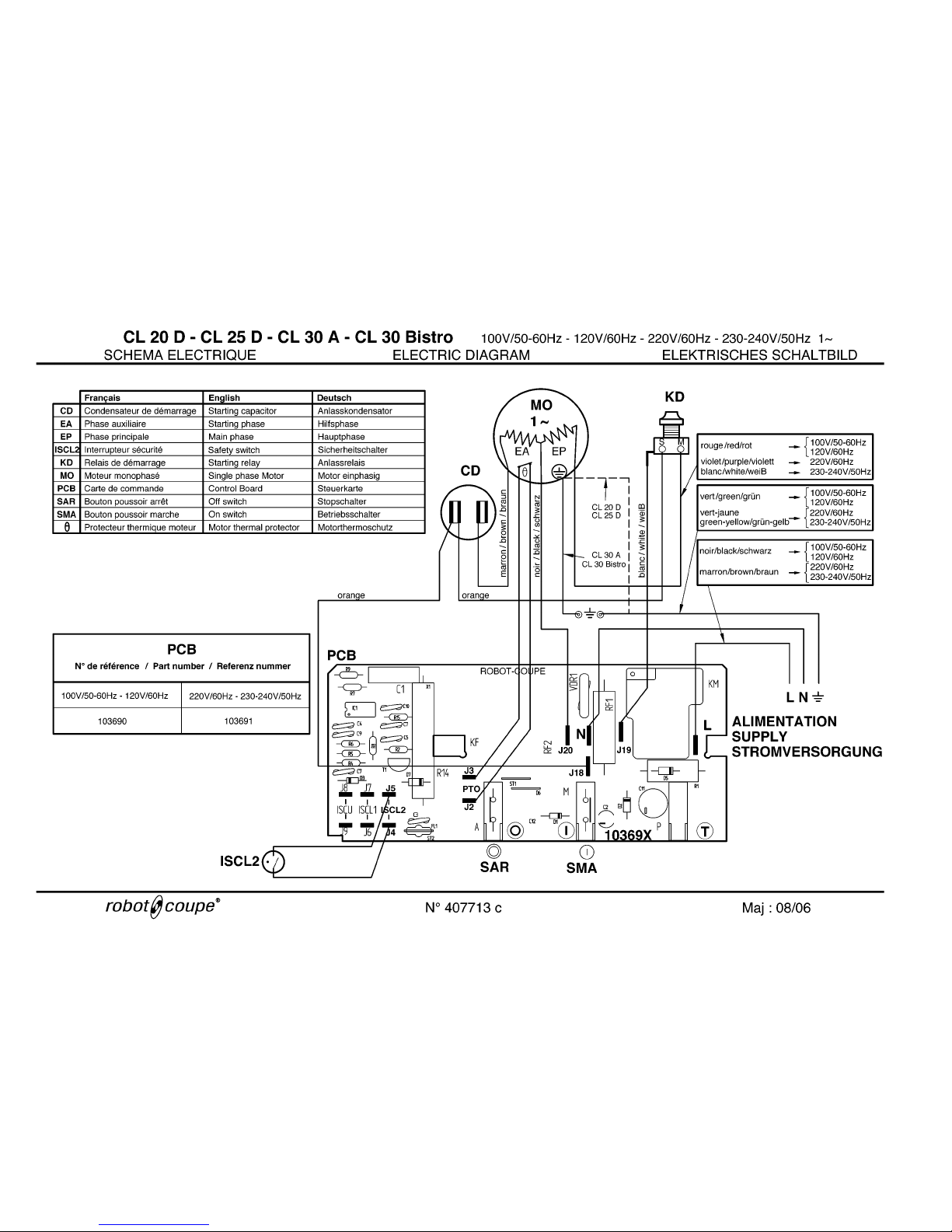

•Electric and wiring diagrams

ROBOT-COUPE S.N.C., LIMITED WARRANTY

Your new ROBOT-COUPE appliance is war-

ranted to the original buyer for a period of

one year from the date of sale if you

bought it from ROBOT-COUPE S.N.C.

If you bought your ROBOT-COUPE product

from a distributor your product is covered

by your distributor’s warranty (Please check

with your distributor terms and conditions

of the warranty).

The ROBOT-COUPE S.N.C. limited warranty

is against defects in material and/or work-

manship.

The ROBOT-COUPE S.N.C. warranty is

given expressly and in lieu of all other

warranties, expressed or implied, for

merchantability and for fitness toward a

particular purpose and constitutes the only

warranty made by ROBOT-COUPE S.N.C.

France.

THE FOLLOWING ARE NOT COVERED

BY THE ROBOT-COUPE

WARRANTY:

1-Damage caused by abuse, misuse, dropping,

or other similar damage caused by or

resulting from failure to follow assembly, opera-

ting, cleaning, user maintenance or storage

instructions.

2-Labour to sharpen and/ or replacements for

blades which have become blunt, chipped or

worn after a normal or excessive period of use.

3-Materials or labour to replace or repair

scratched, stained, chipped, pitted, dented or

discoloured surfaces, blades, knives, attachments

or accessories.

4-Any alteration, addition or repair that has

not been carried out by the company or an

approved service agency.

5-Transportation of the appliance to or from an

approved service agency.

6-Labour charges to install or test new attach-

ments or accessories (i.e., bowls, discs, blades, at-

tachments) which have been arbitrarity replaced.

7-The cost of changing direction-of-rotation of

three-phase electric motors (Installer is responsible).

8-SHIPPING DAMAGES. Visible and latent

defects are the responsibility of the freight carrier.

The consignee must inform the carrier and consi-

gnor immediately, or upon discovery in the case

of latent defects.

KEEP ALL ORIGINAL CONTAINERS AND

PACKING MATERIALS FOR CARRIER INSPEC-

TION.

Neither ROBOT-COUPE S.N.C. nor its affiliated

companies or any of its distributors, directors,

agents, employees, or insurers will be liable for

indirect damage, losses, or expenses linked to the

appliance or the inability to use it.

Eng

WARNING: In order to limit accidents such as electric shocks or personal injury, and in order to limit material damage due to misuse

of the appliance, please read these instructions carefully and follow them strictly. Reading the operating instructions will help you get

to know your appliance and enable you to use the equipment correctly. Please read these instructions in their entirety and make sure

that anyone else who may use the appliance also reads them beforehand.

IMPORTANT WARNING

UNPACKING

• Carefully remove the equipment from the packaging

and take out all the boxes or packets containing

attachments or specific items.

• WARNING - some of the tools are very sharp e.g.

blades, discs... etc.

INSTALLATION

• We recommend you install your machine on a

perfectly stable solid base.

CONNECTION

• Always check that your mains supply corresponds

to that indicated on the identification plate on the

motor unit and that it can withstand the amperage.

• The machine must be earthed.

HANDLING

• Always take care when handling the blades, as

they are extremely sharp.

ASSEMBLY PROCEDURES

• Follow the various assembly procedures carefully

(see page 12) and make sure that all the attachments

are correctly positioned.

USE

• Never try to override the locking and safety systems.

• Never insert an object into the container where the

food is being processed.

• Never push the ingredients down with your hand.

• Do not overload the appliance.

• Never switch the appliance on when it is empty.

CLEANING

• As a precaution, always unplug your appliance

before cleaning it.

• Always clean the appliance and its attachments at

the end of each cycle.

• Never immerse the motor unit in water.

• For parts made from aluminum, use cleaning fluids

intended for aluminum.

• For plastic parts , do not use detergents that are

too alkaline (e.g., containing too much caustic soda or

ammonia).

• Robot-Coupe can in no way be held responsible

for the user’s failure to follow the basic rules of

cleaning and hygiene.

MAINTENANCE

• Before opening the motor housing, it is absolutely

vital to unplug the appliance.

• Check the seals and washers regularly and ensure

that the safety devices are in good working order.

• It is particularly important to maintain and check the

attachments since certain ingredients contain corrosive

agents, e.g. citric acid.

• Never operate the appliance if the power cord

or plug has been damaged or if the appliance fails to

work properly or has been damaged in any way.

• Do not hesitate to contact your local Maintenance

Service if something appears to be wrong.

KEEP THESE INSTRUCTIONS

IN A SAFE PLACE

WARNING

INTRODUCTION TO

YOUR NEW VEGETABLE

PREPARATION MACHINE

CL 20 “D” Version

The CL 20 is perfectly geared to professional needs.

It can perform any number of tasks, which you will

gradually discover as you use it.

This model is equipped with a removable vegetable

preparation attachment made in ABS. New feed

hopper designed for optimum cutting :

-large hopper (area 104 cm2).

-round feed hopper (Ø 58 mm)

This model is equipped with a patented magnetic

security device and motor braking system which

stops the machine as soon as the bowl or hoppers

are opened.

The CL 20 is supplied with a wide range of discs

and grids to satisfy even the most demanding chefs

when it comes to cutting up fruit and vegetables, i.e.

slicing, grating, and julienne.

Its numerous functions will open the door to a whole

new culinary world.

Thanks to its simple design, all components requi-

ring frequent handling for maintenance or cleaning

can be fitted and removed in a trice.

To make things easier for you, this manual gives a

breakdown of all the various fitting operations.

We place special emphasis on those actions which

cause the machine to stop.

This manual contains important information desi-

gned to help the user get the most out of the CL 20

vegetable preparation machine.

We therefore recommend that you read it carefully

before using your machine.

We have also included a few examples to help you

get the feel of your new machine and appreciate its

numerous advantages.

SWITCHING ON

THE MACHINE

• ADVICE ON ELECTRICAL CONNECTION

Before plugging in, check that your power supply

corresponds to that indicated on the machine’s

identification plate.

The CL 20 comes with different types of motors:

230 V / 50 Hz / 1

115 V / 60 Hz / 1

220 V / 60 Hz / 1

The machine comes with a single-phase plug

connected to a power cord.

ASSEMBLY

The vegetable cutter attachment consists of two detach-

able parts: the vegetable cutter bowl and the lid.

1) With the motor base

facing you, fit the bowl

onto the motor base; the

ejection chute should be

on your right.

2) Turn the bowl to

the right until the motor

base connectors are

securely positioned in

their sockets.

3) Engage the white plas-

tic ejecting plate on the

motorshaft and check that

it is correctly positioned at

the bottom of the bowl.

USES AND

CHOICE OF DISCS

The vegetable preparation machine CL 20 consists

of two hoppers:

- one large hopper for cutting vegetables such as

cabbage, celeriac…

- one cylindrical hopper for long vegetables and

high precision cutting.

For optimum results, use this section as a cutting

guide.

This appliance must be plugged into an

earthed socket (risk of electrocution).

WARNING

4) Then choose the disc

to be set into the ejecting

plate.

5) Place the lid on the bowl and rotate it to the right

until the lid clicks, to form an extension of the bowl.

• HOW TO USE THE LARGE HOPPER

- Raise the lever and release the hopper opening.

- Fill hopper with vegetables.

- Replace the lever at the base of the hopper.

- Start to press the lever, switch on the machine and

maintain the pressure until there are no vegetables

left in the hopper.

• HOW TO USE THE CYLINDRICAL HOPPER

- Fill hopper with vegetables.

- Start to press the button and switch on the

machine. Maintain the pressure until all vegetables

have been chopped up.

Parmesan,

chocolate

Radish 0.7 mm

Radish 1 mm

Radish 1,3 mm

SLICERS

carrot / cabbage / cucumber / onion / potato / leek

S2/S3

lemon / carrot / mushroom / cabbage / potato / cucumber /

zucchini / onion / leek / bell pepper

S4/S5

eggplant / beet root / carrot / mushroom / cucumber /

bell pepper / radish / lettuce / potato / leek / tomato

egg plant / beet root / carrot / mushroom / cucumber /

bell pepper / radish / lettuce / potato / leek

RIPPLE CUT SLICER

beet / root / potato / carrot

GRATERS

G 1,5

celeriac / cheese

carrot / celeriac / cheese

carrot

cabbage / cheese

JULIENNE

J2x2

carrot / celeriac / potato

J2x4

carrot / beet root / zucchini / potato

J 2x6 carrot / beet root / zucchini / potato

J 4x4 egg plant / beet root / zucchini / potato

J 6x6 egg plant / beet root / celeriac / zucchini / potato

J 8x8 celeriac / potato

Eng

CLEANING

After removing the head of the vegetable preparation

machine, take off the disc, followed by the grid and

discharge plate where necessary.

Dishwashers are best avoided. Instead we recom-

mend that you clean the machine by hand using

washing-up liquid.

Never immerse the motor unit in water. Clean it

with a damp cloth or sponge.

As a precaution, always unplug your ap-

pliance before cleaning it (risk of electrocution).

WARNING

DIMENSIONS (in mm)

• WORKING HEIGHT

We recommend that you position the CL 20 on a

stable worktop so that the upper edge of the large

feed hopper is at a height of between 1.20 m and

1.30 m.

• NOISE LEVEL

The equivalent continuous sound level when

the CL 20 is operating on no-load is less than

70 dB(A).

• ELECTRICAL DATA

Single phase machine

TECHNICAL

SPECIFICATIONS

• WEIGHT

Net weight Gross weight

Motor base 7.1 kg 8.5 kg

Vegetable preparation

attachment 2.8 kg 4.2 kg

Disc 0.5 kg 0.6 kg

Speed Power Intensity

Motor (rpm) (watts) (Amp.)

230 V / 50Hz 1500 400 15.7

115 V / 60 Hz 1800 400 12.0

220 V / 60 Hz 1800 400 15.7

IMPORTANT

Check that your detergent is suitable for

cleaning plastic parts. Some washing agents

are too alkaline (e.g. high levels of caustic

soda or ammonia) and totally incompatible

with certain types of plastic, causing them to

deteriorate rapidly.

BA 206

B 570

C 340

D 525

E 405

F 410

G 726

SAFETY

The CL 20 has a magnetic safety device and motor

braking system. As soon as you open the lid, the

motor stops.

To restart the machine, simply close the lid and

press the green switch.

STANDARDS

MACHINES IN COMPLIANCE WITH:

• The following European directives and related na-

tional legislation:

- Modified "machinery" directive 2006/42/EEC,

- "Low voltage" directive 2006/95/EEC,

- "EMC" directive 2004/108/EEC,

- "Materials and parts in food contact" directive

89/109/EEC,

- Commission Directive 2002/72/EC of 6 August

2002 relating to plastic materials and articles

intended to come into contact with foodstuffs.

• The following European harmonized standards

and standards setting out health and safety rules:

- EN 292 - 1 and - 2,

- EN 60204 -1 (2006),

- For Vegetable cutting machine : EN 1678.

INDEXES OF PROTECTION:

- IP 55 for the switches.

- IP 34 for the machines.

REMEMBER

WARNING

The discs are extremely sharp. Handle with

care.

Never try to override the locking and safety

systems.

Never insert an object into the container where

the food is being processed.

Never push the ingredients down with your

hand.

Do not overload the appliance.

Never switch the appliance on when it is empty.

Andere Handbücher für CL 20 D

Inhaltsverzeichnis

Andere Robot Coupe Küchengerät Handbücher

Robot Coupe

Robot Coupe R 5 V.V. Wartungs- und Serviceanleitung

Robot Coupe

Robot Coupe CL 20 D Bedienungsanleitung

Robot Coupe

Robot Coupe Blixer 2 Wartungs- und Serviceanleitung

Robot Coupe

Robot Coupe Blixer 23 Bedienungsanleitung

Robot Coupe

Robot Coupe CL 20 Wartungs- und Serviceanleitung

Robot Coupe

Robot Coupe R 101 Bedienungsanleitung

Robot Coupe

Robot Coupe R 2 Dice Bedienungsanleitung

Robot Coupe

Robot Coupe CL 52 E Bedienungsanleitung

Robot Coupe

Robot Coupe R 211 XL Wartungs- und Serviceanleitung

Robot Coupe

Robot Coupe R401 Wartungs- und Serviceanleitung

Robot Coupe

Robot Coupe Blixer 5 G Bedienungsanleitung

Robot Coupe

Robot Coupe R 301 Bedienungsanleitung

Robot Coupe

Robot Coupe R502 Bedienungsanleitung

Robot Coupe

Robot Coupe CL60 Bedienungsanleitung

Robot Coupe

Robot Coupe CL 20 Bedienungsanleitung

Robot Coupe

Robot Coupe BLIXER 5 Plus Bedienungsanleitung

Robot Coupe

Robot Coupe CL 52 E Bedienungsanleitung

Robot Coupe

Robot Coupe PRESSCOULIS C40 Bedienungsanleitung

Robot Coupe

Robot Coupe R 5 Plus Bedienungsanleitung

Robot Coupe

Robot Coupe CL 52 Series "D" Bedienungsanleitung

Robot Coupe

Robot Coupe J 80 Bedienungsanleitung

Robot Coupe

Robot Coupe R2 Ultra B Wartungs- und Serviceanleitung

Robot Coupe

Robot Coupe Mini MP 160 V.V. Bedienungsanleitung

Robot Coupe

Robot Coupe CL 30 Bedienungsanleitung

Beliebte Küchengerät Handbücher anderer Marken

Tayama

Tayama TYG-35AF Bedienungsanleitung

AEG

AEG 43172V-MN Bedienungsanleitung

REBER

REBER Professional 40 Benutzerhandbuch

North American

North American BB12482G / TR-F-04-B-NCT-1 Bedienungsanleitung

Presto

Presto fountain popper Bedienungsanleitung

Westmark

Westmark 1035 2260 Bedienungsanleitung

Zanussi

Zanussi ZCG64396XA Bedienungsanleitung

HOFFEN

HOFFEN SM-9302M Bedienungsanleitung

Philips

Philips HD3133 Bedienungsanleitung

Ronco

Ronco Beef Jerky Bedienungsanleitung

Hendi

Hendi 470411 Bedienungsanleitung

Livoo

Livoo MEN386 Bedienungsanleitung

Vogue

Vogue D446 Bedienungsanleitung

croydon

croydon WR-10313-700 Bedienungsanleitung

ADE

ADE AUTOMATIC-L Bedienungsanleitung

Chefman

Chefman RJ43-SQ Series Bedienungsanleitung

Vacmaster

Vacmaster VP680 Bedienungsanleitung

Jetmaster

Jetmaster 900HG Bedienungsanleitung
