Rocket Fish RF-NANMSE Bedienungsanleitung

Nano Laptop Laser Mouse

RF-NANMSE

User Guide

3RF-NANMSE

Rocketfish RF-NANMSE

Nano Laptop Laser Mouse

Contents

Introduction ...................................................................... 3

Features .............................................................................. 3

Using the mouse............................................................12

Maintaining .....................................................................20

Troubleshooting ............................................................20

Specifications..................................................................21

Legal notices ...................................................................22

One-year limited warranty.........................................25

Introduction

Congratulations on your purchase of the Rocketfish RF-NANMSE

nano laptop laser mouse. This mouse represents the state of the art in

wireless mouse design and is designed for reliable and trouble-free

performance.

Features

•Minidongle

• 2.4 GHz wireless connection

• Tilt/scroll wheel

• Five mouse buttons

• Excellent performance working range of more than 32.8 feet (10 meters)

(with no interference)

• Dual-color status LED indicator

Package contents

•Mouse

• Receiver

• Installation CD (includes software and User Guide)

•QuickSetupGuide

• AA battery

System requirements

• At least one USB port (USB 2.0 or 1.1)

•CDdrive

• Operating system: Windows® 2000, Windows® XP with Service Pack 1 or

higher, Windows Vista®, or Windows 7

5RF-NANMSE

Top

Note: The A and B buttons are programmable. You need to install the mouse drive to

program the buttons and to use the full functionality of the mouse. For more

information, see “Installing the mouse driver and software” on page 10.

#Component Description

1 LED indicator Indicates the current mouse state.

•Off—The mouse is turned off.

•Green—The mouse is turned on and the battery has a charge.

•Flashing red—The battery charge is low and the battery needs to be

replaced.

2Button B Press to go to the previous page in a Web browser.

3 Button A Press to go to the next page in a Web browser.

4Left button Press to perform standard left mouse actions such as selecting items and

opening programs.

5 Scroll wheel Roll the scroll wheel to move the screen image up or down, and tilt the scroll

wheel to move the screen image left or right.

If you press down on the scroll wheel, a four-way icon appears on the screen.

Then move the mouse up, down, left, or right to scroll.

6Right button Press to perform standard right mouse actions such as opening popup menus

or viewing help information.

1 2 3 4

5 6

Bottom

#Component Description

7 Power button Turns the mouse on or off.

8Battery compartment Provides storage for the dongle and battery.

9 Laser sensor Detects mouse movements and sends signals to the laptop to move the

mouse pointer on the screen.

7 8 9

7RF-NANMSE

Setting up the mouse

Installing the battery

To install the battery:

1Press the tab on the battery compartment cover, then lift the cover away

from the mouse.

2Pull the dongle out of the battery compartment.

3Insert one AA battery into the battery compartment. Make sure that the

+ and – symbols on the battery match the + and – symbols in the battery

compartment.

4Replace the battery compartment cover.

9RF-NANMSE

Setting up the mouse

To set up the mouse:

1Plug the USB dongle into a USB port on the laptop.

2Slide the power button on the bottom of the mouse down to turn on the

mouse. The laptop detects the mouse.

Installing the mouse driver and software

To use advanced functions, such as dynamic search and magnifier,

you need to install the mouse driver and software.

Note: The following instructions are based on the Windows® XP operating system.

To install the mouse driver and software:

1Make sure that you have connected the dongle, installed the battery,

and turned on the mouse.

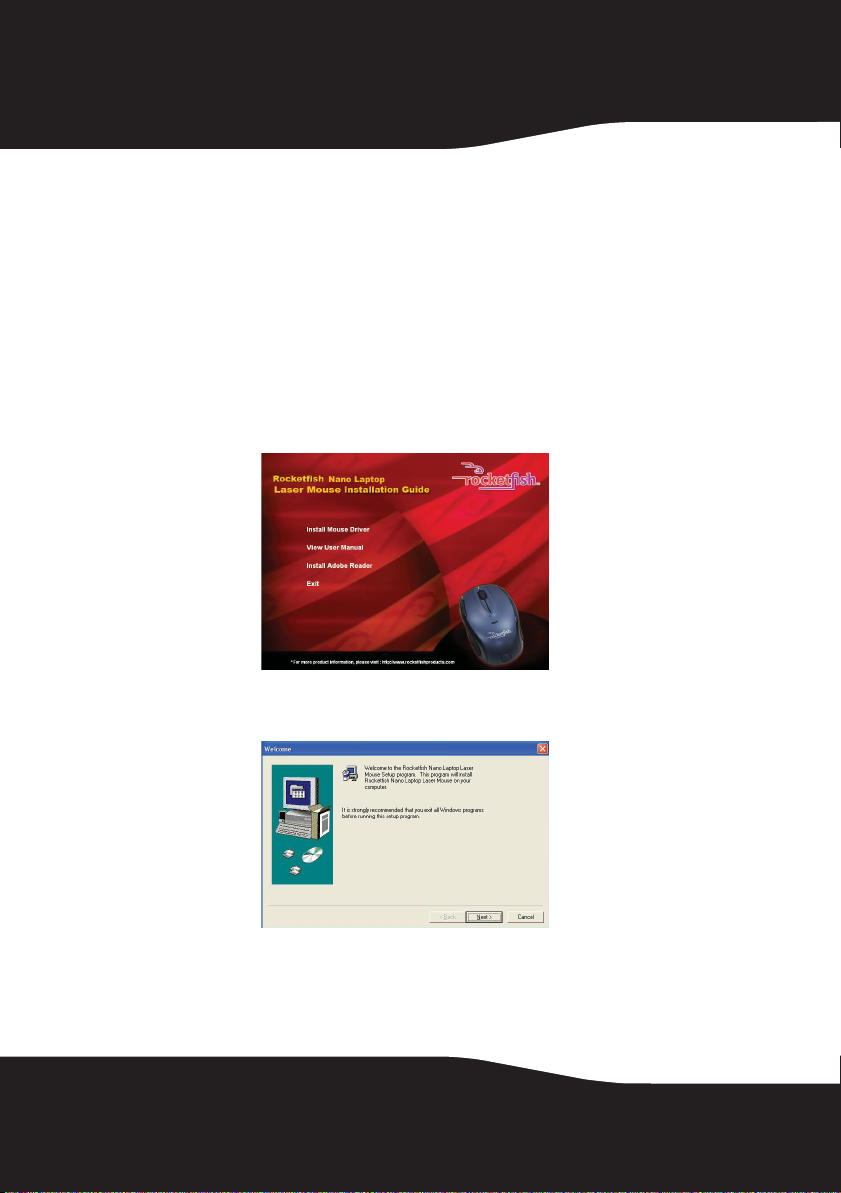

2Insert the provided installation CD in the CD drive on the laptop. The

installation program should start automatically. If it does not start

automatically, open Windows Explorer, browse the CD, then double-click

autorun.exe. The Rocketfish Nano Laptop Laser Mouse screen opens.

3Click Install Mouse Driver. The Welcome screen opens.
