Rocstor EAGLEROC E7 Bedienungsanleitung

store your future

User Manual

Page | 2

ROCSTOR |EAGLEROC E7 user manual

TABLE OF CONTENTS

IMPORTANT NOTICES 4

Safety Notices ________________________________________________________ 4

General Notices

Capacity Disclaimer____________________________________________________ 4

Care and Handling 4

GENERAL 6

Introduction ___ ________________________________________________ 6

Box Contents 6

Minimum System Requirements _____________________________________ 7

Connectors and Eagleroc rear view 7

QUICK INSTALLATION 8

How to Connect the Interface Cables - Connecting the Drive ___________________ 8

Cable Types: FireWire 800, FireWire 400, USB and SATA 10

INSTALLING YOUR DRIVE 11

Eagleroc as a bootable device ____________________________________________ 11

Disconnecting Your Drive 11

oPC _______________________________________________________________ 11

oMac 12

Reformatting Your Drive ________________________________________________ 12

oReformatting via PC (Window based computers) 12

oReformatting via Mac _______________________________________________ 12

Important Note 12

How to Daisy-Chain through FireWire ports to your Eagleroc Drive at one time ____ 13

PARTITIONING AND FORMATTING THE EAGLEROC DRIVE ON A MAC OS 14

Warning _____________________________________________________________ 14

Important Notes 14

Instructions for Partitioning and Formatting from FAT 32 to HFS+ _______________15

PARTITIONING-FORMATTING the EAGLEROC Drive on WINDOWS 2000, XP and VISTA 24

Warning _____________________________________________________________ 24

Important Notes 24

Different ways to get to the Control Panel __________________________________ 25

Instructions upon reaching the Control Panel 27

Instructions for Partitioning and Formatting from FAT 32 to NTFS _______________ 28

Page | 3

ROCSTOR |EAGLEROC E7 user manual

TROUBLESHOOTING 35

Troubleshooting for Macintosh computers _________________________________ 35

Troubleshooting for PC Windows based computers 37

KNOWLEDGE BASE 39

Eagleroc E7 Unique Features ________________________________________ 39

Specifications 40

Introduction to Interfaces (ports) and Cables ________________________________41

oFireWire (IEEE 1394) 41

oUSB (Universal Serial Bus) ____________________________________________ 43

oSATA (Serial Advanced Technology Attachment) ---

oComparison Chart __________________________________________________ 44

Introduction to Formatting 45

oFile Allocation Table (FAT) and FAT 32 __________________________________ 45

oHFS Plus or HFS+ 46

LIMITED WARRANTY 47

TECHNICAL SUPPORT 50-51

ACKNOWLEDGEMENTS 52

Trademarks __________________________________________________________ 52

Copyrights 52

CONTACT INFORMATION 53

Corporate Headquarters ________________________________________________ 53

Technical Support / Return Authorization “RMA”53

Sales Info ____________________________________________________________ 53

Page | 4

ROCSTOR |EAGLEROC E7 user manual

IMPORTANT NOTICES

Safety Notices

The warranty is void if an unauthorized person attempts and/or repairs the hard disk drive.

Read all Manuals and instructions carefully before using the device.

Do not spill any liquid or insert any object into the device.

Use the device within the specifications indicated, including but not limited to: power

requirements, temperature, humidity, sunlight and magnetism from other devices such as

computers and televisions.

Please visit the Rocstor website, www.rocstor.com for further information concerning

specifications and use of the device.

General Notices

Consistently make multiple backup copies of your data for your protection. Hard disk drives

are subject to failure at any time.

Rocstorage, Inc. shall not be held liable for loss of data or the restoration or recovery of

data on the device. Please view complete Limited Warranty Information in this manual or

on the Rocstor website (www.rocstor.com) for further details.

Capacity Disclaimer

Actual accessible hard drive capacity will indicate up to 10% lower than stated under different

Operating Systems and formatting.

The storage volume is measured in total bytes before formatting. References to round

numbers of gigabytes or terabytes are an approximation only. For example, a disk drive labeled

as having 500GB (gigabytes) has space for approximately 500,000,000 bytes before formatting.

After formatting, the drive capacity is reduced by about 5% to 10% depending on the operating

system and formatting used.

Care and Handling

The following instructions concern the proper care and handling of Eagleroc E7 Drives. Please

take a moment to review these instructions.

As with any storage solution, it is recommended that all data be backed up regularly.

Ensure that you follow the proper removal procedure to disconnect the Eagleroc drive.

Do not move or disconnect this device from your computer while it is reading or writing

data. This may cause damage to the Eagleroc drive.

Do not place this device near a heat source or expose it to direct flame.

Do not place the device near any equipment generating strong electromagnetic fields.

Exposure to strong electromagnetic fields may cause the device to malfunction or data to

be corrupted.

Do not drop or cause shock to your Eagleroc drive.

Page | 5

ROCSTOR |EAGLEROC E7 user manual

Do not spill any liquid or insert any object into the device.

Do not attempt to disassemble and service the Eagleroc drive during the warranty

period.

Please read the Safety Notices and Limited Warranty information in this Manual and on

the Rocstor website (www.rocstor.com) for further details.

Page | 6

ROCSTOR |EAGLEROC E7 user manual

GENERAL

Introduction

EAGLEROC E7 –FireWire 800 (400) and USB 3.0 (1.1/2.0)

The Eagleroc E7 external SATA Hard Drives delivers extraordinary

performance and reliability for both Mac and PC users. Eagleroc E7

contains a fast SATA high capacity 3.5” drive in a stylish and unique

case that can be placed horizontally or mounted vertically on its

stand. With its fan-less and quiet operation, the Eagleroc can be

easily moved from one desktop environment to another.

Choose Rocstor drives and “store your future.”

Page | 7

ROCSTOR |EAGLEROC E7 user manual

Box Contents

External hard disk drive

Stand for vertical mounting

USB cable

9-pin to 9-pin FireWire 800 (1394b) cable

AC adaptor 220/110V

Installation user Guide

Minimum System Requirements

Mac Users: Window Users:

* Many computers do not come with factory installed FireWire 800. Therefore, you may need

to purchase a PCI, PCI-X or PCI-Express card to use these ports. Rocstor offers a variety of

accessories to work with PC Windows or Mac based Computers. Please visit us at

www.ROCSTOR.com

Hardware: eSATA or FireWire 800* (0r

400**) or USB 3.0 (2.0) port(s.)

Operating Systems: Microsoft Windows

2000, Me, XP, Vista, Windows 7

Recommended memory: 512 MB RAM

Hardware: eSATA or FireWire 800* (0r

400**) or USB 3.0 (2.0) port(s.)

Mac: PowerPC or Intel processor running

Mac OS 9, X, Leopard, Snow Leopard,

Lion

Recommended memory: 512 MB RAM

Page | 8

ROCSTOR |EAGLEROC E7 user manual

Connectors

FireWire 800 (IEEE 1394b) port x2

Standard AC adaptor connection

USB 31.0 port x1

Page | 9

ROCSTOR |EAGLEROC E7 user manual

QUICK INSTALLATION

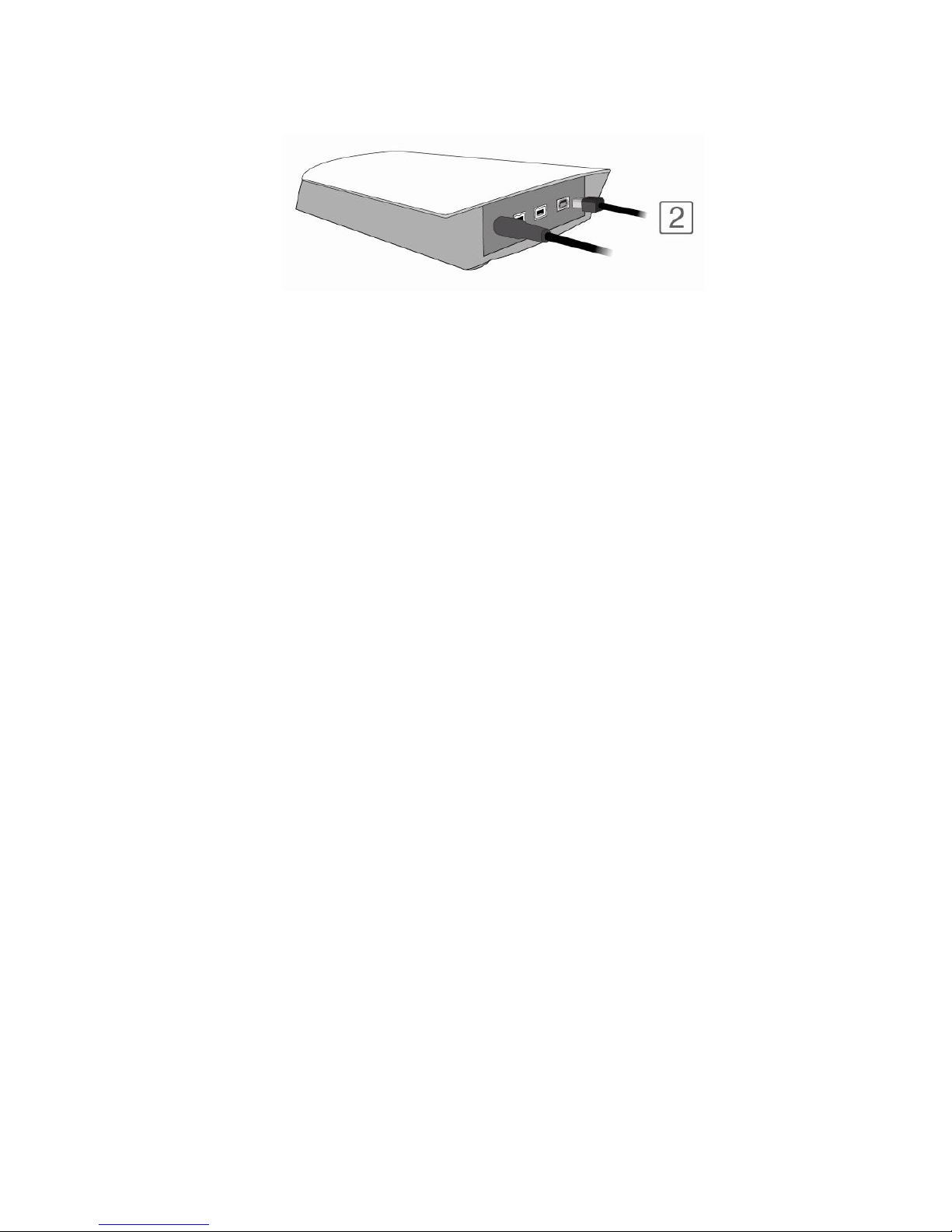

1. Turn ON your computer and wait until it fully boots up to load all programs.

2. Connect one end of the Adaptor cord directly to the Eagleroc and the other end to an AC

outlet, surge protector or battery Backup (UPS).

3. Using only one interface cable at a time, select the interface port you wish to use on your

computer. When using FireWire, connect one end of the FireWire cable to the appropriate

FireWire port (FW800 or FW400) of your computer and then the other end to the FireWire

port in the Eagleroc E7. When using USB, connect one end of the USB cable to the USB port

of your computer (or via Power Hub that is connected to your computer) and then the

other end to the USB port in the Eagleroc E7.

NOTE: Although, the AC adaptor MUST BE connected first to both the hard drive and to

electricity; however, the drive will not come “ON” until an interface (USB or FireWire) cable is

fully connected.

Page | 10

ROCSTOR |EAGLEROC E7 user manual

4. The Hard drive is preformatted for Plug-and-Play operation. After a few seconds a Rocstor

HD icon will show on “My Computer” folder under the Windows OS. Under the Mac OS,

the Rocport HD will appear on the “Desktop.”

5. Click (double click) on the Rocstor HD icon to access the drive.
