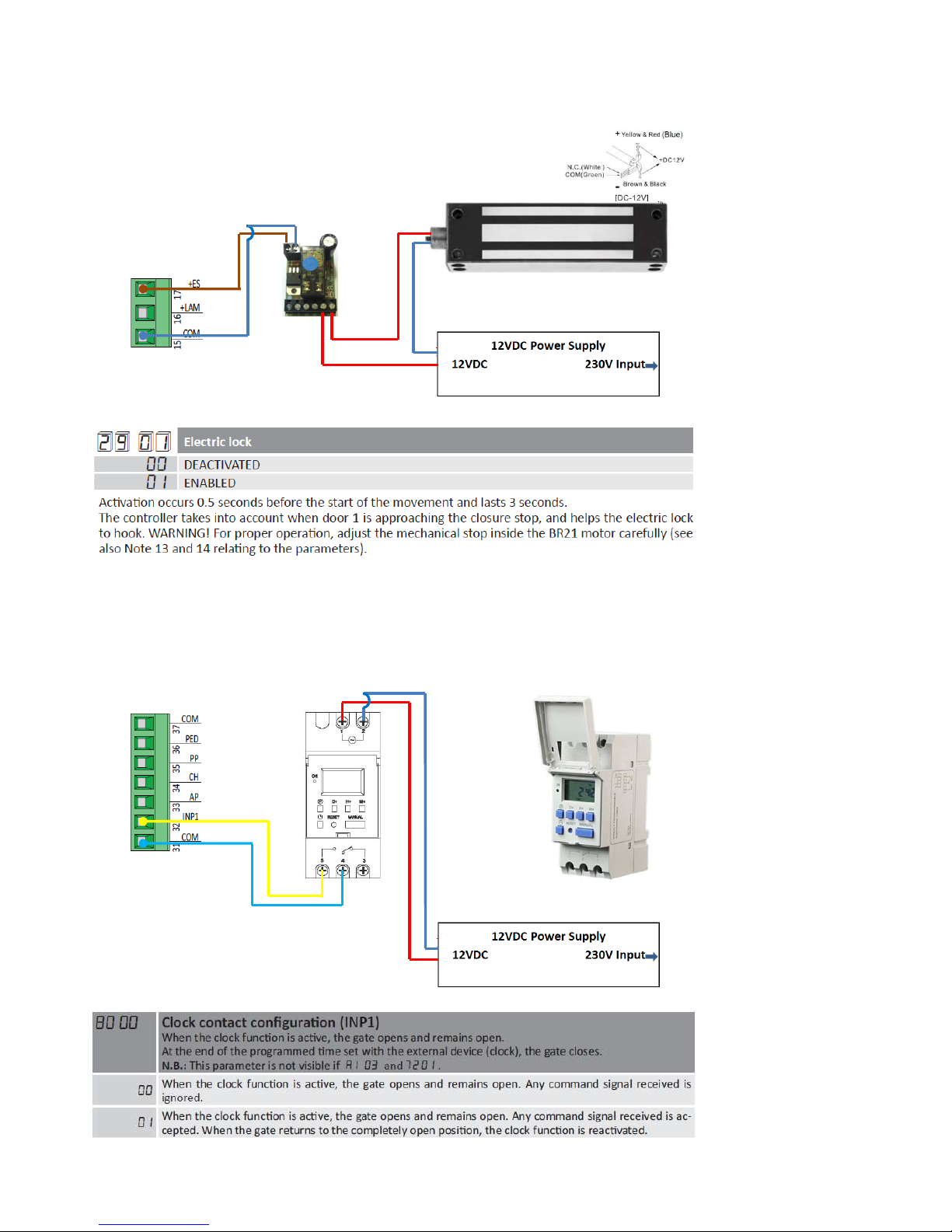

Roger Technology Swing Gate Brushless B70-2DCHP Control Panel
Quick Start Gui e Exten e Mo e
4
Step 7) THE STROKE PROGRAMMING SEQUENCE (also detailed in the main B70/2DCHP manual)
WARNING! Before proceeding, make sure that:
The doors are in a fully closed position: bring the doors into position by giving a close command, (CH) or with above
ground motors by using the manual un-lock) so that they come right against the mechanical stop. Pay attention to
the position of the lever arm of the BR21 underground motors: it must be properly hooked onto the door. To
facilitate the operation, it is recommended to power off and then restart, so that you can give the close command
regardless of the position of the door: the motor stops automatically when it reaches the mechanical closure stop.
For the program starting from the fully closed position is important because the control unit performs a mapping of
the absorption of current along the entire movement, while opening and then closing. For this reason, if a different
path is detected between opening and closing the program fails and returns an error message of AP PL
If the limit switches are present and connected, the motion stops when they are activated, otherwise the motors will
stop on the motor ad ustable stops or the gate wing stops set.
If you change the value of par. 31 and/or 32 in extended mode it is necessary to repeat the programming.
To enter programming press the PROG button for 4 s.: the display will show AP P- ; at this point, you can
programme the stroke by pressing the PROG button again, or by pressing the radio control button enabled by the
step-by-step function.
The display shows the indication AUTO and motor 1 starts opening, after the phase shift time.
Programming is performed automatically. Wait for the completion of the cycles avoiding crossing the ray of the
photocells or activating other safety devices (safety edges, stop).
The display shows the indication AU TO and motor 1 starts opening, after the phase shift time established in par. 25,
motor 2 is also automatically activated; when the wings both reach the fully open position, stopping on the
mechanical gate stop (or on the limit switch in the case of a motor with an articulated arm) the writing AU TO flashes
on the display for 2 seconds indicating that it is going to close, then the indication AU TO stops flashing and the
closing operation starts. If the program is successfully finished, the display goes back to showing the control and
safety status.
Otherwise, APPE appears (acquisition error) or APPL (path length error) and the program will have to be repeated.
Restoring standard factory parameters.
Turn off the control unit, simultaneously press and hold the UP and DOWN buttons then turn on again while keeping
the buttons pressed. After 4 seconds the display will show the writing rE S- flashing, which indicates that the values
have been restored to factory. N.B.: parameter A1 in extended mode is not restored and should be checked again as
well as the number of motors connected at 70
