ROHS FI8918 Bedienungsanleitung
Model: FI8918/FI8918W
IP Wireless / Wired Camera
NIGHT VISION & REMOTE PAN / TILT ROTATE/
TWO WAY AUDIO

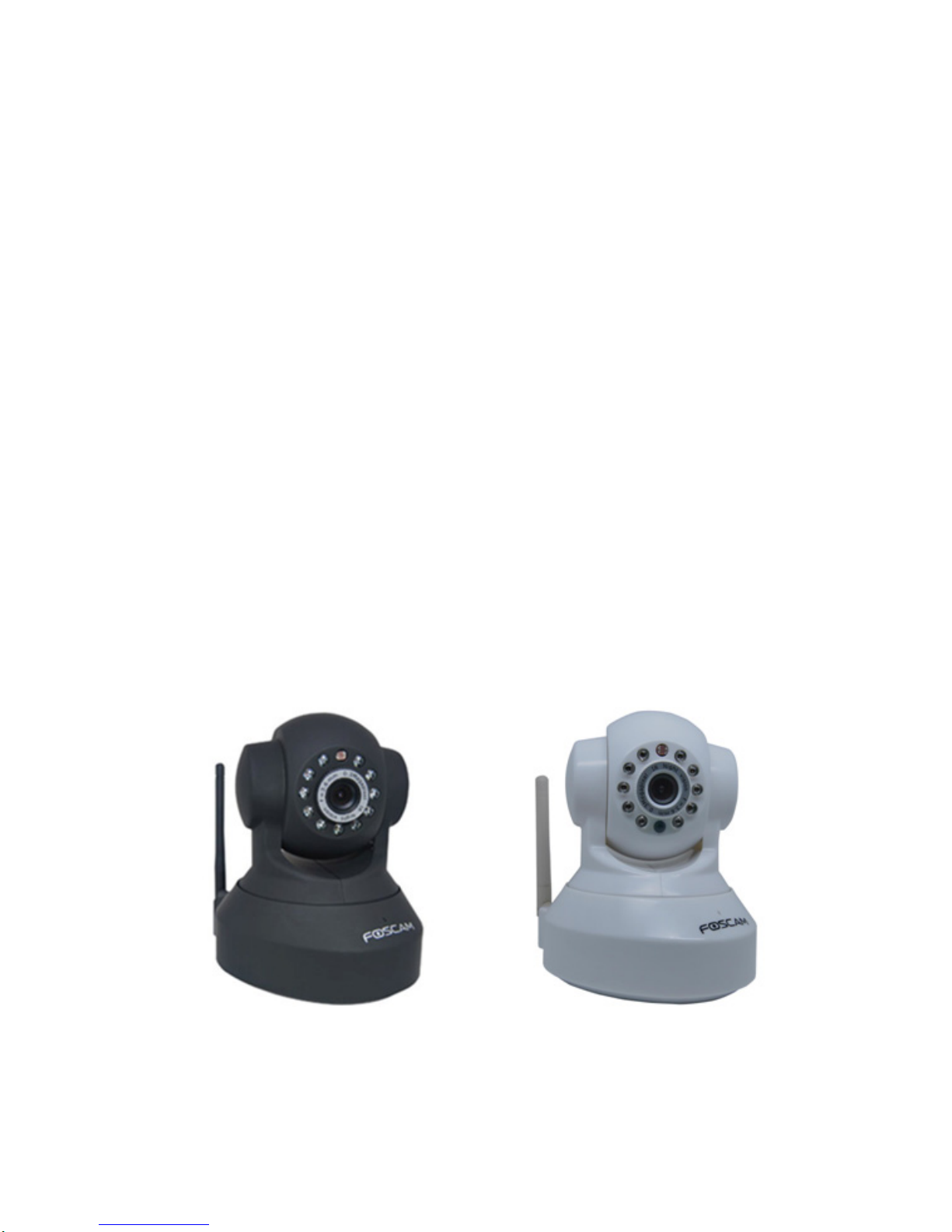

User Manual
Color:Black Color:White
CONTENTS
1 WELCOME..................................................................................................................................................... 1
1.1 Features .................................................................................................................................................. 1
1.2 Packing List ............................................................................................................................................. 2
1.3 Product views .......................................................................................................................................... 2
1.4 Preparations before use .......................................................................................................................... 4
2 SOFTWARE OPERATION ............................................................................................................................. 6
2.1 IP Camera Tool ........................................................................................................................................ 6
2.2 Camera Login ........................................................................................................................................ 10
2.3 Device Status......................................................................................................................................... 14
2.4 For Visitor .............................................................................................................................................. 15
2.5 For Operator .......................................................................................................................................... 16
2.6 For Administrator ................................................................................................................................... 19
3 How to do settings in For Administrator........................................................................................................ 20
3.1 Alias Settings ......................................................................................................................................... 20
3.2 Date & Time Settings............................................................................................................................. 20
3.3 User Settings ......................................................................................................................................... 21
3.4 Multi-Device Settings ............................................................................................................................. 22
3.5 Basic Network Settings.......................................................................................................................... 26
3.6 Wireless LAN Settings ........................................................................................................................... 28
3.7 ADSL Settings........................................................................................................................................ 28
3.8 UPnP Settings ....................................................................................................................................... 28
3.9 DDNS Service Settings.......................................................................................................................... 28
3.10 Mail Service Settings ........................................................................................................................... 29
3.11 MSN Setting......................................................................................................................................... 30
3.12 FTP Service Settings ........................................................................................................................... 32
3.13 Alarm Service Settings......................................................................................................................... 33
3.14 PTZ Settings........................................................................................................................................ 35
3.15 Upgrade Device Firmware ................................................................................................................... 36
3.16 Backup & Restore Settings.................................................................................................................. 36
3.17 Restore Factory Settings ..................................................................................................................... 37
3.18 Reboot Device ..................................................................................................................................... 37
WWW.FOSCAM.COM FI8918/FI8918W User Manual
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 1
3.19 Log....................................................................................................................................................... 37
3.20 Back..................................................................................................................................................... 37
4 APPENDIX ................................................................................................................................................... 38
4.1 Frequently Asked Questions.................................................................................................................. 38
4.2 Default Parameters................................................................................................................................ 41
4.3 Specifications......................................................................................................................................... 41
5 OBTAINING TECHNICAL SUPPORT.......................................................................................................... 42
1 WELCOME
IPCAM is an integrated wireless IP Camera solution. It combines a high quality digital video
Camera with network connectivity and a powerful web server to bring clear to your desktop from
anywhere on your local network or over the Internet.
The basic function of IPCAM is transmitting remote video on the IP network. The high quality
video image can be transmitted with 30fps speed on the LAN/WAN by using MJPEG hardware
compression technology.
The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support
Internet Explore. Therefore the management and maintenance of your device become more
simply by using network to achieve the remote configuration, start-up and upgrade firmware.
You can use this IPCAM to monitor some special places such as your home and your office. Also
controlling the IPCAM and managing image are simple by clicking the website through the
network.
1.1 Features
●Powerful high-speed video protocol processor
●High Definition Color CMOS Sensor
●300K Pixels
●IR night vision (Range: 8m)
●Pan 300 degree, tilt 120 degree
●Optimized MJPEG video compression for transmission
●Multi-level users’ management and passwords definition
●Embedded Web Server for users to visit by IE
●Wi-Fi compliant with wireless standards IEEE 802.11b/g
●Supporting Dynamic IP (DDNS) and UPnP LAN and Internet (ADSL, Cable Modem)
WWW.FOSCAM.COM FI8918/FI8918W User Manual
●Giving alarm in cause of motion detection
●Support image snapshot
●Support multiple network protocols: HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP
●Support WEP/WPA/WPA2 encryption
●Support Daylight Saving Time
●Support MSN
●Support Gmail for sender on mail service settings
●Support audio on Firefox
1.2 Packing List
Untie the pack and check the items contained against the following list:
●IPCAM×1
●Wi-Fi Antenna×1 (only available for wireless model)
●DC Power Supply×1
●Quick Installation Guide×1
●CD×1（Include IPCAM user manual、IP camera tool）
●Network Cable×1
●Mounting bracket×1(option)
NOTE: Please Contact us immediately in the case of any damaged or short of contents.
1.3 Product views
1.3.1 Front View
Figure 1.1
Infrared LED: 11 IR LEDs
LENS: CMOS sensor with fixed focus lens. (2.8mm)
WIFI Antenna: Wireless Antenna
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 2
WWW.FOSCAM.COM FI8918/FI8918W User Manual
Microphone: Build-in microphone
Speaker: Build-in speaker
1.3.2 Back View
Figure 1.2
LAN: RJ-45/10-100 Base T
Power: DC 5V/2A Power supply
Network Light: The LED will blink when plug the power
Power Light: If the power adapter works well, the light will turn on
Audio Input: The jack is used to plug external microphone
Audio Output: The jack is used to plug external speaker
1.3.3 Bottom View
There are three stickers at the bottom of the camera; it is the important feature of original
Foscam cameras. If your camera does not have these three stickers, it may be a clone one.
Clone Foscam cameras could not use original firmware and obtain our good after service.
Figure 1.3
Reset button: Press and hold down the RESET BUTTON for 30 seconds. Releasing the reset
button, username and password will turn to the factory default administrator username and
password. Please power on the camera before reset.
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 3
WWW.FOSCAM.COM FI8918/FI8918W User Manual
1.4 Preparations before use
1.4.1 Software installation
(1) Put the small CD in the CD driver of your computer. Open the CD; find the software as
instruction;
(2) Double click IPCamSetup.exe and install the software as instruction.
Figure 1.4
(3) Only click Next, you will complete the software installation.
Figure 1.5
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 4
WWW.FOSCAM.COM FI8918/FI8918W User Manual
Figure 1.6
The computer restarts upon installation completion and an icon appears on the desktop
automatically.
NOTE: If you use Windows7 and could not find the icon on desktop after install the IP camera
tool, please check if the path of the camera port to is correct.
For example, as it was pointing to C:\Windows\System32\IPCamera.exe.
Please fix this by pointing the shortcut to the correct path
C:\Windows\SysWOW64\IPCamera.exe. After this you could use the shortcut without any
problems.
CAUTION: Before installing and using the product, please read the following precautions
carefully and make sure they are fully understood.
Use only the power adapter attached with the product. Use unauthorized power adapter may
cause damage to your IP Camera. IP Camera terminal shall be installed in an indoor
environment where the rain or snow could not pour it.
1.4.2 Hardware preparation
Follow the steps below to set up your camera hardware connections. Make sure to follow each
step carefully to ensure that the camera operates properly.
(1) Fix the antenna at the back of the camera.
(2) Plug the network cable into the camera and then into your Cable/DSL router.
(3) Plug the power adapter into the camera and then into the power outlet.
CAUTION: Make sure to only use the power adapter supplied with IPCAM. Using a
non-approved power adapter may damage the camera.
(4) The camera takes approximately 30 seconds to start up before it displays an IP address on
the IP Camera Tool (details: 2.1)
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 5
WWW.FOSCAM.COM FI8918/FI8918W User Manual
(5) When the camera is powered and network cable plugged correctly. The small green light
(network jack) will turn on and the small yellow light will flash. The network light will blink.
(about 1~2 times per second) The power light will turn on too.
2 SOFTWARE OPERATION
2.1 IP Camera Tool

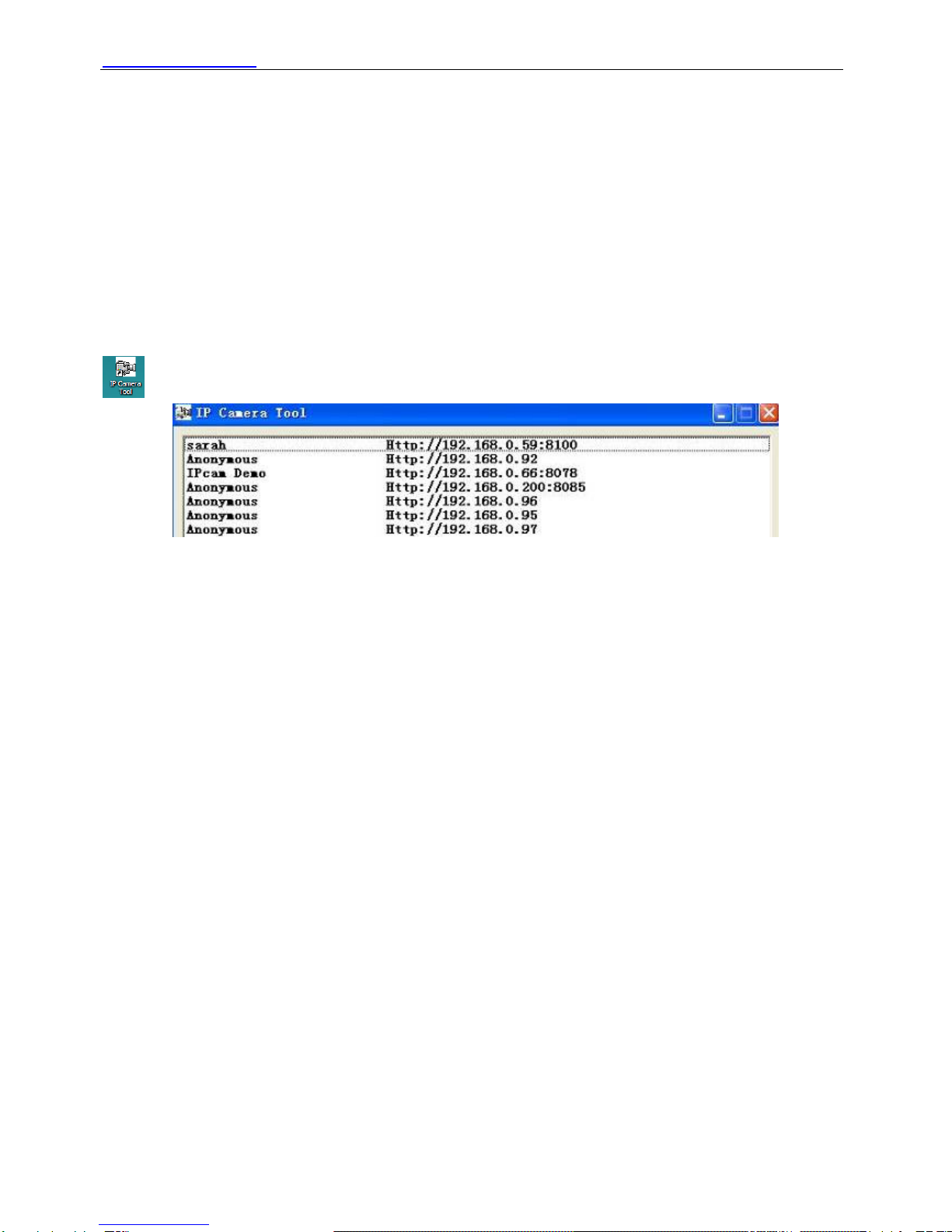

When the Device has been mounted properly, you can double click the icon “IP Camera Tool”
and a dialog box as Figure 2.1 will pop up.
Figure 2.1
The software searches IPcam automatically over LAN.
There are 3 cases:
(1) If no Camera in LAN. After about 1 minute search, the Result Field will show “not found IP
Server” and the program shut automatically.
(2) If IP Cameras having been installed within LAN. All the IP Cameras will be listed and the
total number is displayed in the result field as shown in Figure 2.1.
(3) The IP Cameras installed within LAN do not share the same subnet with the monitoring PC.
A prompt as shown in result field (prompt: Subnet doesn’t match, dbclick to change!). Click
the left mouse button to choose the prompt and click the right mouse, choose Network
Configuration to set the IP address of the Camera to the same subnet as LAN. (Figure 2.5)
You can choose obtain IP from DHCP server or set a static IP for the camera. (Figure 2.4)
NOTE: If you could not find the camera’s IP on the IP camera tool.
Please check if DHCP is enabled in your router, or disable MAC address filter.
Make sure that firewall doesn’t block the camera.
Six Options
Choose the IP Camera list and Click right mouse button; there are six options, Basic Properties,
Network Configuration, Upgrade Firmware, Refresh Camera List, Flush Arp Buffer and About IP
Camera Tool as shown Figure 2.2.
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 6
WWW.FOSCAM.COM FI8918/FI8918W User Manual
Figure 2.2
zBasic Properties
There are some devices’ information in the Basic Properties, such as Device ID, System
Firmware Version, and Web UI Version. (Figure 2.3)
If there are several cameras on the list, you can choose basic properties to check the device ID
and recognize the IP address belong to which camera you set up, such as Device ID is
00606E8C5058, you can find the same MAC ID sticker at the bottom/back of the camera.
Each camera has its only MAC ID. Sometimes, if you couldn’t find the camera’s IP on the IP
Camera Tool. May be the firewall block it, you can add this MAC ID to your router and give it a
fixed IP or add the MAC ID as a trusted site. There are two MAC addresses, one is Wired MAC
and the other is WIFI MAC.
Figure 2.3
zNetwork Configuration
In this page, you can configure the Network parameters.
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 7
WWW.FOSCAM.COM FI8918/FI8918W User Manual
Figure 2.4
Obtain IP from DHCP server: If checked, the device will obtain IP from DHCP server. In other
words, the camera will have a dynamic IP. (Make sure the Router which the camera connects
has DHCP function and DHCP is enabled).
Figure 2.5
IP Address: Fill in the IP address assigned and make sure it is in the same subnet as your
computer or router. (I.e. the first three sections are the same)
Subnet Mask: The default subnet mask of the equipment in our LAN is: 255.255.255.0.You can
find the subnet mask in the basic information of your router or the locally-attached of your PC.
Gateway: Make sure it is in the same subnet with PC’s IP address. Here gateway is your router’s
LAN IP.
DNS Server: IP address of ISP network provider. You can find the DNS server in your router or
check the locally-attached of your computer. Locally-attached of PC contains your PC’s IP
address, gateway and DNS server. Normally, there are two DNS servers. Here you can also set
the DNS server the same with gateway.
Http Port: The default lan port is 80.You can set another port number, such as port 8005, 85,
8100.etc.
User: Default administrator user name is admin
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168 8
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
