Rointe Palaos 1000RAD Datenblatt

Palaos electric vertical radiator

Models:

1000RAD | 1500RAD | 2000RAD

MANUAL DE INSTALACIÓN Y USO

Página 20

MANUAL DE INSTALAÇÃO E DE UTILIZAÇÃO

Página 52

INSTALLATION & INSTRUCTION GUIDE

Page 02

MANUEL D’INSTALLATION ET D’UTILISATION

Page 36

ES PT

Palaos electric vertical radiator

Models:

1000RAD | 1500RAD | 2000RAD

Thank you for choosing this product. Please read this manual carefully before

operation and retain for further use.

Gracias por elegir este producto. Por favor, lea este manual cuidadosamente

antes de utilizarlo y consérvelo para un uso posterior.

Merci d’avoir choisi ce produit. Veuillez lire attentivement ce manuel avant de

l’utiliser et le conserver pour référence ultérieure.

Obrigado por ter escolhido este produto. Por favor leia atentamente este manual

antes de o utilizar e guarde-o para referência futura.

CONTENTS

1. Introduction .............................................................................................................. 4

2. Features & functions ................................................................................................ 6

3. Installation ................................................................................................................ 6

4. Control panel .......................................................................................................... 10

5. Operation & programming ..................................................................................... 10

6. Maintenance and cleaning ......................................................................................14

7. European Directive (WEEE) 2012/19/UE .................................................................14

8. Guarantee ...............................................................................................................14

8.1 Terms and conditions .......................................................................................15

8.2 How to register .................................................................................................17

9. ERP Directive Commission Regulation (EU) 2015/1188 .........................................18

10. Technical specication & data ..............................................................................19

1. INTRODUCTION

ROINTE Palaos electric vertical radiators are programmable with an exclusive temperature

control panel, manufactured with high quality materials. The careful choice of components

ensures efciency, without affecting comfort.

With a unique design, ROINTE Palaos radiators have passed the highest quality controls, to

meet the requirements of safety and efciency. These digital electric radiators are designed

for xed installation.

This product is designed for domestic or residential use. It is recommended that the radiator

be installed by an approved professional. Make sure that the radiator is correctly connected

to a 230V network. The radiator is class II and has IPX4 electrical protection. Do not make

any electrical connections without observing these safety regulations.

Please read this manual carefully before installation and operation. Please keep this

manual for future reference and your product guarantee conditions. It is important to

retain this manual after installation.

PALAOS VERTICAL RADIATOR EN

IMPORTANT: Please read this manual carefully and retain for further use. When using

electrical appliances, precautions should be taken to reduce the risk of re, electrical

shock and injury to persons.

IMPORTANT: Any repairs that require opening the product must be done by ROINTE

or authorized personnel. Please observe regulations when disposing of this product

and its thermal uid.

IMPORTANT: To disconnect the product from the main power supply, remove the

plug from the socket. Do not pull the cable. If the power cable is damaged, it must be

replaced by ROINTE or its authorized personnel in order to avoid any damage.

IMPORTANT: ROINTE declines all responsibility in case of any accident caused by

incorrect use or not in accordance with this manual.

IMPORTANT: The manufacturing characteristics of the radiators distributed by ROINTE

are patented.

WARNING: Servicing and product repairs should only be undertaken by ROINTE or its

authorized personnel using only exact manufacturer-approved spare parts.

WARNING: The product is IPX4 rated and may be used in bathrooms, however not in

the immediate vicinity of baths, showers, water connections, basins, swimming pools or

other bodies of water. The product must never be installed where itself or the switches/

control panel is within the reach of persons in water. Never use the product with wet

hands. Do not place any water containers (glasses, vases etc.) on or near the product.

WARNING: Some parts of this product may become very hot and cause burns.

Particular attention should be paid when children and vulnerable people are present.

WARNING: To avoid overheating, do not cover the product. This includes furniture, curtains,

clothes and any other items. Do not insert any kind of object in the product or obstruct its air

circulation. Obstructions should not be placed in front, above or directly next to the product.

Do not use insecticides, paints, chemicals or aerosols on or near the product. Do not sit on

the product. Failure to comply with the above will render your guarantee invalid.

WARNING: Children from the age of 3 and under the age of 8 may only

switch the device on/off if it has been placed or installed in its normal

intended operating position and they are supervised or instructed in the

safe use of the device and understand the risks involved. Children from

the age of 3 and under the age of 8 must not plug in, adjust or clean the

appliance or perform maintenance operations.

2. FEATURES & FUNCTIONS

Not only are our radiators Lot20 compliant, we also include functions to help manage

efciency more effectively.

• Open Windows

This function can detect when windows are open, preventing energy

waste. It is activated when the temperature drops rapidly in a short

period of time (e.g. when a window in the room is opened).

When the Open Window status is detected, the display shows the

word “Opn” (Open = Open) and the radiator switches to ANTI-FROST

mode (7°C). It ends automatically when the product detects that the

window has closed, or when the MODE button is pressed.

3. INSTALLATION

We recommend using a Rointe Trusted Supplier. Find your nearest one by calling us on

0203 321 5928 or using the locator at www.rointe.co.uk.

IMPORTANT: Before installation, please locate the metal tag situated on the back

of the product and note the product reference and serial number. You will need this

information to register your guarantee.

WARNING: Do not install the product directly below a connection box or xed socket

outlet. Do not install or use outdoors. This product is designed for internal, upright

wall-mounted installation using the installation kit and xing items provided.

Using a unique design, ROINTE Palaos radiators utilise

natural air convection to transfer heat. Cold air is introduced at

the bottom of the radiator and raises its temperature by passing

through the interior of the heating element and expelling at the

top as warm air.

To achieve perfect performance and even heat distribution, the

product should be installed with minimum distances from the

oor and adjacent walls. See “Diagram 1”.

If the product is covered, this will interrupt air-ow and could

cause overheating.

PALAOS VERTICAL RADIATOR EN

Diagram 1:

1. Install the radiator at

least 20 cm from the oor.

2. The minimum distance

from the wall on the right

must be at least 30 cm.

3. The minimum distance

from the wall on the left

must be at least 10 cm.

Inside the product packaging, you will nd an installation kit. This includes brackets, screws

and xing plugs for brick, cement or compacted stone walls.

You will need a drill, rubber mallet, spirit level and a pencil to complete the installation.

IMPORTANT: Please follow these instructions carefully.

1. Drill the wall considering Lf and Hf as xing holes according to the model purchased:

Lf x Hf = 32 x 1,467 mm

1,800 mm

Lf x Hf = 144 x 1,467 mm Lf x Hf = 263 x 1,467 mm

Mod. 1,000 W

Floor

Mod. 1,500 W

Floor

Mod. 2,000 W

Floor

2. After inserting the rawl plugs, install the 4 bracket guides (C in Diagram 2) supplied.

3. Insert the 2 upper wall brackets with the hook facing upwards and the lower wall brackets

with the hook facing downwards.

Wall xing screws

Wall plugs

Guides for support

Wall support

Fastening screws

PALAOS VERTICAL RADIATOR EN

4. Secure the brackets with the fastening screw.

5. Mount the radiator on the 2 upper wall brackets. Then t the radiator onto the 2 lower

wall brackets and nish tightening the 4 xing screws.

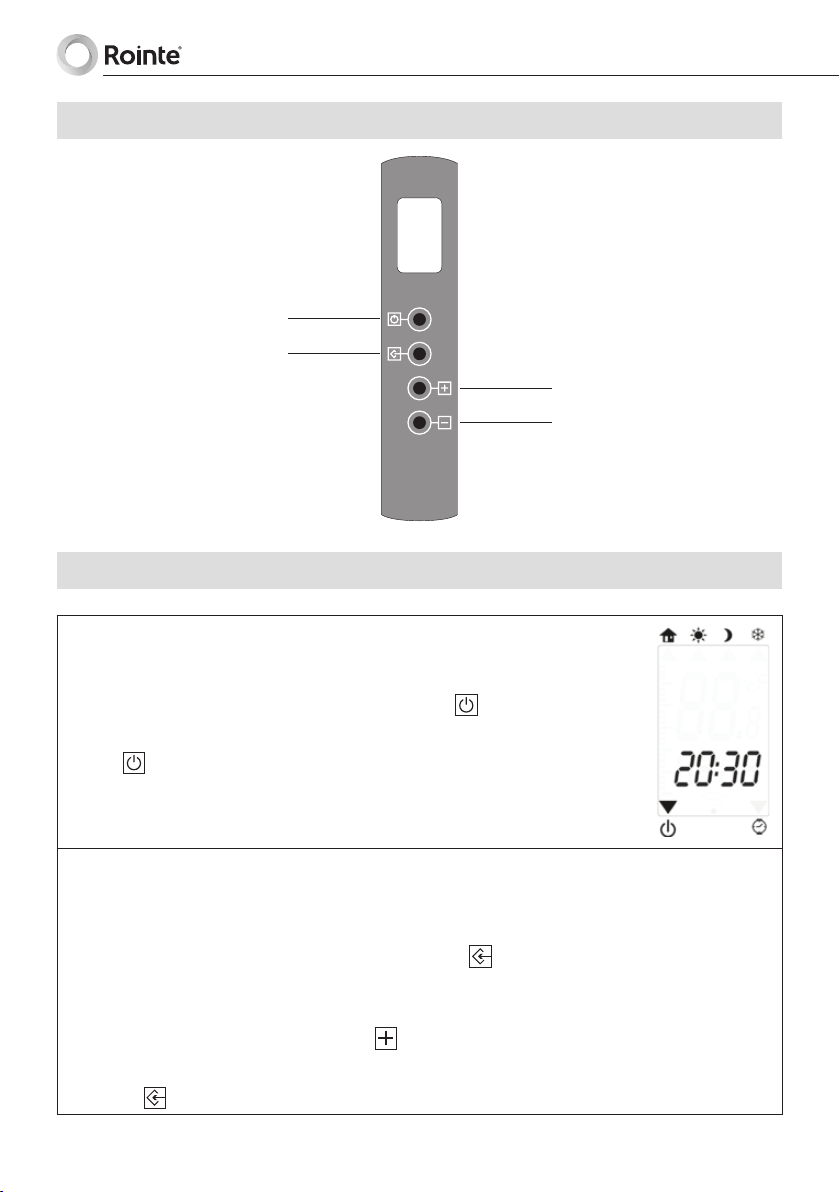

4. CONTROL PANEL

5. OPERATION & PROGRAMMING

5.1 ON / STAND-BY

When in STAND-BY mode the radiator does not heat up, but the

display will show the current time. Pressing the button for 2

seconds switches the product on or puts it into STAND-BY mode.

Press for 2 seconds to switch the product on. When it is switched

on for the rst time, the time and day will ash. It’s important to

congure these correctly in the next step.

5.2 Setting hour / day

The time and day must be set when you rst switch the product on, or when the product

is disconnected and reconnected from the power supply.

It’s also possible to congure this by pressing the MODE button for 5 seconds when

the product is in STAND-BY. The display will show the word “SET” and then suggests

changing the TIME and DAY of the week.

The time is set by holding down the INCREASE button until the current hour and

minute value is reached.

Click the MODE button to conrm the clock setting and continue to the day setting.

ON / STAND-BY button

MODE button

INCREASE button

DECREASE button
