Roksan Audio Attessa Bedienungsanleitung
Set Up Guide and Product Manual
roksan.com
FRONT CONTROLS 4
User interaction inputs: 4
User interaction outputs: 4
REAR CONNECTIONS 5
REMOTE 6
SET UP OPERATION 6
OLED DISPLAY 7
VOLUME CONTROL 8
Controls 8
Process & Indicators 8
INPUT SELECTION 8
TRACK FUNCTIONS 9
Control 9
Process & Indicators 9
OLED DISPLAY LIFE EXTENSION 11
Process & Indicators 11
BLUOS SYSTEM 11
Control 11
Set-Up 11
BluOS Indicators 11
SPECIFICATIONS 12

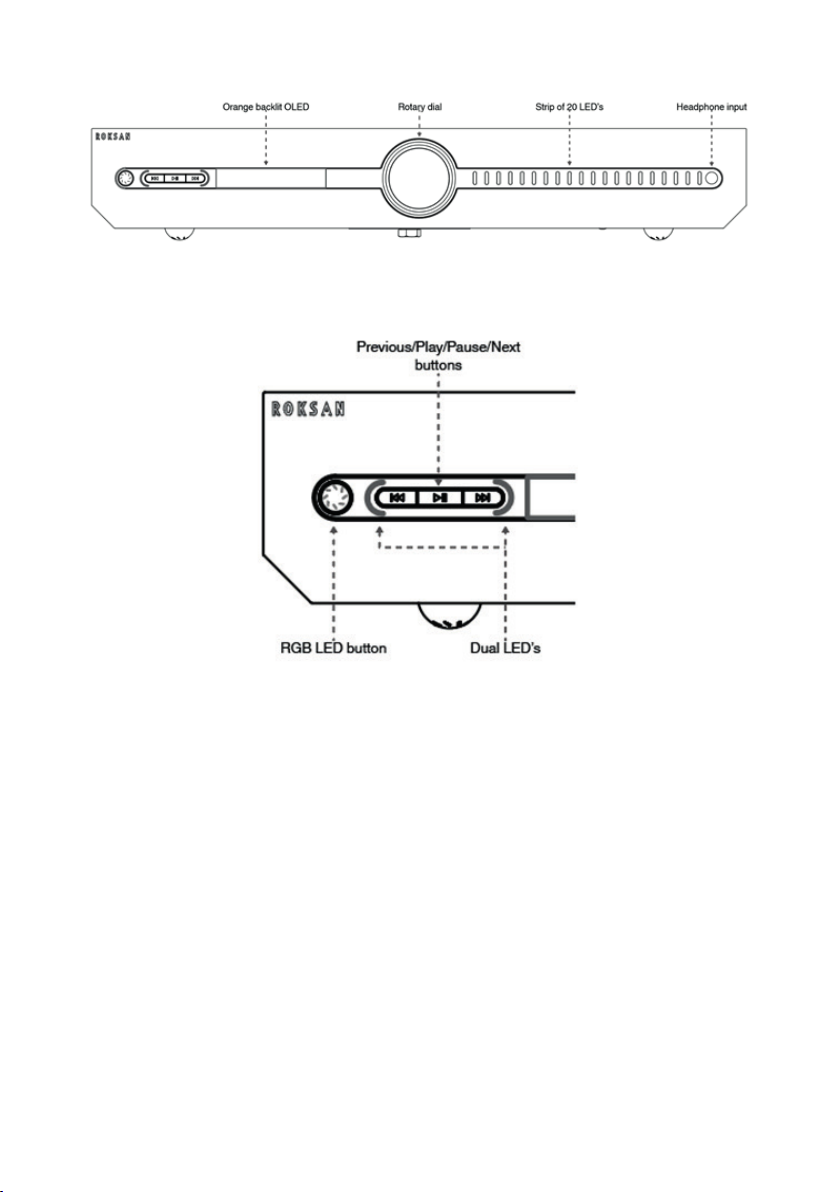

FRONT CONTROLS
User interaction inputs:
• RGB LED button
• Manual buttons (Previous, Play/Pause & Next)
•Rotary dial
•Headphone socket
•Roksan app
•BluOS app
User interaction outputs:
• RGB LED button
•Dual LED’s
• OLED dynamic display
•Rotary Dial
• LED strip

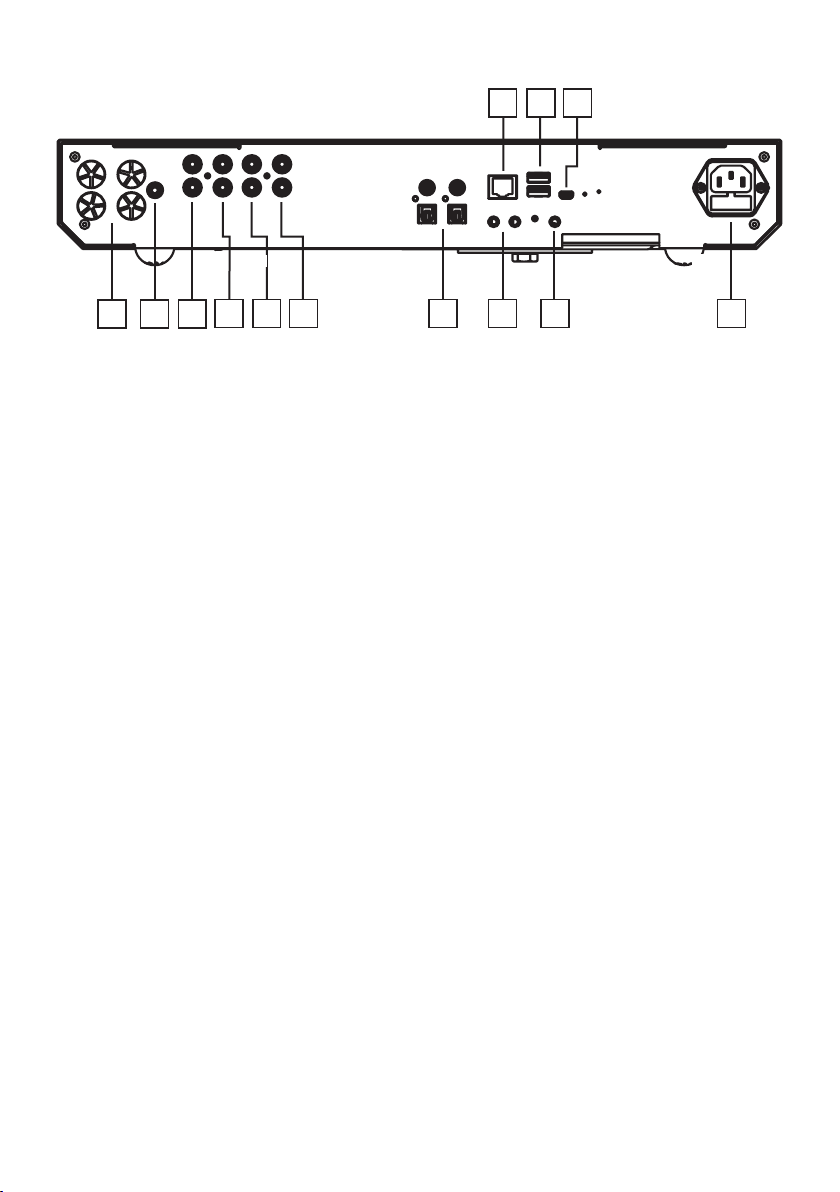

REAR CONNECTIONS
10 11 12
13
1 3 54 6
27 8 9
1. Speaker Inputs
Connect loudspeaker cables to these connections. Positive to positive and
negative to negative
2. Turntable Grounding Post
Used to ground the tone arm attached to the turntable
3. Phono Input
Connect the output from the turn table to the Attessa Streaming Amplier
4. Analogue 1 Input
Connect and analogue source
5. Analogue 2 Input (music sense)
Connect a second analogue input. WHAT IS MUSIC SENSE??
6. Pre-Out/ Subwoofer
Connect to a power amplier or subwoofer.
7. Coax/Optical SPDIF Inputs
Connect digital sources by eaither coaxial or optical connection
8. 12V Trigger Input/Output
Used to connect a 12v trigger input and output to control (output) or be controlled
(input) using the 12v trigger.
9. IR In
10. Ethernet/LAN
Connect to the LAN via wired connection
11. USB Input/Output
12. Service Port
For service only. Do not use.
13. AC Power Socket
Connect using the supplied mains cable. Fuse also located here in drawer.
IP
OP
REMOTE
Remotefeedback:AllactionshavetheremoteLEDashonandoff.
SET UP OPERATION
1. Standby
A single press of the RGB LED button or single press of the standby/power button
on the remote and RGB LED goes solid red.
2. Power
A single press of the LED button or single press of the standby/power button on
the remote and RGB LED goes a solid orange colour.

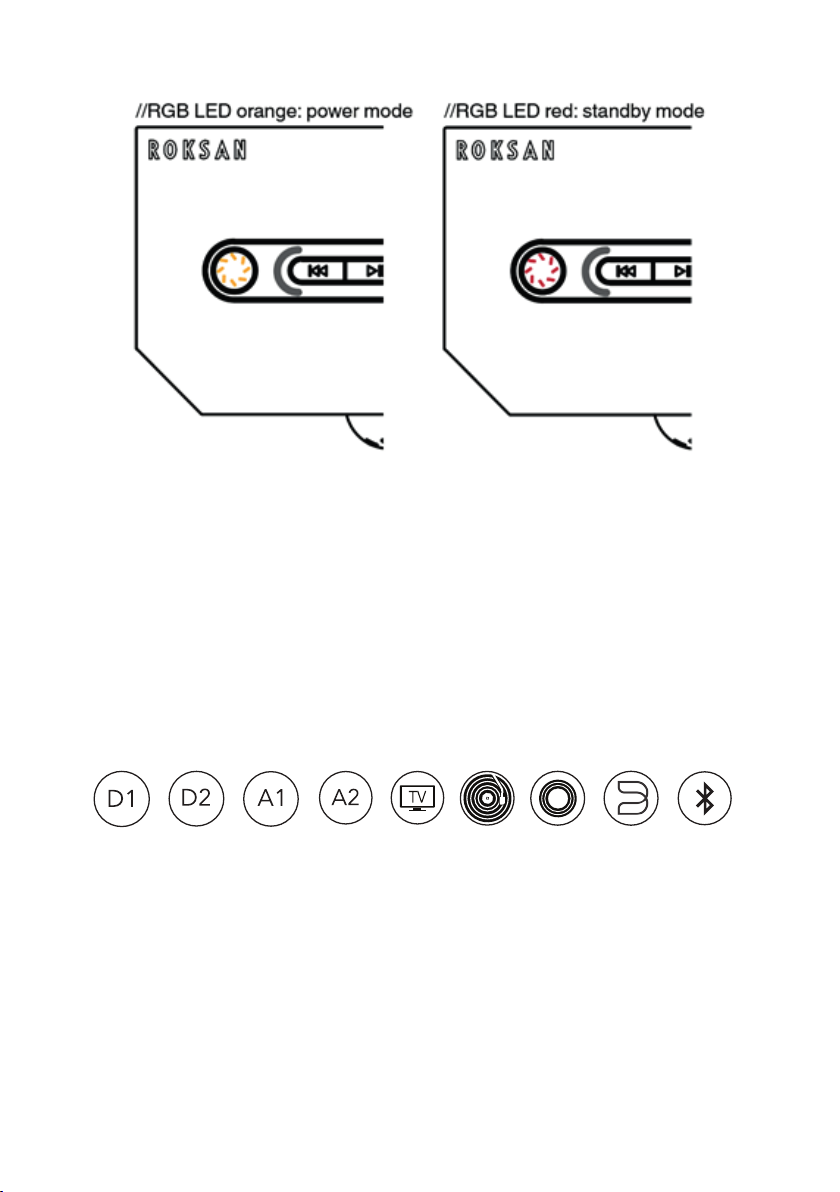

Illustration of RGB LED button detailing orange spiral design in power mode and
standby mode.
3. Load/warm up phase
Roksan logo to appear when product goes into power mode.
4. BLE pairing mode:
During set up mode via the app the BLE passkey appears on the screen.
OLED DISPLAY
The inputs available on the streamer are scrolled through using the encoder or remote
and are displayed using the following icons:
Digital 1 (D1)
Coax
Digital 2 (D2)
Optical SPDIF
Analogue 1 (A1) Analogue 1 (A2)
Fixed Input
Digital 3 (TV) Analogue 3 (Phono) Digital 4 (CD)
Digital 5 (BluOS) Digital 6 (Bluetooth)
CD
VOLUME CONTROL
Controls
•Rotary dial
•Remote
•BluOS app
Process & Indicators
• Incremental increase: clockwise turn of rotary dial or single press of remote +
button. LED strip will illuminate more coloured bars.
• Incremental decrease: anti-clockwise turn of rotary dial or single press of remote –
button. Illuminated LED bars will reduce.
• Muting: A single press of the ‘mute’ button on the remote or incremental rotation
until the step 0.
• Unmuting: A single press of the ‘mute’ button on the remote. Incremental increase
of volume can be used to unmute. LED bar will return to previous volume state
• Volume maximum: When all LED bars are illuminated.
• Headphones connected: mutes attached speakers; volume output goes to ‘safe’
headphone level. LED strip display changes to new volume level.
INPUT SELECTION
Controls
•Rotary dial
•Remote
Process & Indicators
• Selecting input: Rotary dial is pressed and held while user rotates either clockwise
& anti-clockwise when selecting. When using the remote the input arrow buttons
change the input. OLED will highlight the icon for that selected input.
• Connected to input: OLED will display a solid icon for the selected input.
• Bluetooth pairing:
• Bluetooth disconnected: OLED will display disconnected status.

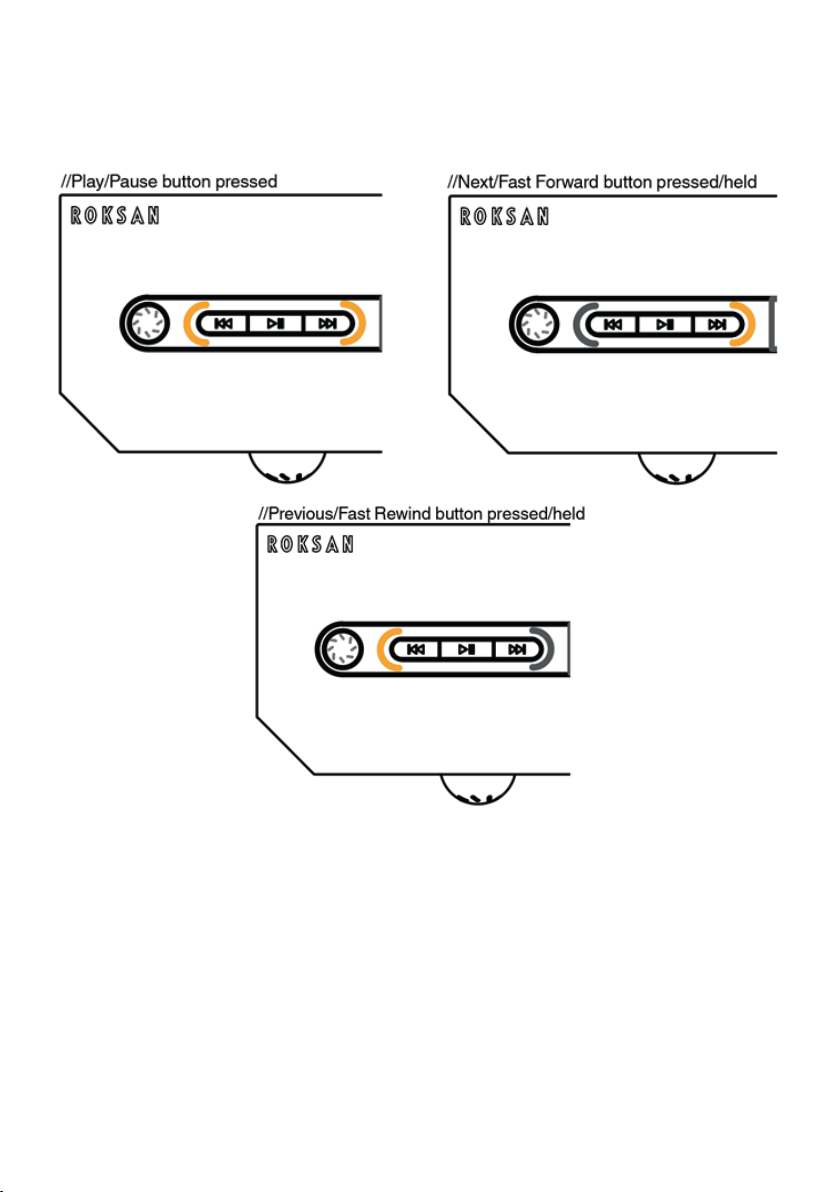

TRACK FUNCTIONS
Control
• Manual buttons
•Remote
•BluOS app
Process & Indicators
Track functions are only applicable for the Bluetooth input & BluOS inputs.
1. Pause:
a single press of the play/pause button (remote or manual button) and the dual
LED’s to ash on.
2. Play:
a single press of the play/pause button (remote or manual button) and the dual
LED’s to ash on.
3. Stop state:
a single press of the SOC button to access the stop state or a single press of the
stop button on the remote.
OLED to show the stop icon.
4. Track forward:
a single press of the track forward button (remote or manual button) and the right
dual LED to ash on.
5. Track restart:
a single press of the track back button (remote or manual button) and the left dual
LED to ash on.
6. Track back:
a double press of the track back button (remote or manual button) and the left dual
LED to ash on.
7. Seek forward:
holding of the track forward button and right dual LED to be on for duration of
command.
8. Seek back:
holding of the track back button and left dual LED to be on for duration of
command.
9. Shufe:
singlepressofSRRremotebutton.OLEDtodisplayshufeicon.
10. Repeat all:
double press of SRR remote button. OLED to display repeat all icon.
11. Repeat once:
triple press of SRR remote button. OLED to display repeat once icon.
Note:Iftherstactionistopresstrackforwardortrackbackthiswillautomatically
complete the function and then play the track all in one step.
