Roksan Audio Dana Leitfaden
SAFETY PRECAUTIONS
• Keep the product away from small children to avoid
accidents.
• Do not put the product in a location where it is exposed
to direct sunlight, near heating devices, high humidity, or
high concentrations of dust.
• Do not touch the stylus cantilever or other exposed parts
to avoid damage.
• Do not attempt to disassemble or modify the cartridge.
• Do not subject the product to strong impact.
CARE
Use a stylus brush to remove dirt and dust from the stylus tip.
Always move the brush in the direction in which the record
rotates. Clean the record using a record cleaning brush before
playing.
CONTACT US
Roksan
24 Brook Road,
Rayleigh,
Essex
SS6 7XJ, UK
+44 (0)1268 78900
roksan.com
Version 1. 2021
SPECIFICATIONS
Type: VM dual moving magnet
Frequency response: 20 to 23,000 Hz
Output voltage: 3.5 mV (1 kHz, 5 cm/sec.)
Channel separation: >22 dB (1 kHz)
Output balance: <1.5 dB (1 kHz)
Tracking force: 1.8 to 2.2 g (2.0 g standard)
Coil impedance: 3.2 kOhms (1 kHz)
Recommended load impedance: 47 kOhms
Recommended Load Capacitance: 50 – 100 pF
Stylus shape: Bonded Elliptical
Stylus curvature radius: 0.3 x 0.7 mm
Stylus Tip: Diamond Titanium
Cartridge body: ABS
Cantilever: Aluminium tapered pipe
Dimensions (H × W × D) : 17.7 × 17.0 × 26.8 mm
Weight: 6.4 g
Replacement stylus (sold separately): Dana Stylus
Accessories: Cartridge installation hardware.
All specications are liable to change without notice. E&OE
Printed in England
User & Installation Manual
roksan.com
Thank you for purchasing this Roksan Dana
cartridge.
Before using the product, read through this installation
manual to ensure that you will use and t the product
correctly.
Please keep this manual for future reference.
HOW TO INSTALL
1. If the Dana is to replace a different cartridge, remove this
rst.

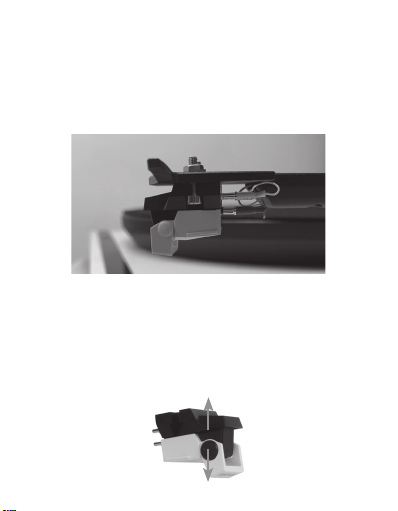

2. To t a new Dana cartridge, move the stylus guard into
place and detach the stylus from the cartridge by holding
the cartridge body and stylus housing and pulling them
apart vertically as shown below.
3. Mount the new cartridge onto the head shell of the
tonearm using the nuts and bolts provided.
NOTE: The nuts should be on the top of the
headshell as in the pictures opposite
4. Connect head shell lead tips to the cartridge terminals of
the same colour.
NOTE: Never apply heat (e.g. from soldering iron)
to the output wires.
5. Ret the stylus and lift the guard in preparation for
calibration.
6. Use a tonearm alignment protractor, to adjust the cartridge
into the correct position along the headshell (overhang).
7. Using a stylus balance gauge, adjust the tracking force
to 2g.
8. Adjust the tonearm height so that the bottom surface
of the head shell and the record surface are parallel as
seen from the side when the stylus is resting on a record.
Improper arm height may cause the body of the cartridge/
stylus assembly to make contact with the record and could
impair audio quality or damage the record.
Please visit roksan.com/videos/Corus2 or scan
this QR code to view the installation video for
the Corus2 & Dana cartridges and stylus’.
WARRANTY
There are no user serviceable parts inside your Dana
cartridge. Your Dana cartridge warranty covers against any
defect in materials and workmanship for a period of two
years from the date of purchase.
This warranty excludes:
1. Damage caused due to accident, misuse, neglect and
incorrect installation, adjustment or repair.
2. General wear and tear. The stylus should last around
800 - 1000 playing hours.
3. Liability for damage or loss during transit from the
retailer or purchaser to Roksan, or its authorised
distributor for the purposes of repair or inspection.
All claims under this warranty must be made through an
authorised Roksan retailer.
If equipment returned for repair to Roksan is found on
inspection to not comply with the product specication,
Roksan reserves the right to make a charge for examination
and return carriage.
Unauthorised servicing will void this warranty.
IMPORTANT: To ensure optimum performance,
always use genuine Roksan replacement stylus
assembly (Dana Stylus) for your Dana cartridge.
