BX-13

Expanded Bus Converter

OWNER’S MANUAL

_______________________________________

DESCRIPTION

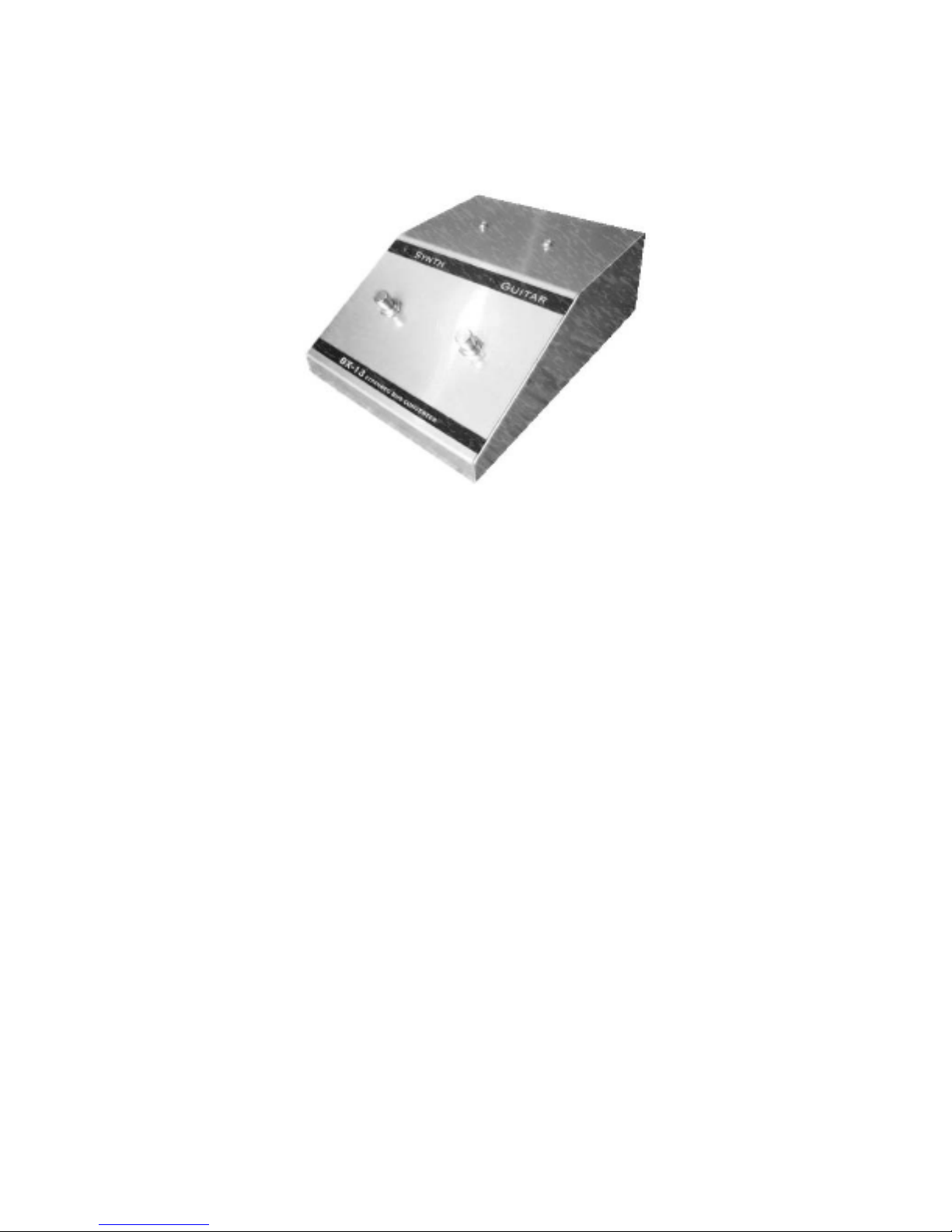

Congratulations on your purchase of the BX-13

Expanded Bus Converter.

The BX-13 combines the technology found in

the Roland BC-13 bus converter but with

expanded footswitch control.

Like a BC-13 Bus Converter, the BX-13 can

convert the vintage 24-pin style signals into

modern, 13-pin control signals, enabling the

vintage guitar synth enthusiast access to the

latest in guitar technology.

Your BX-13 has been hand-built and hand-wired

using quality components for reliable operation

and is backed by a five-year warranty.

Please read this owner’s manual carefully before

using the BX-13.

_______________________________________

IMPORTANT NOTES

•When connecting a guitar and

synthesizer to the BX-13, be sure that

power to the synthesizer is switched off.

• The 13-pin connector used with the BX-

13 is locking style, and therefore cables

cannot be disconnected unless the

locking pin is released.

_______________________________________

PANEL DESCRIPTIONS

1. Guitar Synth Input: Input for 24-pin

style G-Series guitar cable.

2. Synth Output Connector: The

modern. 13-pin synthesizer output

connector.

3. Synth Footswitch: This switch turns

on and off the volume level for the

Synthesizer. The associated RED LED

will glow when the synthesizer output is

on.

4. Guitar Footswitch: This switch turns

on and off the volume level for the Guitar.

The associated GREEN LED will glow

when the synthesizer output is on.

5. Guitar Line In 1/4”: With only the 24-

pin cable plugged in, the level of the

standard guitar sound is always at

maximum

. If you want to vary the level of

the standard guitar sound, then a second

cable needs to be connected from the

1/4” Guitar Output jack on the Guitar

Controller to the 1/4” Guitar Input jack on

the BX-13. This is the same design used

by the Roland BC-13.

_______________________________________

SWITCH FUNCTIONS

The BX-13 changes some the functions of

vintage G-Series controllers to match new, 13-pin

functions.

•Master Volume knob is now for Guitar

Volume only. This knob changes the

volume of the Guitar when a cable is

hooked from the standard 1/4” output

jack on the guitar to the BX-13 guitar

input.

•Guitar Tone Knob controls the tone of

the guitar’s normal sound.

•Filter Knob, or CV#1, becomes the

volume control for the Synthesizer.

•Mode Switch becomes SW1 and SW2.

_______________________________________

SPECIFICATIONS

BX-13 Dual Bus Converter:

•Connectors: One 24-pin input

connector, one 13-pin output connector,

1 1/4” standard phone jacks for standard

guitar input.

•Dimensions: 6(W) x 8(D) x 2 3/4(H)

inches

•Weight: 1 lbs 3 oz

v1.0 08.09.2005

www.gr300.com
