Thank you very much for purchasing this product.
• To ensure correct and safe usage with a full understanding of this product's performance, please be sure to
read through this manual completely and store it in a safe locaon.
• Unauthorized copying or transferal, in whole or in part, of this manual is prohibited.
• The contents of this document and the specicaons of this product are subject to change without noce.
• This document and the product have been prepared and tested as much as possible. If you nd any misprints
or errors, please inform us.
• Roland DG Corporaon assumes no responsibility for any direct or indirect loss or damage that may occur
through use of this product, regardless of any failure to perform on the part of this product.
• Roland DG Corporaon assumes no responsibility for any direct or indirect loss or damage that may occur
with respect to any arcle made using this product.
Company names and product names are trademarks or registered trademarks of their respecve holders.
Copyright © 2020-2021 Roland DG Corporaon
hp://www.rolanddg.com/
Contents
Contents ......................................................................................................1
Tension Bar Unit Assembly Method..............................................................2
Features of This Machine .......................................................................... 2
Included Items........................................................................................... 2
Assembly Method...................................................................................... 2
1
Features of This Machine
This machine is a tension bar unit that is used as a set with the TUC-4 automac media take-up
unit. The tension bar unit is aached to the LEC2-330.
This machine applies tension to the media to stretch it out when prinng on thin lm material
or other such media that lacks rmness. It is eecve in take-up when feeding the media just
with the le and right pinch rollers.
Included Items
Tension roller (1) Hexagonal wrench (1) Screw (short; 6) Posioning pin (1)
Screw (long; 4) Weight (2)
Assembly Method
IMPORTANT
Do not remove the tape xing in place the oang roller (weight roller) before aaching this
roller to the machine.
Tension Bar Unit Assembly Method
2
Procedure
A Aach a weight to the dancer roller of the take-up unit.
MEMO
The procedure for the right side is shown below. The operaons are the same for the le
side, but instrucons pertaining to the le and right sides must be reversed.
1
Temporarily ghten the (long) screws in the weight (in two locaons).
IMPORTANT
Using the incorrect weights on the right and le sides will result in the labels being
upside down. Aach the weights so that the labels are oriented correctly. Aach the
weights so that their labels are oriented as shown in the following gure.
2
Set the weight on the dancer roller arm as shown in the gure.
Orient the weight so that the at side faces out.
3
Push the weight up and to the outside.
3
Tension Bar Unit Assembly Method
4
Use the hexagonal wrench to ghten the screws.
B Open the front cover.
C Remove the screws (in two locaons), and then remove the front UV shield.
D Use the hexagonal wrench to remove the (right and le) front table stays.
Point
Store the front table stays and the screws so that you do not lose them.
4
Tension Bar Unit Assembly Method
E Temporarily aach the tension roller to the machine.
1
Aach a (short) screw (in one locaon) to the posion (A) shown in the gure.
Temporarily ghten the screw, leaving a space between the screw head and the plate of
approximately 5 mm (0.20 in.).
A
2
Insert the hook (F) of the right bracket of the tension roller into the bracket
slot (H) of the machine. At the same me, pass the screw (S) aached in step (1)
through the hole (B) in the right bracket of the tension roller. Then, push the
bracket down to catch the hook on the slot.
Point
Aach the oang roller so that it is located in the top posion as indicated by A in the
following gure.
H
F
B
S
A
5
Tension Bar Unit Assembly Method
3

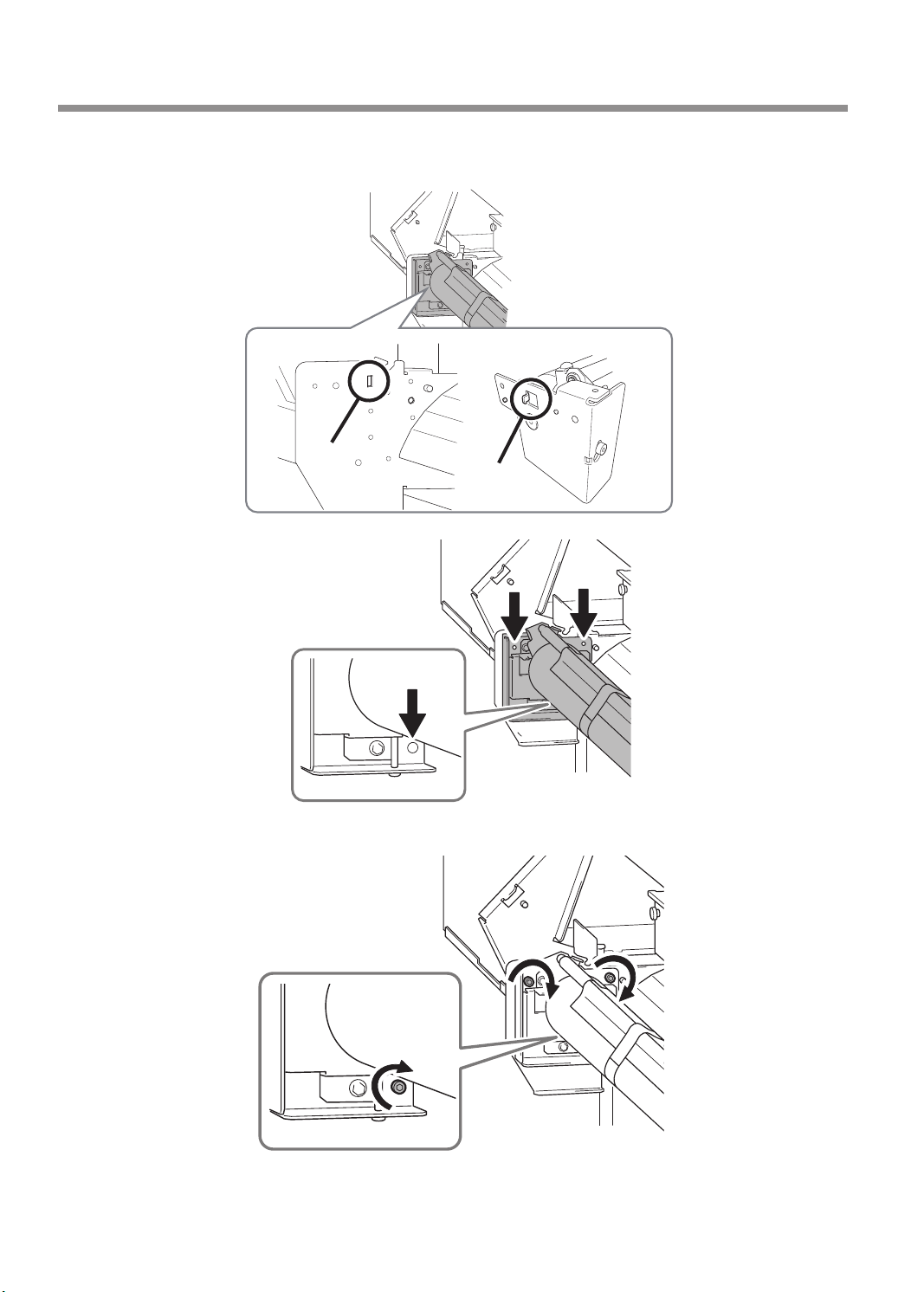

While keeping the oang roller in the top posion, insert the hook (F) of the
le bracket of the tension roller into the bracket slot (H) of the machine.
4
Align the screw holes of the le bracket and the machine.
5
Insert (short) screws into the le bracket of the tension roller (in three loca-
ons) and temporarily ghten these screws.
H
F
6
Tension Bar Unit Assembly Method
6
Insert (short) screws into the right bracket of the tension roller (in two loca-
ons) and temporarily ghten these screws.
F Fix the tension roller in place on the machine.
1
Open the (boom) le cover.
2
Insert the posioning pin at the posion indicated by A in the gure.
Adjust the tension roller posion so that the posioning pin protrudes out from the
machine by 7 mm (0.28 in.) or less.
7 mm
(0.28 in.) or less
Posioning
pin
A
7
Tension Bar Unit Assembly Method
3
With the posioning pin aached, use the hexagonal wrench to fully ghten
the screws on the le bracket of the tension roller (in three locaons).
4
Use the hexagonal wrench to fully ghten the screws on the right bracket of
the tension roller (in three locaons).
5
Remove the posioning pin.
Put the (right and le) front table stays, screws (four), and posioning pin into a plasc
bag or a similar container and store these items so that you do not lose them.
6
Close the (boom) le cover.
8
Tension Bar Unit Assembly Method
