Rollplay W488AD Bedienungsanleitung

The owner’s manual contains important safety information as well as assembly, use and

maintenance instructions. The Mercedes-Benz Ride-on Car must be assembled by an

adult who has read and understands the instructions in this manual. Keep the packaging

away from children and dispose of properly before use.

Keep this manual for future reference.

Operator’s Manual

Model W488AD 7518

Mercedes-Benz GL Class

Styles and colors may vary.

Made in China.

a full 24 hours (no more than 30 hours)

Introduction

Thank you for purchasing this vehicle from Aria Child. We hope the rider

enjoys it for miles to come. Please read this instruction guide carefully

before assembling and operating the vehicle. Please have your model

number and serial number ready before calling. Please have proof of

purchase.

Speciﬁcations:

BATTERY 12V 7AH

MOTOR 12V

AGE 3 Years and Up

MAX WEIGHT 77 lbs. (35 kg)

PRODUCT SIZE 41.34 x 23.23 x 20.87 in. (1050x590x530 mm)

SPEED 2.8 MPH

RECHARGE TIME 8-12 Hours

TYPICAL RUN TIME 1-2 Hours

CHARGER OUTPUT 12.0V 0.85A

Please contact Hunter Products Customer Service with any questions.

Hours: 9.00 AM - 5.00 PM (AEST), Monday - Friday

Web: www.electricrideon.com.au

Service Phone: 1800 224 094

IMPORTANT!

YOU MUST CHARGE THE BATTERY

FOR 24 HOURS BEFORE FIRST USE!

Charge the battery after each use.

Charge the battery at least once a month, even if the vehicle is not in use.

Email or call Customer Service if you need assistance or replacement

parts.

Read this entire manual to ensure

proper assembly and safe operation

of the vehicle.

emall:enquiries@hunterproducts.com.au

4Table of Contents

Safety..........................................................6

Parts ........................................................

10Charging Instructions .............................

11Assemble the Front Wheels....................

12Assemble the Left Rear Wheel...............

13Assemble the Right Rear Wheel ............

14Attach the Steering Wheel......................

15Attach the Mirrors ...................................

16Attach the Seat ........................................

17Battery Removal ......................................

18Operating Instructions ............................

19Maintenance ............................................

20General Care ............................................

Troubleshooting Guide............................21-22

Service and Repairs ...............................23

Warranty ...................................................24

Product Registration...............................26

...................................7

...............8

User Requirements

Charging the Battery: Warnings

Safety

•

WARNING!

The following safety hazards may result in serious injury or death to the user of the

vehicle Mercedes Ride-on:

This product contains small parts that are for adult assembly only. Keep small

children away when assembling. Remove and dispose of all protective material and

poly bags before assembly. Be sure to remove all packaging materials and parts

from underneath the car body.

complies with Australian Standard AS/NZS 2063:2008.

Battery posts, terminals and related accessories contain lead and lead compounds

(acid) chemicals that are toxic and corrosive. Never open the battery.

Body parts such as hands, legs, hair and clothing can get caught in moving parts.

Never place a body part near a moving part or wear loose clothing while using the

vehicle. Always wear shoes when using the vehicle.

Using the vehicle near streets, motor vehicles, drop-offs such as: steps, water

(swimming pools) or other bodies of water, sloped surfaces, hills, wet areas,

accident.

Always use the vehicle in a safe, secure environment with continuous adult

supervision. Never leave the child unattended.

Using the vehicle in unsafe conditions such as snow, rain, loose dirt, mud, sand or

Using the vehicle in an unsafe manner. Examples include but are not limited to:

Pulling the vehicle with another vehicle or similar device

Allowing more than one rider

Pushing the user from the back

Traveling at an unsafe speed

Always use common sense and safe practices when using the vehicle.

Different type of batteries or new and vsed batteries are not to be mixed.

This toy is onsuitable for children under 3 years due to its maximin speed.

Battery charger, electri wire plug endosure and other parts should be peri odically.

check for damage, if have damage, need to repair before use.

6User Requirements

WARNING!

Age Range 3 and 7 years

Weight Range No more than 77 lbs (35kg)

Before using the vehicle the child should understand the vehicle controls and safety

issues. They must also demonstrate the capability to handle the vehicle and

operate its controls. It is the responsibility of the adult to educate the child and

supervise the vehicles use.

Read the following safety warnings to any child using the vehicle Ride-on:

•

Only use the vehicle when an adult is present to watch (supervise).

Adult assembly requited.

• Always sit in the seat when using the vehicle.

• Keep your hands, hair and clothes away from moving parts.

• Always wear shoes when using the vehicle.

• Only one rider is allowed at a time on the vehicle Ride-on.

• Children under three years old cannot use the vehicle.

• Only drive on level ground.

• Do not go near water, drop-offs or up and down steep slopes.

•gravel.

• Do not drive the vehicle on streets or near cars.

PREVENT INJURIES AND DEATHS:

NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when

child is in vehicle. Direct adult supervision is REQUIRED.

NEVER use in roadways, near cars, on or near steep inclines or steps,

swimming pools or other bodies of water.

ALWAYS wear shoes.

ALWAYS sit on the seat.

RISK OF FIRE. Do not bypass.

NEVER allow more than one (1) rider in the vehicle Ride on.

Charging the Battery: Warnings

• Contact or exposure to battery leakage (lead acid) may cause serious injury.

If contact or exposure occurs immediately call your physician. If the chemical is

on the skin or in the eyes, flush with cool water for 15minutes. If the chemical

was swallowed, immediately give the person water or milk. Do notgive water or

milk if the patient is vomiting or has a decreased level of alertness. Do not induce

vomiting.

The following safety hazards may result in serious injury or death to the user of the

vehicle:

WARNING!

•

• Explosive gases are createdduring charging. Charge the battery in a well

ventilated area. Donot chargethe battery near heat or flammable materials.

• Contact between the positive and negative terminals may result in fire or explosion.

vehicle direct contact between the terminals.Picking upthebattery by thewiresor

charger can causedamagetothe battery and may result in a fire. Always pick up

the battery by it’s case or handles.

• Liquids on the battery may cause fire or electric shock. Always keep all liquids

away from the battery and keep the battery dry.

Use of a battery or charger other than thesupplied 6v rechargeable battery and

charger may cause a fire or explosion. Only use the supplied6v rechargeable

battery and charger withthevehicle.

Using the 6v rechargeable battery and charger forany other productmay result in

over heating, fire or explosion. Never use the6v rechargeable battery and charger

with another product.

8Charging the Battery: Warnings

WARNING!

•

Important! Before using the vehicle for the time the battery needs to be charged for

a full twenty-four hours (no more than thirty hours). Only an adult who has read and

understands the following safety warnings should handle, charge or recharge of the

battery (see Maintenance).

Note: It is not necessary to remove the battery from the vehicle for charging. However,

if the adapter cord will not safely reach a 240V wall outlet, the battery can be removed

for charging (see page 10 for instructions concerning battery replacement).

• Tampering or modifying the electric circuit system may cause a shock, re

or explosion and permanently damage the system. Exposed wiring, circuitry

in the charger may cause electric shock. Always keep the charger housing

closed.

Battery posts, terminals and related accessories contain lead and lead

compounds (acid), chemicals and are toxic and corrosive. Never open the

battery.

• Non-rechargeable batteries are not to be recharged;

• Batteries are to be inserted with the correct polarity;

• Exhausted batteries are to be removed from the toy;

• The supply terminals are not to be short-circuited.

• Rechargeable batteries are only to be charged under adult supervision;

• Rechargeable batteries are to be removed from the toy before being charged;

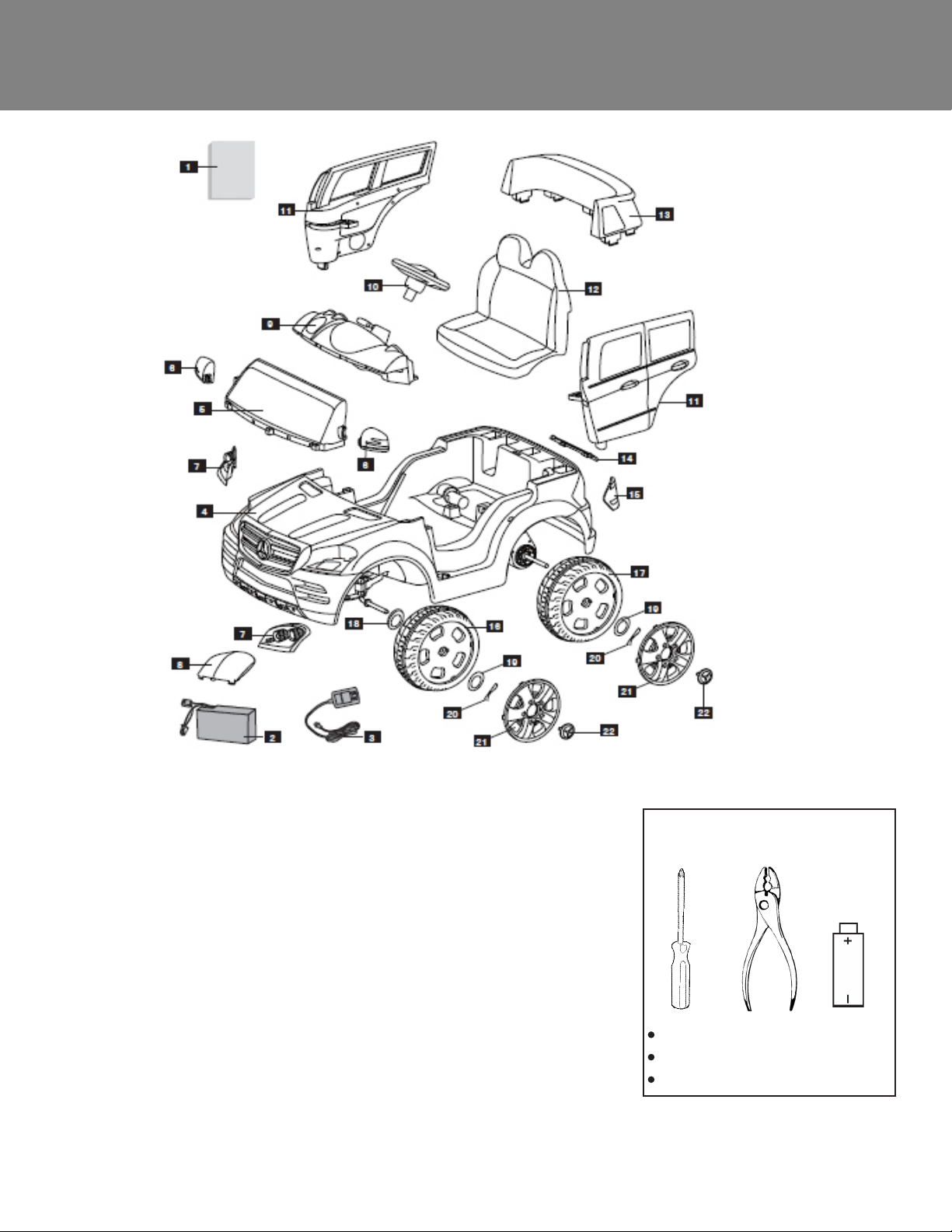

Parts

1. Manual

2. Battery

3. Battery Charger

4. Car Body

5. Windshield*

6. Mirrors (2)

7. Front Light*

8. Front Light Cover*

9. Dashboard*

10. Steering Wheel

11. Door

12. Seat

13. Back Empennage*

14. Rear Decoration*

15. Tail Light*

16. Front Wheel

17. Rear Wheel

18. Thick Washer

19. Flat Washer

20. Snap Pins (4)

21. Rim

22. Hub Cap

Phillips screwdriver

Pliers

2 AAA Batteries

Not Included:

*Parts denoted with an asterik are pre-assembled on the vehicle

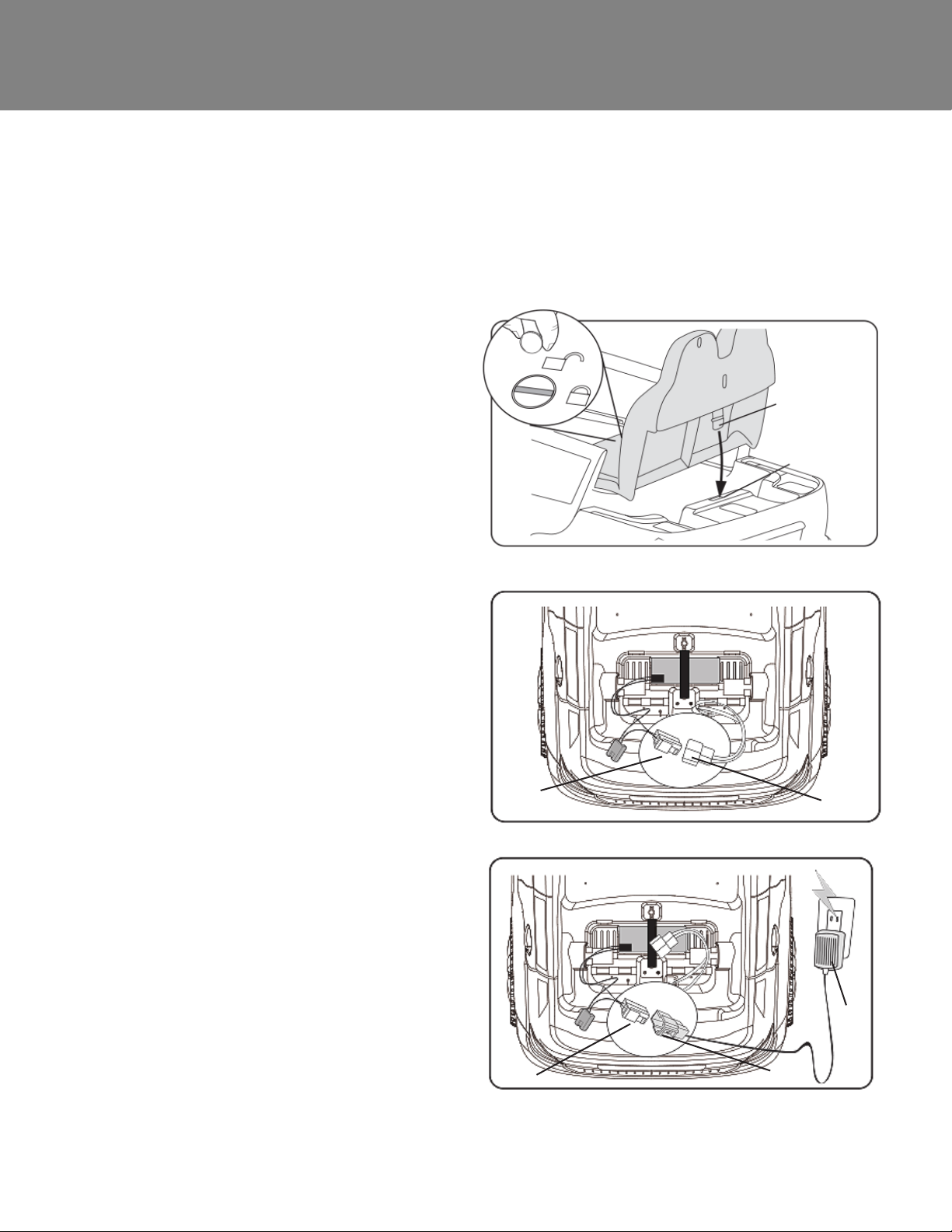

10 Charging Instructions

ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

To Charge the Battery:

1. Ensure the car is stopped and

turned off.

2. Unlock and remove the seat.

3. Unplug the red battery connector

(A) from the red engine connector

(B).

4. Connect the red battery connector

(A) to the red battery charger

connector (C) and plug (D) into a

120 V outlet.

To Unplug the Battery:

1. Unplug the battery charger (D)

from the outlet.

2. Unplug the red battery connector

(A).

3. Reconnect the red battery

connector (A) to the red engine

connector (B).

4. Replace the seat and tighten lock.

Note: It is not necessary to remove

the battery for charging. However, if

the battery does not reach the outlet,

it can be removed for charging. For

Battery Removal instructions, see

Page 16.

YOU MUST CHARGE THE BATTERY FOR 24

HOURS BEFORE THE FIRST USE!

Bracket

Car Seat Slot

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Rollplay Motorisiertes Spielzeugauto Handbücher

Rollplay

Rollplay FLEX KART XL PEDAL Montageanleitung

Rollplay

Rollplay 12V GMC Sierra Denali Montageanleitung

Rollplay

Rollplay 12V Chevrolet Silverado Bedienungsanleitung

Rollplay

Rollplay Powersport W442AC Montageanleitung

Rollplay

Rollplay W488AC Montageanleitung

Rollplay

Rollplay STORM Montageanleitung

Rollplay

Rollplay Nighthawk NexGen W502 Montageanleitung

Rollplay

Rollplay BMW R1200 GS Motorcycle Bedienungsanleitung

Rollplay

Rollplay W462 Bedienungsanleitung

Rollplay

Rollplay Turnado W401E Bedienungsanleitung

Rollplay

Rollplay W461-G01 Montageanleitung

Rollplay

Rollplay W491-B-WH Montageanleitung

Rollplay

Rollplay Volkswagen Camper Van Bedienungsanleitung

Rollplay

Rollplay BMW X5 Bedienungsanleitung

Rollplay

Rollplay 12V COLORADO W451 Montageanleitung

Rollplay

Rollplay Mini Cooper S Bedienungsanleitung

Rollplay

Rollplay BMW i8 Concept Spyder Bedienungsanleitung

Rollplay

Rollplay 6V Chevy W460 Bedienungsanleitung

Rollplay

Rollplay FLEX Kart XL Montageanleitung

Rollplay

Rollplay W488 Bedienungsanleitung

Rollplay

Rollplay W498AC Montageanleitung

Rollplay

Rollplay 6V Mini Quad ACQUAD-P Montageanleitung

Rollplay

Rollplay 12V STORM UTV Bedienungsanleitung

Rollplay

Rollplay MINI COUNTRYMAN 6V Montageanleitung

Beliebte Motorisiertes Spielzeugauto Handbücher anderer Marken

Eduard

Eduard Humber Scout Car Mk.I exterior Bedienungsanleitung

Traxxas

Traxxas 4995X Bedienungsanleitung

Jamara

Jamara VW T1 Bus Bedienungsanleitung

REVELL

REVELL 68 CHEVY CHEVELLE SS 396 Bedienungsanleitung

Schumacher

Schumacher Pro Cat Bedienungsanleitung

Tamiya

Tamiya TT-01 TYPE E Bedienungsanleitung

Eduard

Eduard Krupp Protze 6x4 1/48 Bedienungsanleitung

New Bright

New Bright 61072UEP Bedienungsanleitung

Team Durango

Team Durango DEX410v5 Bedienungsanleitung

Jamara

Jamara Mercedes Actros Muldenkipper 2,4 GHz Bedienungsanleitung

PLAYMOBIL

PLAYMOBIL 9536 Bedienungsanleitung

Atomic

Atomic BZ3 Bedienungsanleitung

Aiyaplay

Aiyaplay 370-290V00 Bedienungsanleitung

Power Wheels

Power Wheels GRJ53 Bedienungsanleitung

ZEROTRIBE

ZEROTRIBE Zetricks ZT1144 Bedienungsanleitung

INJUSA

INJUSA 412 Bedienungsanleitung

Maverick

Maverick MSC-30BR-WP Bedienungsanleitung

Land of B.

Land of B. Rollin' Riders Bedienungsanleitung
