Rose electronics CrystalView DVI Mini Bedienungsanleitung

CrystalView DVI Mini

DVI, USB 2.0 CATx Extender

10707 Stancliff Road

Houston, Texas 77099 Phone: (281) 933-7673

WWW.ROSE.COM

Installation

and

Operations Manual

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means,

electronic or mechanical, including photocopying and recording, without the prior written permission of Rose

Electronics.

Rose Electronics Part # MAN-CRVDVIMINI

Printed In the United States of America – Revision 1.1

Rose Electronics warrants the CrystalView DVI Mini to be in good working order for one year from

the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in

good working order at any time during this one-year warranty period, Rose Electronics will, at its

option, repair or replace the Unit as set forth below. Repair parts and replacement units will be

either reconditioned or new. All replaced parts become the property of Rose Electronics. This

limited warranty does not include service to repair damage to the Unit resulting from accident,

disaster, abuse, or unauthorized modification of the Unit, including static discharge and power

surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty

period to Rose Electronics or an authorized repair center providing a proof of purchase date. If this

Unit is delivered by mail, you agree to insure the Unit or assume the risk of loss or damage in

transit, to prepay shipping charges to the warranty service location, and to use the original shipping

container or its equivalent. You must call for a return authorization number first. Under no

circumstances will a unit be accepted without a return authorization number. Contact an authorized

repair center or Rose Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED IN DURATION TO A PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND

NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY

LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR

SOLE REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT

WILL ROSE ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST

PROFITS, LOST SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OF OR THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE

ELECTRONICS OR AN AUTHORIZED DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT

APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY

ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

IBM, AT, and PS/2 are trademarks of International Business Machines Corp. Microsoft and

Microsoft Windows are registered trademarks of Microsoft Corp. Any other trademarks mentioned

in this manual are acknowledged to be the property of the trademark owner.

CE Declaration Of Conformity

The products listed below in the form as delivered comply with the

provisions of the following European Directives:

2004/108/EG Council Directive on the approximation of the laws of

the Member States relating to electromagnetic

compatibility

CE Marking 2009

Product list:

CRK-M1DTXUD1D / CRK-M1DTXUD2D

CRK-M1DTXTD1D / CRK-M1DTXTD2D

The products comply with the following harmonized standards for

Information Technology Equipment:

•EN 55022:2006 + A1:2007 (Class A)

•EN 55024:1998 + A1:2001 + A2:2003

•

This declaration certifies the conformity to the specified directives but

contains no assurance of properties. The safety instructions and

installation guidelines noted in this manual shall be considered in detail.

Compliance with the specifications for cable lengths and types is

mandatory.

Use in a Domestic Environment

This is a Class A product. In a domestic environment, this product may

cause radio interference in which case the user may be required to take

adequate measures.

RoHS compliance

All CrystalView DVI Mini models comply with the EC Directive 2002/95/EG

on the Restriction of the use of certain Hazardous Substances in electrical and

electronic equipment.

TABLE of CONTENTS

CrystalView DVI Mini Installation and Operations Manual 1

CONTENTS PAGE #

System Introduction.............................................................................................2

Disclaimer............................................................................................................2

About This Manual ..............................................................................................3

Product Registration............................................................................................3

Rose Electronics Web Site..................................................................................3

Features...........................................................................................................4

Package Contents ...........................................................................................4

CrystalView DVI Mini Models..............................................................................5

Compatibility ....................................................................................................9

Unit Installation..................................................................................................10

Single head (USB-HID model) Installation ....................................................10

Dual head (USB-HID model) Installation.......................................................11

Single head (USB-2.0 model) Installation......................................................12

Dual head (USB-2.0 model) Installation ........................................................13

Dip Switch Settings........................................................................................14

Command Mode................................................................................................16

DDC Information............................................................................................17

Compatibility Information...............................................................................18

System Operation..............................................................................................18

Troubleshooting.................................................................................................19

Product Safety...................................................................................................21

Figures PAGE #

Figure 1. Single Head USB HID Model...............................................................5

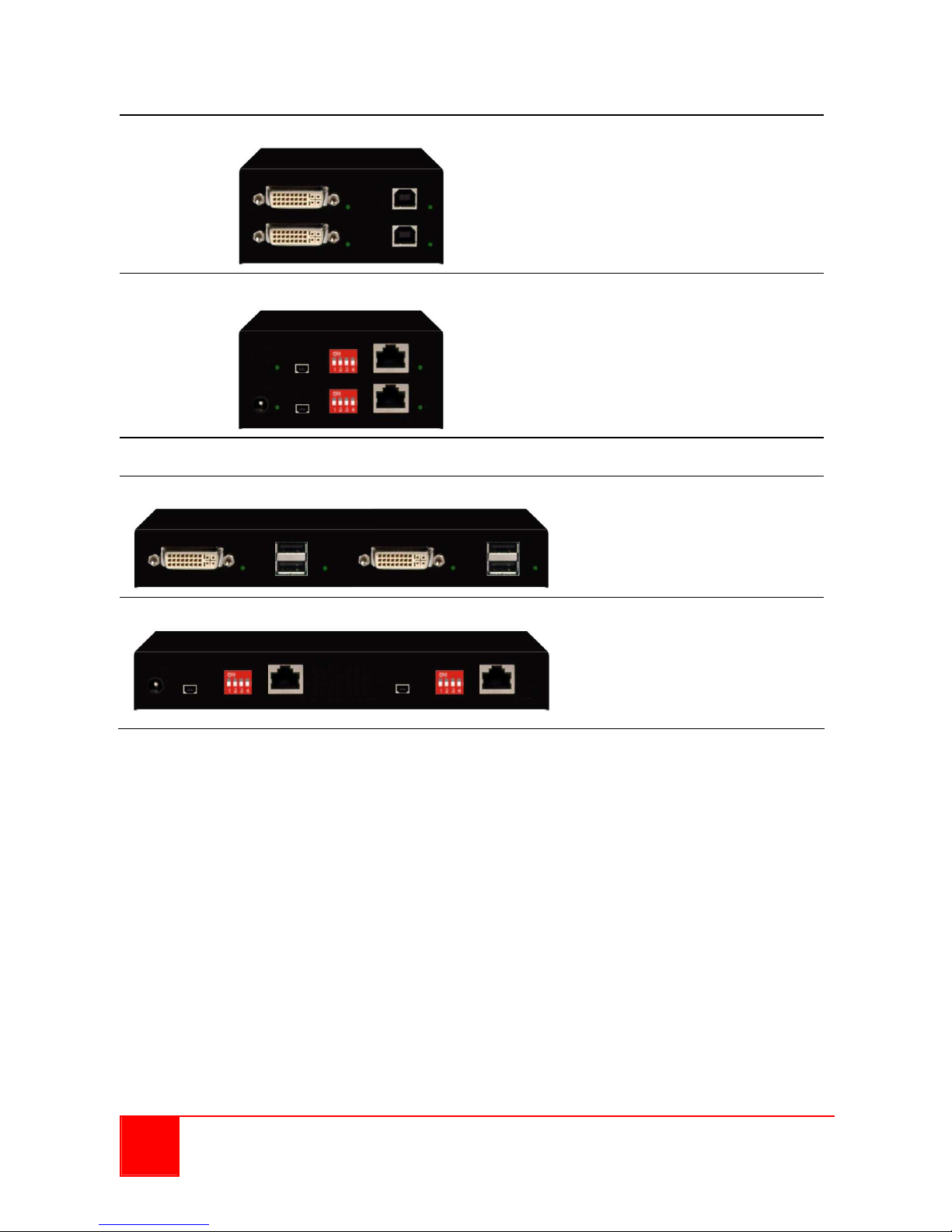

Figure 2. Dual head USB HID Model ..................................................................6

Figure 3. Single head USB 2.0............................................................................7

Figure 4. Dual head USB 2.0 Model....................................................................8

Figure 5. Single head Installation (USB-HID)....................................................10

Figure 6. Dual head Installation (USB-HID) ......................................................11

Figure 7. Single head Installation (USB-2.0).....................................................12

Figure 8. Dual head Installation (USB-2.0) .......................................................13

Figure 9. Transmitter Dip switch settings..........................................................14

Appendices PAGE #

Appendix A - Specifications...............................................................................23

Appendix B – Parts and Cables ........................................................................24

Appendix C - Diagnostics..................................................................................25

INTRODUCTION

2 CrystalView DVI Mini Installation and Operations Manual

System Introduction

Thank you for choosing the Rose Electronics



CrystalViewDVI Mini KVM

station extender. The CrystalView DVI Mini is the result of Rose Electronics

commitment to providing state-of-the-art solutions for today’s demanding

workplace. The CrystalView DVI Mini has proven to be a valuable investment

for any business, big or small, that has a need to access their computer from a

remote location. Using the CrystalView DVI Mini, you can locate the remote

user station up to 165ft. (50m) away and have full control of the computer.

The CrystalView DVI Mini is available in four models; single and dual head, HID

USB and single and dual head USB 2.0 transparent. The dual head model

allows a second video input to be connected to the transmitter unit.

The CrystalView DVI Mini system consists of two Units, a transmitter and a

receiver unit. The transmitter connects to your computer’s DVI-D SingleLink

graphic card and a USB Type A port. The receiver unit connects to a USB

keyboard, DVI video monitor and a USB mouse. The transmitter and receiver

units are connected together with industry standard CATx S/UTP cable

terminated with RJ45 connectors. All models can extend the distance from the

CPU up to 165 feet. CAT-x cable can be ordered from Rose Electronics in 25-

1,000 foot lengths.

Using the CrystalView DVI Mini to remotely access your computer has several

applications that make it convenient for the users. You can locate your

computer in a secure area and access them from other unsecured areas.

Computers used in hazardous industrial environments can be accessed

remotely, keeping the users safe and unexposed to any hazards.

Disclaimer

While every precaution has been taken in the preparation of this manual, the

manufacturer assumes no responsibility for errors or omissions. Neither does

the manufacturer assume any liability for damages resulting from the use of the

information contained herein. The manufacturer reserves the right to change

the specifications, functions, or circuitry of the product without notice.

The manufacturer cannot accept liability for damages due to misuse of the

product or other circumstances outside the manufacturer’s control. The

manufacturer will not be responsible for any loss, damage, or injury arising

directly or indirectly from the use of this product.

INTRODUCTION

CrystalView DVI Mini Installation and Operations Manual 3

About This Manual

This manual covers the installation, configuration, and the operation of the

CrystalView DVI Mini extender system. The system consists of a transmitter

and receiver units, a computer to remotely access, and a remote KVM user

station for remote access to the computer. The “Model” section describes the

front and rear panel of the transmitter and receiver units. The “Installation”

section describes how all components are interconnected and configured.

Product Registration

Rose Electronics Web Site

Visit our web site at www.rose.com for additional information on the

CrystalView DVI Mini and other products designed for data center applications,

classroom environments, and many other applications.

www.rose.com/htm/online-registrationform.htm

4 CrystalView DVI Mini Installation and Operations Manual

Features



Single-Link - single or dual head models available



Single head supports:

1 DVI-D graphic card and 2 USB HID devices or

1 DVI-D graphic card and USB 2.0 devices



Dual head supports:

2 DVI-D graphic cards and 2 USB HID devices or

2 DVI-D graphic cards, 2 HID devices, and USB 2.0 devices



Supports all operating systems and computers with a DVI-D graphic

interface (uncompressed)



Video resolutions up to: (Solid core AWG24 CATx cable)



1920 x 1200 @ 130 feet (40 meters)



1920 x 1080 @ 130 feet (40 meters)



1600 x 1200 @ 130 feet (40 meters)



1280 x 1024 @ 165 feet (50 meters)

NOTE: Using AWG 26/8 patch cable will reduce the distance by

approximately 50%.



No video quality degradation at all resolutions



Use the internal EDID configuration or DDC information from the remote

monitor



Supports USB keyboards, mice and other HID devices like touch screens

and graphic tablets



The USB 2.0 models supports scanners, web cams, memory devices, and

other USB 2.0 devices



Selectable CATx cable length settings provides for the best, clearest image



Automatic or manual resolution configuration



Firmware upgradeable



Rackmount kits available

Package Contents



CrystalView DVI Mini Transmitter and Receiver as ordered



2 – 5VDC international power adapter units



2 – Power cords



1 – DVI-D mm video cable

(2 cables included with the dual head model)



1 – USB cable (Type A to Type B)

(2 cables included with the dual head model)



Installation Guide

MODELS

CrystalView DVI Mini Installation and Operations Manual 5

CrystalView DVI Mini Models

The CrystalView DVI Mini is available in the following models:

Single head USB HID – part number CRK

CRKCRK

CRK-

-M1DTXUD1D

M1DTXUD1DM1DTXUD1D

M1DTXUD1D

Transmitter - Front View

DVI-D video input

USB Type B

Transmitter - Rear View

Power +5VDC

Programming port

Configuration Dip switches

RJ45

Receiver – Front View

DVI-I video output

2 – USB HID Type A

Receiver – Rear View

Power +5VDC

Programming port

Configuration Dip switches

RJ45

Figure 1. Single Head USB HID Model

6 CrystalView DVI Mini Installation and Operations Manual

Dual head USB HID – part number CRK

CRKCRK

CRK-

-M1DTXUD2D

M1DTXUD2DM1DTXUD2D

M1DTXUD2D

Transmitter - Front View

2-DVI-D video input

2-USB Type B

Transmitter - Rear View

Power +5VDC Option

2-Programming ports

2- Configuration Dip

switches

2-RJ45 connectors

Receiver – Front View

2-DVI-I video outputs

4-USB HID Type A

Receiver – Rear View

Power +5VDC

2-Programming ports

2-Configuration Dip

switches

2-RJ45 Link

Figure 2. Dual head USB HID Model

NOTE: Single and Dual head USB-HID models support two and only two

USB-HID devices.

Andere Handbücher für CrystalView DVI Mini

Inhaltsverzeichnis

Andere Rose electronics Extender Handbücher

Rose electronics

Rose electronics CrystalView USB2 Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Exact Bedienungsanleitung

Rose electronics

Rose electronics CRK-1DFMPDVI/SF Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Bedienungsanleitung

Rose electronics

Rose electronics Orion XTender OT2-SLDTXUD1D Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI Quad Einrichtungshandbuch

Rose electronics

Rose electronics CrystalView DVI Plus Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI EX Bedienungsanleitung

Rose electronics

Rose electronics CLK-4U2FM-500M Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink CLK-4U2FMB-500M Bedienungsanleitung

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Bedienungsanleitung

Rose electronics

Rose electronics CrystalView EX HDMI Multi CRV-SRDTXT2D-2T-HD6... Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI Fiber CRK-2DFMPD1D Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CAT5 Rack CRV-12SLP Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink CLK-1U1TP-40M Bedienungsanleitung

Rose electronics

Rose electronics CRK-1P1V Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Plus Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CAT5 Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Rack CRV-12SLP Betriebsanleitung

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Bedienungsanleitung

Rose electronics

Rose electronics Xcion XCK-2DTXUD1D Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CrystalView TWISTED PAIR KVM... Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI CAT Series Bedienungsanleitung

Rose electronics

Rose electronics CrystalView EX5 Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
