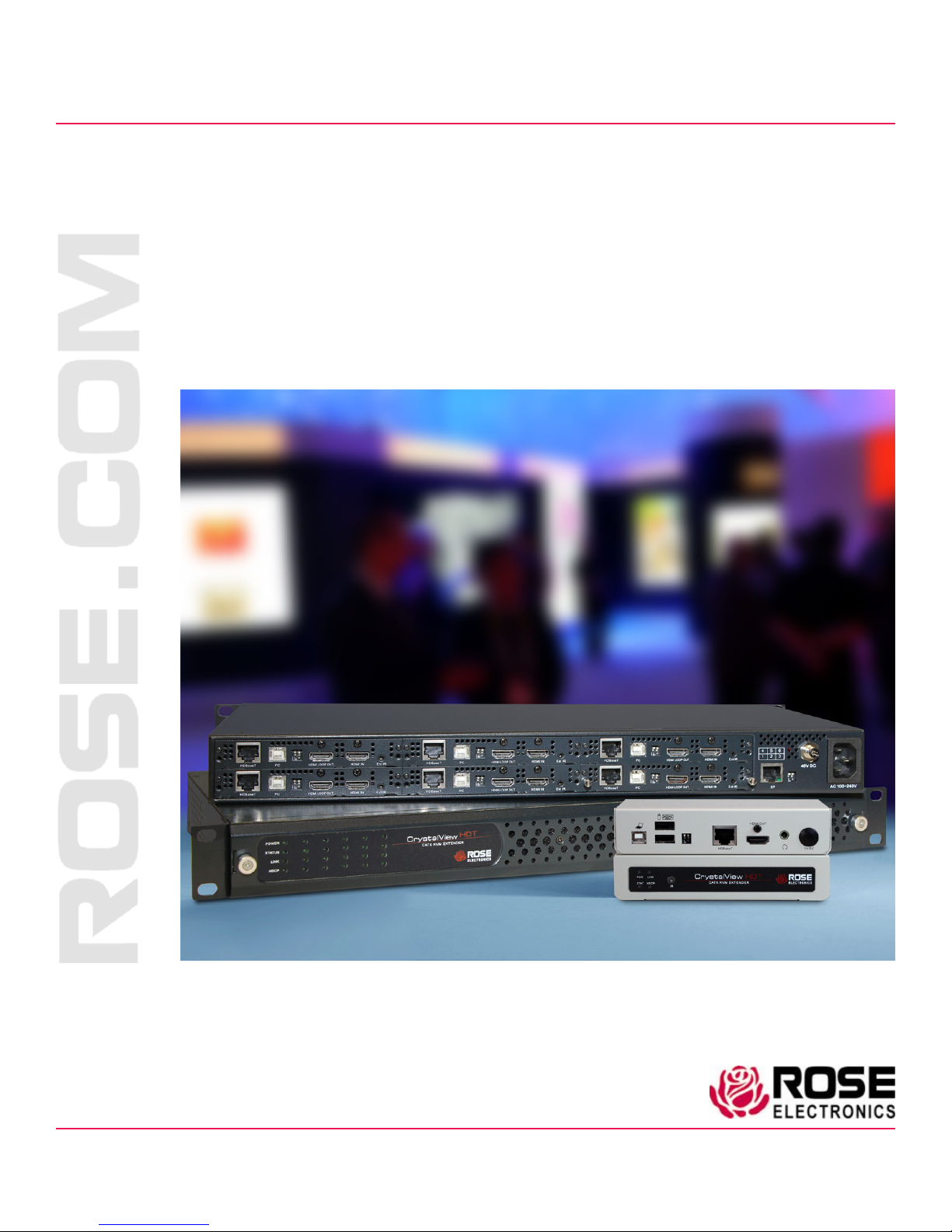

Rose electronics CrystalView HDT Bedienungsanleitung

CrystalView HDT

Modular CATx Extender • HDMI/VGA/USB

-HID/IR

Installation

and

Operation Manual

10707 Stancliff Road

Houston,

Texas 77099

Phone: (281) 933-7673

[email protected]

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and

recording, without the prior written permission of Rose Electronics.

manual-crystalview-hdt-2017-04-11

Rose Electronics warrants the CrystalView HDT to be in good working order for one year from the date of

purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at

any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as

set forth below. Repair parts and replacement units will be either reconditioned or new. All replaced parts

become the property of Rose Electronics. This limited warranty does not include service to repair damage to

the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit, including static

discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose

Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,

you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the

warranty service location, and to use the original shipping container or its equivalent. You must call for a return

authorization number first. Under no circumstances will a unit be accepted without a return authorization

number. Contact an authorized repair center or Rose Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A

PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS

OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE REMEDY

SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE

ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST

SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR

THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER

PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE.

DECLARATIONS OF CONFORMITY

This is to certify that, when installed and used according to the instructions in this manual, together with the

specified cables and the maximum CPU cable length < 3m, the Units listed in Appendix B are shielded against

the generation of radio interferences in accordance with the application of Council Directive 2004/108/EC as

well as these standards:

■EN 55022: 2010 Class A for Transmitters and EN 55022: 2010 Class B for Receivers

■EN 61000-3-2: 2006+A2: 2009

■EN 61000-3-3: 2008

■EN 55024: 2010

The CrystalView HDT Transmitter has been found to comply with the limits for a Class A digital device, and the

Receiver to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interference at their own expense.

The equipment complies with Australia’s and New Zealand’s standards for radio interference, and bears the

C-Tick mark accordingly.

TABLE OF CONTENTS

Contents

Disclaimer 1

System Introduction 1

Features 2

Compatibility 2

Package contents 2

CrystalView HDT Models 3

Transmitter Chassis Front and Rear Panels 3

Receiver Front and Rear Panels 5

Installation 6

Basic Setup When Connecting to a Computer 6

Basic Setup When Connecting to a Video Player 7

Operation 8

Video Image adjustment with VGA input sources 8

Volume Control When Using Headphones 8

Safety 9

Maintenance and Repair 10

Technical Support 10

Figures

Figure 1. CrystalView HDT Transmitter Front and Rear Panels 3

Figure 2. CrystalView HDT Receiver Front and Rear Panels 5

Figure 3.Basic Setup When Connecting to a Computer 6

Figure 4. Basic Setup When Connecting to a Video Player’ 7

Tables

Table 1. Compatible Hardware 2

Table 2. Video Image Adjustment Hotkeys 8

Table 3. Volume Control Hotkeys 8

Appendices

Appendix A – Specifications 11

Appendix B – Part Numbers 12

INTRODUCTION

CrystalView HDT Manual 1

Disclaimer

While every precaution has been taken in the preparation of this manual, the manufacturer assumes no

responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer reserves the right to change the

specifications, functions, circuitry of the product, and manual content at any time without notice.

The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances

outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury

arising directly or indirectly from the use of this product. (See limited warranty)

System Introduction

Thank you for choosing Rose Electronics CrystalView HDT. The CrystalView HDT is a standalone device (rack

mountable) which extends HDMI/VGA video signals from connected devices up to 328 ft. (100 m) at

resolutions up to1080p without compression. The Receiver consoles can use USB keyboard and mouse or

Infrared Remotes to control the source devices. CrystalView HDT also supports most USB HID touchscreens.

Incorporating the latest HDMI®technology, the CrystalView HDT transmitter chassis can house from 1 to 6

modular HDMI or VGA input cards. HDMI cards support both 8-bit and 10-bit deep color. VGA cards convert

analog VGA signals and analog stereo audio to HDMI for local monitoring and transmission to Receivers.

CrystalView HDT supports VESA DDC, display Hot-Plug Detect, and HDCP 1.3

In addition to the internal AC power supply, a redundant 48V DC power supply is available for the transmitter

chassis. The Chassis transmitter cards use PoE (Power over Ethernet) technology to supply power to remote

Receivers through the CATx cables. No power adapters are required at the remote locations.

CrystalView HDT Receivers provide a stereo audio output for monitoring (audio in PCM output). Dolby®

TrueHD and DTS-HD Master Audio are passed through to HDMI outputs.

Wake-on-LAN software can be used to turn on or wake up computers connected to CrystalView HDT.

QV Link Software Utility can be used with a laptop computer to provide keyboard and mouse control at the

remote Receiver, instead of a standalone USB keyboard and mouse.

CrystalView HDT Manual 2

Features

■Supports HDMI, VGA video input up to 1080p resolution

■Supports DVI video input with a DVI to HDMI converter

■HDMI Output resolutions to 1080p

■Converts VGA and analog audio input to HDMI for local or remote monitoring

■Receivers are powered via the CATx cable (Power over Ethernet)

■USB keyboard/mouse and HID touchscreen support

■Dolby®TrueHD and DTS-HD Master Audio passed through to HDMI outputs

■1U chassis can house up to 6 HDMI or VGA transmitter cards

■Monitor hot plug detection and DDC support

■Infrared remote controller support (30 to 56 kHz)

■AC internal power supply with optional DC redundant power supply

■HDCP 1.3 compliant

■Connected computers can be started by Wake On LAN network software

Compatibility

Hardware

Operating Systems All operating systems

Video HDMI or VGA video input, HDMI video output

Keyboard USB keyboards

Mouse USB mice

Touchscreen USB HID touchscreens

Audio Compatible with devices which output either analog or digital audio

Table 1. Compatible Hardware

Package contents

The package contents consist of the following:

■CrystalView HDT transmitter chassis with HDMI or VGA transmitter cards installed as ordered

■CrystalView HDT receiver(s)

■Power Supply Cord

■Manual

Additional cables can be ordered separately. If the package contents are not correct, contact Rose Electronics

or your reseller so the problem can be quickly resolved.

MODELS

CrystalView HDT Manual 3

CrystalView HDT Models

The CrystalView HDT Transmitter chassis comes in a single model which can house from 1 to 6 HDMI or VGA

transmitter cards. The following figures show the indicators and connectors on a fully equipped chassis.

Transmitter Chassis Front and Rear Panels

Figure 1. CrystalView HDT Transmitter Front and Rear Panels

CrystalView HDT Manual 4

Indicators and Connectors

1. Release Knobs: Turn the knobs counter-clockwise to loosen and clockwise to secure the front panel to

the chassis.

2. Indicators:



PWR: Glows green when a card is installed in the indicated slot and power is applied.



STAT: Glows green when a card in the indicated slot is connected to a computer.



LINK: Glows green when a card in the indicated slot is connected to a remote Receiver.



HDCP: Glows green when the video signal includes HDCP encryption. Blinks green when the

video signal is not encrypted

3. Release Screw: Turn the screw counter-clockwise to loosen and clockwise to secure the front panel to

the chassis.

4. HDMI local: Connects to a local HDMI display.

5. VGA input: Connects to VGA and analog audio source using a proprietary cable.

6. HDBaseT RJ-45: Connects to a remote CrystalView HDT Receiver via CAT5e/6 cable.

7. USB- B: Connects to a computer source via USB- A/B cable.

8. Dip Switches: For firmware upgrades.

9. HDMI local: Connects to an HDMI display.

10. HDMI input: Accepts HDMI video/audio input.

11. External IR: Connects to IR Blaster used to transmit IR Controller signals to video device.

12. Ethernet RJ-45: Connects to a computer running Wake-On-LAN software.

13. Dip Switches: For resetting the Wake-On-LAN IP address to the default (192.168.1.31).

14. DC Power: Connects to optional 48 V DC power supply.

15. AC Power: Connects to the AC power cord.

CrystalView HDT Manual 5

Receiver Front and Rear Panels

Figure 2. CrystalView HDT Receiver Front and Rear Panels

Indicators and Connectors

1. Indicators:



PWR: Glows green when the receiver is powered on.



STAT: Glows green when the Receiver detects the transmitter card is connected to a computer.



LINK: Glows green when the Receiver is connected to a powered transmitter card.



HDCP: Glows green when the video signal includes HDCP encryption. Blinks green when the

video signal is not encrypted

2. IR Receiver: Receives infrared signal from an IR- device for wireless remote control.

3. USB-B: Connects to a laptop computer for keyboard and mouse control using QV Link software.

4. USB-A: Connects to a USB keyboard and mouse.

5. Dip Switches: Used to perform firmware upgrades.

6. HDBaseT RJ-45: Connects to a CrystalView HDT Transmitter card via CAT5e/6 cable.

7. HDMI Output: Connects to an HDMI monitor for digital video and audio.

8. Audio Output: Connects to headphones.

INSTALLATION AND OPERATION

CrystalView HDT Manual 6

Installation

The installation of the CrystalView HDT is quick and simple. This section of the manual describes how to

connect the CrystalView HDT to computers and video equipment. While the steps given here need not be

followed in any particular order, it is recommended that power is applied to the unit as a final step.

Basic Setup When Connecting to a Computer

The following figure shows a typical setup of CrystalView HDT Transmitter and Receiver connected to a

remote computer.

Figure 3.Basic Setup When Connecting to a Computer

Up to six computers can be connected to a fully populated CrystalView HDT Transmitter chassis. Please note

that the transmitter cards are numbered from lower left to upper right.Make all connections prior to applying

power to the Transmitter chassis.

■If the computer supports HDMI video, connect an HDMI cable between the computer’s HDMI output and

the HDMI input on an HDMI transmitter card.

■If the computer supports VGA video, connect the proprietary VGA with audio cable to the Computer’s

HD15 VGA connector and analog audio output jack. Plug the other end of the cable to the HD15 connector

on a VGA transmitter card.

■Using a USB Type A to Type B cable, connect a computer’s Type A USB port to the Type B USB port of

the same transmitter card.

■If a video monitor is desired near the video source, connect an HDMI monitor to the Transmitter Card

connector labeled HDMI Loop Out.

■Connect a Cat5e/6 Cable between the transmitter card’s RJ-45 connector (labeled HDBaseT) and the

RJ-45 connector on the remote Receiver.

■Connect an HDMI monitor and a keyboard and mouse to the remote receiver. Though digital audio will be

routed to the HDMI display, there is also an audio monitor jack on the receiver suitable for headphones.

■If desired, keyboard and mouse control can be supplied by a laptop computer running the QV Link

program. Using a USB Type A to Type B cable, connect the laptop computer’s Type A USB port to the

Type B USB port of the remote Receiver

■Apply power to the monitors, the transmitter chassis, and the computer.

Andere Handbücher für CrystalView HDT

Inhaltsverzeichnis

Andere Rose electronics Extender Handbücher

Rose electronics

Rose electronics CRK-2DTPPDVI Bedienungsanleitung

Rose electronics

Rose electronics Xcion XCK-2DTXUD1D Bedienungsanleitung

Rose electronics

Rose electronics CLK-4U2TP-100M Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink CAT5 Serial Bedienungsanleitung

Rose electronics

Rose electronics CrystalView EX HDMI Multi CRV-SRDTXT2D-2T-HD6... Bedienungsanleitung

Rose electronics

Rose electronics CrystalView EX5 Bedienungsanleitung

Rose electronics

Rose electronics CrystalView CRK-1DTXT-HD5 Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Extreme Bedienungsanleitung

Rose electronics

Rose electronics Cybernetech CLK-2U2TP-100M Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Rack CRV-12SLP Betriebsanleitung

Rose electronics

Rose electronics CrystalView DVI EX Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB3.1 Fiber Dual Port Bedienungsanleitung

Rose electronics

Rose electronics RJ45 Bedienungsanleitung

Rose electronics

Rose electronics CrystalView HDMI 4K60 Bedienungsanleitung

Rose electronics

Rose electronics CrystalView DVI Fiber CRK-2DFMPD1D Bedienungsanleitung

Rose electronics

Rose electronics CRK-T1DFXDM-DLT Bedienungsanleitung

Rose electronics

Rose electronics UltraLink 2 Bedienungsanleitung

Rose electronics

Rose electronics CRK-1P1V Bedienungsanleitung

Rose electronics

Rose electronics CrystalLink USB Fiber Bedienungsanleitung

Rose electronics

Rose electronics CRV-DLDFMPDVI Bedienungsanleitung

Rose electronics

Rose electronics CrystalView Bedienungsanleitung

Rose electronics

Rose electronics CrystalView EX DVI Multi CRK-1DTXT2DM-2T-EX6 Bedienungsanleitung

Rose electronics

Rose electronics ORION Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
