Audio Control Module

Installation and Setup

The Audio Control is available as a stand-alone module

installed in a SideBox, or as an addition to your existing

control panel. If yourAudio Control module is installed

into a SideBox, you can move on to setting up the

module.

Note: The switcher supports a maximum of four (4) Audio

Control modules connected to a control panel.Two can be

installed inside the control panel, and two outside the control

panel.

Installing a Module

To install a module into the control panel, you must ﬁrst

remove the existing module, or blank cover plate, that is

installed in the module opening. After the module has

been removed, you must install and cable the new module

into the empty module opening.

To Remove a Module

1. Lift up the control panel lid and turn off all

power supplies in the control panel.

2. Disconnect the power supplies from mains

power.

3. Identify the module or blank cover plate that you

want to remove.

4. If you are removing a module, you must

disconnect the cables to the module.

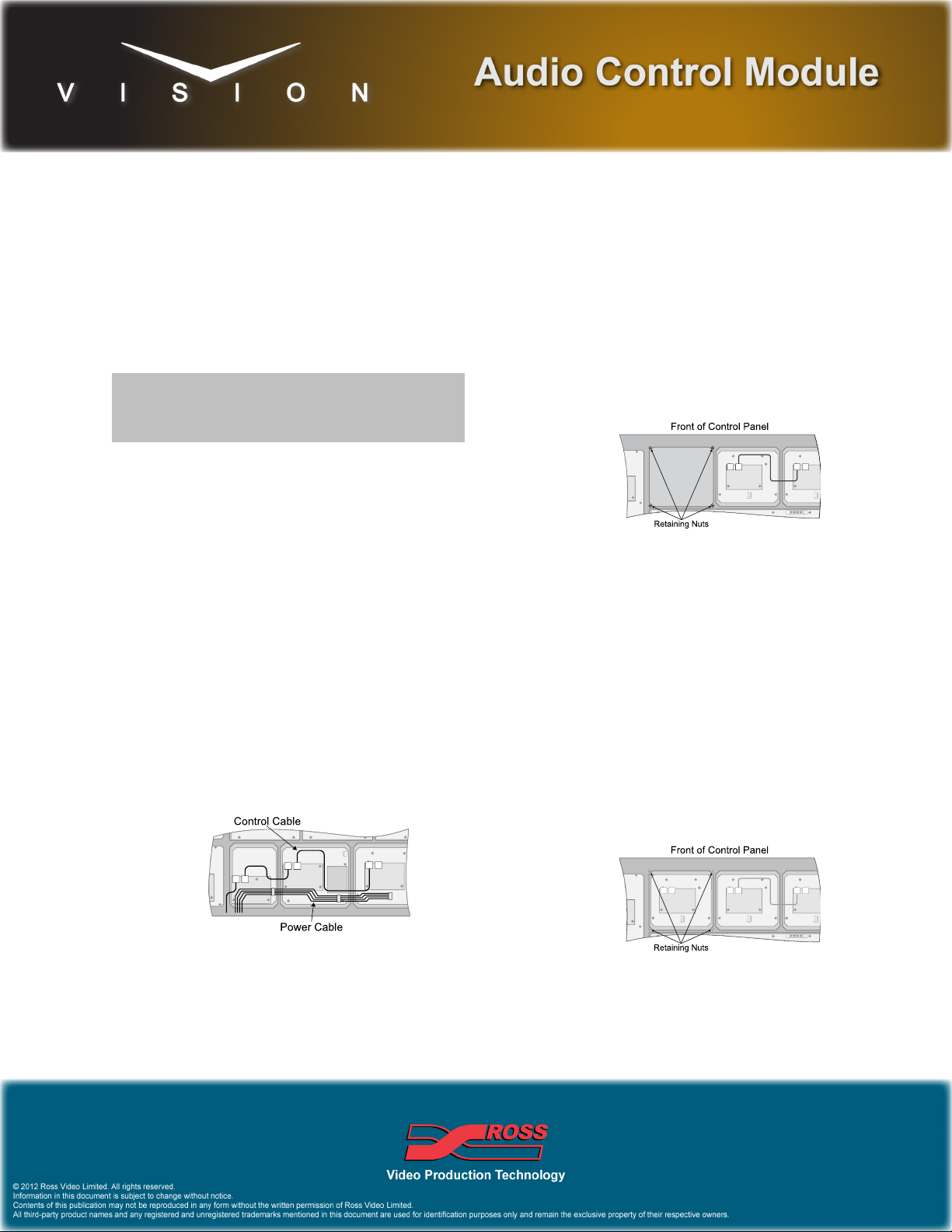

Figure 1: Module Cables

a) Disconnect the 4-conductor Module Power

Cable from the module.

This cable delivers power to all of the

modules in the row. When unplugging the

cable, ensure that you do not accidentally

unplug it from any neighbouring modules.

b) Disconnect both the CAT5 Module Control

Link Cables from the module.

This cable delivers all of the command signal

to and from the module, as well as other

modules in the same row.

5. Use a 1/4 inch hex driver to remove the four

Retaining Nuts located at each corner of the

module.

Figure 2: Remove Module Cover Plate

6. Remove the module or blank cover plate from

the control panel.

To Install a Module

1. Lift up the control panel lid and turn off all

power supplies in the control panel.

2. Disconnect the power supplies from mains

power.

3. Install the module into the control panel.

4. Use a 1/4 inch hex driver to install the four

Retaining Nuts located at each corner of the

module.

Figure 3: Install Module

5. Connect the cables to the module.

4800DR-356-01

Figure 4: Module Cables

a) Connect the 4-conductor Module Power

Cable to the module.

This cable delivers power to all of the

modules in the row. When connecting the

cable, ensure that you do not accidentally

unplug it from any neighbouring modules.

b) Connect both of the CAT5 Module Control

Link Cables to the module.

This cable delivers all of the command

signals to and from the module, as well as

other modules in the same row.

Module Setup

Each module must be set up for the panel row it is

assigned to, and the mapping for the ﬁrst crosspoint

button or fader on the module. Specialized modules, such

as the Audio Control module, require calibration when

they are ﬁrst installed.

To Upgrade a PMC

The Panel Module Controllers (PMCs) may need to be

upgraded if you perform a software upgrade or replace

a module. If PMCs need to be upgraded, the message

PMCs need to be upgraded; please go

to Panel Modules menu is displayed on the Main

Menu.

1. Press HOME > Setup > More > Panel

Modules.

A warning is displayed, asking you if you want

to enter the menu. Press Yes.

2. Press Upgrade PMCs.

To Map an Audio Module to a Panel Row

1. Press HOME > Setup > More > Panel

Modules.

A warning is displayed, asking you if you want

to enter the menu. Press Yes.

2. Press a button, or move a fader, on the module

you want to map.

The name of the module and the Link and Node

that the module is on are displayed. If the name

does not match the module you are installing,

ensure that another button on the panel is not

being pressed.

3. Press Panel Row & Crosspoint.

4. Use the Panel Row knob to select the panel

row that you want to assign the module to.You

can select either an internal row (Row 1 to Row

8) or an external row (Row 1 to Row 16).

5. Press Audiofader.

6. Use the First Fader knob to select the number

of the ﬁrst audio fader on the module you are

setting up.

Each Audio Control module has 8 audio faders,

the ﬁrst audio fader on module 1 is 1, the ﬁrst

audio fader on module 2 is 9.

To Calibrate an Audio Fader

1. Press HOME > Setup > Installation > More

> Calibration > ADC Calibration.

2. Move each audio fader from the top to bottom

limit. Repeat this for each audio fader on the

module.

3. Press Accept.
