ROYAL GOURMET SG4002 Bedienungsanleitung

[email protected]

Model: SG4002

Stainless Steel 4-Burner Gas Grill With Side Burner

www.royalgourmetusa.com

12

17

18

20

21

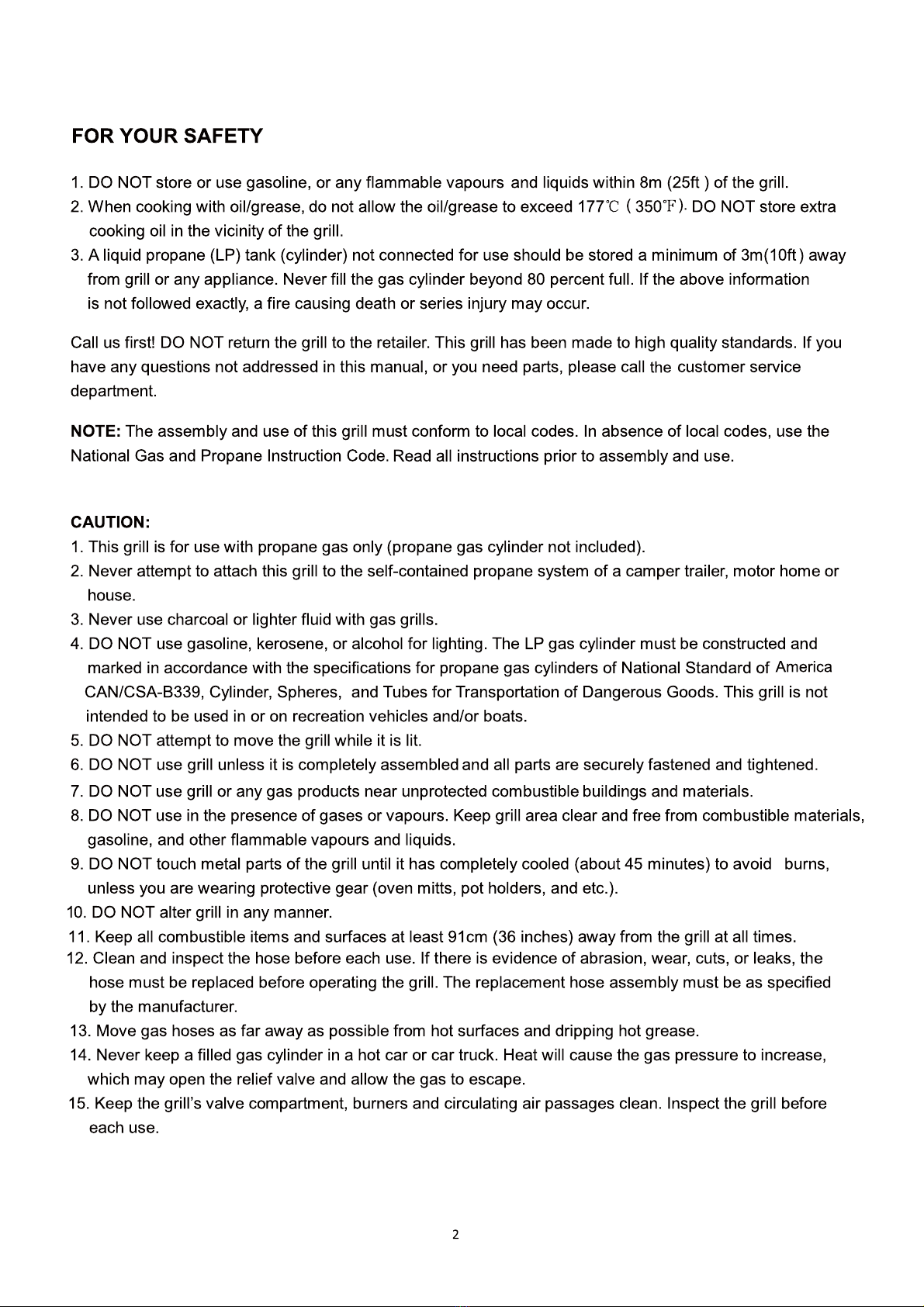

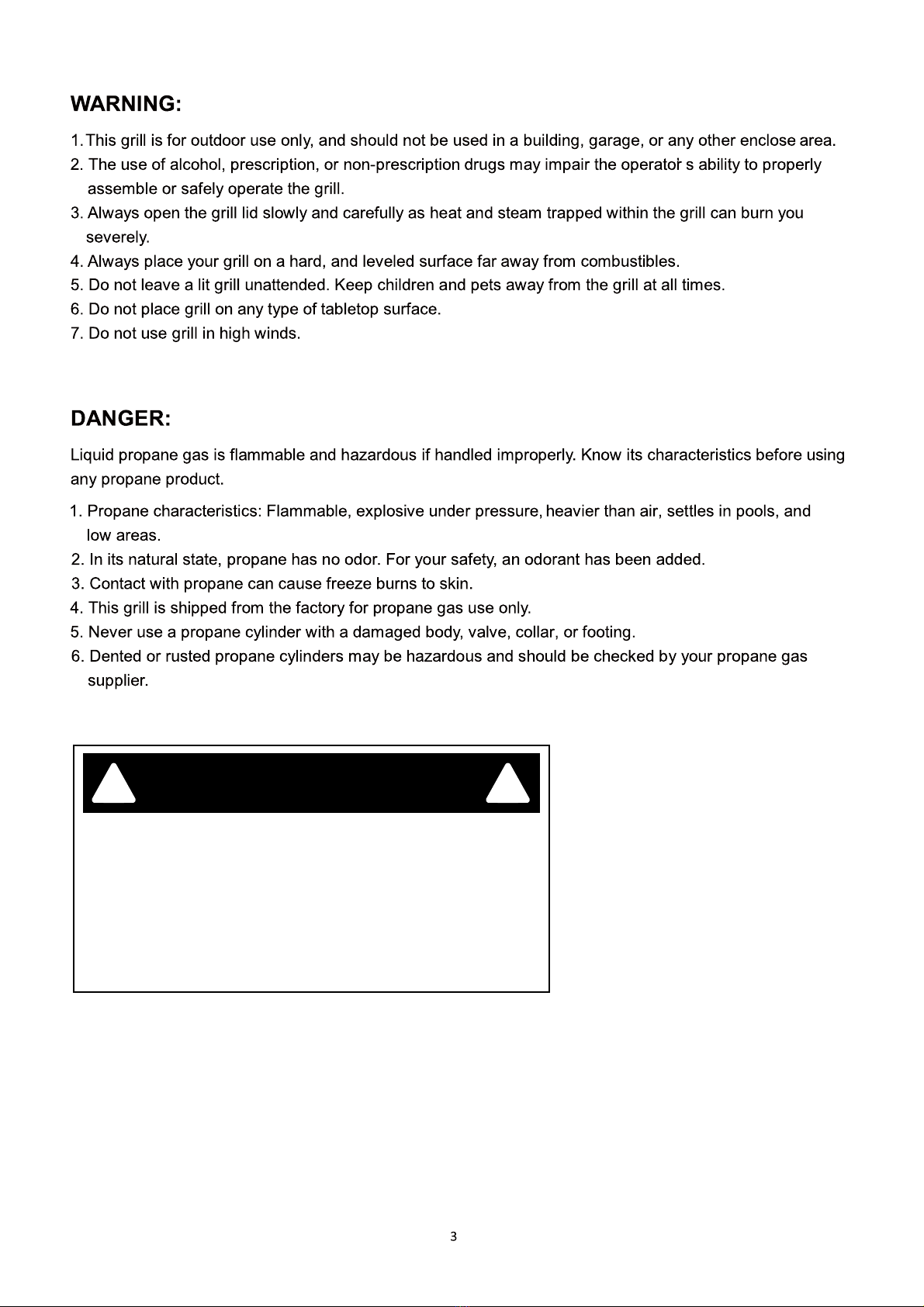

PROPOSITION 65 WARNING

1. Combustion by products produced when using this product contain chemicals known

to the State of California to cause cancer, birth defects, and other reproductive harm.

2. This product contains chemicals,including lead and lead compounds,known to the

State of California to cause cancer, birth defects or other reproductive harm.

Wash your hands after handling this product.

! !

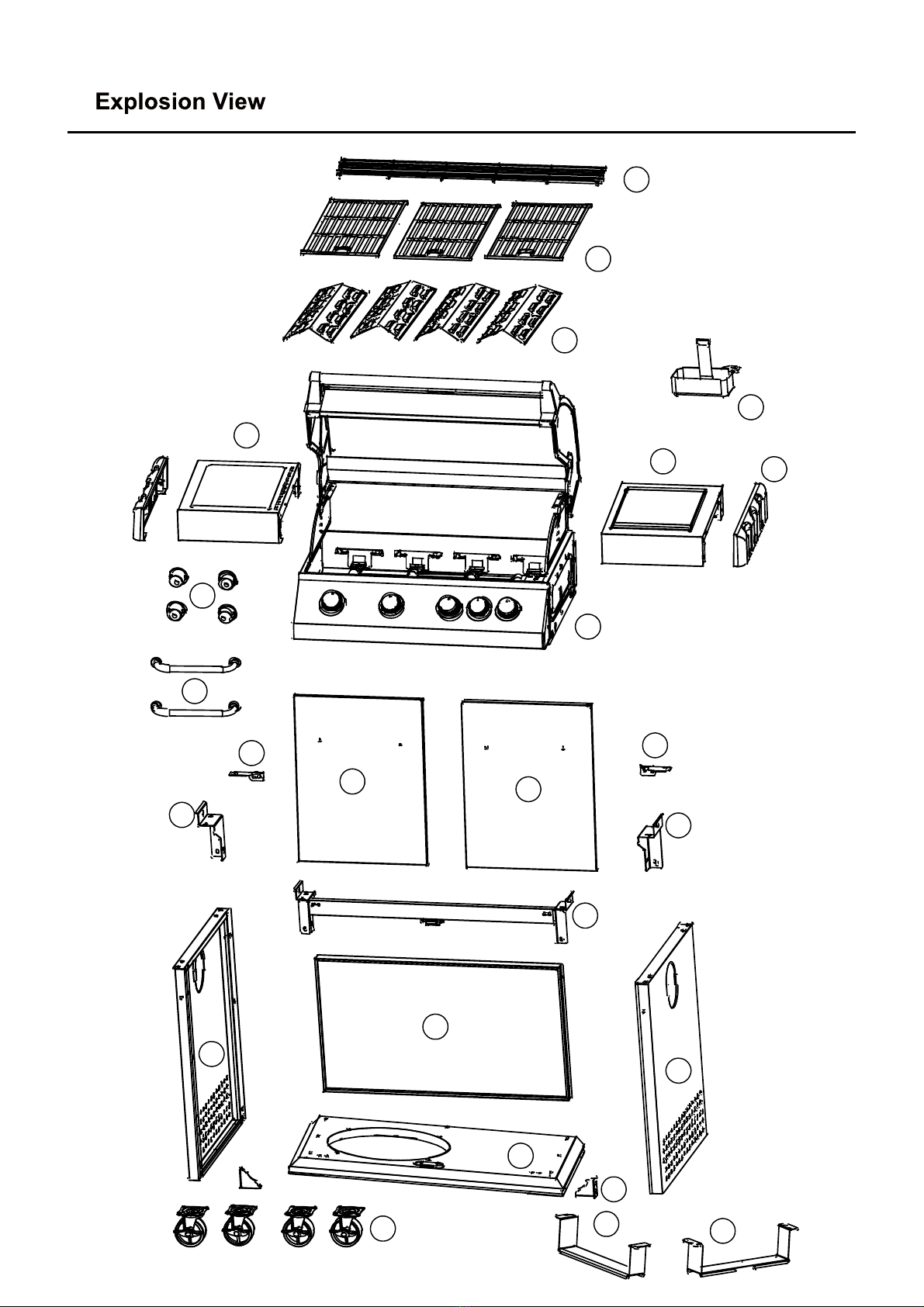

4

3

7

89

10

6

5

11

12

16

13

15

18

2

22

20

19

17

21

14

23 24

4

1

3

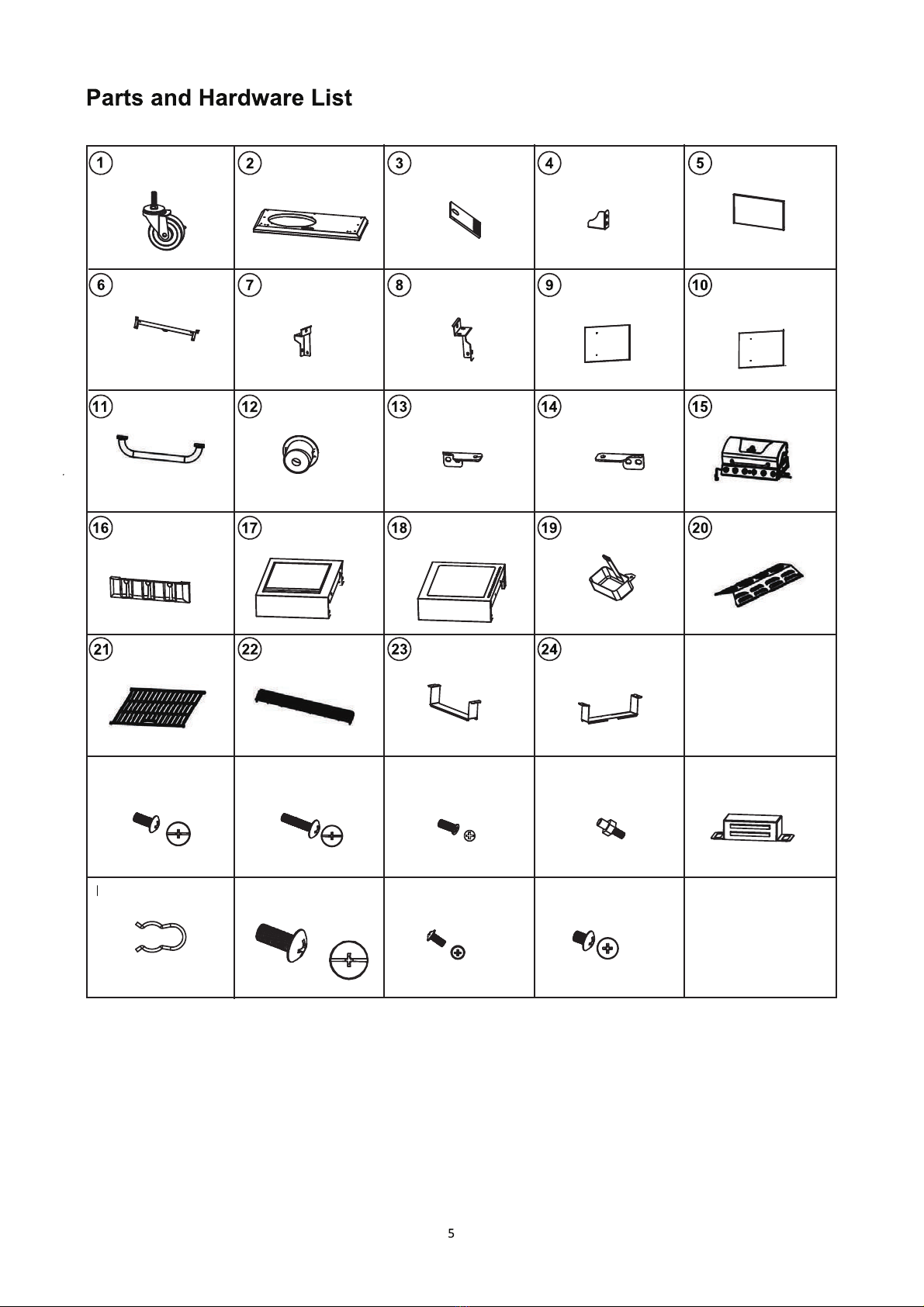

Cylinder holder A

1pc

Cylinder holder B

1pc

8pcs

Side shelf 2pcs Cart joint 2pcs Rear shelf

Cart beam Left cart jointRight cart joint Left door Right door

Right door joint

1pc

Left door joint 1pc 1pc

4pcs

3pcs

4pcs

Caster 4pcs Bottom shelf 1pc 1pc

1pc 1pc1pc 1pc 1pc

Door handle 2pcs Handle base 4pcs Main body

Side table

decoration

1pc Side table 1pc Side burner shelf

1pc

Grease cup 1pc Flame tamer(small)

Cooking grate(big) Warming rack 1pc

Bolt A

Pin F Bolt G

Bolt C Base D Magnet EM4x10 8pcs 1pc

M6x15

M5x10 55pcs Bolt B M5x20 8pcs

1pc 2pcs

Bolt H M4x8 8pcs

Bolt I M5x6

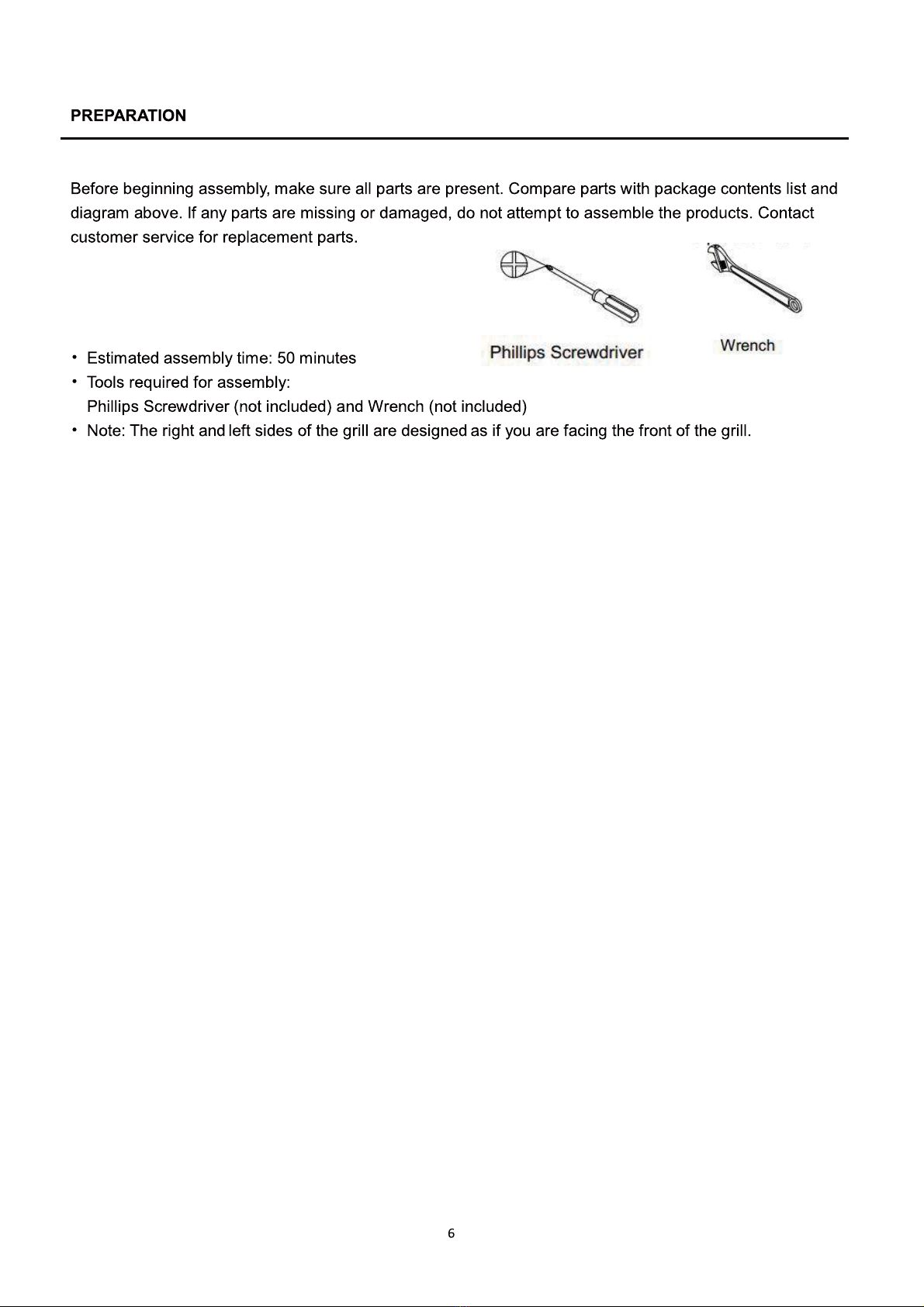

A

1

23

A

A

A

4

G

G

23 24

A

5

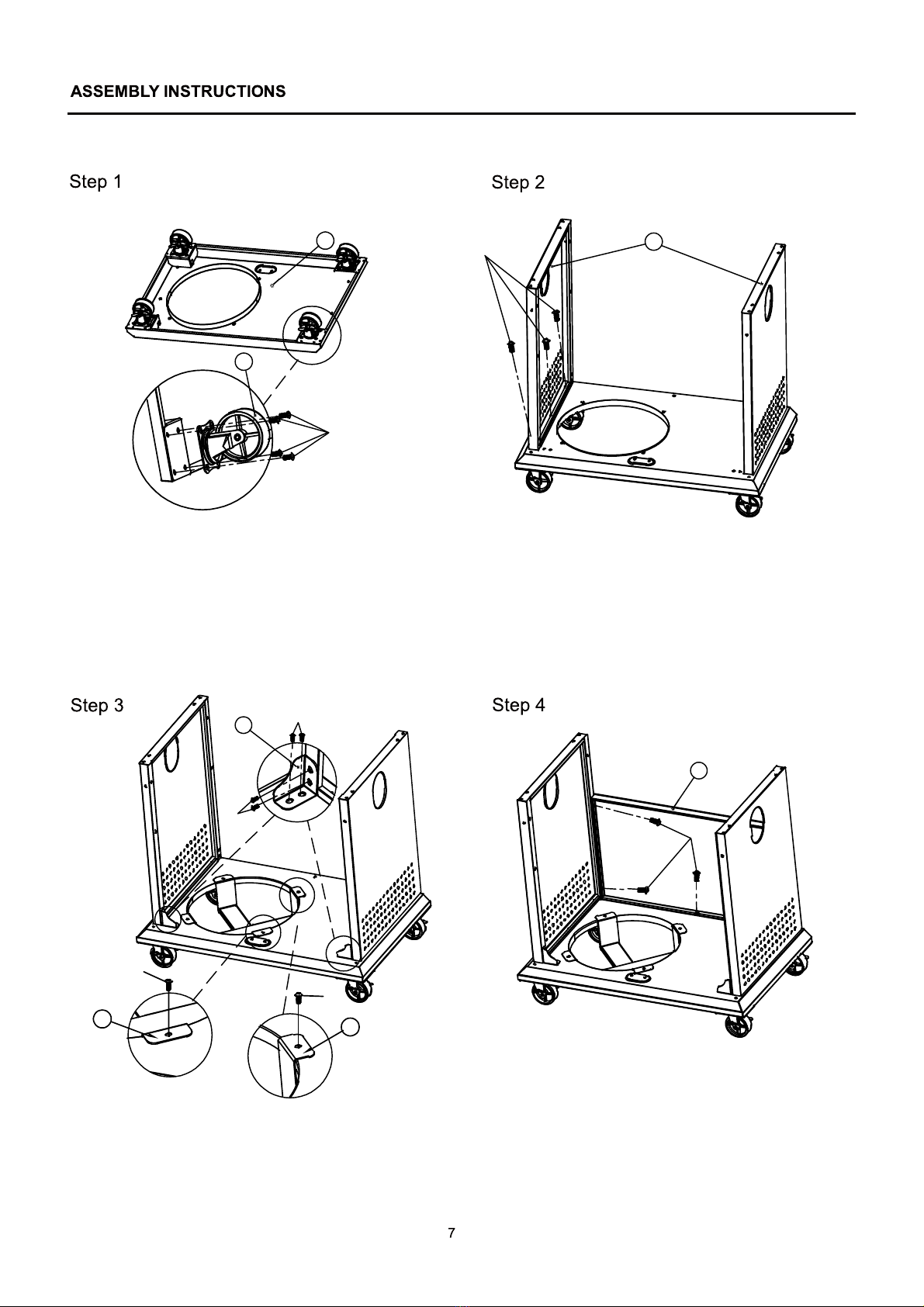

Assemble the caster (1) to the bottom shelf (2)

with 16 bolts (A) as shown.

Assemble the side shelves (3) to the bottom shelf

with 6 bolts (A).

Assemble the cart joint (4) to the bottom shelf and

side shelf with 8 bolts (A).

Assemble the rear shelf (5) to the bottom shelf

with 5 bolts (A).

Assemble the cylinder holder A and B ( 23 ，24)

with 4 bolts (G).

H

E

C

6

A

8

7

C

A

9

D

10

11

G

12

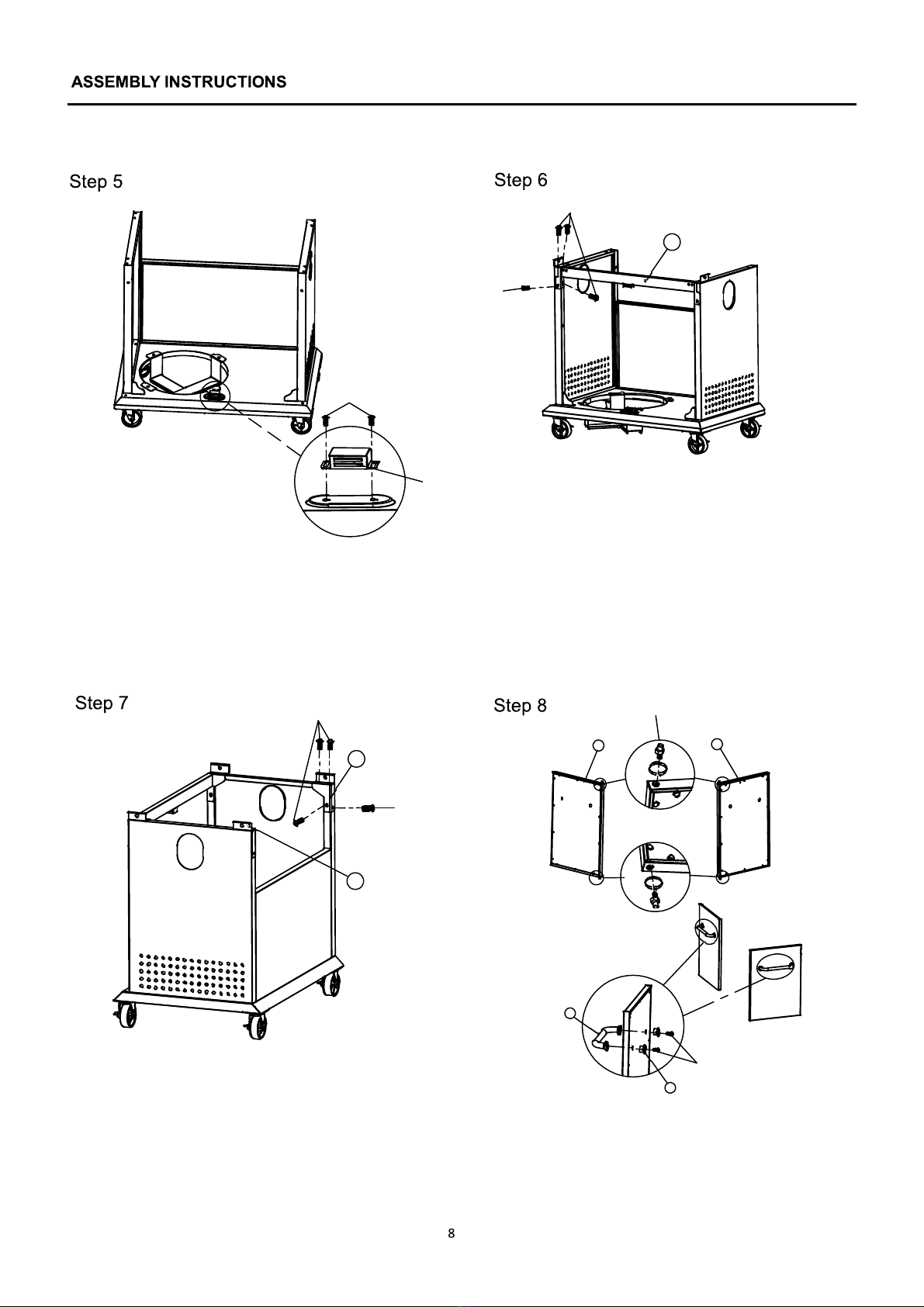

Assemble the magnet (E) to the bottom shelf

with 2 bolts (H).

Assemble the cart back beam (6) to side shelves

with 6 bolts (A) and 2 bolts (C) as shown..

Assemble the right cart joint (7) to right shelves

with 3 bolts (A) and 1 bolts (C).

Assemble the door handles (11) handle bases (12)

to left and tight door with 4 bolts (G).

Screw 4 (D) underneath the doors (9.10).

Assemble the left cart joint (8) to left shelves

with 3 bolts (A) and 1 bolts (C).

C

14 13

15

A

B

I18

I

16

17

16

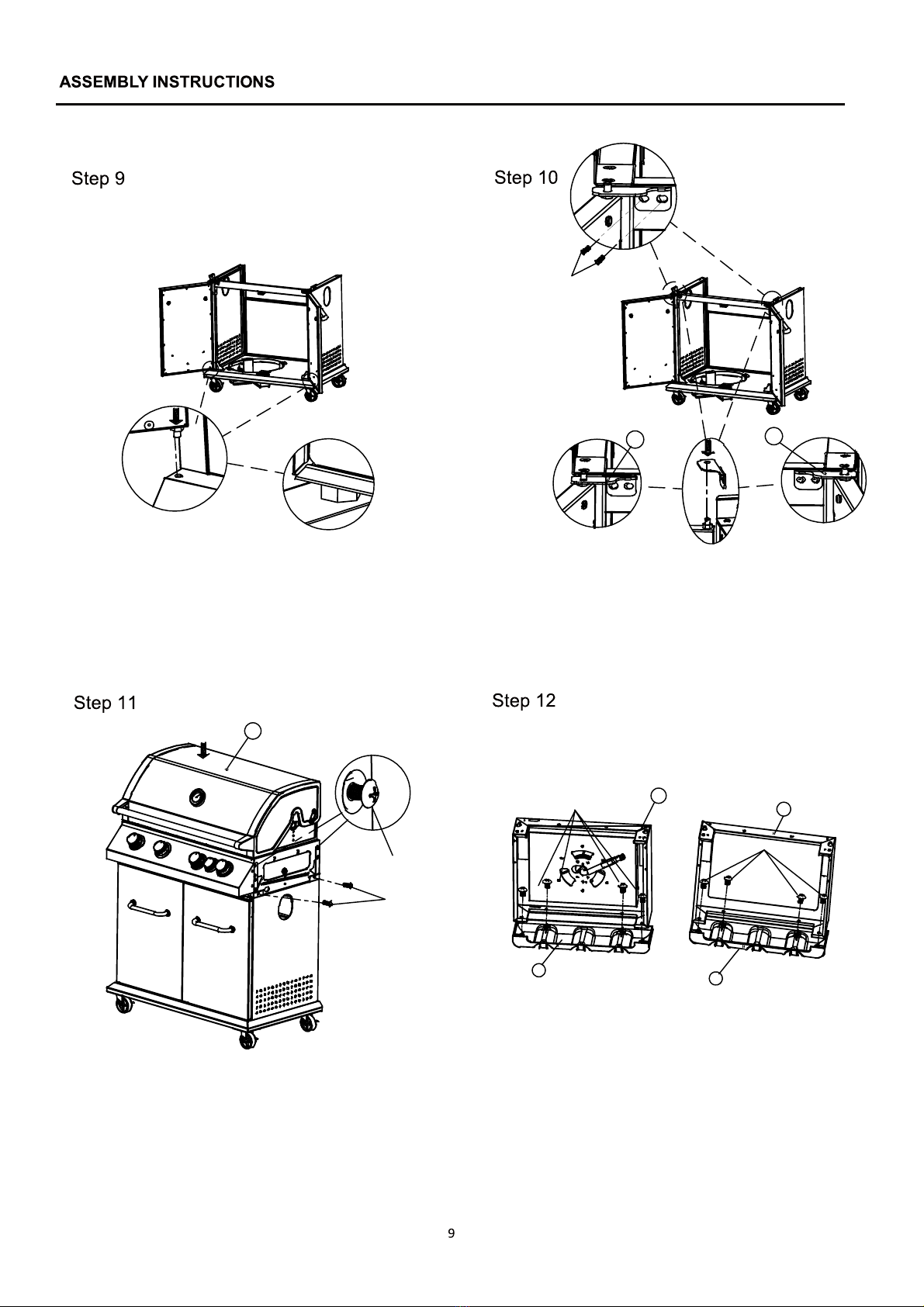

Insert the door spindle into the bottom shelf. Assemble the right left door joint (13,14) above

the door with 4 bolts (C) as shown.

Assemble the side table decoration (16) to the side

burner shelf (17) and side table(18) with 8 bolts (I).

Please note: release the hose of the side burner

and regulator under the control panel using scissors.

Then place the main body (15) to the cart,fasten

the right side of main body to cart brace with 4 bolts (A)

and 4 bolts (B).
